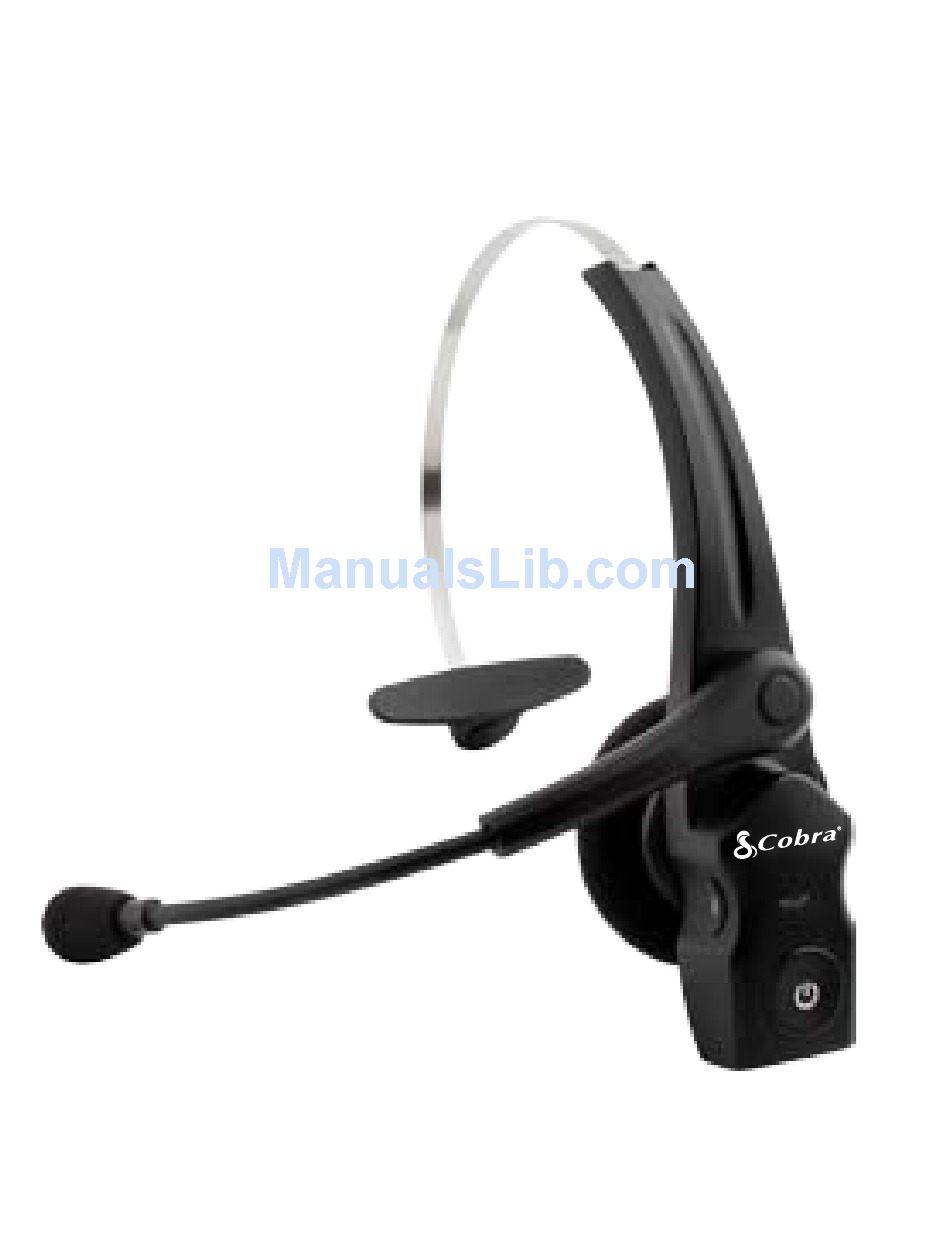

- Page 1 Bluetooth Headset User Guide ® CBTH1...
- Page 3 Index . Introduction 2. Package List 3. Product Illustration 4. Charging the Headset 5. Power On/ Off 6. Pairing the Headset (or any Bluetooth ® wireless device) 7. Wearing the Headset 8. Answering Incoming Calls 9. Refusing Incoming Calls 0. Ending Calls . Voice Dialing 2. Redialing 3. Transferring Calls Between Handset and Headset 4. Placing Calls On Hold 5. 3 Way Conference Calling 6. Adjusting the Volume 7. Safety Instruction 18. Specifications 9. Trouble Shooting 20. Headset Care 2. Q & A 22. Declaration of Conformity 23. Limited Warranty...
- Page 4 1. Notice before using Thank you for purchasing the Cobra Bluetooth ® Over the Head Headset CBTH. Your Cobra CBTH is a Bluetooth ® wireless technology device that enables a cable free connection between your Bluetooth ® wireless technology ® headset and Bluetooth wireless technology enabled handset. 2. Package List Please inspect your packaging contents and refer to the package list below to confirm that there is no shortages or defects. The packaging contents includes the following items: ► CBTH1 Bluetooth ® Wireless Headset.. ► User Guide..........1 ► Warranty Card.........1 ► USB Cable..........1 ► Home Charger.........1 ► Travel Charger (INPUT: AC100-240V, 50/ 60Hz, OUTPUT: DC5.1V, 300mA) ......1 If you find any shortage or defect, please contact your retailer where you purchased your Bluetooth ®...
-
Page 5: Product Illustration
3. Product Illustration 1. Multi-Function Button (Answer/End/On/Off) 2. Volume Up (+) 3. Indicator Light 4. Voume Down (-) 5. Charging Jack Port 6. Speaker (Receiver) 7. Microphone... - Page 6 4. Charging the Headset CBTH1 includes a rechargeable built-in Lithium Polymer battery. IMPORTANT: For first time use, charge the headset for at least 4 hours before pairing. 1. Insert the USB charging cable into the charging jack port located at the bottom of the headset. 2. Plug other end of USB charging cable into the home charger. 3. Plug home charger into a working electrical wall outlet. 4. During charging the indicator will glow a steady red light 5. When charging is complete (90-120 minutes), the indicator light will turn off or flash red. NOTE: ● Do not attempt to use headset while charging ● Only use the supplied chargers or original Cobra products to charge the headset ● When headset battery charge is low, the indicator light will flash red. ● Do not charge the headset for more than 24 hours ● Recharge headset only within a temperature range of 14 F to 5. Power On/Off 1. To power on, press and hold the multi-function button for 4+ seconds, the power will turn on after the indicator flashes a blue light 3 times (the blue light will continously flash every...
- Page 7 3 seconds). 2. To power off, press and hold the multi-function button for 4+ seconds until you hear 3 beeps and you see the indicator flash red 3 times. 6. Pairing the Headset ® IMPORTANT: Your Cobra Bluetooth headset and your Bluetooth ® wireless technology enabled phone or other Bluetooth ® wireless technology device, must be “paired” together before first time use. 1. Ensure the Headset is off (no flashing indicator light). 2. Press and hold the multi function button for 5 seconds until the indicator light alternates blue and red flashes (alternating light indicates that headset is in pairing mode). ® 3. Ensure your mobile phone has the Bluetooth wireless technology function and start the Bluetooth ® wireless technology new device searching function. Please follow the instructions of your mobile phone to proceed the operation. 4. Activate the Bluetooth ® “discovery” function in the mobile phone or other Bluetooth ® device. Example: Menu/ Bluetooth ® /add new device. (See phone manual for specific Bluetooth ®...
- Page 8 press OK 9. If pairing is successful, your headset’s indicator will flash blue. If pairing is not successful, repeat the pairing process starting at step 11. Certain phone models may require you to press “connect” or “add to trusted devices” (See phone manual for specific Bluetooth ® wireless technology pairing instructions) 0. Your headset is now paired and ready to use. NOTE: ● Recommended distance between phone and headset during pairing is 1-3 feet ● If headset is not successfully paired within 2 minutes, it will automatically abandon pairing mode and revert to standby mode 7. Wearing the Headset According to your preference, adjust the headset on your left...
- Page 9 or right ear. 8. Answering Incoming Calls IMPORTANT: The working range of the Bluetooth ® Wireless Headset is 16 feet indoors and 16 - 32 feet outdoors. 1. Wait for Headset to ring and then press the multi-function button to answer incoming call. NOTE: ● If Bluetooth ® Wireless Headset is off, Bluetooth ® wireless technology calls must be answer through handset. 9. Refusing Incoming Calls (For Handsfree profile phones) Press and hold multi-function button for 2-3 seconds until beep sound is heard. (For Headset profile phones) Call reject must done using the phone(See specific phone owners manual). 10. Ending calls 1. When the conversation is over, press the multi-function button to end the call. 11. Voice dialing IMPORTANT: Your mobile phone and carrier must support this feature and or it must be activated to work properly. 1. Press the multi-function button for less than 1 second on the Headset to activate voice dialing and follow your mobile phone instructions to proceed with the voice dialing.
- Page 10 12. Redialing 1. Press the multi-function button on the Headset for 2~3 seconds until you hear a beep sound to redial the last call. 13. Transferring Calls Between Headset and Handset 1. To transfer call to phone, press the volume increase (+) button for 2~3 seconds until you hear one beep sound, then the call will be transferred to your mobile phone. 2. To transfer call to Bluetooth ® Headset, see your phone’s manual for special phones specific instructions. Note: ● Your mobile phone must support the Handsfree profile. For more details, please check the manual of your mobile phone. 14. Placing Calls On Hold IMPORTANT: Your mobile phone and carrier must support this feature and/or it must be activated to work properly. 1. Press the volume decrease (-) button for 2~3 seconds until you hear one beep sound, then the call will be placed on hold. The Headset automatically answers a second incoming call. 2. To take a call off of hold, press the volume decrease (-) button for 2~3 seconds until you hear one beep sound.
- Page 11 NOTE: ● To activate this function, please refer to the instructions of your mobile phone manual to make sure your phone program supports this function. 16. 3 Way Conference Calling IMPORTANT: Your mobile phone and carrier must support this feature and/or it must be activated to work properly. 1. Press the volume decrease (-) button for 2~3 seconds until you hear one beep sound, then Call 1 will be placed on hold. The Headset automatically answer a second incoming call. 2. To proceed the triple phone conversation while you are answering the Call 2, press the volume increase (+) button for 2~3 seconds until you hear the beep sound to join all calls together. 3. To end the triple phone conversation, press the function button, then Call 1 and Call 2 will be hanged up together. NOTE: ● During a 3 way conference call, you can NOT return to just Call or Call 2. ● If the 3 way conference call has not been activated, you can press the decrease (-) volume key for 2~3 seconds to easily transfer the calls between Call and Call 2. ● If Call 1 is on hold and you hang up with Call 2, connection with Call will be renewed.
- Page 12 17. Adjusting the Volume During a call, you may adjust the Headset’s volume. 1. To increase the volume, press the increase (+) volume key. 2. To decrease the volume, press the decrease (-) volume key. Note: ● You will hear a beep sound that corresponds to the adjusted volume level while adjusting the volume up or down. 18. Safety instruction . Read the Headset manual carefully and use the headset correctly by following the instructions. 2. Keep the Headset away from children. 3. Do not use the cleaning liquid or spray to clean the Headset. 4. Do not clean the Headset while charging it. 5. Do not disassemble the Headset. 6. If you encounter a problem, contact your retailer or service center.
-
Page 13: Specification
19. Specification Product Model No. CBTH Standard Convention/ Signal Output Bluetooth ® V2.0 + EDR, Class II Frequency Band 2.4GHz ~ 2.4835GHz, ISM Band Talk/ Standby Time Up to 8 hours / Up to 250 hours Supporting Profile Headset & Handsfree Connection Peer to Peer Data Encryption 28 bits encrypted Power Capacity Rechargeable Li-Polymer Power Supply 5.1V DC, 100~240V AC adapter Operation Temperature 14 ~ 113 Facility Saving Temperature -4 ~ 140 Operation Moisture 10% ~ 90% (non-concrete status) Weight 2.36 oz. (battery included) Size 7.24 x 6.38 x 2.28 inches Safety Regulation CE, FCC, BQB... - Page 14 20. Trouble Shooting 1. Indicator light if flashing red. ● Battery is low, recharge headset. 2. No indicator light when charging. ● Leave headset on charger for a longer period of time because battery may be fully drained. 3. There’s NO sound coming from the Headset. ● Make sure the Headset is paired with Bluetooth ® wireless technology device. ● Make sure the Headset is on. ● Make sure the distance between the Headset and the paired Bluetooth ® wireless technology device is within 32 ft. ● Make sure your mobile phone has a good signal. ® ● Some Bluetooth wireless technology mobile phones support only one Headset, if you pair it with more than one Headset, it may cause the other Headsets being cut off. ● Error between Bluetooth ® Wireless Headset and phone connection. Turn off and re-turn on both devices. 21. Headset Care - Keep away from dusty areas. - Use clean and soft fabric to clean the Headset’s surface. - Use only orginal Cobra branded accessories on product - Do not disassemble, it will invalidate warranty. - Avoid storing and charging the Headset in extreme...
- Page 15 temperatures. - The travel charger is designed for indoor use. - Only authorized and qualified personnel can do battery changing. - Recharge the Headset at least once every two months, either you use it or not. - To extend battery life, consume all or most of battery charge before recharging. 22. Q & A Q : Why doesn’t my newly fully-charged Headset work with my Bluetooth wireless technology mobile phone? ® A : You must complete the pairing process, see page 5. Q : Can CBTH1 work with ALL mobile phones? A : No, this Headset works only with Bluetooth ® wireless techonolgy enabled mobile phones. Q : How far is the working distance between the Headset and the mobile phone? A : Maximum operating distance is 32 feet. Note: Certain...
- Page 16 Q : Why does my Bluetooth ® wireless technology mobile phone find many Bluetooth wireless technology devices ® while searching for the new Bluetooth wireless ® technology device? A : Some mobile phones by default are set to find more than one Bluetooth ® wireless technology device within the working range. When your phone is finished searching, your mobile phone’s LCD will show CBTH1 and/or some other Unknown Devices. Please select and confirm CBTH1. Q : What if my mobile phone could not find the Headset? A : Only while your Headset is under the pairing mode, your mobile phone can find the Headset. Please follow the instructions of your Headset manual to proceed the pairing...
-
Page 17: Declaration Of Conformity
phone has been exceeded. Please make sure the Headset and mobile phone are within the working range of 32 feet and there is no obvious interference between. Q : Why is the Headset suddenly not working? A : () The battery may be too low. (2) You may have a poor carrier/cellular signal (3) The connection between Headset and handset may have failed. Turn off and re-turn on both devices. Q : Why could the voice dialing function of the Headset not be switched on? A : (1) Re-record the voice tag using the Bluetooth ® Wireless Headset. (2) Some mobile phones do not support the voice dialing function. Please refer to the manual of your mobile phone. 23. Declaration of Conformity FCC (FCC ID: RL9-HCB08): CBTH1 is FCC certificated as this device complies with part 15 of the FCC rules. - Page 18 Directive 89/336/EEC. BQB Qualification: CBTH Bluetooth ® Wireless Headset, a BQB Qualified Bluetooth ® wireless technology product is listed as qualified End Product in accordance to section 6.2.4 of the PRD. Federal Communications Commission (FCC) Statement 5.2 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. 5.05(b) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be...
-
Page 19: Operation Is Subject To The Following Two Conditions
-Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Operation is subject to the following two conditions: ) this device may not cause interference and 2) this device must accept any interference, including interference that may cause undesired operation of the device. FCC RF Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Cobra Electronics Corporation is under l icense. Other trademarks and trade names are those of their respective owners. Cobra, Nothing Comes Close to a Cobra and the snake design are registered trademarks of Cobra Electronics Corporation, USA. Cobra Electronics Corporation is a trademark of Cobra Electronics Corporation, USA. MADE IN CHINA... -
Page 20: Limited Warranty
2. If you use device commercially, the warranty period will be reduced by half. FREE OF CHARGE WARRANTY DOES NOT APPLY TO: . Defects or damage resulting from use of the unit in other than its normal and intended manner, eg, in excess of their maximum specifications or operating instructions. 2. Defects or damage from misuse, accident, neglect, improper testing, installation, alteration, modification of any kind, and/or spillage of food or liquid. 3. Faulty is caused by natural disaster. 4. Capacity of expendables is exhausted. Products name Cobra Over the Head Bluetooth Headset Model number CBTH1 Purchased date Place of purchase Customer Name ©2008 Cobra Electronics Corporation Customer Address 2001 West Kelley Court Telephone # Libertyville, IL 60048 www.CobraHandsfree.com Warranty period 1 year 866.610.9322 (USA only)
