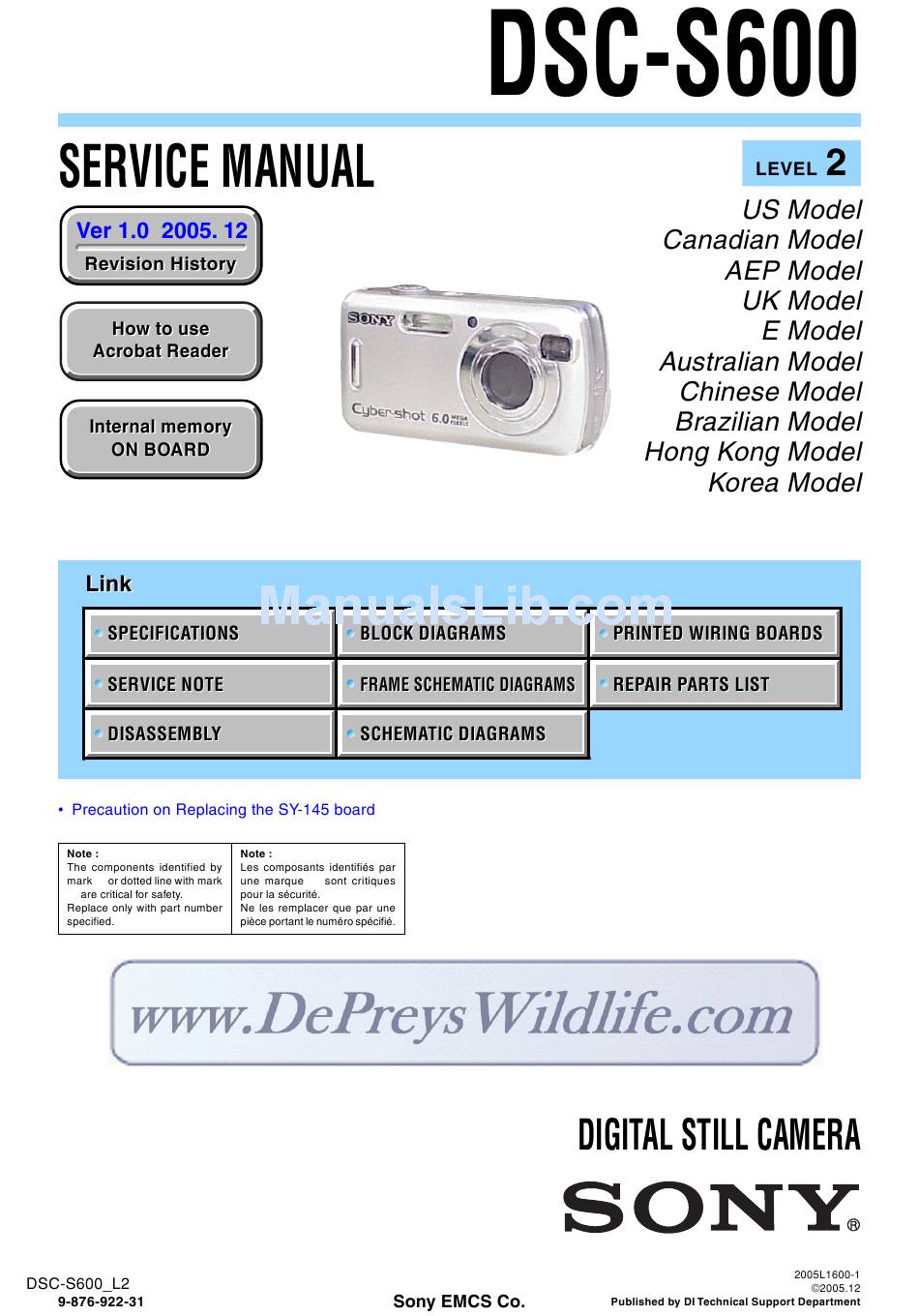

Sony Cyber-shot DSC-S600 Service Manual
Digital still camera
Hide thumbs
Also See for Cyber-shot DSC-S600:
- Service manual (166 pages) ,
- Instruction manual (124 pages) ,
- Operating instructions manual (118 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Sony Cyber-shot DSC-S600
Summary of Contents for Sony Cyber-shot DSC-S600
- Page 2 Power R6 (size AA) Alkaline batteries (2), 3 V Image device 7.18 mm (1/2.5 type) color HR 15/51:HR6 (size AA) CCD, Primary color filter Nickel-Metal Hydride batteries (2, not supplied), 2.4 V Total pixel number of camera ZR6 (size AA) Oxy Nickel Approx.
- Page 3 Check the area of your repair for unsoldered or poorly-soldered Boards requiring use of unleaded solder are printed with the lead- connections. Check the entire board surface for solder splashes free mark (LF) indicating the solder contains no lead. and bridges. (Caution: Some printed circuit boards may not come printed with Check the interboard wiring to ensure that no wires are the lead free mark due to their particular size.)
- Page 4 1-1. DESCRIPTION ON SELF-DIAGNOSIS DISPLAY ······ 1-1 1-2. METHOD FOR COPYING OR ERASING THE DATA IN INTERNAL MEMORY ·················································· 1-2 1-3. PRECAUTION ON REPLACING THE SY-145 BOARD ··········································································· 1-3 1-4. INITIAL LANGUAGE DATA CHECK ·························· 1-3 1-5. HOW TO OPERATE THE CAMERA WITHOUT THE FRONT CABINET ··························································...
- Page 5 • C: ss: ss You can reverse the camera malfunction yourself. (However, contact your Sony dealer or local authorized Sony service facility when you cannot recover from the camera malfunction.) • E: ss: ss Contact your Sony dealer or local authorized Sony service facility.
- Page 6 The data can be copied/erased by the operations on the Setup screen. (When erasing the data, execute formatting the internal memory.) When replacing the SY-145 board, erase the data in internal memory of the board before replacement. When replacing the SY-145 board or the IC203 on the SY-145 board, execute formatting and initialize the internal memory after replacement. Copies all images in the internal memory to a “Memory Stick Duo”.
- Page 7 • The Repair Board has already been adjusted. Re-initialization or EVR data copy from the set before repair is not required. • Perform “Initial Language Data Check” mentioned below, and also the adjustment items necessary after SY Board replacement. If the SY-145 board was replaced, initial language setting may be changed. Accordingly, change the following data so as to set same initial language as that of the set distributing in each region.
- Page 9 The electric shock is caused by the charged voltage which is kept without discharging when the main power of the DSC-S600 is simply turned off. Therefore, the remaining voltage must be discharged as described below.
- Page 20 µ µ µ For PTB-450: Pattern box PTB-450 J-6020-250-A J-6082-200-A Ω Ω Ω Ω For PTB-1450: Small pattern box J-6082-559-A PTB-1450 J-6082-557-A → → Ω...
- Page 28 NOTE NOTE...
- Page 29 • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. •...
- Page 31 × × × × • Refer to page 5-1 for mark 0.
- Page 32 Make sure that the following accessories are supplied with your camcorder.
- Page 33 *********************** ********************** ********************** ******************************** *********************** ********************** • Refer to page 5-1 for mark 0.
