GE JGB900SEP Datasheet

26-1/4"
JGB900SEP
46-3/8"
GE 30" Free-Standing Self-Clean Free-Standing Gas Range
®

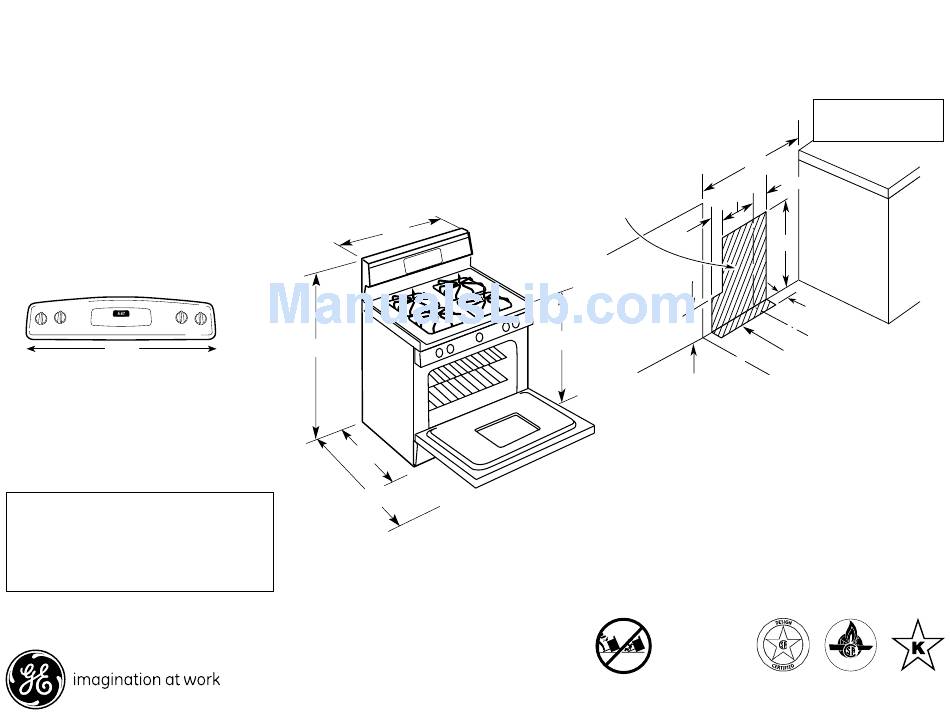

Dimensions and Installation Information (in inches)
Optional Gas Range Accessory Drip Pans for Sealed
and Standard Burner Models
(Available at additional cost)
To order these accessory drip pans, call toll-free
800-626-2002.
Gas Self-Clean Range Anti-Tip Bracket
(Part No. 205C1714P001)
Electrical Rating: 120V, 60Hz, 9A
Installation Information: Before installing, consult
installation instructions packed with product
for current dimensional data.
30-7/8"
All 30" GE gas and electric range backguards
are 30-7/8" wide.*
Note: 30" ranges conform to U.L. requirements
for 0" spacing from adjacent walls below
countertops. To reduce possible scorching of
walls, engineering recommends a minimum of
1-1/2" spacing to allow for possible extended,
high heat, no-load heating element operation.
* Except these models: JGBS07, JGBS04, JGBP90,
all GE Profile free-standing electric and gas
ranges
Fits most countertop backsplash applications.
Consult Use & Care Manual for detailed
installation instructions.
Installation Information (Dimensions in inches)
30"
47"
26-1/4"
46-3/8"
30" FS Gas Ranges-CL
Recommended area for
120V outlet on rear wall
and area for thru the wall
connection of pipe stub
and shut-off valve
4
9
+ _
36-1/4" 1/4
All GE ranges are equipped
with an Anti-Tip device. The
installation of this device is
an important, required step in
the installation of the range.
Specification Created 6/09
Recommended common
area for gas outlet and
electrical outlet
30
2-1/2
8
24
2
C L
Recommended area for
thru the floor connection
of pipe stub and shut-off valve
Recommended area for
120V outlet on rear wall
CERTIFIED
and area for thru the wall
connection of pipe stub
and shut-off valve
330424
