Cisco Z8 series User Manual

About Your Remote
Z8 Series

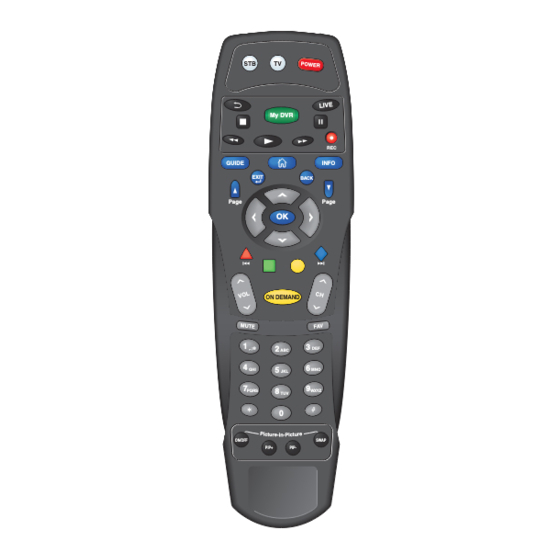

Your new Z8 Series remote
Remote Control
control (remote) can operate both
your TV and your cable set-top
User Guide
device (set-top).
Your remote is initially set up
to operate your set-top. See
Setting Up the TV Mode Key
so the remote can also operate
STB TV
your TV.
Batteries
The remote requires two alkaline
AA batteries. A diagram inside
My DVR
the battery compartment of
the remote indicates proper
placement of the batteries.
REC
GUIDE INFO Mode Keys
Mode keys are the two buttons
EXIT
BACK
labeled STB and TV at the top of
your remote. These keys switch
Page Page
the remote to operate either
OK
the set-top or the TV, with two
exceptions:
1) The numeric channel keys 0-9
operate the set-top. If you
wish to use the channel keys
to operate the TV, see Setting
Up Channel Control.
ON DEMAND
2) Initially, the volume key
operates the set-top. After you
set up the TV mode key, the
volume key operates the TV.
1 If you wish to change the way
3
,.;@ 2
DEF
ABC
the volume key operates, see
4 6 Setting Up Volume Control.
5
GHI MNO
JKL
Setting Up Your TV Codes
7 9
PQRS 8 WXYZ
TUV
If your TV is not already set up
in this remote, setup codes help
0
your remote identify and operate
your brand of TV.
ON/OFF SWAP
PIP+ PIP-
CAUTION: This remote is
not a toy. It should be kept out of
the reach of children under the
age of 6 years.
Setting Up Your Remote 2. Press and hold the TV and STB
keys for approximately three
The STB mode key on your
seconds until both of the mode
remote is set up to operate only
keys blink twice.
your Cisco set-top.
3. Use remote to enter 999. Both
The TV mode key on your remote
of the mode keys blink twice.
is set up to operate most of the
popular TV brands. Therefore, you 4. Press the CH+ key once. Did
the TV power off ?
should test to see if the TV mode
key is already set up.
• If yes, press OK.
Power on your TV, press the TV
• If no, continue to press the
mode key on the remote, then
CH+ key until the TV turns
press POWER on the remote. If
off . Then press OK.
the TV does not power off then
see Setting Up the TV Mode Setting Up Channel Control
Key.
Initially, CH+ and CH- operate the
set-top. If you want these keys
Setting Up the TV Mode Key
temporarily to operate the TV,
1. Find the setup code(s) for
press TV and then press the CH+
your TV brand in the TV Setup
or CH- key within three seconds.
Codes list in this guide.
Follow these steps if you want to
2. Power on your TV.
set up your channel controls to
operate the TV or the set-top.
3. Press and hold the TV and STB
keys for approximately three
1. Press and hold the TV and STB
seconds until both of the mode
keys for approximately three
keys blink twice.
seconds until both of the mode
keys blink twice.
4. Use the remote to enter 999.
Both of the mode keys blink 2. Use the remote to enter 777.
twice. Both of the mode keys blink
twice.
5. Enter the setup code for your
TV. Both of the mode keys blink
3. Press either the TV or the STB
three times. mode key. The key you press
determines what device your
6. Point the remote control toward
channel controls operate. Both
the TV and press POWER. Did
of the mode keys blink three
the TV power off ?
times.
• If yes, go to step 7.
Note: You can always press
• If no, repeat steps 3 through 5
a mode key and within 3
using a diff erent setup code.
seconds, change the channel
Note: If all of the codes listed on that device.
for your brand of TV fail to
Setting Up Volume Control
operate the TV, see Searching
Initially, VOL+ and VOL- operate
for Setup Codes.
the set-top volume until you set
7. Write your TV setup code here
up the TV mode key; then they
for future reference:
control the TV volume. If you want
_________________________ these keys to temporarily operate
the set-top (after you have set up
Searching for Setup Codes
the TV mode key), press STB and
If none of the codes listed for
then press the VOL+ or VOL- key
your TV work, you can search the
within three seconds.
code library for a valid code.
Follow these steps if you want to
1. Power on your TV.
set up your volume controls to
operate the TV or the set-top.
1 2
1. Press and hold the TV and STB Quick Reference
keys for approximately three
seconds until both of the mode
keys blink twice.
1 2
2. Use the remote to enter 888.
Both of the mode keys blink
twice.
28
3. Press either the TV or the STB STB TV
mode key. The key you press
27
determines what device your
volume controls operate. Both
26
My DVR
of the mode keys blink three
25
times.
Note: You can always press
24
GUIDE
a mode key and within 3
23 EXIT
seconds, change the volume
on that device.
22
Page
OK
Powering Both TV and Set-Top
at the Same Time
By default, POWER operates
according to the last mode key
you pressed. Therefore, if you
press TV and then POWER, the 21
ON DEMAND
remote powers the TV on or off .
20
Follow these steps if you want
the remote to power your TV and
1
,.;@ 2
ABC
your set-top at the same time.
4
GHI 5
1. Press and hold the TV and STB JKL
keys for approximately three
7
8
PQRS
TUV
seconds until both of the mode
0
keys blink twice.
2. Use the remote to enter 982.
ON/OFF
Both of the mode keys blink PIP+ PIP-
twice.
Notes:
• If the remote is set to power
both devices at the same time,
you can press the mode key
for a device followed by the
POWER button within three
seconds to power only that
device.
• If you want to set the remote
control to operate a single
device (according to your
current mode: either STB or
TV but not both), repeat this
procedure using code 981
(instead of 982).
3 4
1. Set-top mode control TV Setup Codes
Enter 3 digits to program the TV mode
2. TV mode control
key. See Setting Up Your Remote for
4 6
more information.
3. Power On and Off
3 5 7 Digital
4. Access DVR recordings Philips 173,176,178
Samsung 177
5. Watch live TV
Sony 174,175,179
HT Projector
6. Pause recording
Mitsubishi 170
Panasonic 161
7. Fast-forward recording
Philips 167
Sanyo 160
8
8. Instant recording
Sharp 162
9 9. Access portal home page Sony 158,159
Toshiba 169
REC
10 10. Obtain program information
LCD Projection
INFO
Sharp 131
11. Go to last channel or
11
BACK Sony 108
previous menu item
Toshiba 130
12
Page LCD
12. Page through the program
Bush 101
13
guide
Daewoo 106
Denver 096
14
13. Scroll through menu items
Goodmans 123
Hitachi 089
15
14. Access color-coded screen
JVC 132
options
LG 081,084,094,095,098,105,110,111,
16
114,118,126,136,168
15. Access ON DEMAND
Matsui 133
features
17 Panasonic 091,102,112
Philips 078,079
16. Scroll through channels
3 Samsung 080,082,083,087,093,097,104,113,
DEF
116,121
17. Select Favorite channels
6
MNO Sharp 092,103,109,115,119,120,122,127,
18
128
18. Access specifi c channels
9
Sony 085,086,088,107,117
WXYZ
Toshiba 099,100,124
19. Access Picture-in-Picture
Viewsonic 125,129
(PIP) features
LCD TV/Radio Tuner Combo
19
SWAP Philips 078
20. Mute volume
Plasma Display
Hitachi 139,144
21. Adjust volume
Panasonic 137,147
22. Page through the program
Philips 134,152
guide Pioneer 141,146,149,151
Samsung 150
23. Exit the guide
Plasma
LG 136
24. Access the guide
Philips 142
Samsung 135
25. Rewind recording
Toshiba 153
Plasma TV Monitor
26. Play recording
Daewoo 138
Hitachi 154
27. Stop recording playback
JVC 155
28. Instant Replay (go back 7
LG 140,148
seconds) Philips 143,156
Thomson 145,157
Projection
Hitachi 171
LG 164,168
Pioneer 163
Samsung 166
Telefunken 165
5 6
TV
A.R.
Systems 223
Acme 211
Acura 212,219
ADC 210
Admiral 209,210,214,215
Adyson 211,225,226,232,233
Agashi 232,233
Agazi 210
AGB 238
Aiko 211,212,219,223,225,226,232,233
Aim 223
Aiwa 193
Akai 212,213,216,218,219,223,226,227,
231,232,233,238
Akiba 213,223,227,228
Akura 210,213,219,223,227,228
Alaron 232
Alba 211,212,213,218,219,222,223,225,
227, 232,237
Alcyon 224
Allorgan 226,233
Allstar 216,223
Amplivision 211,226,230,233,237
Amstrad 210,212,213,219,223,227,238
Anam 212
Anglo 212,219
Anitech 210,212,219,223,224
Ansonic 212,219,221,223,236,237
Arc en Ciel 229
Arcam 225,226,232,233
Arcam
Delta 211
Aristona 216,218,221,223,231
Arthur
Martin 230
ASA 209,215
Asberg 216,223,224
Astra 212
Asuka 210,211,213,225,226,227,228,232,233
Atlantic 211,216,218,223,225,232
Atori 212,219
Auchan 230
Audiosonic 211,212,213,216,218,223,226,227,
233,237
AudioTon 211,226,233,237
Ausind 224
Autovox 209,210,211,224,226,233
Awa 232,233
Baird 226,233
Bang &
Olufsen 209
Basic Line 212,213,216,219,223,227,228,233
Bastide 211,226,233
Baur 218,220,223
Bazin 226,233
Beko 065,077,223,237
Beon 216,218,223
Best 237
Bestar 216,223,237
Binatone 211,226,233
Blacktron 228
Blackway 228
Blue Sky 213,223,227,228
Blue Star 228
Boots 211,226,233
