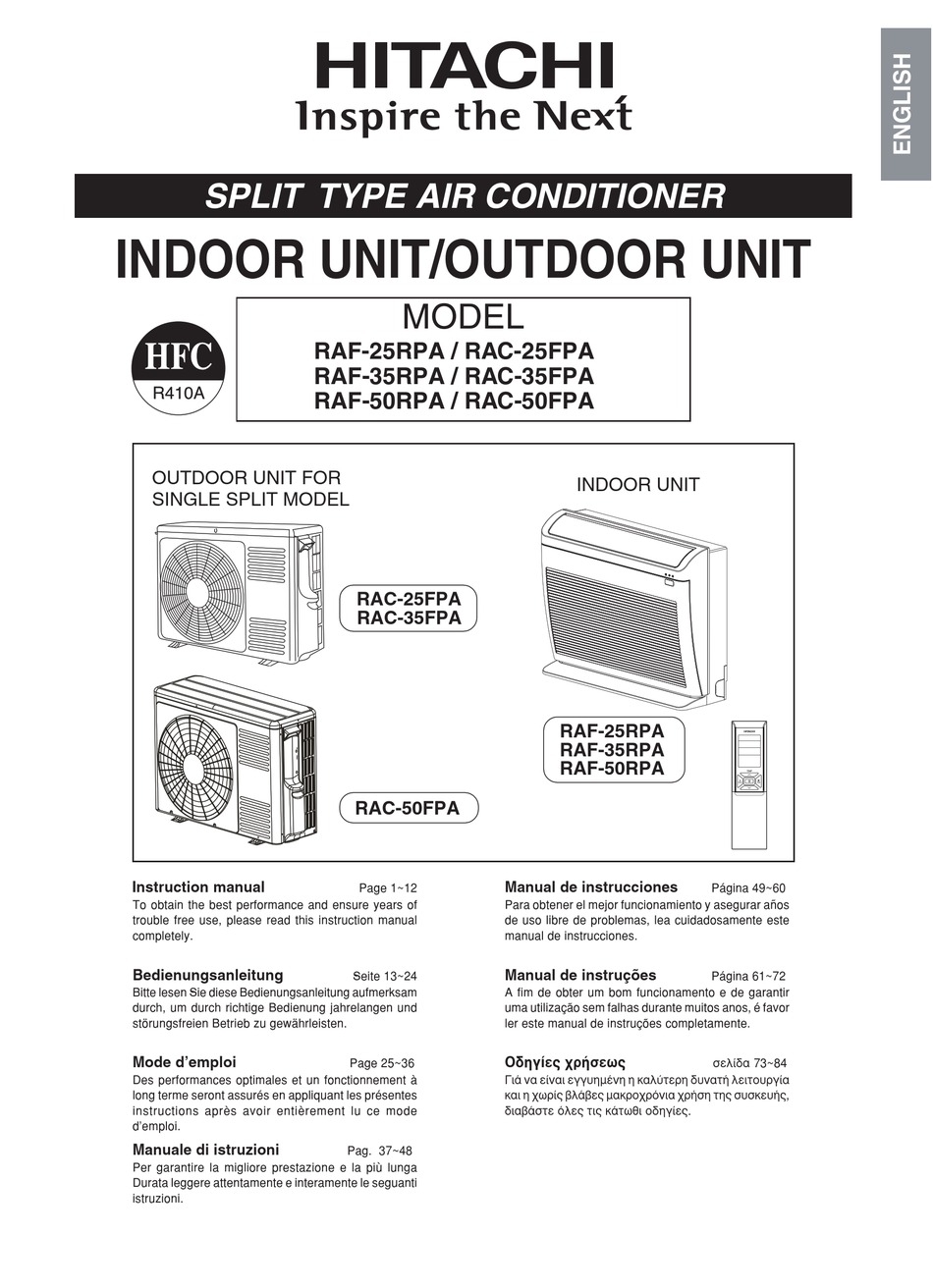

MODEL OUTDOOR UNIT FOR INDOOR UNIT SINGLE SPLIT MODEL age 1~12 ágina 49~60 o obtain the best performance and ensure years of ara obtener el mejor funcionamiento y asegurar años trouble free use, please read this instruction manual de uso libre de problemas, lea cuidadosamente este completely.
PREPARATION BEFORE OPERATION ■ To install the batteries 1. Slide the cover to take it off. 2. Install two dry batteries AAA.LR03 (alkaline). The direction of the batteries should match the marks in the case. 3. Replace the cover at its original position. ■...
Page 8
PREPARATION BEFORE OPERATION ■ To set calendar and clock 1. Press (RESET) button when first time setting. "Year" blinks. 2. Press (TIME) button to set the current year. 3. Press (CLOCK) button. Next, "Day" and "Month" blink. 4. Press (TIME) button to set the current day and month.
NAMES AND FUNCTIONS OF REMOTE CONTROLLER REMOTE CONTROLLER This controls the operation of the indoor unit. The range of control is about 7 meters. If indoor lighting is ● controlled electronically, the range of controller may be shorter. This unit can be fixed on a wall using the fixture provided. Before fixing it, make sure the indoor unit can be controlled from the remote controller.
Page 10
NAMES AND FUNCTIONS OF REMOTE CONTROLLER MODE selector Button POWERFUL Button Use this button to select the Use this button to set the operating mode. Every time you POWERFUL mode. p.16) press this button, the mode will change from (AUTO) (HEAT) (DEHUMIDIFY) (COOL) and...
VARIOUS FUNCTIONS ■ Auto Restart Control If there is a power failure, operation will be automatically restarted when the power is resumed with previous operation ● mode and airflow direction. (As the operation is not stopped by remote controller.) If you intend not to continue the operation when the power is resumed, switch off the power supply. ●...
HEATING OPERATION Use the device for heating when the outdoor temperature is under 21°C. ● When it is too warm (over 21°C), the heating function may not work in order to protect the device. In order to maintain reliability of the device, please use this device when outdoor temperature is above -15°C. ●...
DEHUMIDIFYING OPERATION Use the device for dehumidifying when the room temperature is over 16°C. When it is under 15°C, the dehumidifying function will not work. Press the MODE selector button so that the display indicates (DEHUMIDIFY). The fan speed is set at LOW. Press (FAN SPEED) button to select SILENT or LOW fan speed.
COOLING OPERATION Use the device for cooling when the outdoor temperature is -10~ 43°C. If indoors humidity is very high (80%), some dew may form on the air outlet grille of the indoor unit. Press the MODE selector button so that the display indicates (COOL).
FAN OPERATION User can use the device simply as an air circulator. Press the MODE selector so that the display indicates (FAN). Set the desired FAN SPEED with the (FAN SPEED) button (the display indicates the setting). (AUTO) (HIGH) (MED) (SILENT) (LOW) START...
Page 16
AUTO SWING OPERATION ■ To start Vertical Auto Swing Press (AUTO SWING (VERTICAL)) button. The ● deflector(s) will start to swing up and down. is displayed on the LCD. When cooling, dehumidifying ■ To cancel Vertical Auto Swing Vertical ° about 10 Press (AUTO SWING (VERTICAL)) button again.
POWERFUL OPERATION By pressing (POWERFUL) button during AUTO, HEATING, DEHUMIDIFYING, COOLING or FAN ● operation, the air conditioner performs an the maximuum power. During POWERFUL operation, cooler or warmer air will be blown out from indoor unit for COOLING of ●...
SILENT OPERATION By pressing (SILENT) button during AUTO, HEATING, DEHUMIDIFYING, COOLING or FAN ● operation, the fan speed will change to ultra slow. ■ To start SILENT operation Press (SILENT) button during operation. ● “ ” is displayed on the LCD. Fan speed will be ultra slow.
ECO OPERATION ECO operation is an energy saving function by changing set temperature automatically and by limiting the ma x imum power consumption value. By pressing the (ECO) button during AUTO, HEATING, ● DEHUMIDIFYING or COOLING operation, the air conditioner performs the "ECO"...
Page 20
° LEAVE HOME(LH) OPERATION Prevent the room temperature from falling too much by setting temperature automatically when no one is at home. 10°C This operation is able to operate by" Continuous operation" or " Day timer operation" . Please use " Day timer operation" to set the number of days up to 99 days.
CLEAN (ONE TOUCH CLEAN) OPERATION Drying indoor heat exchanger after cooling operation to prevent mildew. ■ To start CLEAN operation Press (CLEAN) button when unit is OFF. ● Total time taken for One Touch Clean operation is 60 minutes. During this operation, HEATING or FAN operation shall operate.
Page 22
ONCE TIMER (ON/OFF TIMER) OPERATION OFF TIMER The device can be set to turn off at a preset time. 1. Press (OFF-TIMER) button. blink on the display. 2. Set the "turn-off time" with (TIME) button. 3. After setting, direct the remote controller towards the indoor and press (SEND) button.
Page 23
E C O SLEEP TIMER OPERATION The timer can be set up to a duration of 7 hours. By pressing (SLEEP) button during AUTO, HEATING, DEHUMIDIFYING, COOLING or FAN operation, s t l Set the current time first before operating the ECO SLEEP TIMER operation. ■...
Page 24
EC O SLEEP TIMER OPERATION ■ To set SLEEP TIMER and ON TIMER The air conditioner will be turned off by ECO SLEEP TIMER and turned on by ON TIMER. 1. Set the ON TIMER. 2. Press (SLEEP) button and set ECO SLEEP TIMER. Example: In this case, air conditioner will turn off in 2 hours (at 1:38) and it will be turned on at 6:00 the next morning.
WEEKLY TIMER OPERATION lt is possible to select Mode A or Mode B.For each mode ,up to 6 programs can be set per day. ln total, a ● maximum of 42 programs can be set for a week for each mode. If calendar and clock are not set, the reservation setting for WEEKL Y TIMER cannot be set.
Page 26
WEEKLY TIMER OPERATION 5. Press (ON-OFF TIMER) button to select ON TIMER or OFF TIMER reservation. 6. Press (TIME) button to set time reservation. 7. Press (TEMP ) button to set temperature reservation. 8. Press (OK) button. The reservations are set. Day, program number, ON reservation, setting temperature will light up.
Page 27
WEEKLY TIMER OPERATION Step 2: Select Mode A or Mode B and activate or deactivate WEEKLY TIMER. ■ How to select Mode A or Mode B of WEEKLY TIMER setting. 1. Press (WEEKLY) button. blink on the display. (Normally Mode A will blink first). 2.
Page 28
WEEKLY TIMER OPERATION Step 3: Copy and cancel the reservation schedule. ■ How to copy and paste. Editing the reservation schedule is easy by copying data from one day to another day. 1. Press (WEEKLY) button to select Mode A or Mode B. 2.
Page 29
WEEKLY TIMER OPERATION Step 3: Copy and cancel the reservation schedule. ■ How to delete WEEKLY TIMER data. [Delete one program number reservation] 1. Press (WEEKLY) button to select Mode A or Mode B. 2. Press (WEEKLY) button for 3 seconds to start editing the reserva- tion schedule.
Page 30
WEEKLY TIMER OPERATION Step 3: Copy and cancel the reservation schedule. [Delete one day reservation] 1. Press (WEEKLY) button to select Mode A or Mode B. 2. Press (WEEKLY) button for 3 seconds to start editing the reservation schedule. 3. Press (DAY) button to select a day of the week to edit.
INFO FUNCTION By pressing (INFO) button, temperature around remote controller and monthly power consumption ● will be displayed on the remote controller. (INFO) After changing the batteries, direct the remote controller towards the indoor unit and press ● button. Current calendar and clock will be transmitted from indoor unit. In order to receive information from indoor unit, the distance between remote controller and receiver of indoor ●...
Page 32
OPERATION MODE LOCK The remote controller can be set to fix the HEATING mode (including FAN), COOLING mode (including FAN) and DEHUMIDIFYING mode (including FAN) operations. ■ Method to lock HEATING mode (including FAN) operation. Press (ECO) and (POWERFUL) buttons simultaneously for about 5 seconds when remote controller is OFF.
Page 37
