Thank you for purchasing this Panasonic product.
■ Before using this product, please read this "Operating Instructions" and the "Operating
Instructions" of the Multi Window Processor carefully and save the manuals for future use.
■ Before using this product, be sure to read "Read this first!" ( x pages 3 to 7).
■ To users:
This product is used together with the Multi Window Processor sold separately. Be sure
to ask a qualified technician or your dealer when installing it. This manual is for users and
also for installation technician. When installing the unit, provide this manual to installation
technician. After installation, ask them to return this manual.
■ To installation technician:
Read this manual and perform installation work properly and safely. Be sure to read "Read
this first!" ( x pages 3 to 7) before installation.
After installation, please return this manual to users.

Operating Instructions

Included Setup Instructions
POWER SUPPLY
Model No.
Commercial Use
ET-RPS100G
ENGLISH
TQZJ533

Advertisement

Table of Contents
loading

Related Manuals for Panasonic ET-RPS100G

Summary of Contents for Panasonic ET-RPS100G

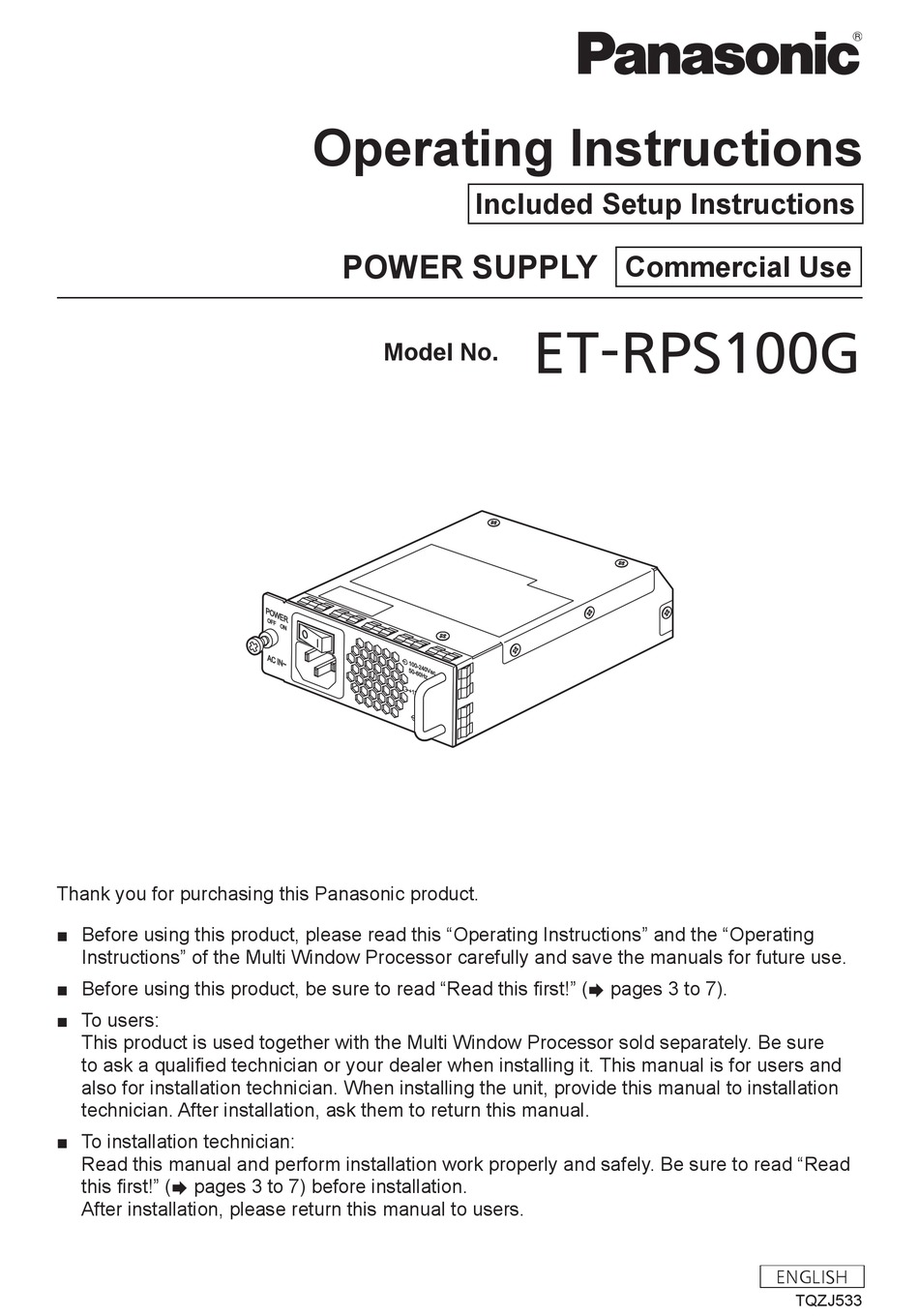

  • Page 1: Operating Instructions

    Commercial Use ET-RPS100G Model No. Thank you for purchasing this Panasonic product. ■ Before using this product, please read this “Operating Instructions” and the “Operating Instructions” of the Multi Window Processor carefully and save the manuals for future use. ■ Before using this product, be sure to read “Read this first!” ( x pages 3 to 7).

  • Page 2: Table Of Contents

    Contents Contents Be sure to read “Read this first!” from page 3. Read this first! Precautions for use Disposal Accessories Attaching the POWER SUPPLY Precautions for attaching and removing the POWER SUPPLY Attaching the POWER SUPPLY Removing the POWER SUPPLY Specifications 2 - ENGLISH...

  • Page 3: Read This First

    Read this first! Read this first! WARNING: THIS APPARATUS MUST BE EARTHED. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DONOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. WARNING: 1. Remove the plug from the mains socket when this unit is not in use for a prolonged period of time. 2.
  • Page 4 FCC NOTICE (USA) Verification Model Number: ET-RPS100G Trade Name: Panasonic Responsible Party: Panasonic Corporation of North America Address: Two Riverfront Plaza, Newark, NJ 07102-5490 Telephone number: (877)803-8492 E-mail: projectorsupport@us.panasonic.com This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 5 L or coloured RED. How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse. Importer’s name and address within the European Union Panasonic Marketing Europe GmbH Panasonic Testing Center Winsbergring 15, 22525 Hamburg, Germany...
  • Page 6 Read this first! WARNING: r POWER The wall outlet or the circuit breaker shall be installed near the Multi Window Processor and shall be easily accessible when problems occur. If the following problems occur, cut off the power supply immediately. Continued use of the device in these conditions will result in fire or electric shock.
  • Page 7 Read this first! WARNING: r ON USE/INSTALLATION Do not set up the device in humid or dusty places or in places where the device may come into contact with oily smoke or steam, ex. a bathroom. Using the device under such conditions will result in fire or electrical shock. Never attempt to remodel or disassemble the device.

  • Page 8: Precautions For Use

    Precautions for use Precautions for use rAsk a qualified technician or your dealer when installing the unit to the Multi Window Processor. Be sure to ask a qualified technician or your dealer when installing the unit to the Multi Window Processor. Static electricity may cause malfunctions.

  • Page 9: Attaching The Power Supply

    Attaching the POWER SUPPLY Attaching the POWER SUPPLY Be sure to ask a qualified technician or your dealer. r To the equipment installer: Before you begin, make sure to read “Read this first!” (x page 3). Precautions for attaching and removing the POWER SUPPLY f Make sure to turn off the power before attaching or removing the unit to/from the Multi Window Processor.
  • Page 10 Attaching the POWER SUPPLY Remove the power plug from the outlet. Remove the power cord connector from the <AC IN> terminal on the rear of the device. Remove the POWER SUPPLY. (Fig. 1) f Use a Phillips-head screwdriver to turn the POWER SUPPLY fixing screw (x 1) counterclockwise until it turns freely, and then remove the POWER SUPPLY.

  • Page 11: Specifications

    Specifications Specifications The specifications of the POWER SUPPLY are as follows. Width 114 mm (4-1/2") Dimensions Height 40 mm (1-9/16") Depth 216 mm (8-1/2") Weight Approx. 1.2 k] (2.6 lbs.) Supported power supply AC 100 V - 240 V, 50 Hz/60 Hz Compatible Multi Window ET-MWP100G Processor...
  • Page 12 If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal. Environment care information for users in China This symbol is only valid in China. Panasonic Corporation Web Site : http://panasonic.net/avc/projector/ TI0613NS0 -YI © Panasonic Corporation 2013 Printed in China...
