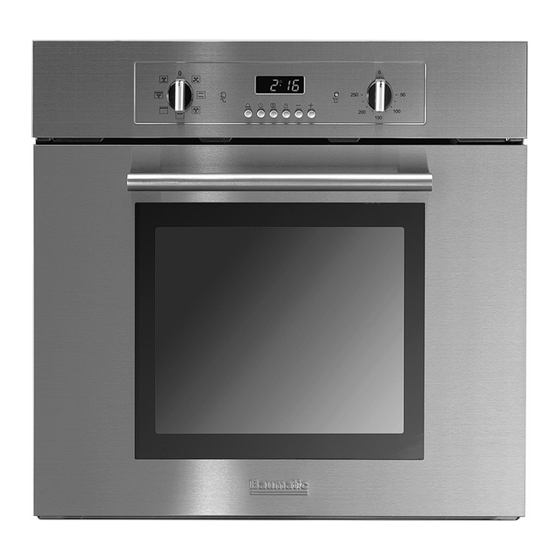

- Page 1 B501.1BS/B501.1SS 60 cm Built-in multifunction oven...
- Page 2 User Manual for your Baumatic B501.1BS/B501.1SS Built-in oven 60 cm Multifunction oven in black steel 60 cm Multifunction oven in stainless steel NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...
-
Page 3: Table Of Contents
Contents Environmental note mportant safety information 5 – 7 pecifications 8 – 10 Dimensions Specifications Cooling fan Electrical details Control panel Oven programmer/timer display etting and using the oven programmer/timer 10 - 15 Selecting manual operation mode Setting the time of day The oven timer Before first use Setting the minute minder function... -
Page 4: Environmental Note
The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment. -
Page 5: Important Safety Information
Baumatic’s Conditions Of Guarantee. The foregoing does not affect your statutory rights. o Repairs may only be carried out by Baumatic service engineers or their authorised service agent. - Page 6 This appliance complies wit h all current European safety legislation. Baumatic do wish to emphasise that this compliance does not remove the fact that the appliance surfaces will become hot during use and retain heat after operation.
- Page 7 This appliance must be correctly installed by a itably qualified person, strictly in accordance with the manufacturer’s instructions. Baumatic Ltd. declines any responsibility for injury or damage, to person or property, as a result of improper use or installation of this appliance.
-
Page 8: Specifications
Specifications Product dimensions Height: 590 mm idth: 596 mm Depth: 545 mm Aperture dimensions Height: 580 - 583 mm idth: 560 mm Depth: 550 mm Specifications o 7 functions o Energy efficiency class : A o Oven gross capacity : 59 litres Oven net capacity : 50 litres o LED full prog... -
Page 9: Electrical Details
Electrical details Rated Voltage: 230 Vac 50 Hz Supply Connection: 13 A (double pole switched fused outlet with 3mm contact gap) Max Rated Inputs 2400W ains Supply Lead: 3 x 1.5mm² Oven Light Bulb: 25 W/300°C scr ew type pigmy For future reference please record the following information which be found on the ratin... -
Page 10: Oven Programmer/Timer Display
Oven programmer/timer display “Auto” function symbol “Minute minder” symbol “Manual operation” symbol. Setting and using the oven programmer/timer Selecting manual operation mode fter your appliance is connected to your mains supply for the first time, the numbers on the timer display will flash . -
Page 11: Before First Use
efore first use o To remove any residue from the oven that may have been left from the manufacturing process, you should select the fan oven function and set the thermostat to its maximum temperature setting. o It is perfectly normal for a smell to be produced during this process. -
Page 12: Setting The Minute Minder Function
etting the minute minder function ou are able to set the minute minder at any time, regardless f whether an oven function has been selected. You can set a eriod of time using the minute minder function and an alarm will sound when that period of time has elapsed. -
Page 13: Setting The Duration Function
etting the duration function his function will allow you to set a countdown time similar to he minute minder function. However the oven will no longer ontinue to heat, once the countdown period has elapsed. o Use the thermostat control knob (3) to set the temperature that you require. -
Page 14: Setting The End Cook Function
etting the end cook function his function is similar to the duration function, however stead of selecting a period of time that you wish the oven to witch off after. You select the time of day that you wish the oven to switch off at. -
Page 15: Setting The Start And End Time Function
Setting the start and end time function his function will allow you to set a time in the future that the ven switches on at and a time that the oven will switch off at. o Use the thermostat control knob (3) t o set the temperature that you require. -
Page 16: S Electing A Cooking Function And Temperature
electing a cooking function and temperature electing manual operation mode After your appliance is connected to your mains supply for the first time, the numbers on the timer display will flas h. Before you can select a cooking function or set a temperature, you must set the appliance into “manu al operation”... -
Page 17: Thermostat Control Knob
FULL GRILL: This method of cooking utilises the inner and outer parts of the top element, which directs heat downwards onto the od. This function is suitable for grilling medium or large ortions of sausages, bacon, steaks, fish etc. FAN AND GRILL: This method of cooking utilises the top element in conjunction with the fan, which helps to provide a quick circulation of heat. -
Page 18: Cooking Guidelines
ooking guidelines o Please refer to the information given on food packaging for guidance on cooking temperatures and times. Once familiar with the performance of your appliance, temperatures and times can be varied to suit personal preference. o If you are using the fan oven function, then you should follow the information given on the food packaging for this particular mode of cooking. -
Page 19: Warnings
arnings o Keep the oven door closed when using ALL oven functions, including the grill functions. o Do no t use aluminium foil to cover the grill pan or heat items wrapped in aluminium foil under the grill. The high reflectivity of the foil could potentially damage the grill element. -
Page 20: C Leaning And Maintenance
Any damage that is caused to the appliance by a cleaning product will not be fixed by Baumatic free of charge, even if the appliance is within the guarantee period. -
Page 21: Removable Oven Cavity Roof Liner
emovable oven roof liner o Your appliance is supplied with a roof liner, which should be slid over the top of the grill element. o Once you have finished cooking, the liner should be removed and thoroughly cleaned after each use of the appliance. o Do not allow fat and grease to bu ild up on the oven liner, as this could cause a fire hazard. -
Page 22: Installation
Care must be taken to ensure that the temperature of the mains supply cable does not exceed 50°C. o If the mains supply cable is damaged, then it must be replaced by an appropriat e replacement which can be obtained from the Baumatic Spares Department. -
Page 23: Installing The Oven Into The Kitchen Cabinet
nstalling the oven into the kitchen cabinet Positioning t he appliance o Ensure that the aperture that you will be fitting the oven into is of the size given in the above diagram. o The oven must be fitted into a specialist housing unit with the ventilation cut-outs sh own in the “Ventilation requirements”... -
Page 24: Ventilation Requirements
entilation requirements (Figure shows the ventilation and cut-out requiremen ts for the installatio n of the appliance into a standard kitchen unit). (Figure shows ventilation and cut- out requ irements for the installation of the ppliance into a tall ousing unit). Ensure that the oven has been securely fixed into the housing unit. -
Page 25: My Appliance Isn't Working Correctly
My appliance isn’t working correctly The oven isn’t coming on. * Check that the oven is in manual operation mode. * Check that you have selected a cooking function and a cooking temperature. Check that the operating instructions for setting the time of day and putting the appliance into manual operation mode have been followed. - Page 26 Or any installation other han the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the warranty...
-
Page 27: Cooking Tables
IMPORTANT: Baumatic Ltd. operates a policy of continuous improvement and reserves the right to adjust and modify its roducts without prior notification. COOKING TABLES THE B501.1BS/B501.1SS OVEN... - Page 28 DEFROST MODE: The fan runs without heat to reduce the defrosting time of frozen foods. The time required to defrost the food will depend on the om temperature, the quantity and type of food. Always check food packaging for the defrosting instructions. FAN OVEN: This method of cooking uses the circular element while the heat is distributed by the fan.
-
Page 32: C Ontact Details
Czech Republic Baumatic CR spol s.r.o. United Kingdom Průmyslová zóna Sever 696 Baumatic Ltd., 460 11 Liberec 11 Baumatic Buildings, Czech Republic 6 Bennet Road, Reading, Berkshire +420 483 577 200 RG2 0QX United Kingdom www.baumatic.cz Sales Telephone Slovakia (0118) 933 6900 Baumatic Slovakia, s.r.o.
