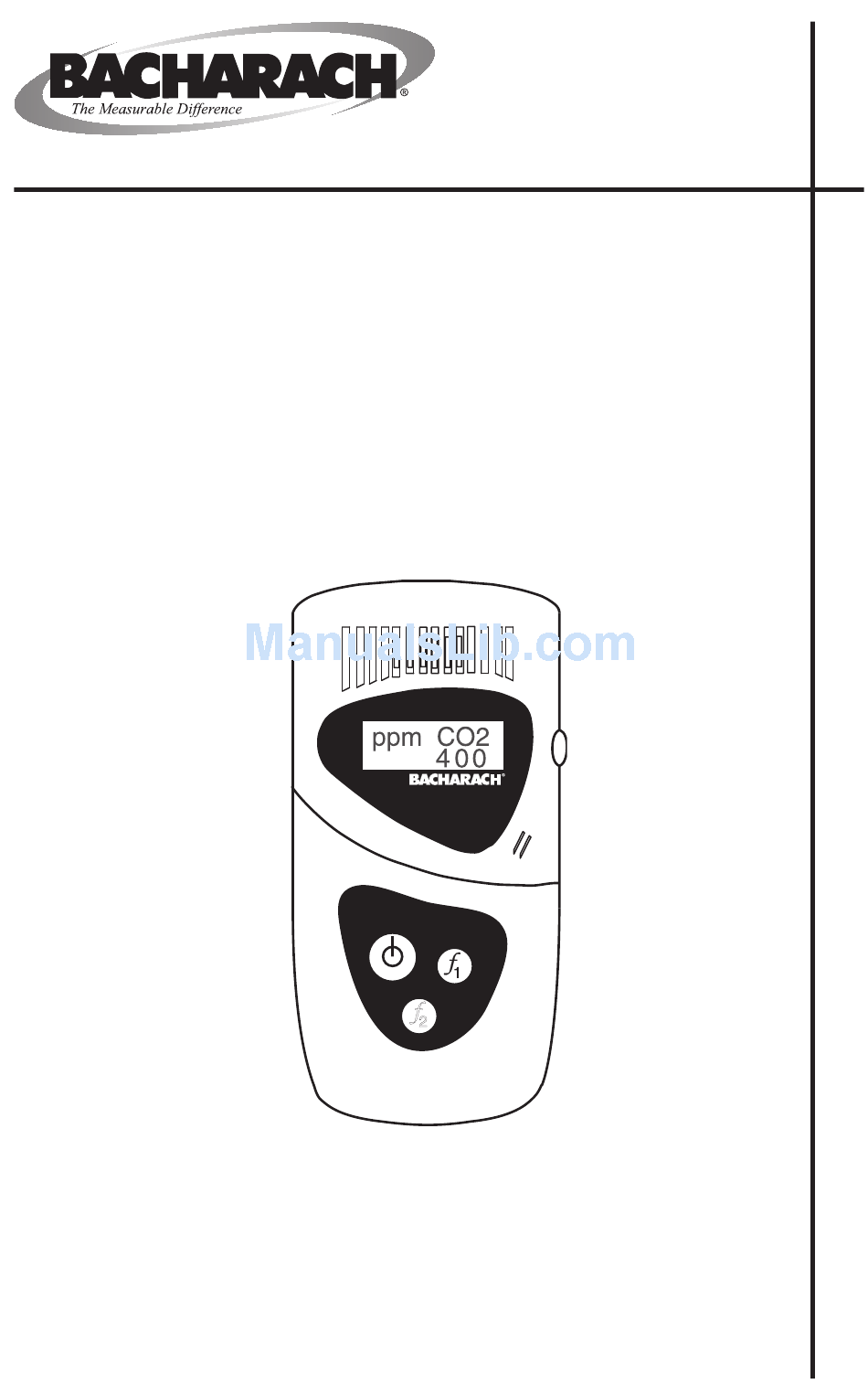

- Page 1 Monitor 2800 Instruction 19-9220 Operation & Maintenance Rev. 6 – June 2004 � � � � � � � � � � � Product Leadership • Training • Service • Reliability...
- Page 2 Bacharach, Inc. warrants to Buyer that it will convey good title to this Product. Bacharach’s liability and Buyer’s remedy under this warranty of title are limited to the removal of any title defects or, at the election of Bacharach, to the replacement of this Product or parts thereof that are defective in title.
-
Page 3: Table Of Contents
3.3 Calibration Using Higher Gas Concentration ....... 5 3.4 Test Mode ..................5 3.5 Fault Condition Warning ..............6 3.6 Data Logging ..................6 3.7 Software Version/Serial Number ............ 6 3.8 Factory Authorized Reset Mode ............6 4.0 PARTS & SERVICE ................7 4.1 Parts and Accessories ..............7 4.2 Bacharach Service Centers .............7 Instruction 19-9220... -
Page 4: Specifications
Monitor 2800 SPECIFICATIONS Range: 0 - 50,000 ppm* or 0 - 5% Resolution: 0.01% or 100 ppm Accuracy: ±5000 ppm CO Temperature: 0 - 40° C Relative Humidity: 10 - 95% non-condensing Response Time: <10 seconds to 90% of reading Size: 140 (L) x 65 (W) x 20 (D) mm (5.5 x 2.6 x 0.8 in.) -
Page 5: Introduction
Monitor 2800 1.0 INTRODUCTION General The Bacharach CO Monitor Model 2800 is easy to use, but it is essen- tial that these Operating Instructions are read prior to use. The CO Monitor is designed to warn the user of increasing Carbon Diox- ide levels in the range of 0 to 50,000 ppm. The unit is based on the Infra- red absorption principle and has two preset alarm levels - normally 5,000 ppm and 10,000 ppm. -
Page 6: Important Note
Monitor 2800 Important Note Always ensure that the sensor grille located on the front of the unit is un- obstructed and open to the atmosphere. A quick instrument check can be performed by breathing directly into the sensor grille. This will cause the indicated CO level to increase and may cause the instrument to alarm. -
Page 7: Operation
Monitor 2800 2.0 OPERATION Reading Mode When the instrument is switched on, there will be a 20 second (approxi- mately) warm up time before the CO level present in the atmosphere surrounding the user is displayed. The ON/OFF button should be pressed quickly when switching the unit on and held down for approximately 2 seconds when switching the unit off. -
Page 8: Maintenance
Monitor 2800 3.0 MAINTENANCE Battery Low When the battery voltage falls below a predetermined level, the screens will alternate between the following: Low Batt PPM CO2 In addition, the alarm will emit three rapid tones every 30 seconds. The unit must be given a full charge as soon as possible. Charging time is between 1 and 1.5 hours. -
Page 9: Calibration Using Higher Gas Concentration
If this happens, retry the Air Calibration procedure, ensuring that the unit is only exposed to clean outside air. If the procedure is still unsuc- cessful then the unit must be returned to a Bacharach Service Center (see Section 4.2) for evaluation. This procedure will provide a good low end CO calibration. -
Page 10: Fault Condition Warning
FAULT If the fault condition warning is activated at any time, then the unit must be returned to Bacharach for service. Data Logging When the CO Monitor is switched on, it will automatically begin storing time, date and CO levels at 30 second intervals. -
Page 11: Parts & Service
Monitor 2800 4.0 PARTS & SERVICE Parts and Accessories Accessories IrDA Interface Kit & BACH-COM Software ......19-3301 12 VDC Charger w/Cigarette Lighter Adapter ......19-3302 Earphone ..................19-3303 Protective Boot ................19-3304 Stand .....................19-3307 Carrying Case ................19-3311 Replacement Parts Battery Pack ................. 19-3306 110 VAC USA Plug Charger ............ -
Page 12: Bacharach Service Centers
Email: sales@bacharach-europe.com Email: help@bacharach-inc.com Sales / Service Center - Denmark Bacharach Instruments Int'l Canada P.O. Box 44 Bacharach of Canada, Inc. 39 Lindegade 250 Shields Court Unit #3 DK 6070 Christiansfeld Denmark Markham, Ontario L3R 9W7 Canada Phone: +45-74-563171 Phone: 905-470-8985... - Page 13 Monitor 2800 Instruction 19-9220...
- Page 16 Headquarters: 621 Hunt Valley Circle, New Kensington, PA 15068 Ph: 724-334-5000 • Fax: 724-334-5001 • Toll Free: 800-736-4666 Website: www.bacharach-inc.com • E-mail: help@bacharach-inc.com Printed in U.S.A.
