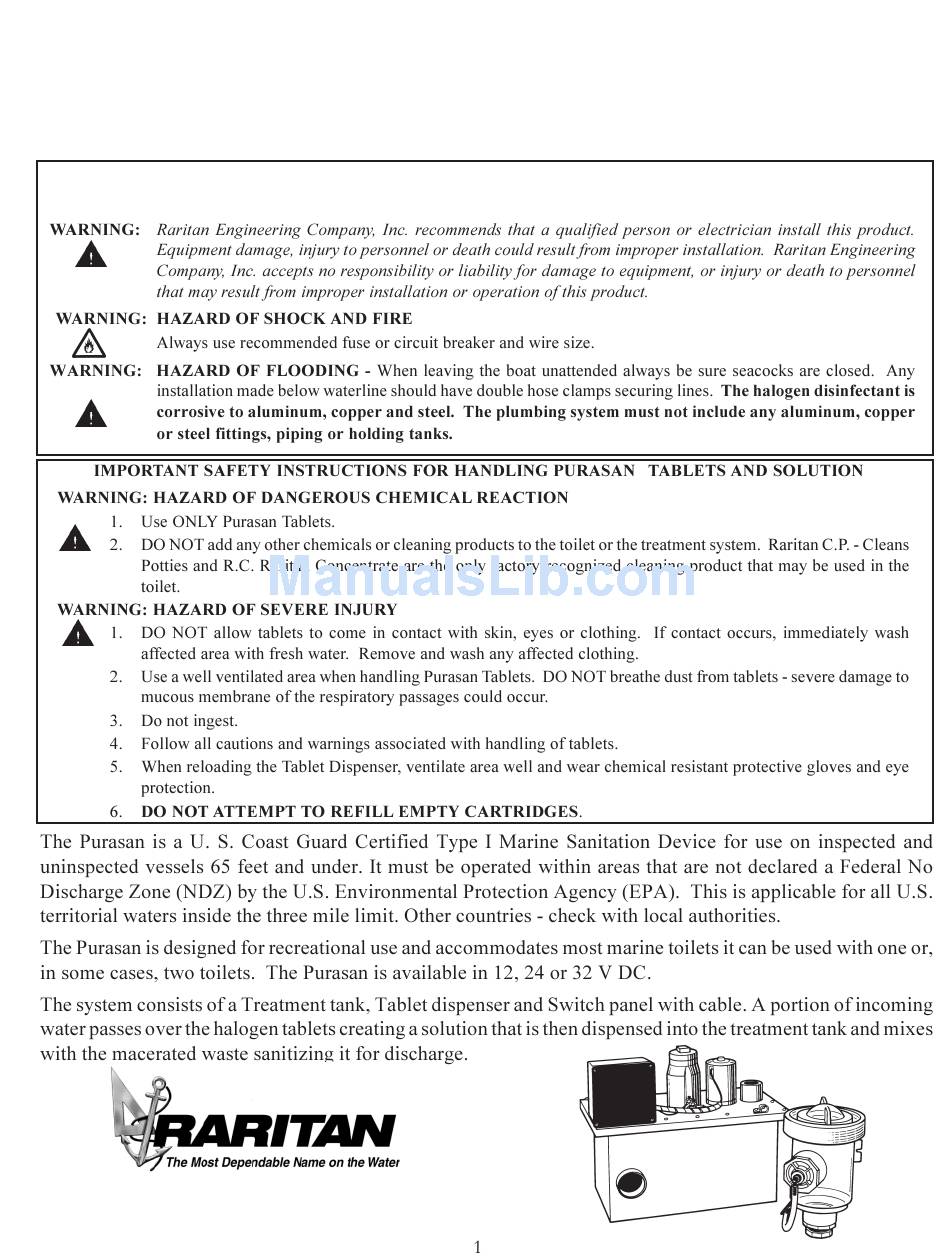

- Page 1 PURASAN ® OPERATION, MAINTENANCE AND INSTALLATION INSTRUCTIONS (Models PST*02 and PST*03 [*specify 12,24,32] Manufactured after September, 2004) THE FOLLOWING ARE CAUTIONARY STATEMENTS THAT MUST BE READ AND FOLLOWED DURING BOTH INSTALLATION AND OPERATION ® 1-800-352-5630 www.raritaneng. com...
-
Page 2: Switch Panel
(depends on installation chosen) Single Button operation - Both toilet and Purasan are operated by one of the following options: SWITCH PANEL Option #1: Switch Panel "Push to Cycle" button activates both the toilet and treatment cycle. Note: Toilet flush time is set at 10 seconds, after initial 10 seconds holding the button down will momentarily flush the toilet. -
Page 3: Maintenance
Use ONLY Purasan Tablets. DO NOT add any other chemicals or cleaning products to the toilet or the treatment system. Raritan C.P. - Cleans Potties and R.C. Raritan Concentrate are the only factory-recognized cleaning products that may be used in the toilet. - Page 4 Tablet Dispenser 1. Close flow metering clamp and disconnect power to water solenoid, if used, to prevent intake wa- ter from entering tablet dispenser. Close 2. Flush toilet and activate treatment cycle several Remove times to leave just water in tank. and drain 3.
- Page 5 1. Reconnect hoses and open seacocks. 2. Reconnect wires and turn power on. NOTE: Purasan treatment tank must be full before activating a cycle. IMPORTANT: Do Not connect Tablet Dispenser at this time. 3. Fill the treatment tank: • Single button operation - Remove crossover plug from Treatment Unit and fill with a minimum of three gallons of water, replace crossover plug and O-ring.
- Page 6 U.S.C.G. Type I MSD Certification #159.015/106/0 Maximum Roll/Pitch Angle: 30° Maximum Temperature Exposure: 120° F (49° C) Maximum Total Flush Volume: 1.5 gallons/flush (5.7 liters/flush) Water - fresh, salt or brackish NOTES: for Wiring i n i Recommended Wire and Fuse/Circuit Breaker Size CONVERSIONS Wire - AWG to mm Fuse Specifications...
- Page 7 F (49 1. Locate top of treatment tank at or below discharge of toilet and within six feet (1.5 m). Note: If mounting treatment tank higher than discharge. Contact Raritan 2. Make and secure mounting frame to flat DISCHARGE surface.
- Page 8 Raw Water Toilets - Raw water toilets 1. Turn off power to toilet. 2. Close intake and discharge seacocks and drain water from toilet system. 3. Disconnect intake hose from bowl elbow. 4. Remove existing bowl elbow and install new bowl elbow supplied with Purasan.
- Page 9 Make sure power is off before proceeding. • Improper wiring can damage the Circuit Board and void warranty. NOTE: Raritan recommends that the electric toilet be installed for single touch operation. Treatment Unit 1. Determine proper wire size from wire chart on specifications page.
- Page 10 Small post on CDS to H1 1. Mount Switch Panel near toilet. jumper wire CAUTION: Use only the Raritan #CDS (fail- with ure to do so will damage to the Control 3 amp fuse Board, voiding warranty).
- Page 11 No Water to tablet dispenser • Clogged check valve (T-fitting #41-200) Clean or replace check valve • Clogged intake fitting to dispenser Clean plug assembly • Intake pump or solenoid valve not functioning Check pump or solenoid for proper operation •...
- Page 12 41-100...
- Page 13 PURASAN PARTS LIST Item Part # Description Item Part # Description 32-102AW Mixer Motor 2 1/2" Dia. 12 V DC 41-110 Vent Kit for Tablet Dispenser (Incl. #53, 54, & 55) 33-102AW Mixer Motor 2 1/2" Dia. 24 V DC #14 Brass Flat Washer (4) 34-102AW Mixer Motor 2 1/2"...
-
Page 14: Dual Installation
Note: Toilet may be flushed as often as necessary, do not exceed recommended flush volume. 1. Mount Switch Panel near toilet. CAUTION: Use only the Raritan #CDS (failure to do so will damage to the Con- Battery trol Board, voiding warranty). - Page 15 NOTE: Discharge of raw, untreated sewage is prohibited in all U.S. waters inside the three mile limit except in the Gulf of Mexico where the limit is nine miles. "Y" valves, if installed, must direct toilet discharge to a U.S.C.G. approved treatment system or holding tank and must be secured in that position while inside the three-mile limit.
- Page 16 2 1/4" Level Template for (5.7cm) Across Switch Panel CUT OUT Mark (2) 3 3/4" HATCHED Mounting 9.5cm AREA Holes Outline Of Switch Panel...
