13" tabletop color television with remote control (20 pages)
Summary of Contents for Sears 274.43318390 SERIES
Page 1

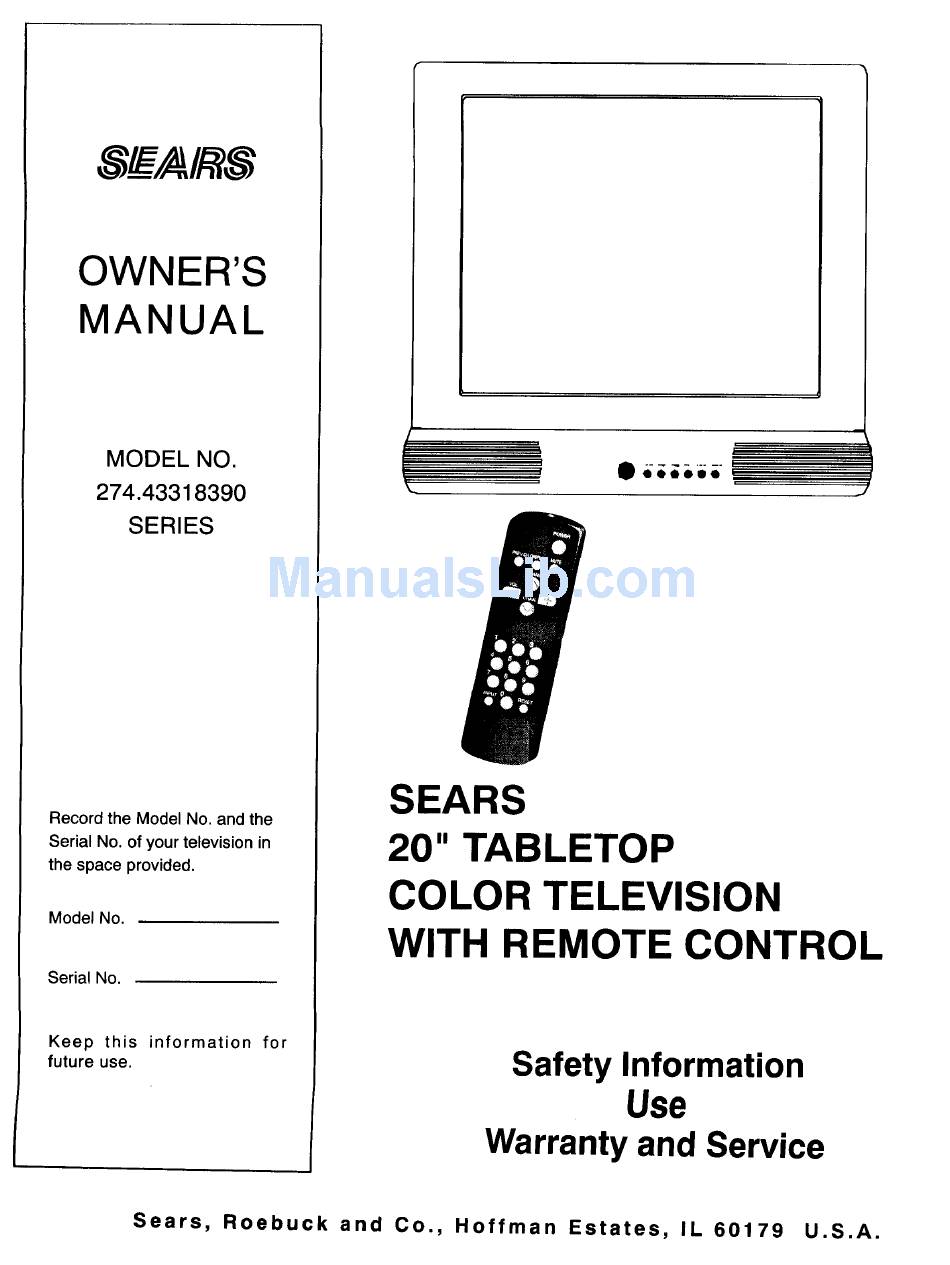

,,__/AI_ OWNER'S MANUAL MODEL NO. 274.43318390 SERIES SEARS Record the Model No. and the 20" TABLETOP Serial No. of your television in the space provided. COLOR TELEVISION Model No. WITH REMOTE CONTROL Serial No. Keep this information future use. Safety Information...
Page 2
Important Information WARNING TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER To prevent fire or shock SERVICEABLE PARTS INSIDE. REFER SERVICING hazard, do not expose this DO NOT OPEN TO QUALIFIED SERVICE PERSONNEL. TV to rain or moisture.
Page 3
Table of Contents Important Information Warning_ Quick Guide to Your TV Startup Hook up your TV, Plug in the TV, Put Batteries in the Remote, Turn on the TV, Place Channels in Memory, Set the Time Basic Tour of the Remote Power Button, Volume and Channel Controls Guide...
Quick Guide to Your TV Startup The steps below will get your TV connected and ready for watching. Hook up any antennas, cables or 1. Hook up your other equipment to your TV Details are in the before you follow the steps below. Connections Guide.
Quick Guide to Your TV Startup Press POWER on the _cmote. Turn on the TV POWER on the 'i'V. Press Press the MENU button on the 5. Place all available TV until the Setup menu is channels in memory selected. This menu is white.
Quick Guide to Your TV Basic Tour of the Remote Basic information about your remote is shown below. This will give you a general idea of how your remote works. For more details, see page 6. Turns the TV on and off.
Page 7
Quick Guide to Your TV Guide to the Menus General information about using the on-screen menu system is shown below. Details for using remote buttons are on page 6. Many menu items are explained in Adjusting Your TV starting on page 8. Yellow Green Light White ! 'ue 1...
Using Your TV and Remote With Remote Buttons Power Button POWER Turns the TV on. Turns the TV off. 2. TV Buttons INPUT PREV CH (Previous Channel) Switches the TV to channel 3. Changes back and forth between two channels. RESET Select a channel and then select Returns the picture adjustments...
Using Your TV and Remote With TV Buttons For details on using buttons with menus, see Menu Basics on page 5. MENU Shows menus on screen. Moves from menu to menu. CH A Channel up and down. Scans up and down through channels in the TV's memory.
Adjusting Your TV Overall Picture Follow the steps below to lighten or darken the overall picture without changing the color level. Press MENU to select the Controls 1. Select the Controls Menu menu. This menu is yellow. Alarm Ad Press CHANNEL down to 2.
Adjusting Your TV Picture Settings Follow the steps below to change the picture on the screen to your personal setting. The chart below explains your options. Press MENU repeatedly to select the Select the Adjust Menu Adjust menu. This menu is light blue.
Page 12
Adjusting Your TV Sound Settings: Stereo and Tone (Not on all models) Follow these steps to adjust the Stereo or Tone of your TV. Some TVs may not have these features. The chart below explains your options. Press MENU to select the Controls Select the Controls Menu menu.
Page 13
Using Advanced Features Placing Channels in Memory (Autoprogramming) Only channels 2--13 appear in the TV's memory when you first turn it on. The channels available in your area must be programmed into the TV's memory when you hook up your TV. Using CHANNEL up or down allows you to scan through these channels.
Using Advanced Features Add or Delete Channels in Memory You may want to add or delete a few channels if some stations have weak signals or were off the air when the TV was autoprogrammed. Refer to the Add or Delete Channels section below. Add or delete channels A.
Using Advanced Features Watching Closed Captioning Closed captioning displays the sound of a program as words on the TV screen. It is useful for the deaf, hearing impaired, or anyone who wants to watch a program without sound. If you have turned Closed Captioning on and it does not appear on the screen, it is not available...
Using Advanced Features Setting the Sleep Timer You can set your TV to turn itself off. If you're watching TV at night and fall asleep, the TV will turn off for you. A. Press MENU to select the Set Sleep Timer Controls menu and highlight...
Using Advanced Features Setting the Alarm Clock The TV can be set to turn on each day like your alarm clock. You can set it to turn on to your favorite channel at a certain time. You can also set it to turn itself off again.
Using Advanced Features Setting Your TV for Antenna or Cable Your TV automatically adjusts this feature when the TV places channels in memory (autoprogram). Follow the steps below to change the setting as needed. Press MENU repeatedly to select 1. Select the Setup menu the Setup menu.
References Displays on the Screen Your TV shows the settings of several features on the _creen. '1o see what features have been set on your TV, press DISPLAY on the remote. 12:00 AM Alarm Sleep Volume -..I ..Mute Stereo Description...
References Trouble Checks You may have problems that can be tixed with a tew minor adjustments. Look for the type of problem you are having below and then try the suggestions get your TV going again. For warranty information see back cover. Trouble Checks and Adjustments...
Reference Trouble Checks Trouble Checks Adjustments Sound Noisy stereo reception Turn Stereo off. The stereo broadcast may not be clear. See page 10. (Not available on all models) Press VOLUME + or MUTE to restore sound. Picture okay, no sound Make sure TV's speakers are on.
Page 22
References Glossary Antenna Menu Tone (Not on all models) A device used to receive locally A listing of features, controls, Quality of the sound. broadcast signals from TV stations. adjustments shown on the TV Video screen that can be changed. Picture reproduced by the Audio...
Page 23
References Index PREV CH Button ........6 Contents ..........Previous Channel Button ....6 Controls Adding Channels to Memory ..11,12 TV Front Panel ........Putting in Batteries ....... 2 Adjusting Remote ..........Picture ..........Quick Guide to Your TV .... 2,3,4,5 Autocolor, Bright (Brightness), Color, Sharpness,...
Page 24
IN THEUNITED STATES. PART DESCRIPTION This warranty gives you specific legal rights, and you may also haveother rights which varyfrom stateto state. Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179 Printed in U.S.A. 5/93 Part No. L38-13826-0 1Q56 341-01A...
