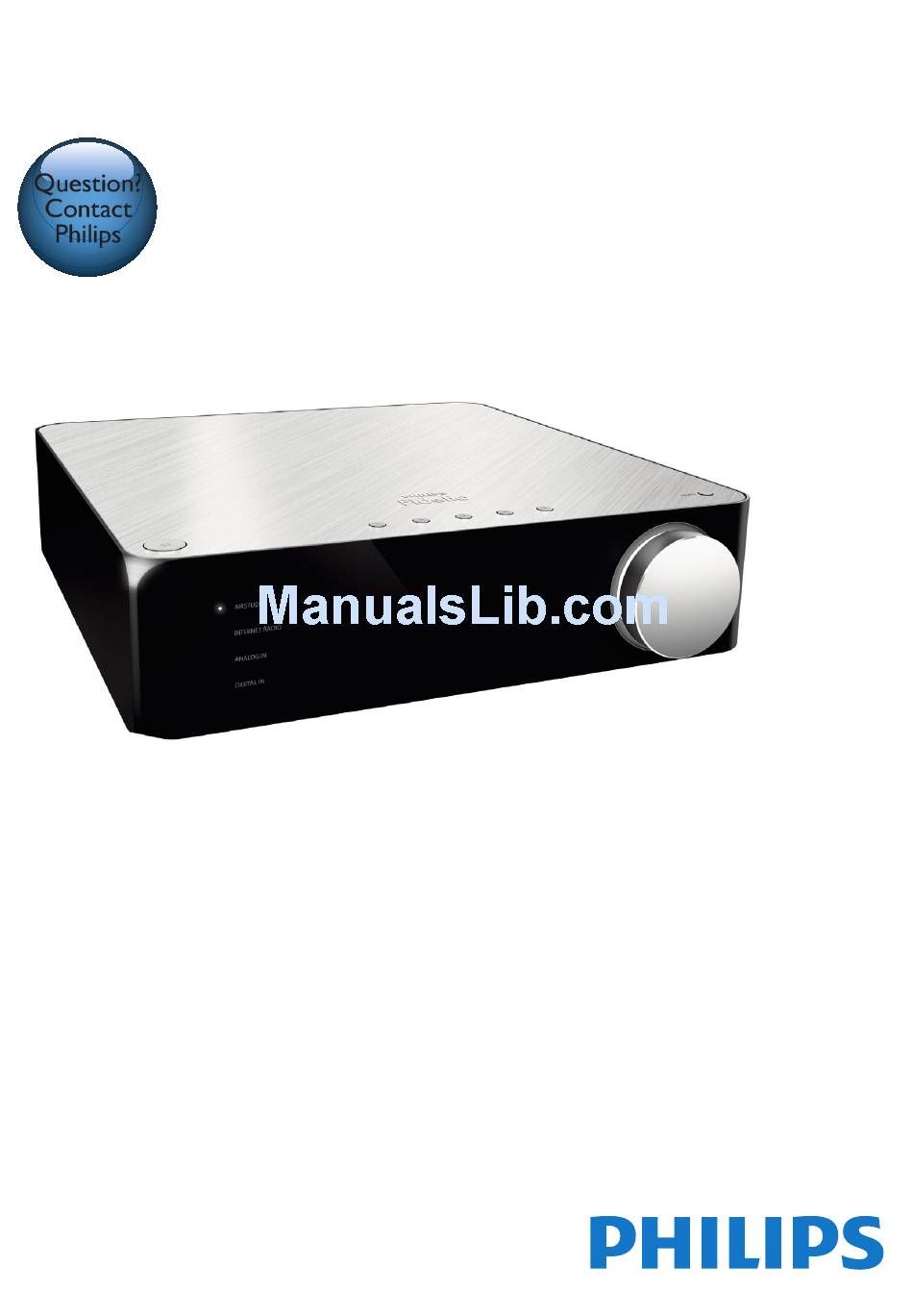

Page 1: User Manual
Always there to help you Register your product and get support at www.philips.com/welcome AW2000 Question? Contact Philips User manual... -
Page 3: Table Of Contents
Download Philips AirStudio to your smartphone or tablets Connect to an existing speaker system Connect power and switch on 4 Connect AW2000 to your home Wi-Fi network Option 1: Set up wireless connection to a non-WPS router through an iOS device... -
Page 4: Important
1 Important i Do not expose the product to dripping / splashing water, rain or high humidity. j Keep this product away from direct sunlight, naked flames or heat. k Do not install near any heat sources Safety such as radiators, heat registers, stoves, or other electrical equipment (including amplifiers). -
Page 5: Notice
Environmental information Notice All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.) Your system consists of materials which can be recycled and reused if disassembled by This product complies with the radio a specialized company. -
Page 6: Your Wireless Hi-Fi Receiver
Apple App Store (for iOS devices) or Google Play Store (for Android devices) With this wireless Hi-Fi receiver connected to Connect AW2000 to the same local network an existing speaker system, you can: as your iOS/Android device or PC/Mac through • stream audio from your iOS or the Wi-Fi router. -
Page 7: Overview Of The Main Unit
OPTICAL socket • Switch the device on or to normal/Eco • Connect an external audio device to standby mode. AW2000 through an optical cable (not supplied). b Power/status indicator • Show the current status of the device. k ETHERNET socket • (Optional) Connect to a wireless... -
Page 8: Prepare
3 Prepare (For users of Android smartphones or tablets) Install Philips AirStudio from Google Play Store and then run the app. Always follow the instructions in this chapter in sequence. Download Philips AirStudio to your smartphone or tablets (For iPod touch/iPhone/iPad users) Install Philips AirStudio from Apple App Store, and then run the app. -
Page 9: Connect To An Existing Speaker System
On the initial Setup page, tap Setup a new Connect to an existing speaker. speaker system Unscrew the speaker connectors. Insert fully the end of a speaker cable with red mark into the left red (+) connector. Read the general setup steps, then tap Next. Screw the left red (+) connector to secure the cable. - Page 10 Tap Next on the app screen to continue. Read the power connection instructions on the app. Switch between normal and Eco power standby mode • To switch the device to normal standby mode, briefly press . » The power/status indicator turns green. •...
-
Page 11: Connect Aw2000 To Your Home Wi-Fi Network
Fi network power and switch on' on page 7). c you have jotted down your Wi-Fi password. To connect AW2000 to your existing home Wi- Once connected successfully, AW2000 will Fi network, you need to apply your home Wi-Fi remember your home Wi-Fi settings. Then settings to AW2000. - Page 12 As instructed, briefly press WI-FI SETUP As instructed, exit the app, and then select Philips_Install from the list of available on the back of AW2000. » The power/status indicator starts to Wi-Fi networks. blink amber and white alternately. » A new Wi-Fi network created by AW2000 will appear, with the network name (SSID) of Philips_Install.
-
Page 13: Option 2: Set Up Through A Non-Wps Wi-Fi Router And Android Device
tap Done to finish input, and then AW2000 turns solid white. tap Next. » The following app screen appears. » AW2000 is connected to your home Wi-Fi network successfully. * If your Wi-Fi password contains such special characters as #/:/;/', you need to change your password. - Page 14 » Your Android device starts to connect with the new Wi-Fi network created by AW2000 automatically. As instructed, briefly press WI-FI SETUP on the back of AW2000. Wait until the wireless Hi-Fi receiver is » The power/status indicator starts to found. blink amber and white alternately.
- Page 15 Wait until the power/status indicator on network, and then tap Next. AW2000 turns solid white. » The following app screen appears. » AW2000 is connected to your home Wi-Fi network successfully. * If your Wi-Fi password contains such special characters as #/:/;/', you need to change your...
-
Page 16: Option 3: Set Up Wireless Connection To `A Wps Router
(see 'Play' on page 16). Option 3: Set up wireless connection to `a WPS router Tap WPS Setup? on the app screen . As instructed, press and hold WI-FI SETUP on the back of AW2000. » The power/status indicator blinks amber and green alternately. > 4S... -
Page 17: Option 4: Set Up Wired Connection Through An Ethernet Cable
If you use wired connection, you just need to select » The following app screen appears. Speaker already setup on the initial Setup page (see 'Download Philips AirStudio to your smartphone or » AW2000 is connected to your home tablets' on page 6). Wi-Fi network successfully. If you have tried wireless connection,... -
Page 18: Play
Stream from your iOS or Android smartphone or tablet Make sure that your iOS/Android device is connected to the same Wi-Fi network as AW2000. Run Philips AirStudio on your iOS or Android smartphone or tablet. If the following screen does not appear, select Speaker already setup on the initial Setup page. - Page 19 Find the license key available on the quick start guide, then install Media Manager onto your PC/Mac. • If the power/status indicator flashes white, it indicates that AW2000 is muted. Adjust volume on AW2000 or your iOS/Android device to resume sound output. • If you find that the icon of either the iOS/Android device or wireless Hi-Fi receiver does not appear at Refresh to refresh the step 3, you can tap ->...
-
Page 20: Listen To Internet Radio Stations Through Aw2000
Listen to Internet radio stations through AW2000 Run Philips AirStudio on your iOS or Android smartphone or tablet. Tap Services -> Philips AW2000 to enter the home page. You can also control music play from your iOS/ Android device. Make sure that your iOS/Android device and PC/Mac are connected to the same Wi-Fi network as AW2000. - Page 21 On the home page, tap Internet radio to Search for an Internet radio station by its select the Internet radio source. name or location, language etc. To tune to an Internet radio station, select If the following message pops up, tap I and tap its name in the result list. agree to allow Internet access.
- Page 22 tap , and then tap the 3rd row to replace the previous station. shown. Philips AW2000 To tune to a preset radio station Press numeric keys (1-5) on AW2000 • directly to tune to the first five preset radio stations. • You can also go to Presets on the app screen and tap one of your preset stations to start play.
-
Page 23: Play From An External Device
Play from an external device You can also listen to an external audio device through AW2000. Connect through the MP3-LINK socket: Connect a 3.5mm audio cable (not supplied) to: • the MP3-LINK socket on the back of AW2000. - Page 24 • the AUX IN L/R sockets on the back of AW2000. • the audio output sockets on an • You can also press SOURCE on AW2000 repeatedly to external audio device. select the corresponding audio source directly. Start play on the external audio device and adjust volume.
-
Page 25: Upgrade Firmware
To improve the performance of AW2000, Philips may offer you new firmware for upgrade of your AW2000. Warning • Always connect your AW2000 to AC power for firmware upgrade. Never power off your AW2000 during firmware upgrade. Make sure that AW2000 is powered on and connected to the same Wi-Fi network as your smartphone or tablet. Make sure that your home Wi-Fi network is connected to the Internet. - Page 26 Wait until the firmware upgrade process If a new firmware is available, tap OK on finishes, then tap OK on the prompt the prompt message to start firmware message to restart the device. upgrade. » The power/status indicator on AW2000 flashes amber during this process. You can also check and upgrade the firmware manually. On the home page, tap ->Firmware upgrade -> Check Online to check for Wait until the firmware upgrade process new firmware.
-
Page 27: Product Information
7 Product General information information AC power 220 - 240 V ~ 50 Hz Operation Power 50 W Consumption Power Consumption < 0.5 W Note in Standby Mode Dimensions • Product information is subject to change without prior - Main Unit 220 x 264 x 122.5 mm notice. - Page 28 When you contact Philips, ensure #/:/;/'. that the apparatus is nearby and the model • If you choose to rename your AW2000 number and serial number are available. manually on the Philips AirStudio app, do No power not use special characters or symbols.
- Page 29 Occasional breaking of music streaming Do one or all of the following: • Move AW2000 closer to your Wi-Fi router. • Remove any obstacles between AW2000 and your Wi-Fi router. • Avoid using Wi-Fi channel which is overlapped by the nearby Wi-Fi network.
- Page 30 LED colors LED color Meaning Blinking AW2000 is booting up or amber firmware upgrade is in progress. Solid AW2000 is not connected to any amber network. White AW2000 is in wireless setup mode, assisted by the AirStudio amber app. Follow the set-up instructions alternately on the app.
- Page 32 Specifications are subject to change without notice © 2013 Koninklijke Philips Electronics N.V. All rights reserved. AW2000_10_UM_V2.0...
