Subject: Sampo LM-24S6P V1.0 Service Manual
Project Code: N.A.
Model Name: LM-24S6P

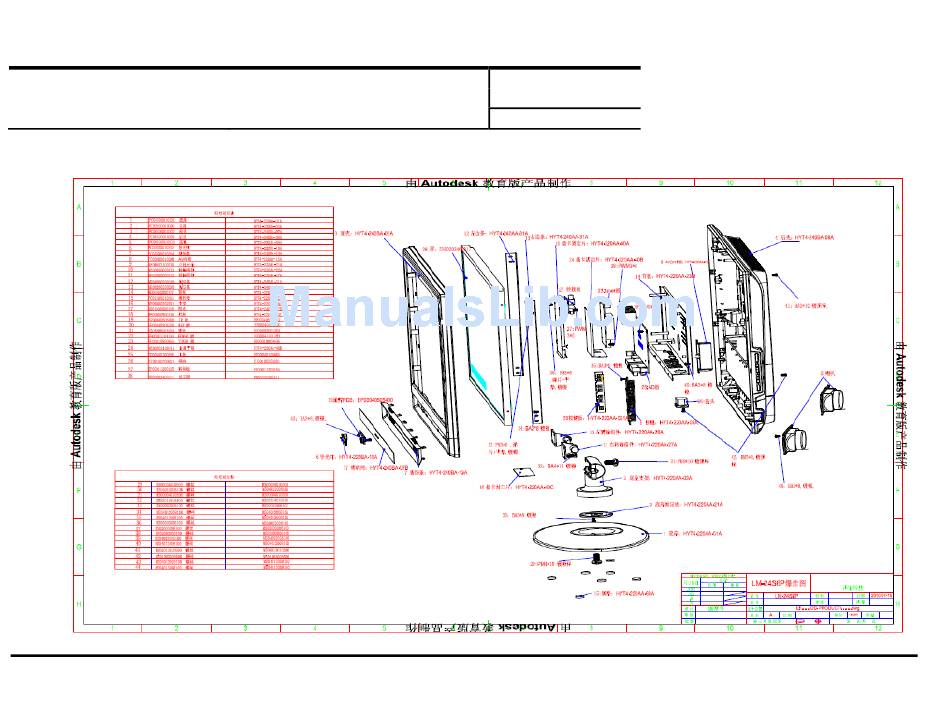

3. LM-24S6P 結構爆炸圖與物料清單
This document contains confidential information that is proprietary to Eternal Asia Display Technology Co., No part of its contents may be used, copied, disclosed or conveyed to any party in any
manner whatsoever without prior written permission from Eternal Asia Display Technology Co. All contents are subject to change without prior notice.
Confidential
Doc. No.:
Released Date: 2010-3-25
Revision: 1.0
Pages: 8 of 34
Advertisement
Related Manuals for Sampo LM-24S6P
Summary of Contents for Sampo LM-24S6P
- Page 1 Confidential Subject: Sampo LM-24S6P V1.0 Service Manual Revision: 1.0 Project Code: N.A. Doc. No.: Model Name: LM-24S6P Released Date: 2010-3-25 Pages: 8 of 34 3. LM-24S6P 結構爆炸圖與物料清單 This document contains confidential information that is proprietary to Eternal Asia Display Technology Co., No part of its contents may be used, copied, disclosed or conveyed to any party in any...
- Page 2 Confidential Subject: Sampo LM-24S6P V1.0 Service Manual Revision: 1.0 Project Code: N.A. Doc. No.: Model Name: LM-24S6P Released Date: 2010-3-25 Pages: 9 of 34 This document contains confidential information that is proprietary to Eternal Asia Display Technology Co., No part of its contents may be used, copied, disclosed or conveyed to any party in any...
- Page 3 Confidential Subject: Sampo LM-24S6P V1.0 Service Manual Revision: 1.0 Project Code: N.A. Doc. No.: Model Name: LM-24S6P Released Date: 2010-3-25 Pages: 25 of 34 8. 零件清單 當提出零件需求時, 每一樣零件都必須依照下表填入下列訊息 料號 (1). 品名 (2). 規格 (3). 8.1 SKD 零件清單 料号 品名 规格型号...
- Page 4 Confidential Subject: Sampo LM-24S6P V1.0 Service Manual Revision: 1.0 Project Code: N.A. Doc. No.: Model Name: LM-24S6P Released Date: 2010-3-25 Pages: 26 of 34 PH12000100165 零件组模组 SAMPO PLH240BAT BLACK,VENDOR PACKAGE FOR SAMPO, EN00202400311 显示屏 24" TFT,1920*1080,LVDS,M240HW01 V2,AUO, EP00040100805 主板 MST6M16,NTSC,SAMPO PLH240BAT,均和, PH12000100162 零件组模组...
- Page 5 Confidential Subject: Sampo LM-24S6P V1.0 Service Manual Revision: 1.0 Project Code: N.A. Doc. No.: Model Name: LM-24S6P Released Date: 2010-3-25 Pages: 27 of 34 EL02009035004 线材组 UL1007 #24,UL1185 #26,P2.0 9P<->P2.0 5P,L=350mm, 遥控板线 EL02012040006 线材组 UL1185 #26,UL1007 #24,P2.0 2*6P<->P2.0 2*6P,L=400mm, 高频头连接线...
- Page 6 Confidential Subject: Sampo LM-24S6P V1.0 Service Manual Revision: 1.0 Project Code: N.A. Doc. No.: Model Name: LM-24S6P Released Date: 2010-3-25 Pages: 28 of 34 EL02001013000 线材组 UL1015 #18,φ3.2 1P<->φ3.2 1P,L=130mm,黄滚绿, 接电源两端 OG00500000103 泡棉 导电泡棉,L60*W20*H20mm, 贴在屏和滑块固定板之间 OG00800000100 醋酸布 黑色醋酸布,W20*T0.22mm,透明胶带, EJ00100300201 插座...
- Page 7 Confidential Subject: Sampo LM-24S6P V1.0 Service Manual Revision: 1.0 Project Code: N.A. Doc. No.: Model Name: LM-24S6P Released Date: 2010-3-25 Pages: 29 of 34 PC01000010304 装饰条 ABS 红色,SAMPO PLH240BAT,HYT4-240BA-13B,浩业, 红色 USB 挡板,ABS 黑色罩光,丝印端口,SWA PC00900010300 挡板 PLH1918D,HYT4-220AA-15A,浩业, ME00602100130 金属平板 立柱五金,SGCC T1.5mm,SWA PLH1918D,HYT4-220AA-21A,浩业, ME00400000133 转轴组件...
- Page 8 Confidential Subject: Sampo LM-24S6P V1.0 Service Manual Revision: 1.0 Project Code: N.A. Doc. No.: Model Name: LM-24S6P Released Date: 2010-3-25 Pages: 30 of 34 MS01003008500 螺丝 FH(+),M/M,KM3*8,镀黑锌, AC 座 2；背板与后壳*2 屏左固定条,SGCC T1.0mm,SAMPO PLH240BAT,HYT4-240AA-31A,浩 ME00200200139 固定条 业, 屏右固定条,SGCC T1.0mm,SAMPO PLH240BAT,HYT4-240AA-31A,浩 ME00200200230 固定条...
- Page 9 Confidential Subject: Sampo LM-24S6P V1.0 Service Manual Revision: 1.0 Project Code: N.A. Doc. No.: Model Name: LM-24S6P Released Date: 2010-3-25 Pages: 31 of 34 TAIWAN,3P PLUG,WIRE 3G0.75mm,L=1200mm,BLACK,HNS20090422, EO00621200014 电源线 宏能盛， MONITOR,繁体中文,L197*W168mm,SAMPO PLH240BAT CM01000100124 说明书 BLACK,LM-24S6P,MST6M16, PE 袋,自封袋,L330*W230*T0.26mm,EPE,一国语言,英 CP00100000900 包装袋 语,PE-LD06, PH19000100168 包装模组...
- Page 10 Confidential Subject: Sampo LM-24S6P V1.0 Service Manual Revision: 1.0 Project Code: N.A. Doc. No.: Model Name: LM-24S6P Released Date: 2010-3-25 Pages: 32 of 34 MS04013008100 螺丝 RH(+),A TYPE,BA3*8,镀镍, 端子板与主板 5 MS04013010500 螺丝 RH(+),A TYPE,BA3*10,镀黑锌, 前后壳 7 L79.6*W39.6*T0.1mm,黑底银字,繁体中文,SAMPO PLH240BAT CP00600000482 后铭牌...
- Page 11 Confidential Subject: Sampo LM-24S6P V1.0 Service Manual Revision: 1.0 Project Code: N.A. Doc. No.: Model Name: LM-24S6P Released Date: 2010-3-25 Pages: 33 of 34 ASSEMBLY TUNER,SAMPO PLH240BAT BLACK,均和 PACKAGE FOR PH12000100166 零件组模组 SAMPO, EP00010800605 TUNER 板 NTSC,东森 PLM3710T,745-6M19T0-02,均和, TUNER 滑块,SGCC T0.8mm,SAMPO PLH240BAT,HYT4-220AA-40B, ME00602100131 金属平板...
