- Page 1 Operator’s Manual WARNING! Read this Operator’s Manual carefully before using this tool. Failure to understand and follow the contents of this manual may result in electrical shock, fire and/or Record product serial number below as it appears on the nameplate. serious personal injury.
-
Page 2: Table Of Contents
Lifetime Warranty �����������������������������������������������������������������������������������������������������������������������������������������Back Cover Other trademarks or trade names may be used in this document to refer to either the entities claiming the marks and names or their products� RIDGID disclaims any proprietary interest in trademarks and trade names other than its own�... -
Page 3: Recording Form For Machine Serial Number
Safety Symbols In this operator’s manual and on the product, safety symbols and signal words are used to communicate important safety information� This section is provided to improve understanding of these signal words and symbols� This is the safety alert symbol� It is used to alert you to potential personal injury hazards� Obey all safety messages that follow this symbol to avoid possible injury or death�... -
Page 4: Battery Use And Care
• Do not use equipment if the power switch does water� If liquid contacts eyes, seek medical help� not turn it ON and OFF� Any equipment that cannot Liquid ejected from the battery may cause irritation be controlled with the power switch is dangerous and or burns�... -
Page 5: Description, Specifications, And Standard Equipment

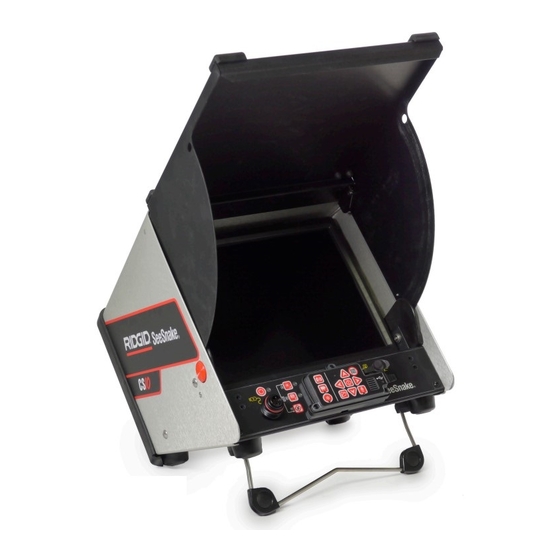

The SeeSnake CS10 is a portable monitor and camera goggles, protective clothing, respirators, and steel control unit designed to easily connect to any SeeSnake toed shoes�... -
Page 6: Specifications
CS10 Components Specifications Table 1 SeeSnake ations ® 10 Specific Weight: with two batteries 14�8 lb [6�7 kg] Front Cover without batteries 12�0 lb [5�4 kg] Dimensions: LCD Screen Length 14�3 in [36�3 cm] Width 11�9 in [30�2 cm] Height 12�4 in [31�5 cm] 100 –... -
Page 7: Keypad And Icon Legends
Transmitter Clip-on Video Out LED Brightness Key Terminal Power Key Sonde Key Zero Key Speaker USB Port Cover USB Port Figure 3 – CS10 Mini Keypad Figure 5 – CS10 Connections Keypad and Icon Legends Table 2 Video Key CS10 Keypads Menu Key Main Keypad Battery Indicator LEDs... -
Page 8: Pre-Operation Inspection
Pre-Operation Inspection Table 3 Connection Icons WARNING Icon Definition Video Out Video Connect (SeeSnake System Connector) Transmitter Clip-on Terminal Before each use, inspect your CS10 and correct any problems to reduce the risk of serious injury from electrical shock or other causes and prevent Table 4 machine damage�... -
Page 9: Cs10 Placement
2� Tilt the unit back slightly and pull forward on the tilt stand until it locks in place (See Item 2, Figure 6)� 2� Inspect the work and determine the correct RIDGID To store the tilt stand, tilt the unit back slightly, and push equipment for the task�... -
Page 10: Connecting The Cs10
Connecting the CS10 Figure 9 – USB Port with Thumb Drive Figure 8 – SeeSnake System Connector Powering the CS10 1� Unwrap the SeeSnake System Cable from its The CS10 can either be powered with Li-Ion rechargeable holder, pull back the locking sleeve, and match batteries or with the external power cord�... -
Page 11: Interface Overview
Interface Overview When the unit is turned ON and batteries are in the battery docks, the battery indicator LEDs on the CS10 Navigating will reflect the state of each battery as shown in Table 5� Use the arrow keys on the CS10 to navigate through Table 5 menus and screens�... -
Page 12: Operating Instructions
percentage of space remaining on the USB thumb drive Table 6 plugged into the USB port� CS10 Keys and Functions Icon Name Function Operating Instructions Press to step up or down WARNING through various brightness LED Brightness levels or press once and then use the arrow keys to step through the brightness levels�... -
Page 13: Jobs
Jobs Recording Video The CS10 automatically saves photos, videos, and Press the Video Key to start recording a video� The Autolog videos to the latest Job on the thumb drive� The Video Icon will appear briefly at the start of a video CS10 will open a new Job if there is not already one recording�... - Page 14 Sonde which transmits a locatable 512 Hz signal� When The CS10 also enables you to trace the line of the push the Sonde is turned ON, a locator such as the RIDGID cable underground, using a standard RIDGID locator, SR-20, SR-60, Scout™ or NaviTrack® II set to 512 such as the NaviTrack®...
-
Page 15: Adjusting Settings
Adjusting Settings Press the Menu Key to access the Settings Menu, the Display Menu, the Language Menu, and the Media Menu to make changes to the following: • Monitor color, contrast and brightness, • Time/date, • Unit of measurement, • Video format, • Language preference, and • Report creating preferences�... -
Page 16: Delivering Reports By Usb Thumb Drive
browser to view full size photos and to playback video or press the Select Key to toggle between “feet,” and Autolog video� Use the browser’s “back” button to “meters,” and “auto�” return to the initial page� Adjusting Video Format From the Settings Menu, choose from either MJPEG or MPEG4 video formats�... -
Page 17: Maintenance Instructions
Maintenance Instructions Software Updates If Auto-Launcher is enabled on the SeeSnake HQ and if software updates for the CS10 are available, an update notification will automatically appear on the computer� If Auto-Launcher is not enabled, manually check for software updates from the Home Window by either selecting “Check for Update”... -
Page 18: Accessories
Improper service or repair can make the CS10 unsafe to operate� RIDGID SeekTech or Various NaviTrack Locator Service and repair of the SeeSnake CS10 must be performed by a RIDGID Independent Authorized RIDGID SeekTech or Various Service Center� NaviTrack Transmitters... -
Page 19: Disposal
RIDGID rechargeable batteries� For EC countries: Do not dispose of In the U�S� and Canada, RIDGID and other battery electrical equipment with household suppliers use the Call2Recycle® program network of waste! over 30,000 collection locations to collect and recycle According to the European Guideline rechargeable batteries�... -
Page 20: Troubleshooting
Table 8 Troubleshooting Problem Probable Fault Solution Check power is correctly plugged in� Check switch on No power to SeeSnake CS10� Camera video image not Check alignment and pins of connection from CS10 to seen Connections faulty the SeeSnake Reel� CS10 batteries low Recharge CS10 batteries�... - Page 21 Notes English - 19...
- Page 22 Pour toutes réparations au titre de la garantie, il convient d’expédier le produit complet en port product to RIDGE TOOL COMPANY, Elyria, Ohio, or any authorized RIDGID payé à la RIDGE TOOL COMPANY, Elyria, Ohio, ou bien le remettre à un réparateur RIDGID ®...
