Grizzly H0760 Instructions

the Model h0760 is convenient for all around
shop use. this utility cart can tote around tools,
parts or inventory and has a very small foot print.

specifications

Weight .......................................................35 lbs.
load Capacity .........................................220 lbs.
dimensions ....................... 16"W x 29
top shelf height ...........................................31
distance Between shelves............................7
shelf depth ....................................................3
inventory

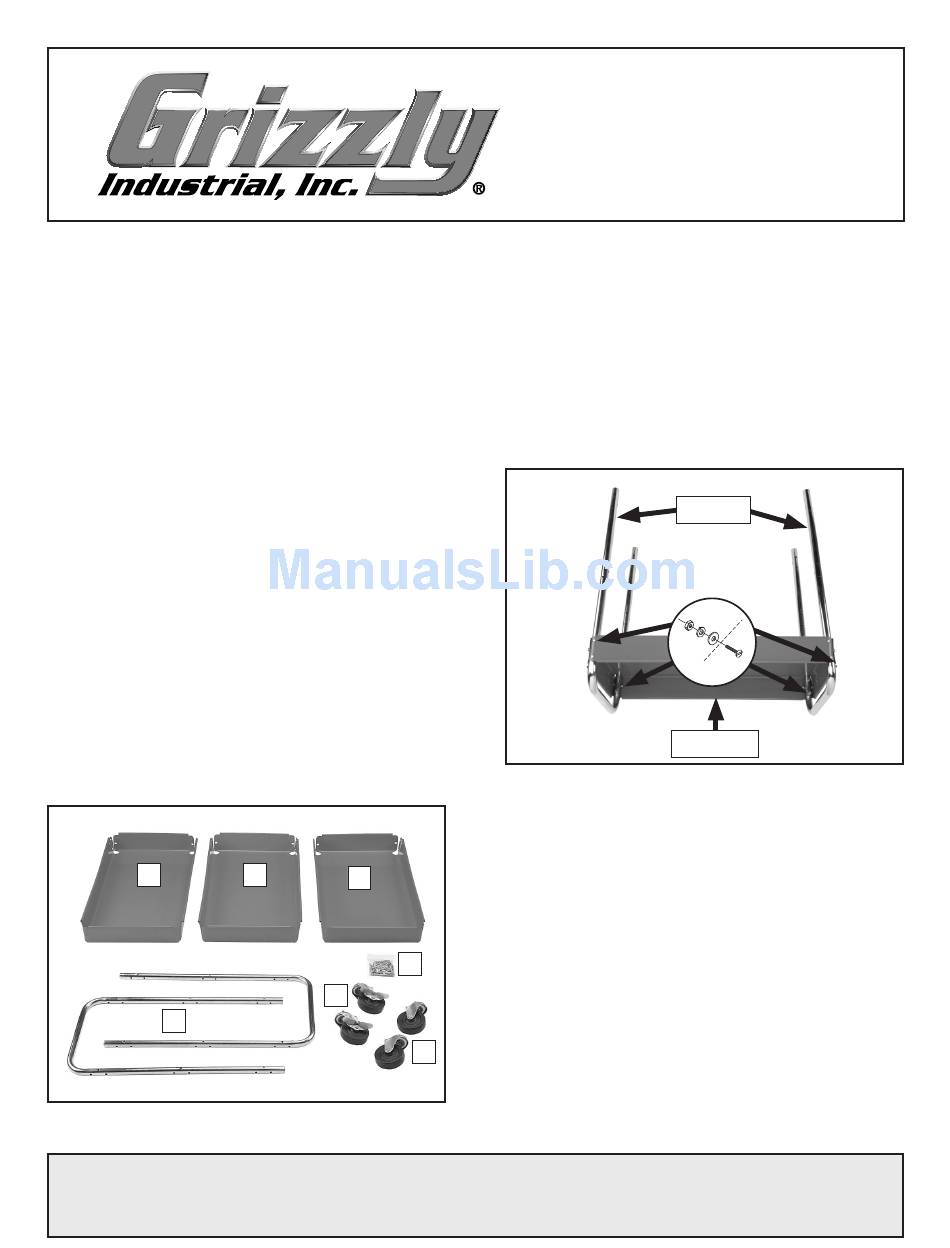

(figure 1)
a. top shelf .................................................... 1
b. Center shelf ............................................... 1
c. Bottom shelf ............................................... 1
d. handles ...................................................... 2
e. swivel Casters ............................................ 2
f. locking swivel Casters .............................. 2
g. hardware Bag ............................................ 1
—slotted screws M6-1 x 35..................... 36
—hex nuts M6-1 ...................................... 36
—Flat Washers 6mm ............................... 36
—lock Washers 6mm .............................. 36
a
d
figure 1. h0760 inventory.
Warning: no portion of this manual may be reproduced in any shape
or form Without the Written approval of grizzly industrial, inc.
⁄ "l x 34"h
1
2
⁄
1
4
⁄
1
2
⁄
1
2
B
C
g
F
e
Copyright © july, 2008 By grizzly industrial, inC.
#Bl10958 printed in China
model h0760
red shelf cart–
3 shelves
instructions
recommended tools
Wrench/socket 10mm ....................................... 1
Wrench/socket 17mm ........................................ 1
standard screwdriver ........................................ 1
assembly
1.
insert the two handles through the holes at
" both ends of the top shelf (see figure 2).
"
"
figure 2. handles secured to top shelf.
2. align the mounting holes in the top shelf and
handles, then fasten with (12) M6-1 x 35 slot-
ted screws, flat washers, lock washers, and
hex nuts (see figure 2).
position the slotted screws on the shelf exte-
rior and the washers and hex nuts on the
shelf interior. Finger tighten the fasteners for
now.
note: If a shelf is slightly bent, use a small
screwdriver to align the mounting holes in the
shelf and handle.
handles
x 12
top shelf
