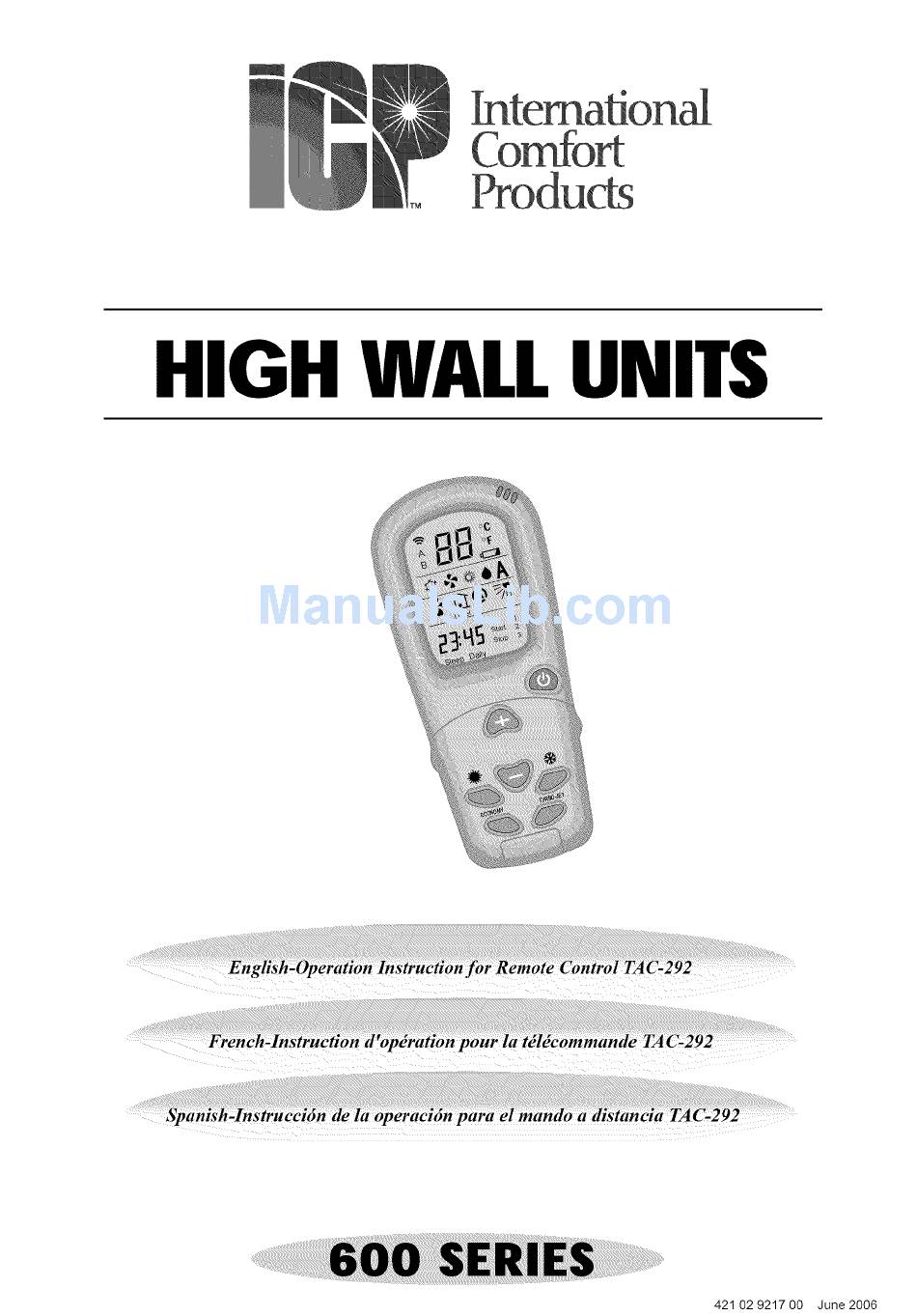

- Page 1 HIGH WALLUNITS _cton a operaCton 421 02 9217 O0 June 2006...
- Page 2 Introduction Dear Customer, • We would like to congratulate you t\_r purchasing one of our company's new air conditioners. • The air conditioner enables you to control your environment and adjust it to your personal preference. IMPORTANT 1. Duct free systems should be installed by authorized personnel only, using approved tubing and accessories. If technical assistance is needed, please contact the installer.

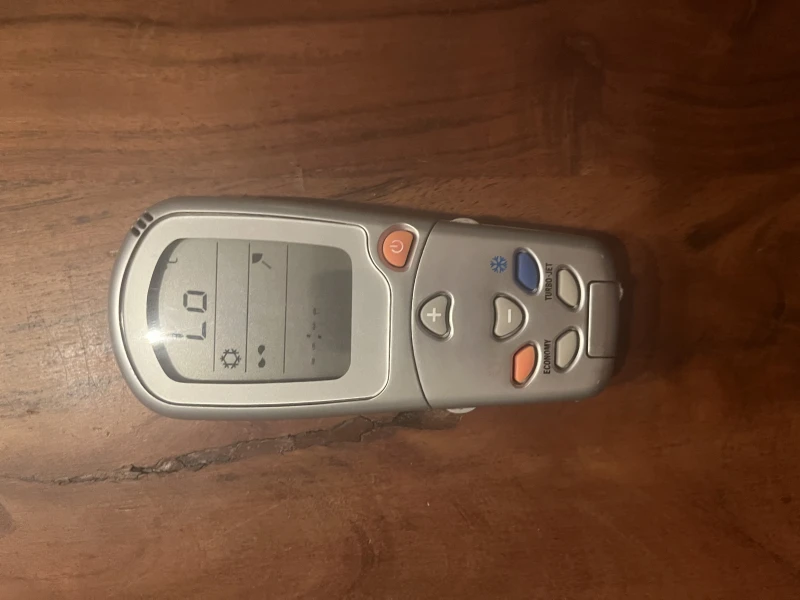

- Page 3 Remote Control INFRARED SIGNAL TRANSMITTER WINDOW DESIRED TEMPERATURE TEMPERATURE SENSOR TRANSMISSION INDICATOR BATTERY INDICATOR OPERATING MODES: COOLING, FAN, HEATING, DEH[ MIDIFICATION, AUTO FAN INDICATORS LO_, MEDI[ M, HIGH, AlTO SWEEP INDICATOR SENSORACTIVE INDICATOR ENERGY INDICATOR TIMER START/STOP ONE-TIME/DAILY INDICATORS SLEEP INDICATOR ON/OFF BUTTON FLAP DOOR...
-
Page 4: For Beginners
For Beginners - Summer Operation Beat the Heat! There is nothing to it! Press the Blue button on the remote control - and the air conditioner will start cooling. Important! Max distance from remote to air conditioner should not exceed 4.6m (15 feet). Displayed symbols The air conditioner will cool to a telnperature of 22°C (71.6°F). -
Page 5: Set Temperature
For Beginners - Summer Operation Changing the fan speed To increase air volume To minimize air volume TURBOJET ECONOMY Press the TURBO-JET button for maximum Press the ECONOMY button for low, air volume. economical and quiet speed. Displayed symbols on the remote control Displayed symbols... -
Page 6: Winter Operation
For Beginners - Winter Operation Stay warm in the winter time. There's nothing to it! Press the red button on the remote control - and the air conditioner will start heating. Displayed symbols Room temperature is set to 23°C (73°F). A command is sent to the air conditioner (The air conditioner beeps to confirm) The "sun"... - Page 7 For Beginners - Winter Operation If you wish to change the air conditioner's set temperature (warmer/cooler) Press the button with the minus sign _ or the button with the plus sign _. Each time you press the minus button _ the temperature is reduced (cooler) by one demee centimade.
-
Page 8: Operation
Selecting fan speed and air conditioning modes Important During any prQmamlning process, if next step is not selected for over 10 seconds, the remote will exit from programming back to previous settings. Changing the fan mode There are 4 fan speed modes: Low speed b"0 Medium speed b.q'4 High speed b_4... -
Page 9: Air Conditioner
Selecting air conditioner modes °C 23:45 Press the plus sign _ button once to move to the operating modes section. One of the operating modes blinks. For example - _ heating mode blinks. Press right _ or left buttons to select the desired operating mode. _.._ When you have selected the desired mode, press the_ SEL button to... -
Page 10: Setting The Real Time Clock On The Remote
Setting the real time clock on the remote Fan symbol Open the flap on the remote control. Once you open the flap, the remote control's display will show the last mode you were in. The thn symbol blinks. Press the minus sign button _ once to go down to the clock sylnbol. - Page 11 Additional Functions: Automatic Mode Select Automatic mode j_ to keep constant temperature comR_rt all year round. In this mode, the unit will operate at the selected temperature setting and wilt automatically select the required operation mode and fan speed to maintain this setting. When required, the unit will automatically switch between...
- Page 12 Additional functions - Energy management Important Energy management is optional and exists only in some models To operate this ruction: Open flap door, to reach energy symbol (A_, press right button _ press SEL button _ to change between energy mode, close flap door.
-
Page 13: Additional Functions: Using The 'I Feel Sensor'
Additional Functions: Using the 'I Feel Sensor' The 'I feel' feature enables you to maintain desired temperature through a special sensor located on the remote instead of the defiautt sensor located on the unit. To operate this feature: door. Open flap IFEE Press the blue button... -
Page 14: Additional Functions: Adjusting Air Outlet Grill - Sweep Mode
Additional Functions: Adjusting air outlet grill - Sweep Mode Changing the horizontal louver's position To change louver from fixed position to automatic sweep mode, open the flap door, SEEP the _ay SWEEP button _once. press The SWEEP symbol will blink and change position continuously. The sweep louver on the air-conditioner will move up and down continuously. -
Page 15: Additional Functions: Switching On Automatically At A Later Time - Delay
Additional functions: Switching ON automatically at a later time - Delay If you want the air conditioner to switch itself ON or OFF automatically at a later time (only once). For example: The air conditioner is ON and you want to switch it OFF automatically in two horns time: Open the flap on the remote control. - Page 16 Additional Functions: Switching ON/OFF several times during the day The remote control enables you to start/stop automatically three times in 24 hours. Additional 'sleep time' zone are also available. Very Important! To make sure this function operates A few examples: properly you must set the clock to the You can program the air conditioner to switch ON automatically in 3 horns current real time.
-
Page 17: Additional Functions
Additional functions: Detailed explanation on setting time periods If you want the air conditioner to switch If you want the air conditioner to switch ON/OFF ON/OFF only once: every day (daily feature): Perforln all the actions as in the single switching Press the minus sign button ON/OFF procedure (Follow arrow). -
Page 18: Installation
Additional functions: Detailed explanation for Sleep Mode settings Sleep mode routine - what is it? If the air conditioner is cooling, the temperature will rise by one (1) degree per hour, or maximum two (2) de_ees fiom the original set telnperature selected. If the air conditioner is heating, the temperature wilt drop be one (1) degree per hour, for maxilnum two (2) degrees fiom the original set telnperature selected. -
Page 19: Related Functions
Technician related functions For a technician or an experienced user The air conditioner has additional options that can be reached using simultaneous pressing of two buttons: When there are two air conditioners with two separate remote controllers installed in the same room, you might want to change the frequency on one of the remote to differentiate the control between the units. - Page 20 Operating the Air Conditioner from the Display Panel Turning the Air-Conditioner On (AUTO Mode) ,/ Raise the _ill of the air-conditioner. ,/ Press the Operation push button (AUTO Mode). In the AUTO Mode the air-conditioner will work at a constant temperature setting of 23°C (73°F), by automatically selecting the required operation mode and a constant FAN speed.
-
Page 21: Display Panel
Air Conditioner Display Panel The LEDs on the display panel provide alerts regarding various operations and malfunctions. The display panel features are described in the t\_ltowing table: Feature Use/Description I.R. Receiver • Receives transmissions from the remote control. Filter LED •... -
Page 22: Cleaning And Maintenance
Cleaning and Maintenance Warning Danger of Electrical Shock! Before performing any cleaning or maintenance operation on the air conditioner, disconnect the unit from the power supply source. Cleaning Air Filters ¢' After approximately 250 hours of operation (about a month), you need to remove and clean the filters. ¢... -
Page 23: Troubleshooting
Troubleshooting The air conditioner has been designed t\_r outstanding reliability and requires very little maintenance. However, smooth operation could be disrupted by a malfunction in the electrical system or incorrect operation. You can try to solve the problems caused by simple malfunctions by referring to the table below. If the malfunction persists, call a qualified service technician. Problem Possible Causes Possible... -
Page 24: For Technician/Service
For Technician/Service I For each malfunction, LED E (red) flashes at a constant rate: Malfunction Indication Display FUSE G Selwice FILTER Malfunction Indicator The malfunction can be diagnosed according to the rate at which the G Service LED is flashing Pull up the front cover of the air conditioner to see the sela:ice led. - Page 25 International Comfb_ Produ_±s A.M.N 01060 HIGH WALL 5130-2618913 Copyright 2006 International Comfort Products Printed in Israel...
