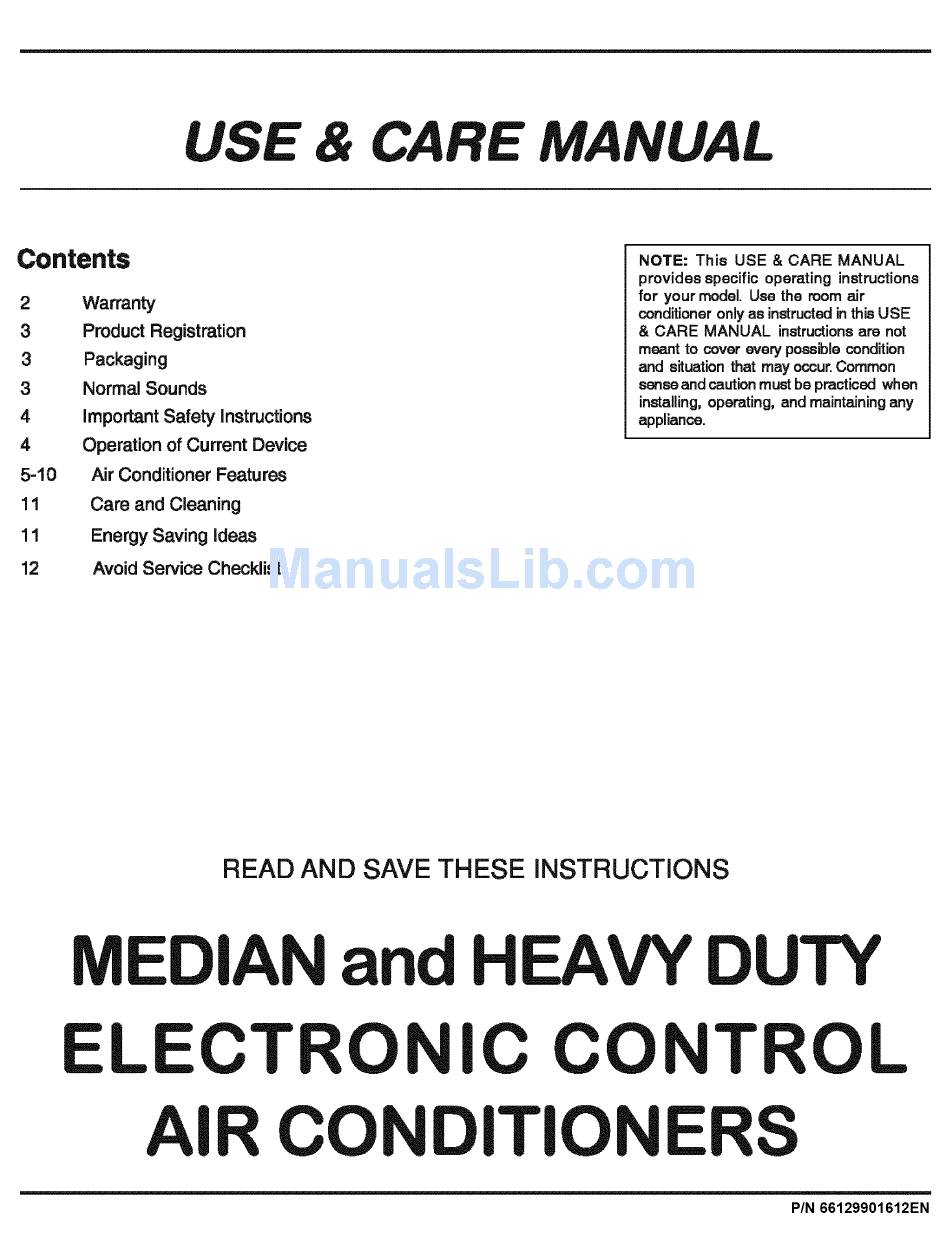

& CARE MA
L
Contents
2
3
3
3
4
4
5-10
11
11
12
NOTE: This USE & CARE MANUAL
provides specific operating instructions
for your model. Use the room air
conditioneronlyas instructedinthis U SE
& CARE MANUAL instructions are not
meant to cover every possiblecondition
and situationthat may occur.Common
senseand cautionmust be practiced when
installing,operating, and maintaining any
appliance.
READ AND SAVE THESE INSTRUCTIONS
nd EAVY
ELECTRONIC
CONTROL
AIR CONDITIONERS
P/N 66129901612EN
Advertisement
Table of Contents
Related Manuals for Frigidaire FAZ08HS1A11
Summary of Contents for Frigidaire FAZ08HS1A11
-
Page 1: Table Of Contents
& CARE MA Contents NOTE: This USE & CARE MANUAL provides specific operating instructions for your model. Use the room air Warranty conditioneronlyas instructedinthis U SE & CARE MANUAL instructions are not Product Registration meant to cover every possiblecondition Packaging and situationthat may occur.Common Normal Sounds senseand cautionmust be practiced when... -
Page 2: Warranty
Yourproduct isprotected by this warranty YourapplianceiswarrantedbyElectrolux.Electrolux has authorizedFrigidaireConsumerServicesandtheirauthorizedservicersto performserviceunderthis warranty.Electrolux authodzes no one else tochange or addto any of these obligations underthiswarranty. A ny obligations for service and partsunderthis warrantymustbe performedby FrigidaireConsumerServicesor an authorizedFrigidaireservicer. WARRANTY FRiGiDAIRE, THROUGH iTS AUTHORIZED THE CONSUMERWILL PERIOD... -
Page 3: Product Registration
Register Your Product The self-addressed PRODUCT REGISTRATION CARD should be filled in completely, signed and returned to the Frigidaire Company. Packaging Remove all packaging from inside the unit ,also any inserts placed into the side louvers. -
Page 4: Important Safety Instructions
Read all instructions before using this air conditioner, Important Safety Instructions For Your Safety Do notstoreor usegasolineor other flammable vaporsand liquidsinthe vicinity of thisor any otherappliance.Read productlabelsfor flammability and otherwarnings. The power supply cord with this air conditioner contains a current Prevent Accidents detection devicedesignedto reducethe risk To reducethe riskoffire, electrical shock,or injuryto persons when usingyourair conditioner,... -
Page 5: Air Conditioner Features
Air Conditioner Features ELECTRONIC CONTROL OPERATING iNSTRUCTiONS Beforeyou begin,thoroughly familiarize yourselfwiththe controlpaneland remoteas shown LIGHT belowand air itsfunctions,thenfollowthe symbolfor the functions you desire. The unit can ON/OFF be controlled by the touch pad alone or with the remote, ADJUSTS DISPLAYS ADJUSTS TEMP &... - Page 6 Air Conditioner Features (continued) TO CHANGE TEMPERATURE YOU WILL SEE: SETTING: DO THIS: PRESS TO RAISE LOWER Note: Tap or hold either up (A) or down (V) button until the desired temperature is seen on the display. This temperature will be automati- cally maintained anywhere between 600F (16°C) and 90°F (32°C) for cooling mode, The temperature will be automatically maintained anywh- ere between 55_F (13°C) and 80°F (27°C) for heating mode.
- Page 7 Air Conditioner Features (continued) YOU WILL SEE: TO OPERATE ON FAN ONLY: LIGHT On DO THIS: PRESS MODE BUTTON CHOOSE FAN ONLY Note: Use this function only when cooling is not desired, such as for room air circulation or to exhaust stale air. (Remember to open the vent during this function, but keep it closed during cooling for maximum cooling efficiency.) You can choose any fan speed you prefer.
- Page 8 Air Conditioner Features (continued) CHECK FILTER FEATURE: YOU WiLL SEE: LIGHT On DO THIS: PRESS CHECK FILTER BU'I-FON Note: This feature is a reminder to clean the Air Filter (See Care and Cleaning) for more efficient operation and cooling. The LED (light) will illuminate after 250 hours of operation.
- Page 9 Air Conditioner Features (continued) REMOTE SENSING FEA'RJRE LIGHT pulsing On & Offinterrnittently. (on some models) • DO THIS: PRESS REMOTE SENSING BUTTON ON NOTE:Unit display shows"set"temperature NOTE: Remote display is actual temperature remote control only Note: This feature can be activated from the remote control ONLY,the...
- Page 10 CODES If the display reads"AS", a sensor has failed. If the display reads"ES", a sensor has failed. If the display reads"HS", a sensor has failed. Contact your Authorized Frigidaire Service Contact your Authorized Frigidaire Service Contact your Authorized Frigidaire Service Center.
-
Page 11: Care And Cleaning
Clean your air conditioner occasionally to keep it lookingnew. Be sure to unplug the Care and Cleaning unit before cleaning to prevent shock or fire hazards. Air Filter Cleaning ii iii!iiiiiiiiiiiili!iiiiii!i!iii!i!ill The air filter shouldbe checked at least once a monthto see if cleaningis necessary. Trappedparticlesin the filter can buildup and cause an accumulation of frost on the coolingcoils. -
Page 12: Avoid Service Checklist
Prematurely (Some Models), unit. Remotecontrolsignalobstructed. R emove obstruction. Room Too Cold. Set temperature toolow. Increaseset temperature. Remote Sensing activated(on some models) and remote controllocated in Hot Spot - Relocate remote controlor deactivateremotesensing. if These Solutions Fail, Call 1-800-444-4944 For Frigidaire Service. ÷...
