Epson PowerLite 765c Parts Manual

Epson multimedia projector product parts manual
Hide thumbs Also See for PowerLite 765c:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Function Manual, Operating Manual

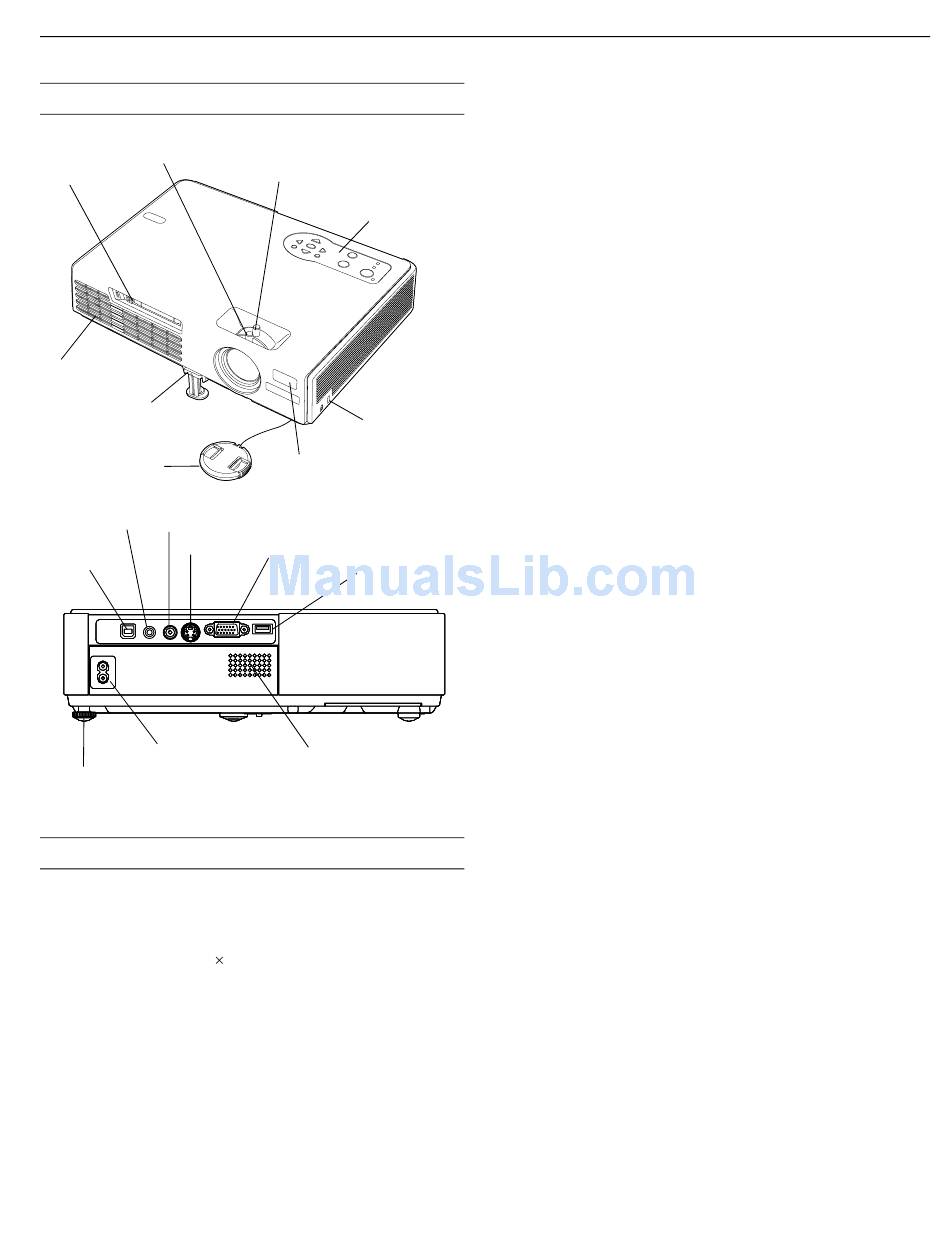

Projector Parts

Focus ring
Card slot
Exhaust air vent
Foot adjust lever
Lens cap
Audio port
Video port
S-Video port
USB port
(Type B)
Power inlet
Rear
adjustable foot

Specifications

General
Type of display
Poly-silicon TFT active matrix
Resolution
1024
(native format)
Color
24-bit, 16.8 million colors
reproduction
Brightness
PowerLite 755c 2000 lumens (High Brightness mode)
1500 lumens (Low Brightness mode)
PowerLite 765c 2500 lumens (High Brightness mode)
2000 lumens (Low Brightness mode)
Zoom ring
Control panel
Security lock
port
I/R receiver
Computer/
Component
Video port
USB port
(Type A)
Speaker
768 pixels (XGA)
Epson PowerLite 755c/765c Projector
Contrast ratio
400:1
Image size
30 to 300 inches (0.8 to 7.6 meters)
(diagonal)
Projection
3.2 to 39.7 feet (1.0 to 12.1 meters)
distance
Projection
Front, rear, upside-down (ceiling mount)
methods
Internal
1 W monaural
sound system
Optical aspect
4:3 (horizontal:vertical)
ratio
Zoom ratio
1:1.2
Noise level
35 dB in Low Brightness mode,
40 dB in High Brightness mode
Keystone
Automatic (manual adjustment capability
correction
±30° vertical keystone correction)
Mouse
Supports USB (type B)
compatibility
Projection Lamp
Type
UHE (Ultra High Efficiency)
Power
170 W
consumption
Lamp life
High Brightness mode: about 2000 hours
Low Brightness Mode: about 3000 hours
Part number
V13H010L32
Remote Control
Range
20 feet (6 meters)
Batteries (2)
Alkaline AAA
Dimensions
Height
2.7 inches (70 mm), feet retracted
Width
10.9 inches (276 mm)
Depth
7.6 inches (193 mm)
Weight
3.9 lb (1.8 kg)
Electrical
Rated frequency
50/60 Hz AC
Power supply
100 to 120 VAC, 2.7 A
200 to 240 VAC, 1.1 A
Power
Operating: 240 W
consumption
Standby: 4 W (Network off);
35 W (Network on)
8/05
Epson PowerLite 755c/765c Projector
