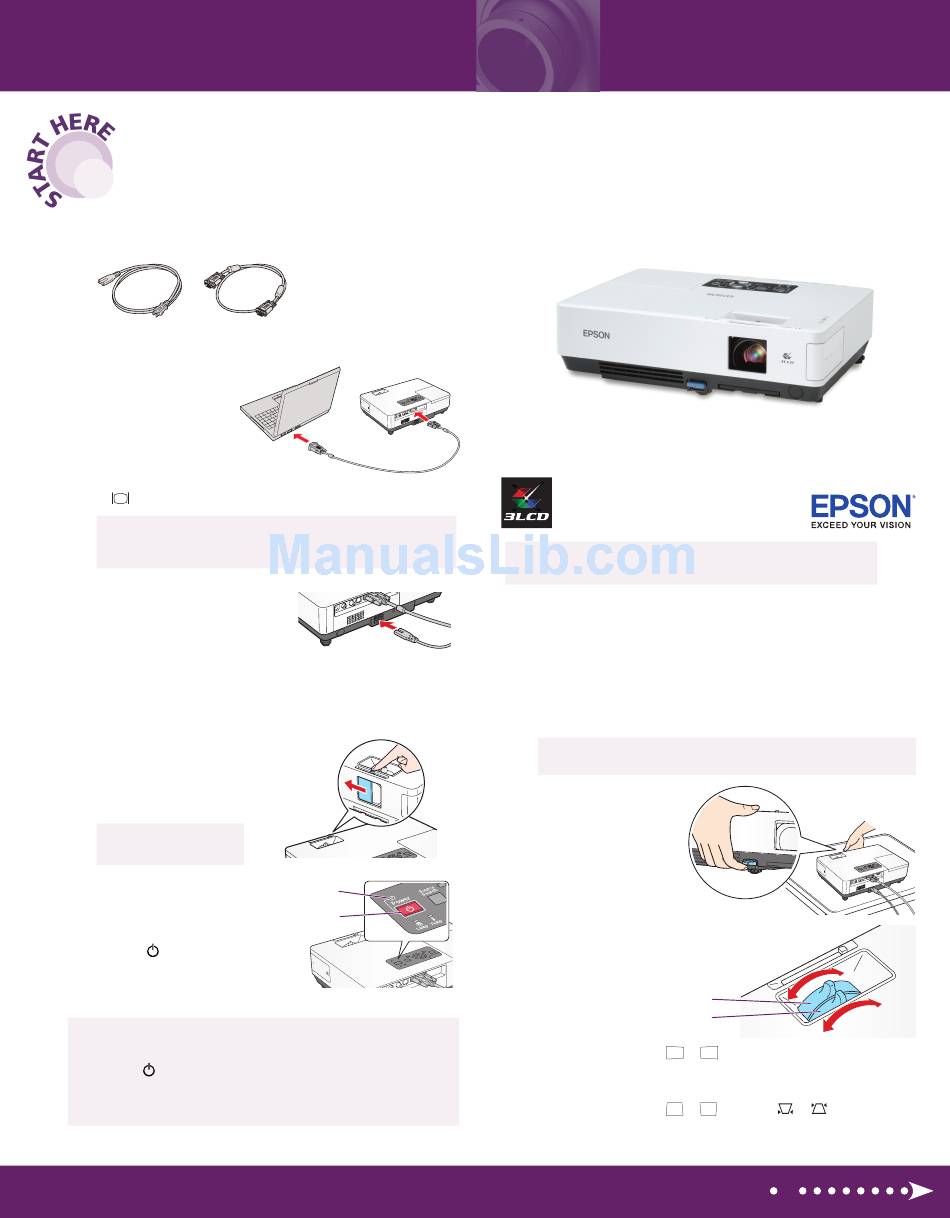

Epson PowerLite 1700C Quick Setup

C
onnect the projector
to your notebook
1
Locate the required cables:
Power cord VGA computer cable
2
C onnect the computer cable to
the blue Computer/Component Video
port on the projector.
3
Connect the other end to your notebook's video-out
or monitor port.
NOTE: If your notebook has a DVI connector, you need to use an
optional DVI-to-VGA adapter with the included computer cable
(see your computer's documentation).
4
Connect the power cord to the
projector, then plug the other end
into an electrical outlet.
T
urn on your equipment
1
T urn on your notebook.
2
Open the A/V Mute slide.
NOTE: The slide must be
opened completly.
3
Make sure the Power light
is orange and not flashing.
4
Press the Power button
to turn on the projector.
CAUTION: Before unplugging the projector...
Shut down the projector properly:
1. Press the Power button twice.
2. W hen the orange light stops flashing and the projector beeps,
you can unplug the projector.
Power light
Power button
Epson PowerLite
®
Follow these instructions to connect the projector to your
notebook. For other setup options, see your User's Guide.
A
djust the image
1
I f you've turned on your notebook and you don't see an image,
press the Source Search button on the projector or remote control
to select the image source.
NOTE: If you still see a blank screen or have other display problems,
see the troubleshooting tips on the back of this sheet.
2
To raise the image, press
the blue foot release
button for the front
adjustable foot and lift
the front. Release the
button to lock the
foot in position.
3
Turn the focus ring to sharpen the image.
Turn the zoom ring to reduce or
enlarge the image.
4
I f your image looks like
to one side of the screen at an angle. Place it directly in front of the
center of the screen, facing the screen squarely.
5
I f your image looks like
on the projector to correct it.
Turn over
1700c/1710c
®
Quick Setup
Focus
Zoom
or , you've placed the projector off
or , press the or buttons
