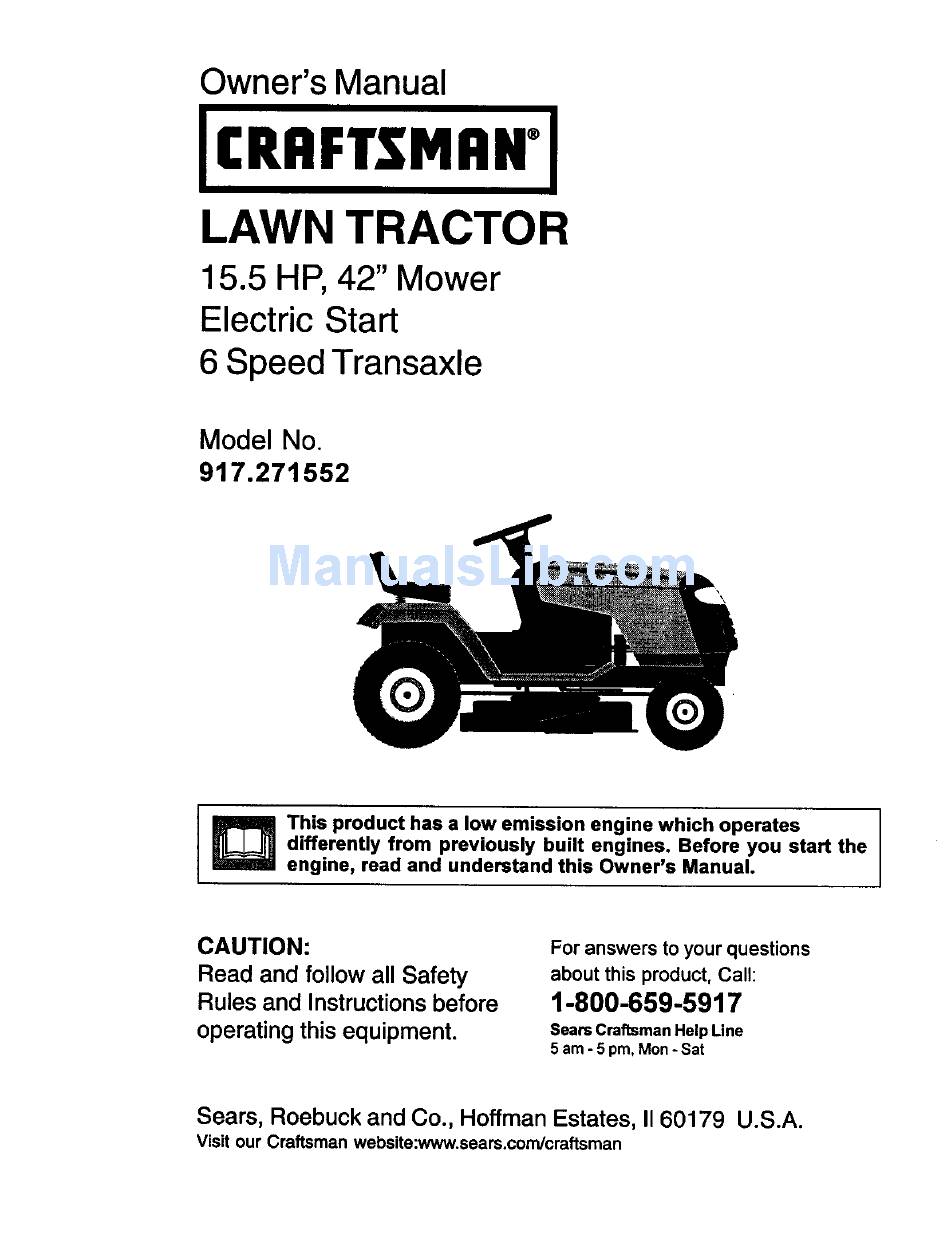

Owner's Manual
ICRAFTSMAN'I
LAWN TRACTOR
15.5 HP, 42" Mower
Electric Start
6 Speed Transaxle
Model No.
917.271552
I_
his product has a low emission engine which operates
differently from previously built engines. Before you start the
engine, read and understand this Owner's Manual.
CAUTION:
Read and follow all Safety
Rules and Instructions before
operating this equipment.
For answers to your questions
about this product, Call:
1-800-659-5917
Sears Craftsman Help Line
5 am - 5 pm, Mon - Sat
Sears, Roebuck and Co., Hoffman Estates, II 60179 U.S.A.
Visit our Craftsman
website:www.sears.com/craftsman

Advertisement

Table of Contents
loading

Related Manuals for Craftsman 917.271552

Summary of Contents for Craftsman 917.271552

  • Page 1 Read and follow all Safety about this product, Call: 1-800-659-5917 Rules and Instructions before operating this equipment. Sears Craftsman Help Line 5 am - 5 pm, Mon - Sat Sears, Roebuck and Co., Hoffman Estates, II 60179 U.S.A. Visit our Craftsman website:www.sears.com/craftsman...
  • Page 2 After the first 30 days, for your convenience, IN-HOME warranty service will still be available but a trip charge will apply. This charge will be waived if the Craftsman product is dropped of at an authorized Sears location. For the nearest authorized Sears location, please call 1-800-4-MY-HOME®.
  • Page 3 IMPORTANT: This cutting machine is capable of amputating hands and feet and throwing, objects. Failure to observe the following safety instructions could result in serious Injury or death. Look for this symbol to point out • Do not mow in reverse unless absolutely important safety precautions.
  • Page 4 • Never carry children. They may fall off and be seriously injured or interfere • Mow up and down slopes, not across. with safe machine operation. • Remove obstacles such as rocks, tree • Never allow children to operate limbs, etc. machine.
  • Page 5 • Be sure the area is clear of other • Remove obstacles such as rocks, tree limbs, etc. people before mowing. Stop machine if • Watch for holes, ruts, or bumps. anyone enters the area. Uneven terrain could overturn • Never carry passengers or children even with the blades oft.
  • Page 6 PRODUCT SPECIFICATIONS REPAIR AGREEMENT A Repair Agreement is available on this Gasoline 1.25 Gallons product. Contact your nearest Sears Unleaded store for details. Capacity and Type: Regular CUSTOMER RESPONSIBILITIES Oil Type: SAE 30 (above 32°F) • Read and observe the safety rules. SAE 5W-30 (below 32°F) API-SF-SJ):...
  • Page 7 Steering Wheel Steering Wheel Adapter Sleeve Steering Extension Shaft (1) Large Flat Steering Washer Wheel Insert (1) Locknut 1/4-28 x 1-1/4 (1) Locknut 1/2-20 Seat (1) Washer 17/32 x 1-3/16 x 12 Gauge (1) Knob Video Cassette Slope Sheet Keys (2) Keys...
  • Page 8 Your new tractor has been assembled at the factory with the exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to insure proper tightness.
  • Page 9 NOTE: You may now roll or drive your tractor off the skid. Follow the appropriate instruction below to remove the tractor from the skid. TO ROLLTRACTOR OFF SKID (See Operation section for location controls) function 1, Press lift lever plunger and raise attachment lift lever to its highest...
  • Page 10 ,YCHECKLIST CHECK TIRE PRESSURE The tires on your tractor were overinflated Before you operate your new tractor, we at the factory for shipping purposes. wish to assure that you receive the best Correct tire pressure is important for best performance and satisfaction from this cutting performance.
  • Page 11 These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning. BATTERY CAUTION OR REVERSE FORWARD FAST SLOW WARNING ENGINE ON ENGINE OFF OIL PRESSURE LIGHTS ON OVER TEMP LIGHT FUEL CHOKE MOWER HEIGHT PARKING BRAKE UNLOCKED...
  • Page 12 KNOWYOURTRACTOR READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference. Attachment Clutch Ignition Switch Ammeter Lever Position Lever...
  • Page 13 The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye damage. Always wear safety glasses or eye shields while operating your tractor or performing any adjustments or repairs. We recommend standard safety glasses or a wide vision safety mask worn over spectacles.
  • Page 14 These heights are approximate and may • If slowing is necessary, move throttle control lever to slower position. vary depending upon soil conditions, height of grass and types of grass being • If stopping is absolutely necessary, mowed. push clutch/brake pedal quickly to •...
  • Page 15 ADD GASOLINE Insert key into ignition and turn key clockwise to start position and release • Fill fuel tank to bottom of tank filler key as soon as engine starts. Do not neck. Do not overfill. Use fresh, clean, run starter continuously for more than regular unleaded...
  • Page 16 MOWING TIPS • If grass is extremely tall, it should be mowed twice to reduce load and • Mower should be properly leveled for possible fire hazard from dded clip- best mowing performance. See "TO LEVEL MOWER HOUSING" in the pings.
  • Page 17 CheCk Brake Operation ! If Check Tim Pressure Check Operator Presence and Ir,_r_ock eys_ems Check for Loose Fasteners Sharpen/Replace Mower Blades LubricationChart Check Battery Level Clean Battery and Terminals Check Transaxle Cooling Check V-Belts Check Engine OiL Level Change Engine Oil (with oil lilts r) _1,2 Change Engine Oil (without oil ltlter) I_1,2...
  • Page 18 TRACTOR IMPORTANT: To ensure proper assembly, center hole in blade must align with star Always observe safety rules when on mandrel assembly. performing any maintenance. Reassemble hex bolt, lock washer BRAKE OPERATION and flat washer in exact order as shown. If tractor requires more than six (6) feet stopping distance at high speed in...
  • Page 19 BATTERY NOTE: Although multi-viscosity oils (5W30. 10W30 etc.) improve starting Your tractor has a battery charging system cold weather, these multi-viscosity oils which is sufficient for normal use. How- will result in increased oil consumption ever, periodic charging of the battery with when used above 32°E Check your an automotive...
  • Page 20 AIR FILTER ENGINE COOLING FINS Your engine will not run properly using a Remove any dust, dirt or oil from engine cooling fins to prevent engine damage dirty air filter. Clean the foam pre-cleaner after every 25 hours of operation or every from overheating.
  • Page 21 CLEANING We do not recommend using a garden hose to clean your tractor unless the • Clean engine, battery, seat, finish, etc. electrical system, muffler, air filter and of all foreign matter. carburetor are covered to keep water out. • Keep finished surfaces and wheels free Water in engine can result in a shortened of all gasoline, oil, etc.
  • Page 22 FRONT-TO-BACK ADJUSTMENT Connect suspension arms to rear deck brackets and secure with IMPORTANT" Deck must be level side-to retainer springs. side. If the following front-to-back adjust- 6. Connect anti-sway bar to chassis ment is necessary, be sure to adjust both bracket and secure with retainer front links equally so mower will stay level side-to-side.

  • Page 23: Replace Mower Blade Drive Belt

    TO REPLACE MOWER BLADE DRIVE Road test tractor for proper stopping distance as stated above. Readjust BELT necessary. If stopping distance is still The mower blade drive belt may be greater than six (6) feet in highest replaced without tools. Park the tractor on gear, further maintenance is neces- level surface.
  • Page 24 BELT INSTALLATION TO START ENGINE WITH A WEAK 1. Carefully work new belt down be- RNING: Lead-acid batteries tween transaxle belt keepers and onto the input pulley. generate explosive gases. Keep sparks, Slide belt into the center span keeper. flame and smoking materials away from Pull belt toward front of tractor and roll batteries.
  • Page 25 REPLACING BATTERY TO REPLACE FUSE Replace with 20 amp automotive-type _WARNING: Do not short battery plug-in fuse. The fuse holder is located terminals by allowing a wrench or any behind the dash. other object to contact both terminals at TO REMOVE HOOD AND GRILL AS- the same time.
  • Page 26 FINAL S EI-I'ING - Check that holes "A" in govemor control lever and hole in govemor plate line-up. 1. Start engine and allow to warm for five If holes "A" are not aligned, loosen clamp minutes. Make final adjustments with screw and move throttle cable until holes engine running and shift/motion control are aligned.
  • Page 27 Immediately Also, alcohol blended fuels (called prepare your tractor for gasohol or using ethanol or methanol) storage at the end of the season or if the can attract moisture which reads to tractor will not be used for 30 days or more.
  • Page 28 TROUBLESHOOTING CHART: See appropriate section in manual unless directed to Sears service center PROBLEM CAUSE CORRECTION Will not start Out of fuel. 1. Fill fuel tank. Engine not "CHOKED" See "TO START ENGINE" properly. in Operation section. Wait several minutes Engine flooded.
  • Page 29 TROUBLESHOOTING CHART: See appropriate section in manual unless directed to Sears service center PROBLEM CAUSE CORRECTION Loss of power 1. Cutting too much grass/too 1. Set in "Higher Cut" position/ fast. reduce speed. 2. Throttle in "CHOKE" 2. Adjust throttle control.
  • Page 30 TROUBLESHOOTING CHART: See appropriate section in manual unless directed to Sears service center PROBLEM CAUSE CORRECTION Mower blades will 1. Obstruction in clutch 1. Remove obstruction. not rotate mechanism. 2. Worn/damaged mower Replace mower drive belt. drive belt. Frozen idler pulley. Replace idler pulley.

  • Page 31: Wiring Diagram

    TRACTOR - MODEL NUMBER 917.271552 SCHEMATIC BLACK BATTERY REEl AMMETER FUSE STARTER 8L_CK [OPTIONAL) I ..• SOLENOID CLUTCH/ BRAKE ---_ _G [PEDALUP) WHfflE SEAT SWITCH IGNITION (NOT OCCUPIED) SWffCH E4ACK 'MENTCLUI"(3H GROUNDING SULCK (CLUTCH OFF) CONNECTOR • SPARK [OPTIONAL) eLACK IGNITION PLUG...
  • Page 32 TRACTOR - MODEL NUMBER 917.271552 ELECTRICAL ..
  • Page 33 Nut Keps Hex 1/4-20 Unc 4207J Cable Ground 6ga 12" black 121305X Switch Plunger Nc Gray 175566 Switch Ign Delta Push-ln 140403 Key Ign Molded Craftsman, Delta 179720 Harness Ign 71110408 Bolt BIk Hex 1/4-20unc x 1/2 131563 CoverTerminal Red 178861...
  • Page 34 TRACTOR - MODEL NUMBER 917,271552 CHASSISAND ENCLOSURES _., 5 26 31 11_. •...
  • Page 35 TRACTOR - MODEL NUMBER 917.271552 CHASSIS AND ENCLOSURES KEY PART DESCRIPTION 174620 Chassis Lt Stamping 176554 17060612 Screw 3/8-16 x 3/4 155272 BumperHood/Dash 174643X010 SaddleSLKSCRE FLTSDL 126471X Clip Insulator .406 Mtg Hole 168348X010 Dash Slkscr PIm Mech Sym 72140608 Bolt RdHd Sqnk. 3/8-16 x 1 155927 Panel Asm.
  • Page 36 TRACTOR - MODEL NUMBER 917.271552 GROUND DRIVE...
  • Page 37 TRACTOR - MODEL NUMBER 917.271552 GROUND DRIVE KEY PART KEY PART NO. NO. DESCRIPTION NO. NO. DESCRIPTION Transaxle (See Breakdown) STD523715 Bolt Hex Hd 3/8-16unc x 1-1/2 Peer_ess206-545C STD541437 NutCrownlock 3/8-16UNC 148682 Spnng Return Brake T/a Zinc STD541431 Nut Crown Lock 5/16-18 123666X Pulley Transaxle 18/20"...
  • Page 38 TRACTOR - MODEL NUMBER 917.271552 STEERING ¢.-...
  • Page 39 TRACTOR - MODEL NUMB ER 917.271552 STEERING KEY PART DESCRIPTION 139768 Wheel Steering Opp Sears Blk 175131 Axle Asm Front 169840 Spindle Asm Lh 169839 Spindle Asm Rh 6266H Washer Thrust .75 x 1.230 121748X Washer 25/32 x 1-5/8 x 16 Ga 19272016 Washer 27/32 x 1-1/4 x 16 Ga.
  • Page 40 TRACTOR - MODEL NUMBER 917.271552 ENGINE I OPTIONAL EQUIPMENT Spark Arrester...
  • Page 41 TRACTOR - MODEL NUMBER 917.271552 ENGINE KEY PART DESCRIPTION 170545 ControlTldch 17720408 Screw Hex Thd Cut 1/4-20 x 1/2 ..Engine (See Breakdown) Briggs,Model No 28U707-1112-E 1 137352 Muffler Exh LT B&S 14HP IC OHV 165291 Gasket Eng 1 313 Id Tin Plated 13280324 Nipple Pipe 3/8 NPT x 3 13200300...
  • Page 42 TRACTOR - MODEL NUMBER 917.271552 SEATASSEMBLY PART KEY PART DESCRIPTION NO. NO. DESCRIPTION 140122 Seat 121248X Bushing Snap BIk Ny150 Id 140551 Bracket Pvt St 72050412 Bolt RdhdSht Nk 1/4-20xl-1/2 71110616 Bolt Fin Hex 3/6-16unc X 1 134300 Spacer Split28x 96 Yel Zinc 19131610 Washer Flat 13/32 X 1 X 10 Ga 121250X...
  • Page 43 160396 DecalV-Belt Sch Domestic 179768X428 Pad Footrest LH 181412 Decal Replcmnt 179769)(428 Pad Footrest RH 163204 Decal Fender Craftsman White 138311 Decal Handle Lft Height Adjust 149516 183208 Decal Battery DngdPsn Eng Manual Owners English Acme 183209 Manual Owners Spanish...
  • Page 44 TRACTOR- MODEL NUMBER 917.271552 LIFTASSEMBLY ,8 / 13-_.o_,...
  • Page 45 TRACTOR - MODEL NUMBER 917.271552 LIFTASSEMBLY PART DESCRIPTION 159460 Wire Asm Inner/Sprg W/plunger LT 159471 Shaft Asm Lift 105767X Pin Groove 1 500 Zinc 12000002 E Ring #5133-62 19211621 Washer Pltd 21/32 X 1 X 21ga 120183X Bearing NylonBIk 629 Id 125631X Grip Handle Fluted BIk 12_365X...
  • Page 46 TRACTOR- MODEL NUMBER917.271552 MOWERDECK J_/3...
  • Page 47 TRACTOR - MODEL N UMBER 917.271552 MOWER DECK PART PART DESCRIPTION DESCRIPTION 165892 Mower Dock Assembly, 42" 133944 Washer, Hardened STD533107 Bolt 174284 RollerAssembly,Cam 138017 Bracket Assembly,Sway Bar, Follower Front 131340 Bolt,Shoulder #10-24 Grade 5 165460 Bracket Sway Bar 38/42" Deck STD541410 Locknut STD624008...
  • Page 48 TRACTOR - MODEL NUMBER 917.271552 PEERLESSTRANSAXLE-MODELNUMBER206-545C...
  • Page 49 TRACTOR - MODEL NUM BER 917.271552 PEERLESS TRANSAXLE-MODEL NUMBER 206-545C PART PART DESCRIPTION DESCRIPTION 772147 Tmnsaxle Cover 790079 Brake Lever 780086A Needle Bearing 5/8" 792073A Screw 1/4 - 20 x 1-1 /4" 770128 Transaxle Case 792085A Screw 1/4 - 20 x 2 1/4" 776395 Countershaft 792075...
  • Page 50 TRACTOR - MODEL NUMBER 917.271552 BRIGGS & STRA'n'ON ENGINE-MODEL NUMBER 28U707, TYPE NUMBER 1112-E1 383_ 883_ 1026 1034 307_ 1095 VALVE GASKET SET lS_, lit REQUIRES SPECIALTOOLS TO INSTALL SEEREPAIR INSTRUCTION MANUAL, 11019 LABEL KIT Ilos9 o w._R s MA.U,, I...
  • Page 51 TRACTOR - MODEL NUMBER 917.271552 BRIGGS & STRATTON ENGINE-MODEL NUMBER 28U707, TYPE NUMBER 1112-E1 i REQUIRES SPECIAL TOOLS TO INSTALL, SEE REPAIR INSTRUCTION MANUAL 121 CARBURETOR OVERHAUL KIT 104_ 1270 276 _ 9e7@ 95 634A_ 634_._ 1170 231_142_ 868 (_ 977 CARBURETOR GASKET SET 6170...
  • Page 52 TRACTOR - MODEL NUMBER 917.271552 BRIGGS & STRATrON ENGINE-MODEL NUMBER 28U707, TYPE NUMBER 1112-E1 8OlA 896 S 697A e" 783A_ 544A 310_ 803A 304 __@__ VOTE: For Replacement Starter Motol See Reference 309. 334_ 455_ 1119_ 1005_ 76_) 287 _ 733V 7_668 1036 EMISSIONS LABEL...
  • Page 53 TRACTOR - MODEL NUMBER 917.271552 BRIGGS & STRATrON ENGINE-MODEL NUMBER 28U707, TYPE NUMBER 1112-E1 NIKKI _II',0SB_I I ,_OA@ _11 _31A_' 121A CARBURETOR OVERHAUL KIT 'SANTA; IL 833_1 95A_ 276A_)O I04A_' 127A 1OSA_ 9 67A® 137A Q 231A_' oN ":,'.? .,_A CARBURETO. GASKE, SE,[ 51 _...
  • Page 54 TRACTOR - MODEL NUMBER 917.271552 BRIGGS & STRATrON ENGINE-MODEL NUMBER 28U707, TYPE NUMBER 1112-E1 PART PART DESCRIPTION DESCRIPTION 496412 Cylinder Assembly 692419 Rod-Connecting (Standard) 399265 Kit-Bushing/Seal 692420 Rod-Connecting (.020 391086 • Seal-Oil (Magneto Side) Undersize) 494238 Sump-Engine 692852 Screw (Connecting Rod) 691165 Head-Cylinder 495856...
  • Page 55 TRACTOR - MODEL NUMBER 917.271552 BRIGGS & STRATTON ENGINE-MODEL NUMBER 28U707, TYPE NUMBER 1112-E1 PART PART DESCRIPTION DESCRIPTION 691693 729A 691224 Clip-Wire Screw (Control Bracket) 691986 691002 Screw (Starter Drive Cover) Adjuster-Rocker Arm Link-Mechanical Governor 691841 691658 Screw (Flywheel) 692208 Spring-Governor 691284 Gear-Timing...
  • Page 59 SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION 1. Fold this page along dotted line indicated above. 2. Hold page before you so that its left edge is vertically parallel to a tree trunk or other upright structure. 3. Sight across the fold in the direction of hill slope you want to measure. 4.
  • Page 60 For repairof major brand appliancesin your own home... no matter whomade it, no matter who soldit! 1-800-4-MY-HOME _ Anya'n_ day ornight (1-aX_69-4_3) (U.S_and Canada) WWW_ V_VW,SOa/I_Ca luuiH For repairof carry-inproductslikevacuums,lawnequipment, a nd electronics, c allfor the nearestSears Parts and Repair Center. 1-800-488-1222 _ne, day c_ n_t (U.SAone)
