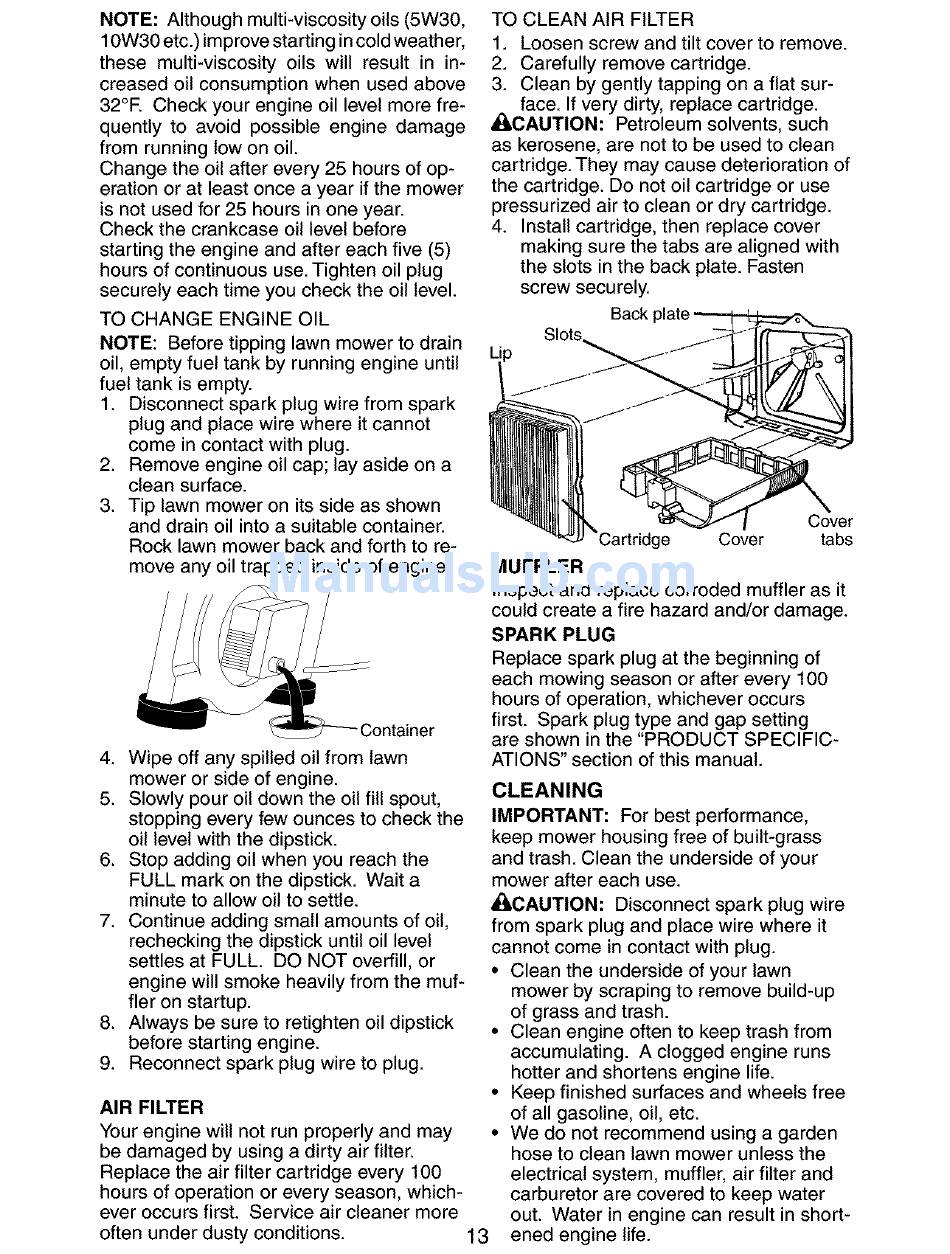

Air Filter; Spark Plug - Craftsman 917.387480 Owner's Manual

NOTE: Althoughmulti-viscosityoils (5W30,
10W30etc.)improvestartingincoldweather,
these multi-viscosity oils will result in in-
creased oil consumptionwhen used above
32°E Checkyour engineoil level more fre-
quently to avoid possible engine damage
from runninglow on oil.
Changethe oil after every 25 hoursof op-
eration or at leastonce a year if the mower
is not used for 25 hours in one year.
Checkthe crankcaseoil level before
starting the engineand after each five (5)
hoursof continuoususe.Tightenoil plug
securely each time you checkthe oil level.
TO CHANGEENGINEOIL
NOTE: Beforetipping lawn mowerto drain
oil, empty fuel tank by runningengine until
fuel tank is empty.
1. Disconnectspark plug wire from spark
plug and place wire where it cannot
come in contactwith plug.
2. Removeengineoil cap; lay aside on a
clean surface.
3. Tip lawn moweron its side as shown
and drain oil into a suitablecontainer.
Rock lawn mowerback and forth to re-
moveany oil trapped inside of engine.
4. Wipe off any spilledoil from lawn
moweror side of engine.
5. Slowly pour oil down the oil fill spout,
stoppingeveryfew ouncesto check the
oil level with the dipstick.
6. Stop addingoil when you reachthe
FULL mark on the dipstick. Wait a
minuteto allow oil to settle.
7. Continueadding smallamountsof oil,
recheckingthe dipstickuntil oil level
settles at FULL. DO NOToverfill,or
enginewill smoke heavilyfrom the muf-
fler on startup.
8. Alwaysbe sure to retightenoil dipstick
beforestarting engine.
9. Reconnectspark plug wire to plug.
AIR FILTER
Your engine will not run properly and may •
be damaged by using a dirty air filter.
Replace the air filter cartridge every 100
hours of operation or every season, which-
ever occurs first. Service air cleaner more
often under dusty conditions. 13
TO CLEAN AIR FILTER
1. Loosen screw and tilt cover to remove.
2. Carefully remove cartridge.
3. Clean by gently tapping on a flat sur-
face. If very dirty, replace cartridge.
_I,CAUTION: Petroleum solvents, such
as kerosene, are not to be used to clean
cartridge. They may cause deterioration of
the cartridge. Do not oil cartridge or use
pressurized air to clean or dry cartridge.
4. Install cartridge, then replace cover
making sure the tabs are aligned with
the slots in the back plate. Fasten
screw securely.
Back
Cover
Cartridge Cover tabs
MUFFLER
Inspect and replace corroded muffler as it
could create a fire hazard and/or damage.
SPARK PLUG
Replace spark plug at the beginning of
each mowing season or after every 100
hours of operation, whichever occurs
first. Spark plug type and gap setting
are shown in the "PRODUCT SPECIFIC-
ATIONS" section of this manual.
CLEANING
IMPORTANT: For best performance,
keep mower housing free of built-grass
and trash. Clean the underside of your
mower after each use.
• I, C AUTION: Disconnect spark plug wire
from spark plug and place wire where it
cannot come in contact with plug.
• Clean the underside of your lawn
mower by scraping to remove build-up
of grass and trash.
• Clean engine often to keep trash from
accumulating. A clogged engine runs
hotter and shortens engine life.
• Keep finished surfaces and wheels free
of all gasoline, oil, etc.
We do not recommend using a garden
hose to clean lawn mower unless the
electrical system, muffler, air filter and
carburetor are covered to keep water
out. Water in engine can result in short-
ened engine life.
