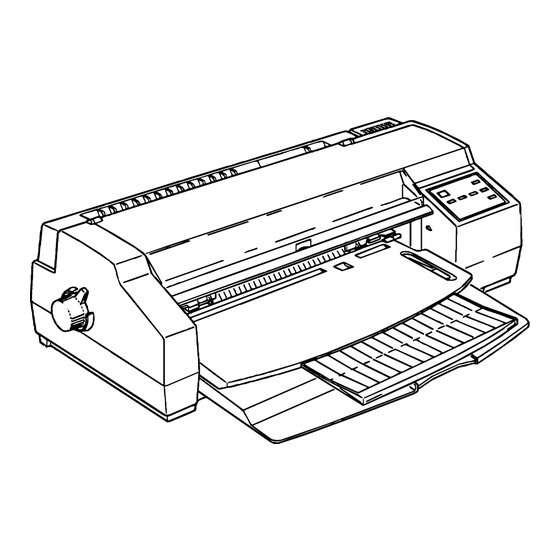

edge guides
(manual feeder)
paper release lever
optional
interface
slot
parallel
interface
serial
interface
Accessories
Ink Cartridges
Use these EPSON ink cartridges within six months of
installing them and before the expiration date on the package:
Cartridge
Part number
Black ink cartridge
S020108
Color ink cartridge
S020089
output tray
control
panel
paper
support
rear edge
guide
edge guides
(sheet feeder)
manual feeder
tractor feeder
AC inlet or
center
power cord
support
connection
Media
Media name
EPSON 360 dpi Ink Jet Paper
EPSON High Quality Ink Jet
Paper
EPSON Photo Quality Ink Jet
Paper
EPSON Photo Quality Glossy
Paper
EPSON Photo Quality Glossy
Film
EPSON Ink Jet
Transparencies
EPSON Photo Quality Ink Jet
Cards
EPSON Iron-On Transfer
Paper
EPSON Photo Quality Self
Adhesive Sheets
EPSON Photo Quality Banner
Paper
EPSON Ink Jet Canvas Cloth
EPSON Ink Jet Back Light
Film

Optional Interfaces

You can install one of the following EPSON interface boards
in your printer:
Type of interface board
Serial
32KB serial
32KB parallel
32KB IEEE-488 parallel
Twinax
Coax
®
LocalTalk
Ethernet
Type B bidirectional parallel
5/97

EPSON Stylus COLOR 1520

Size
Part number
Letter
S041060
A4
S041059
Super A3/B
S041066
Letter
S041111
A4
S041117
Letter
S041062
A4
S041061
Legal
S041067, S041048
B
S041070
Super A3/B
S041069
S041079
A2
A4
S041126
Letter
S041124
A2
S041123
Super A3/B
S041133
A4
S041071
Letter
S041072
A6
S041107
B
S041075
Super A3/B
S041074
A4
S041063
Letter
S041064
A6
S041054
8
10
S041122
Letter
SE41001, SE41002
Super A3/B
SE41003
A4
S041106
A2 × 15 m roll
S041102
(16.5 inches ×
49.2 ft)
A2 × 3 m roll
S041132
(16.5 inches ×
9.8 ft)
A3
S041131
A2
S041130
Model number
Compatibility
C823051
PC
C832071
PC
C823101
PC
C823131
PC
C823151
PC
C823141
PC
C823121
Macintosh
C823461
Macintosh/PC
C823452
PC
EPSON Stylus COLOR 1520
- 1

Advertisement

Table of Contents
loading

Related Manuals for Epson Stylus Color 1520

Summary of Contents for Epson Stylus Color 1520

  • Page 1: Epson Stylus Color

    EPSON Ink Jet Back Light Film AC inlet or power cord Optional Interfaces connection You can install one of the following EPSON interface boards in your printer: Type of interface board Serial 32KB serial 32KB parallel 32KB IEEE-488 parallel...

  • Page 2: Printer Specifications

    Line spacing Default is 1/6 inch, programmable in 1/8-inch or 1/360-inch increments Paper feed speed 107 milliseconds per 1/3-inch line Input buffer 64KB 2 - EPSON Stylus COLOR 1520 Fonts Bitmap fonts Font EPSON Roman EPSON Sans Serif EPSON Courier...
  • Page 3 Since the quality of any particular brand or type of paper may be changed by the manufacturer at any time, EPSON cannot attest to the quality of any non-EPSON brand or type of paper. Always test samples of paper stock before purchasing large quantities or printing large jobs.

  • Page 4: Ink Cartridges

    Single sheets and index cards The minimum top margin is 0.12 inch (3.0 mm). When loading multiple sheets of EPSON Photo Quality Glossy Film, the minimum top margin is 1.2 inches (30 mm). BL: The minimum left margin is 0.12 inch (3.0 mm); except for A3 landscape, A2 portrait, Ledger landscape, and US C portrait, which are 0.98 inch (25 mm).

  • Page 5: Control Panel

    Rated current 0.7A Power consumption Approx. 21W (ISO/IEC 10561 Letter Pattern) Note: Check the label on the back of the printer for your printer’s voltage. Environmental Temperature Operation: 50 to 95 °F (10 to 35 °C) Storage: 4 to 140 °F ( –...

  • Page 6: Testing The Printer

    All the lights When all the lights flash, your printer may have an internal error. 6 - EPSON Stylus COLOR 1520 Testing the Printer light Operate You can run a printer self test to determine whether the problem lies with the printer itself or some other source.

  • Page 7: Installing An Ink Cartridge For The First Time

    Micro Adjust light comes on. Operate The printer loads a sheet of paper and prints an instruction sheet telling you how to select a language (the default setting is English). The printer can then print default- setting instructions in the language you choose.

  • Page 8: Replacing An Ink Cartridge

    Ink Out light is flashing or on. To ensure good results, use genuine EPSON cartridges and do not refill them. Other products may cause damage to your printer not covered by EPSON’s warranty. light is flashing or on. However, if you need to...
  • Page 9 If ink gets on your hands, wash them thoroughly with soap and water. If ink gets in your eyes, flush them immediately with water. 6. Lift the cartridge out of the printer and dispose of it carefully. 7. Lower the new ink cartridge into its holder with the label facing up and the arrow pointing to the back of the printer.

  • Page 10: Using Special Media

    1 sheet Paper** EPSON Ink Jet 30 sheets Transparencies (use with support sheet) 10 - EPSON Stylus COLOR 1520 When you load media with this name . . . EPSON Ink Jet Back Light Film setting in your EPSON Ink Jet Canvas...

  • Page 11: Using The Head Cleaning Utility

    Follow these steps to run the utility from a Windows or a Macintosh computer connected directly to the printer: 1. Make sure the printer is turned on but not printing. Note: If either Ink Out light is flashing or on, you need to replace the ink cartridge instead.

  • Page 12: Aligning The Print Heads

    6. Once the utility is installed, log onto the directory you specified for the utility. Then type Enter 7. You see the EPSON Print Head Alignment Utility main screen. Make sure your printer is listed on the screen and select screens to align your print heads.
