HP ProLiant ML110
Generation 2 Server
Installation Sheet
Read instructions completely before beginning
installation procedure.
© Copyright January 2005 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. The only
warranties for HP products and services are set forth in the express warranty
statements accompanying such products and services. Nothing herein should be
construed as constituting an additional warranty. HP shall not be liable for technical
or editorial errors or omissions contained herein.
Intel and Pentium are trademarks or registered trademarks of Intel Corporation or its
subsidiaries in the United States and other countries.
HP ProLiant ML110 Generation 2 Server Installation Sheet
First Edition (January 2005)
Part Number 375600-001
375600- 001
Configuring the Server
1. Connect all peripherals:
— Keyboard
— Mouse
— Monitor
NOTE: Refer to the HP ProLiant ML110 Generation 2 Server Support CD.
Refer to the CD contents for additional information and updates not
provided in this installation sheet.
2. Determine the server BIOS version:
a. Power up the server.
b. Press the Esc key at the HP logo screen, then press the
Pause key to halt screen movement.
c. Note the server BIOS version.
d. Verify the server BIOS version against the latest BIOS
version listed for this server on the HP website:
http://www.hp.com
e. If you do not have the latest BIOS, update the BIOS now.
Refer to the HP ProLiant ML110 Generation 2 Server
Maintenance and Service Guide available on the HP
website:
http://www.hp.com
Default Boot Priority
By default, the server searches for boot devices in the following
order:
1. Removable device
2. IDE CD-ROM drive
3. Hard disk drive
4. PXE IBA GE slot 0A08 V1219
Identifying Server Components

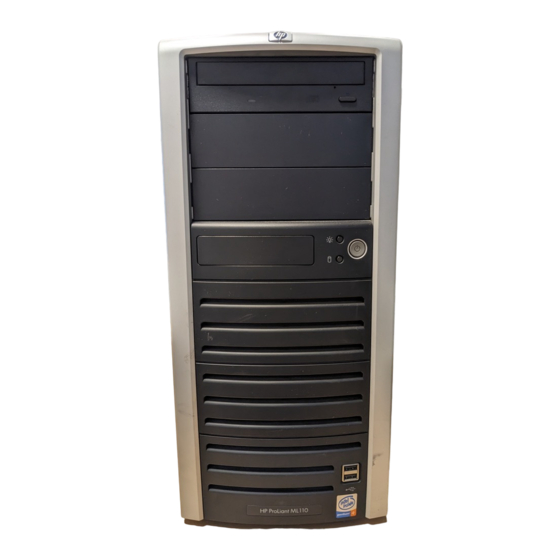

Front Panel Components
Table 1: Front Panel Components
Item
Description
1
CD-ROM drive
2
CD-ROM drive mechanical eject hole
3
CD-ROM drive eject button
4
CD-ROM drive activity indicator
5
Full-height common bays
6
Dual-color status LED indicator
•
Green – Power indicator
•
Amber – System health indicator
continued
