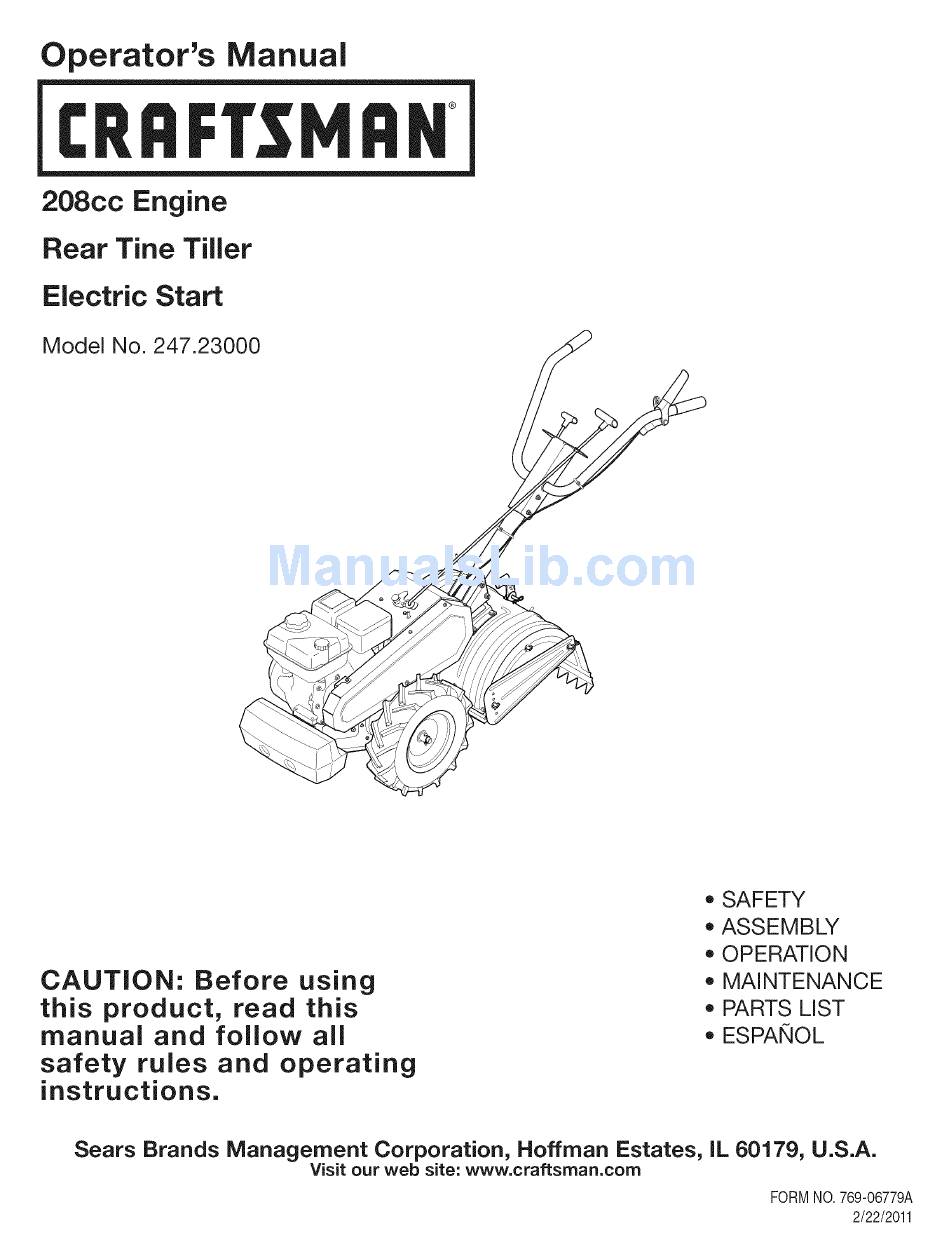

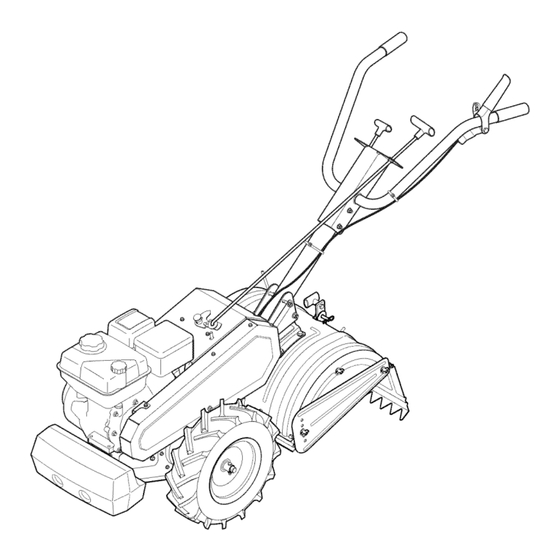

Craftsman 247.23000 Operator's Manual

208cc engine rear tine tiller electric start
Hide thumbs Also See for 247.23000:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Operator's
Manual
CRRFrSMRH
208cc Engine
Rear Tine Tiller
Electric
Start
Model No. 247.23000
CAUTION:
Before
using
this product,
read this
manual
and follow
all
safety
rules
and operating
instructions.
o SAFETY
ASSEMBLY
OPERATION
MAINTENANCE
PARTS LIST
o ESPANOL
Sears Brands
Management
Corporation,
Hoffman Estates,
IL 60179, U.S.A.
Visit our web site: www.craftsman.com
FORMNO.769-06779A
2/22/2011
