Philips BDL4650EL/00 User Manual

Philips led display bdl4650el 117 cm (46")
Hide thumbs Also See for BDL4650EL/00:
Table of Contents

Advertisement

Quick Links

See also: Quick Manual
www.philips.com/welcome
User Manual (English)
BDL4250EL
BDL4650EL

Advertisement

Table of Contents
loading

Related Manuals for Philips BDL4650EL/00

Summary of Contents for Philips BDL4650EL/00

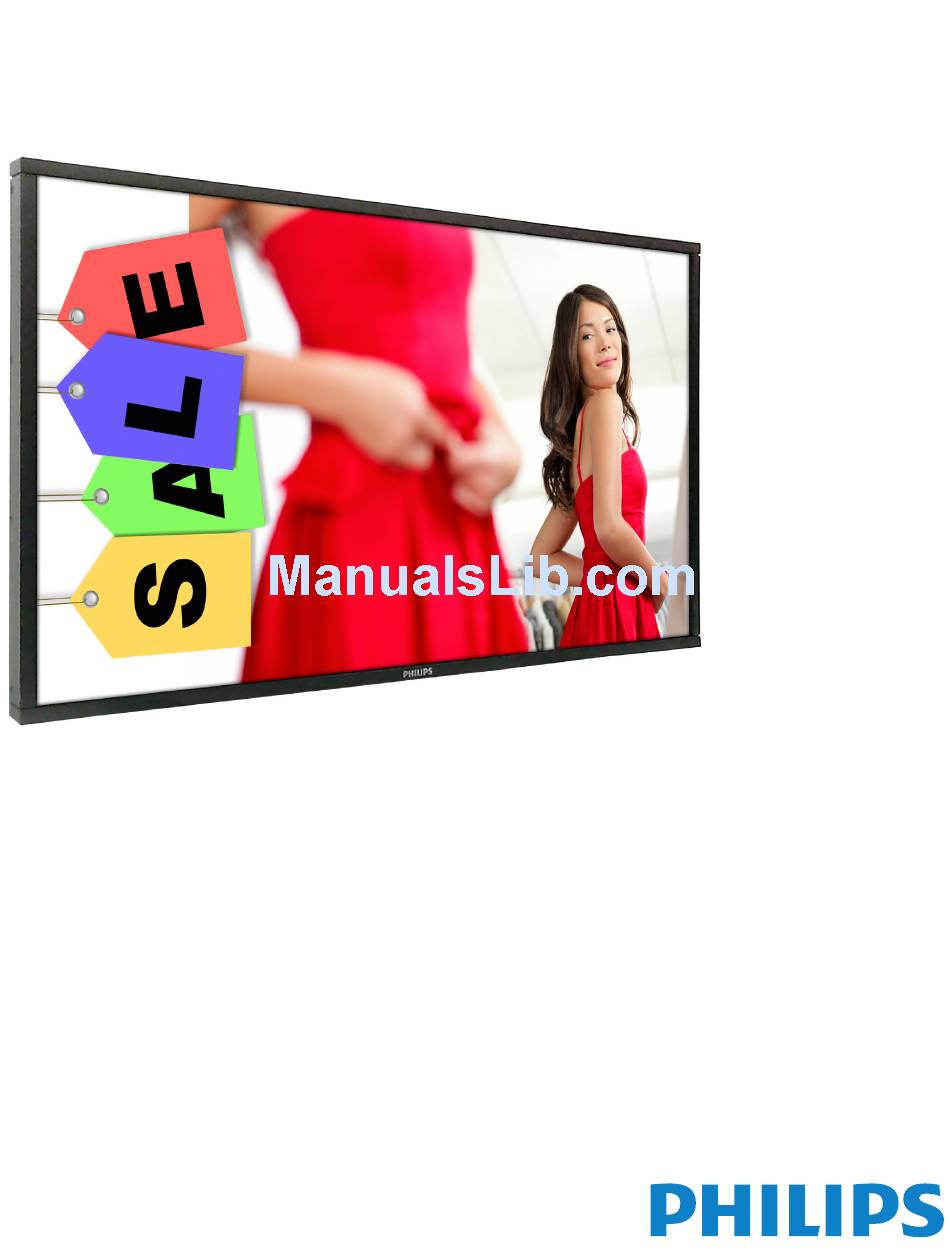

  • Page 1 BDL4250EL BDL4650EL www.philips.com/welcome User Manual (English)

  • Page 2: Safety Instructions

    BDL4250EL / BDL4650EL Safety Instructions Warnings and Precautions KNOW THESE SAFETY SYMBOLS CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates high voltage is present inside. It is dangerous to make any kind of contact with any inside part of this product. This symbol alerts you that important literature concerning operation and maintenance has been included with this product.

  • Page 3: Regulatory Information

    BDL4250EL / BDL4650EL Regulatory Information CE Declaration of Conformity We declare under our responsibility that the product is in conformity with the following standards: • EN60950-1:2006+A11:2009+A1:2010+A12:2011 (Safety requirement of Information Technology Equipment). • EN55022:2010 (Radio Disturbance requirement of Information Technology Equipment). • EN55024:2010 (Immunity requirement of Information Technology Equipment). • EN61000-3-2:2006 +A1:2009+A2:2009 (Limits for Harmonic Current Emission). • EN61000-3-3:2008 (Limitation of Voltage Fluctuation and Flicker) following provisions of directives applicable.
  • Page 4 BDL4250EL / BDL4650EL Polish Center for Testing and Certification Notice The equipment should draw power from a socket with an attached protection circuit (a three-prong socket). All equipment that works together (computer, display, printer, and so on) should have the same power supply source. The phasing conductor of the room’s electrical installation should have a reserve short-circuit protection device in the form of a fuse with a nominal value no larger than 16 amperes (A). To completely switch off the equipment, the power supply cable must be removed from the power supply socket, which should be located near the equipment and easily accessible. A protection mark “B” confirms that the equipment is in compliance with the protection usage requirements of standards PN-93/T-42107 and PN-89/ E-06251. Electric, Magnetic and Electronmagnetic Fields (“EMF”) 1.
  • Page 5 BDL4250EL / BDL4650EL Information for U.K. only WARNING - THIS APPLIANCE MUST BE EARTHED. Important: This apparatus is supplied with an approved moulded 13A plug. To change a fuse in this type of plug proceed as follows: 1. Remove fuse cover and fuse. 2.
  • Page 6 BDL4250EL / BDL4650EL China RoHS 中国电子信息产品污染控制标识要求 (中国RoHS法规标示要求) 产品中有毒有害物质或元素 的名称及含量 有毒有害物质或元素 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr 6+) (PBB) (PBDE) 外壳 液晶面板 电路板组件 附件 (遥控器， 电源线， 连接线) 遥控器电池 O: 表示该有毒有害物质在该部件所有均质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下. X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求. 環保使用期限...
  • Page 7 Your new Public Information Display contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of. Please find out about the local regulations on how to dispose of your old display from your local Philips dealer. (For customers in Canada and U.S.A.) This product may contain lead and/or mercury.

  • Page 8: Table Of Contents

    BDL4250EL / BDL4650EL Table Of Contents Unpacking and Installation ........1 3.5. Connecting Multiple Displays in a Daisy- chain Configuration ..........13 1.1. Unpacking ..............1 3.5.1. Display control connection ....13 1.2. Package Contents .............1 3.5.2. Digital video connection ....13 1.3. Installation Notes ............1 3.5.3.

  • Page 9: Unpacking And Installation

    Connect / Verbindungsfähigkeit / Conectividad / Connectivité / Connettività / Połączenia / Bağlantı / 连接性 / VOL DOWN USB MENU Register your product and get support at www.philips.com/welcome • RS232 cable (3 m) Quick start guide • Quick start guide Remote Control • Power switch cover and AAA Batteries • Screw for Power switch cover (M3,...

  • Page 10: Installing And Removing Table Stands

    BDL4250EL / BDL4650EL 1.4. Installing and Removing Table Stands (optional) To install table stands: 1. Ensure your display is powered off. 2. Spread a protective sheet on a flat surface. 3. Grab the carrying handles and place the display face-down on the protective sheet. 4. After inserting the stand in the guide block, tighten the screws on both sides of the display. NOTE: The longer side of the stand should face the front of the display.

  • Page 11: Mounting On A Wall

    BDL4250EL / BDL4650EL 1.5. Mounting on a Wall To mount this display to a wall, you will have to obtain a standard wall-mounting kit (commercially available). We recommend using a mounting interface that complies with TUV-GS and/or UL1678 standard in North America. Protective Sheet VESA Grid Table...

  • Page 12: Mounting In Portrait Position

    BDL4250EL / BDL4650EL 1.6. Mounting in Portrait Position This display can be installed in portrait position. 1. Remove the table stand, if attached. 2. Rotate 90 degrees clockwise. The “ ” logo should be on the LEFT side when facing the display. 1.6.1.

  • Page 13: Parts And Functions

    BDL4250EL / BDL4650EL Parts and Functions 2.1. Control Panel MUTE INPUT MENU NOTE: “Keyboard Control Lock Mode” This function completely POWER button disables the access to all Keyboard Control functions. To Use this button to turn the display on or put the display to standby. enable or disable the keyboard control lock, press both MUTE button and [ ] buttons and hold down continuously for more than...

  • Page 14: Input/Output Terminals

    BDL4250EL / BDL4650EL 2.2. Input/Output Terminals 9 10 11 12 14 16 AC IN VGA IN (D-Sub) AC power input from the wall outlet. VGA video input. MAIN POWER SWITCH VGA AUDIO IN Switch the main power on/off. Audio input for VGA source (3.5mm stereo phone). AC OUT COMPONENT IN (BNC) AC power supply to the AC IN jack of a media player.

  • Page 15: Remote Control

    BDL4250EL / BDL4650EL 2.3. Remote Control [DISPLAY] button Press to turn on/off the information OSD displayed on the upper right corner of the screen. 2.3.1. General functions [ ] button • Press to move the selection left in OSD menu. POWER • Press to decrease the value in OSD menu.

  • Page 16: Handling The Remote Control

    BDL4250EL / BDL4650EL 2.3.2. Inserting the batteries in the remote control The remote control is powered by two 1.5V AAA batteries. To install or replace batteries: 1. Press and then slide the cover to open it. 2. Align the batteries according to the (+) and (–) indications inside the battery compartment.

  • Page 17: Connecting External Equipment

    BDL4250EL / BDL4650EL Connecting External Equipment 3.1. Using the Switch Cover A cover for the power switch is provided to prevent the display from being turned on or off accidentally. To lock the cover into position: 1. Align and insert the cover to the indentation located beside the power switch. 2.

  • Page 18: Vcr/Vcd)

    BDL4250EL / BDL4650EL 3.2. Connecting External Equipment (DVD/VCR/VCD) 3.2.1. Using COMPONENT video input Audio Out COMPONENT Out (YPbPr) DVD / VCR / VCD [AUDIO IN] [COMPONENT IN] (YPbPr) 3.2.2. Using Video Source input Audio Out Y/CVBS Out DVD / VCR / VCD [AUDIO IN] [Y/CVBS IN] 3.2.3.

  • Page 19: Connecting A Pc

    BDL4250EL / BDL4650EL 3.3. Connecting a PC 3.3.1. Using VGA input VGA Out D-Sub 15 pin Audio Out [AUDIO IN] [VGA IN] [VGA AUDIO IN] 3.3.2. Using DVI input DVI Out Audio Out [AUDIO IN] [DVI IN] [VGA AUDIO IN] 3.3.3.

  • Page 20: Using Displayport Input

    BDL4250EL / BDL4650EL 3.3.4. Using DisplayPort input DisplayPort Out [DisplayPort IN] 3.4. Connecting Audio Equipment 3.4.1. Connecting external speakers External speakers 3.4.2. Connecting an external audio device Audio In Stereo Amplifier [AUDIO OUT]...

  • Page 21: Connecting Multiple Displays In A Daisy-Chain Configuration

    BDL4250EL / BDL4650EL 3.5. Connecting Multiple Displays in a Daisy-chain Configuration You can interconnect multiple displays to create a daisy-chain configuration for applications such as a video wall. NOTE: M aximum 25 displays (5x5) can be used in a daisy-chain configuration. 3.5.1. Display control connection Connect the [RS232C OUT] connector of DISPLAY 1 to the [RS232C IN] connector of DISPLAY 2. DISPLAY 1 DISPLAY 2 [RS-232C] [RS-232C IN] [RS-232C OUT]...

  • Page 22: Analog Video Connection

    BDL4250EL / BDL4650EL 3.5.3. Analog video connection Connect the [DVI OUT / VGA OUT] connector of DISPLAY 1 to the [VGA IN] connector of DISPLAY 2. DISPLAY 1 DISPLAY 2 [VGA] [VGA IN] [DVI/VGA OUT] [VGA IN]...

  • Page 23: Osd Menu

    BDL4250EL / BDL4650EL OSD Menu 4.2. OSD Menu Overview An overall view of the On-Screen Display (OSD) structure is shown 4.2.1. Picture menu below. You can use it as a reference for further adjusting your display. 4.1. Navigating the OSD Menu Brightness Picture Contrast...

  • Page 24: Screen Menu

    BDL4250EL / BDL4650EL This item is functional only when {Color temperature} is set Clock NOTE: to {User}. Adjust the width of the image. Smart contrast This item is functional for VGA input only. NOTE: Smart contrast function is to enhance image contrast on darker scenes Clock phase when activated.

  • Page 25: Audio Menu

    BDL4250EL / BDL4650EL Audio source V zoom Expands the vertical size of the image only. Select the audio input source according to the audio signal source connected to the audio input and HDMI sockets on the display.   H position ...

  • Page 26: Configuration1 Menu

    BDL4250EL / BDL4650EL • {VIDEO} - Select {On} to enter power saving mode when no signal Main Picture Displayport HDMI DVI-D YPbPr Video is detected from the HDMI Video mode or YPbPr inputs after three Sub Picture Displayport successive cycles. HDMI Language DVI-D...

  • Page 27: Configuration2 Menu

    BDL4250EL / BDL4650EL Network settings OSD turn off Assign {IP address}, {Subnet Mask}, and {Default gateway} for the Set the period of time the OSD (on-screen display) menu stays on the display. screen. The options are: {5 ~ 120} seconds. Network settings Information OSD Set the period of time the information OSD is displayed on the upper...
  • Page 28 BDL4250EL / BDL4650EL • {Auto}: Determines the resolution automatically. • {Primary} - Designate this display as the primary display for remote control operation. Only this display can be operated by the remote The selected settings will become effective after turning off the power control.
  • Page 29 BDL4250EL / BDL4650EL • H monitors - Select the number of displays on the horizontal side. Date and time • V monitors - Select the number of displays on the vertical side. Adjust the current date and time for the display’s internal clock. • Position - Select the position of this display in the screen matrix. Date and time • Frame comp.
  • Page 30 BDL4250EL / BDL4650EL 2. Press [ ] or [ ] button to select a schedule item (item number 1 a rotation sensor in the monitor enables the operating system to keep ~ 7), and then press [ ] button to mark it the item number. the display upright as the monitor is moved between its portrait and landscape positions.
  • Page 31 BDL4250EL / BDL4650EL • Auto search is functional for No signal only. If the user set the input source manually, the display is based on the users set priority. Power save setting. • {Off} - No signal, direct shutdown. ( Default ) • {On} - No signal, enter into Power Save mode.

  • Page 32: Input Mode

    BDL4250EL / BDL4650EL Input Mode VGA Resolution: Active Resolution Standard Refresh Rate Pixel Rate Aspect Ratio Stand for Mode Resolution H Pixels V Lines 60 Hz 25.175 MHz 72 Hz 72 Hz 31.5 MHz Video Graphic Array 75 Hz 75 Hz 31.5 MHz WVGA 70 Hz...

  • Page 33: Pixel Defect Policy

    However, pixel or sub-pixel defects on the PDP / TFT panels used in Plasma- & LCD- displays are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but Philips guarantees that any Plasma- & LCD- displays with an unacceptable number of defects will be repaired during the warranty period in line with your local guarantee conditions.

  • Page 34: Dark Dot Defects

    Two dark dots, specifications defines the minimum distance between dark dots 6.5. Proximity of Pixel Defects Because pixel and sub-pixels defects of the same type that are nearby one another may be more noticeable, Philips also specifies tolerances for the proximity of pixel defects. In the table below you can find specifications about: • Allowed amount of adjacent dark dots = (adjacent dark dots =1 pair of dark dots) • Minimum distance between dark dots • Total no.

  • Page 35: Cleaning And Troubleshooting

    BDL4250EL / BDL4650EL Cleaning and Troubleshooting 7.1. Cleaning Caution When Using the Display • Do not bring your hands, face or objects close to the ventilation holes of the display. The top of the display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes.

  • Page 36: Troubleshooting

    BDL4250EL / BDL4650EL 7.2. Troubleshooting Symptom Possible Cause Remedy No picture is displayed 1. The power cord is disconnected. 1. Plug in the power cord. 2. The main power switch on the back of the 2. Make sure the power switch is switched on. display is not switched on.

  • Page 37: Technical Specifications

    BDL4250EL / BDL4650EL Technical Specifications 8.1. BDL4250EL Display: Item Specifications Screen Size (Active Area) 42” LCD (106.7 cm) Aspect Ratio 16:9 Number of pixels 1920 (H) x 1080 (V) Pixel pitch 0.4845 (H) x 0.4845 (V) [mm] Displayable colors 1073M colors Brightness (typical) 450 cd/m2 Contrast ratio (typical)
  • Page 38 BDL4250EL / BDL4650EL Dimensions (Without Stand) [W x H x D] 965.8 x 558.8 x 69 mm Weight (With Stand) 20.6 Kg Weight (Without Stand) 18.3 Kg Gross Weight (Without Stand) 24.1 Kg Environmental Condition: Item Specifications Temperature Operational 0 ~ 40°C Storage -20 ~ 60°C Humidity...

  • Page 39: Bdl4650El

    BDL4250EL / BDL4650EL 8.2. BDL4650EL Display: Item Specifications Screen Size (Active Area) 46” LCD (116.8 cm) Aspect Ratio 16:9 Number of pixels 1920 (H) x 1080 (V) Pixel pitch 0.17675 (H) x 0.53025 (V) [mm] Displayable colors 1073.7M colors Brightness (typical) 500 cd/m2 Contrast ratio (typical) 4000:1...
  • Page 40 BDL4250EL / BDL4650EL Weight (Without Stand) 22.0 Kg Gross Weight (Without Stand) 28.7 Kg Environmental Condition: Item Specifications Temperature Operational 0 ~ 40°C Storage -20 ~ 60°C Humidity Operational 20 ~ 80% RH (No condensation) Storage 5 ~ 95% RH (No condensation) Altitude Operational 0 ~ 3,000 m...
  • Page 41 2012 © Koninklijke Philips Electronics N.V. All rights reserved. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips Electronics N.V. and are used under license from Koninklijke Philips Electronics N.V. Specifications are subject to change without notice.
