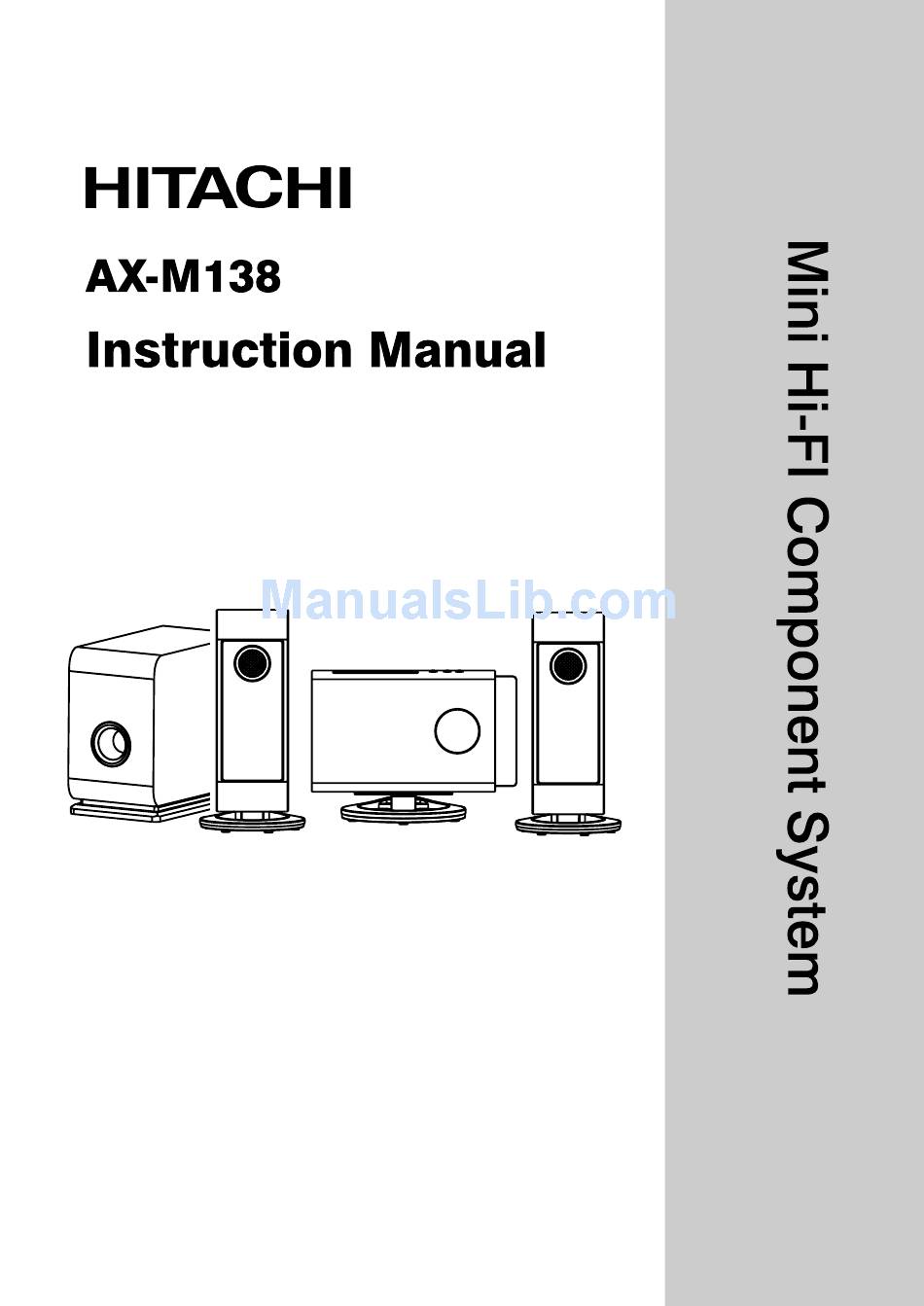

Hitachi AX-M138 Instruction Manual
  1. Manuals
  2. Brands
  3. Hitachi Manuals
  4. Stereo System
  5. AX-M138
  6. Instruction manual
Hitachi AX-M138 Instruction Manual

Hitachi AX-M138 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Hitachi AX-M138

Summary of Contents for Hitachi AX-M138

  • Page 2: Table Of Contents

    Table of Contents Before Connection ........................2 Control Section ........................4 Main Set ..............................4 Sub-Woofer .............................. 4 Video-Box ..............................5 Remote Control ............................5 Wall Mounting Instructions ..................... 6 Main Set ..............................6 Speakers ..............................7 Video-Box ..............................7 Connection ..........................8 Connect to the TV ...........................

  • Page 3: Before Connection

    Before Connection For your safety CAUTION This symbol indicates that dangerous volt- RISK OF ELECTRIC SHOCK age constituting a risk of electric shock is DO NOT OPEN present within this unit. CAUTION: This symbol indicates that there are impor- TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER.
  • Page 4 DON’T obstruct the ventilation openings of the equipment with items such as newspapers, tablecloths, curtains, etc. Overheating will cause damage and shorten the life of the equipment. DON’T allow electrical equipment to be exposed to dripping or splashing, or objects filled with liquids, such as vases, to be placed on the equipment and don’t handle the power cord with wet hands.

  • Page 5: Control Section

    Control Section Main Set Play/Pause /Select Stop/Auto Scan Next /Search Forward Select Up Previous/Search Backward Select Down Repeat Information S-Bass Volume Up Volume Down VFD Display Lens 10. Disc Tray 11. Eject 12. Function 13. Standby 14. USB Jack 15. A / V Out 16.

  • Page 6: Video-Box

    Video-Box Coaxial Output Terminal Component Video Output Terminal Scart Socket Connect To The Main Set Remote Control 1. Volume Up Button 15. OSD Button 28. PBC Button 2. Tuner Function Button 16. Time Search Button Menu Button 3. Mute Button 17.

  • Page 7: Wall Mounting Instructions

    Wall Mounting Instructions Main Set 1. Connect all cables and secure into place using the clips on the back of the unit. 2. Fix the wall bracket in place using two screws ensuring the locking pin hole is facing upwards. 3.

  • Page 8: Speakers

    Speakers 1. Fix the two screws to the wall ensuring they are equal distance to the holes in the back of the speaker. Hang the speaker from the screws. 2. You can also attach the speakers to a stand by securing the screws underneath and at the back of the speaker. Video-Box 1.

  • Page 9: Connection

    Connection Caution: Please turn off the power before connecting. Connect to the TV Terminal board for Video -Box Terminal board for the DVD player Connections to TV Safety precautions 1. This DVD player has video output mode, you can choose it to connect with the TV terminal. 2.

  • Page 10: Connecting The Antenna

    Connecting the Antenna Connect the supplied antenna to the antenna socket on the terminal board of the sub-woofer. The antenna should be connected to the antenna socket, tighten the antenna by hand with tool supplied. (Please note: Do not overtighten,this could damage the antenna Tighten the antenna rod or it’s fittings.) clockwise on the base of...

  • Page 11: Connecting The Speakers

    Cautions: Press the AUX function button once to select AUX function. When you are connecting AUX audio terminals, please press this function button. Connecting the Speakers Connect the speaker cords between the terminals as shown below. Connect the cords with a silver line to the (+) (L) (R) terminals and cords with a gold line to the (-) (G) terminals.

  • Page 12: Connect To An Amplifier With Digital Signal Input Terminal

    Connect to an Amplifier With Digital Signal Input Terminal DTS, Dolby Digital signal decodes Terminal board for the video-box amplifier Connection precautions Use coaxial signal wire to connect coaxial output jack of the sub-woofer with coaxial input jack of other amplifier, then you can hear the super digital sound effect .

  • Page 13: Installation Of Batteries In The Remote Control

    Installation of Batteries in the Remote Control 1. Remove the battery compartment cover. 2. Insert two batteries (size AAA) correctly, so that the + and - polarities match the polarity diagrams in the battery compartment. About half a year of normal operation can be expected when using the general batteries. When the batteries are exhausted, the commander can no longer operate the system.
  • Page 14 When playing disc, press the stop button to stop playing, the unit will store the last playing time in the memory automatically, then press the button, the unit will resume to last memory time and continue playback automatically. If you press the stop/return button ( ) twice to stop the disc playing.
  • Page 15 Press the OSD button to display the playing information of the disc . When the unit has finished reading the disc , you can select tracks or chapters by number buttons ( ) and play. 0/10,1-9,10+ * If the track or chapter number is less than 10, press the buttons.
  • Page 16 When you are playing the DVD disc which has been recorded with several subtitles, you can repeatedly press the subtitle button to select one of subtitle to display on the TV screen. In the disc normal playing mode, press the title button, this system will stop playing and enter the display mode of title menu.

  • Page 17: Playing Picture Cd Disc

    When playing DVD discs, press the next button ( ) to skip the next chapter or title. When playing other discs, press the next button ( ) to skip the next track. (You can also operate the key “ ” on the unit.) When playing DVD disc, press the previous button ( ) to skip the previous chapter or title.

  • Page 18: Dab/Fm Radio

    DAB/FM Radio DAB Playing 1. Press the function button (FUNCTION) on the front of the unit “Tuner” is displayed. 2. Press DAB/FM on remote control to select DAB or FM 3. If you select the DAB, the display shows RADIO 4.
  • Page 19 4. Press SELECT on remote control to confirm 5. Press SEL - /SEL + to select the component Presets Station (1-20) 1. In the current station receiving status, press the numeric number 1-10 on remote control for preset station 1-10. For stations 10-20, press 10+ with the numeric number. 2.
  • Page 20 4. Press INFO button again, the display shows the Program Type as below: PROG TYPE 5. Press INFO button again, the display shows the Dynamic Text Display(DLS) as below: B) Advanced Display You can browse and set below DAB related information, by pressing the INFO button on remote control System Reset Manual Tune Software Version...
  • Page 21 b. Manual Tune When the display shows the System Reset RESET Press the INFO button, the display shows MANUAL TUNE b.1 Press SEL - / SEL + on remote control until the unit shows your desired station b.2 Press SELECT to confirm b.3 Repeat above procedures for selecting another station c.
  • Page 22 4. Press SCAN to search Autoscan UP : 98.10 98.30 STEREO STEREO 5. Press and hold the SCAN button for 2 seconds, to search Autoscan Down : 98.10 97.70 STEREO STEREO Presets Station (1-20) 1. In the current station screen, press the numeric number 1-10 on remote control for preset station 1-10.

  • Page 23: Use The Usb

    Advanced Display (FM) 1. In the current station screen, press and hold the INFO button for 2 seconds, and System Reset will be shown: 98.10 RESET 2. Press the INFO button again, Software Version will be shown: 98.10 SW/AJ1-00 Radio Mode When the unit is the Radio Mode, by following the instruction in last section (Advance Display), you can select the MONO or Auto Mode (Stereo) by pressing the SELECT button 98.10...

  • Page 24: Setting The Daily Timer

    Note: * You can only set the clock in standby mode. * The operating time of every step shouldn’t be longer than 10seconds or it will return to the original display. * If there is a power failure or the power system is turned off, the clock will lose its setting. To confirm the clock time When you press the clock button ( ), the clock time is displayed.

  • Page 25: Function Menu Setting List

    If you change the sleep timer, each time you press the sleep button ( ), it changes SLEEP the number of minutes shown on the VFD in this sequence: After setting the number of minutes for the sleep timer, the display will return to the display as before setting the sleep timer.

  • Page 26: Video Setup

    Language Setup OSD Language This menu allows the user to select the language for the on-screen. Audio, Subtitle, Disc Menu This function is only available if the disc has the rel- evant options. Video Setup TV Mode You can setup this according to TV video output type. Brightness, Contrast, Hue, Saturation Setting You can adjust the brightness of the picture.

  • Page 27: Protect The Disc

    Protect the Disc 1. To keep the disc clean, please don’t touch the disc’s surface when you are holding it. You should hold the edge. 2. If the disc is dirty, it will affect the sound quality. Please use the clean and soft cloth to wipe the disc from inside to outside.

  • Page 28: Specification

    Specification Main Set Power supply ............. ~16V / 50 Hz Power consumption............15W Distortion................≤ 0.7% Frequency response ..........20Hz-20kHz (±3dB) Video output ............... 1 V Horizontal definition ........... ≥ 500 (TV) Dimensions ............... 184(W) x 222(H) x 304(D) mm Tuner FM Frequency range ..........87.5-108 MHz FM Noise limit sensitivity ...........
  • Page 29 This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.
