Philips Calculite C4CIN Specification

Page 1 of 4

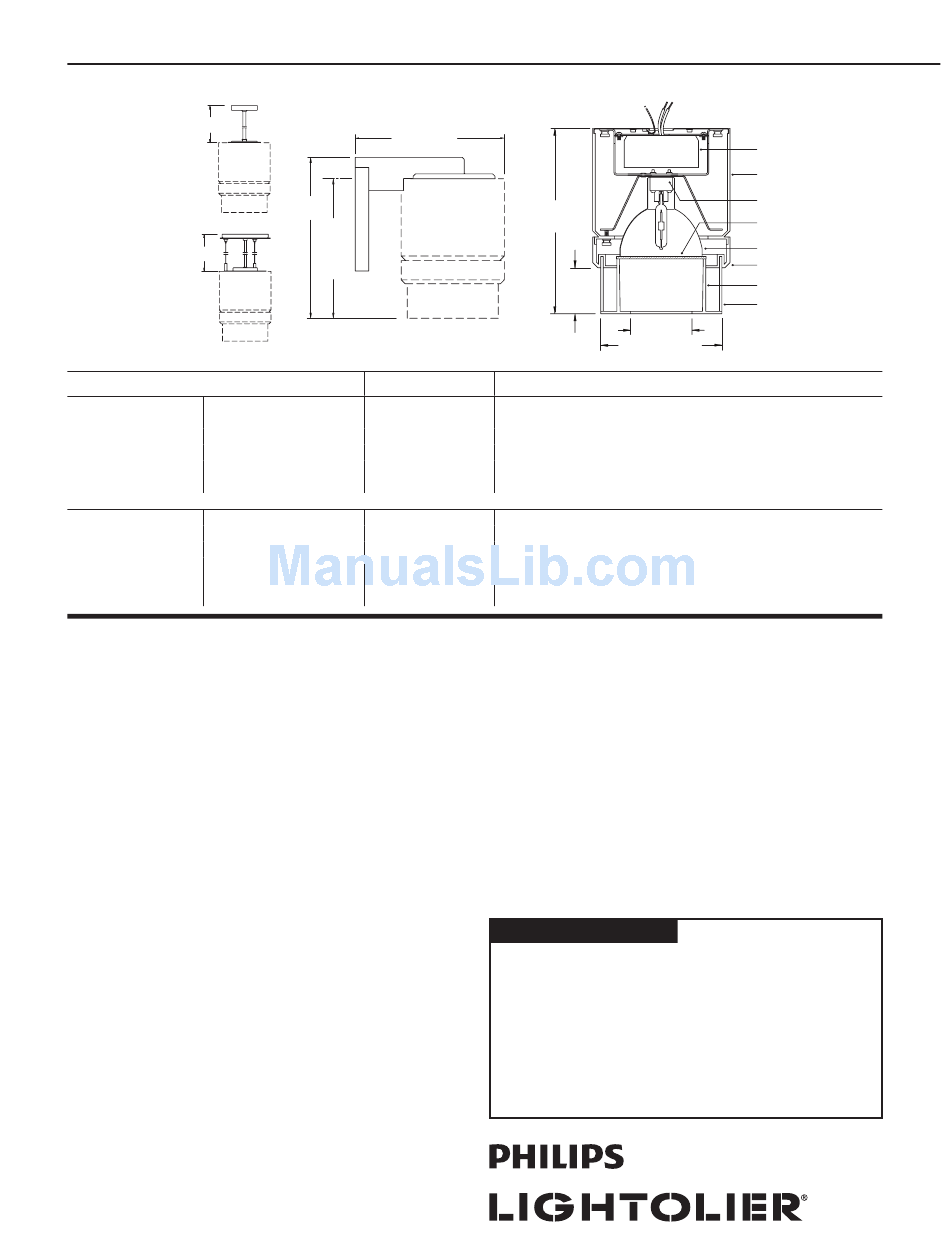

37"
(940 mm)
Stem Kit
10'
(3657 mm)
Cable Pendant Kit
Surface Cylinder (Complete Unit)
C4CIN20T4EU Electronic 120V/277V
C4CIN20T4EUA Electronic 120V/277V
C4CIN20BT5PGJ5E1
Electronic 120V
C4CIN20BT5PGJ5E1A Electronic 120V
C4CIN20T4GU65EU Electronic 120V/277V
C4CIN20T4GU65EUA Electronic 120V/277V
C4CIN39T4EU
Electronic 120V/277V
C4CIN39T4EUA
Electronic 120V/277V
C4CIN39BT5PGJ5E1 Electronic 120V
C4CIN39BT5PGJ5E1A Electronic 120V
C4CIN39T4GU65EU Electronic 120V/277V
C4CIN39T4GU65EUA Electronic 120V/277V
Features
1. Glass Shroud: Clear glass cylinder provides visual interest and a
contemporary decorative element.
2. Glass Diffuser: Etched glass cylindrical diffuser provides cutoff to the light
source delivering smooth even illumination.
3. Cylinder Base Cover: Powder coated (to match base) die-cast cover is
removable to access wiring and ballast.
4. Cylinder Base: Powder coated matte silver die-cast aluminum base
supports glass cylinder and conceals electrical components.
5. Reflector: Highly polished specular aluminum. Precisely controls and directs
light downward providing high-efficiency optics.
6. Lamp Shield: High-temperature glass as required by code; captive during
re-lamping. Light diffusion provides exceptionally smooth beam.
7. Socket: G8.5 pulse rated socket.
8. Electronic Ballast: 20W / 39W electronic universal (120/277V).
Electrical
Electronic Ballast: 120V/277V dual voltage, encased, high power factor,
T.H.D. <15%, thermally and transient protected, RMI/RFI complies with FCC
Part 18 non-cosumer limits, shut-down circuit at end of lamp life, sound
rating "A",-5°. F minimum starting temperature, Type 1 outdoor rating.
Ballast ANSI Code Voltage
20W MH M156 120/277
39W MH M130 120/277
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • H1111
Calculite
9-3/4" (248 mm)
10 1/2"
(267 mm)
9" (229 mm)
to the center
of 4" octagon
outlet box
Wall Mount Kit
Housing
Painted Aluminum
Satin Aluminum
Painted Aluminum
Satin Aluminum
Painted Aluminum
Satin Aluminum
Painted Aluminum
Satin Aluminum
Painted Aluminum
Satin Aluminum
Painted Aluminum
Satin Aluminum
Max. Amps Input Watts
0.21/0.10 23
0.39/0.17 44
HID Surface Cylinder
®
9"
(229 mm)
2-1/4"
(57 mm)
3" (76 mm) Dia.
5-7/8" (149 mm) Dia.
Lamping (Ceramic Metal Halide)
20W T4.5
20W T4.5
22W Philips MiniMasterColor PGJ5
22W Philips MiniMasterColor PGJ5
20W GE ConstantColor
20W GE ConstantColor
39W T4.5
39W T4.5
39W Philips MiniMasterColor
39W Philips MiniMasterColor
39W GE ConstantColor
39W GE ConstantColor

Options and Accessories

CA4CWBS: Wall Mount Kit – Silver Cast aluminum back plate, suitable for
mounting over 4" octagon outlet box.
CACPS: 120" Cable Pendant Kit – Silver Cast aluminum back plate, suitable
for mounting over 4" octagon outlet box. Provided with (3) 0.050"
cables, power cable and 6 1/2" decorative plate. Installs over 4"
octagon outlet box. Cable can be cut to length on site.
Damp location only.
CACSS: Stem Kit – Silver (45° Swivel, 37" Long) Provided with 5/8" dia.
Stem and 5 1/2" Canopy. Self-aligning swivel provides max. 45°
vertical tilting. Installs over 4" octagonal outlet box. Stem can be
cut to length on site. Damp location only.
Labels
UL Listed (Suitable for wet locations), CSA, I.B.E.W.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
C4CIN
T4 Ceramic Metal Halide, Inno
8
4
7
6
5
3
2
1
Type:
