Philips LWL2 Series Specification

V
ANDAL
LWL2NURBSD2T

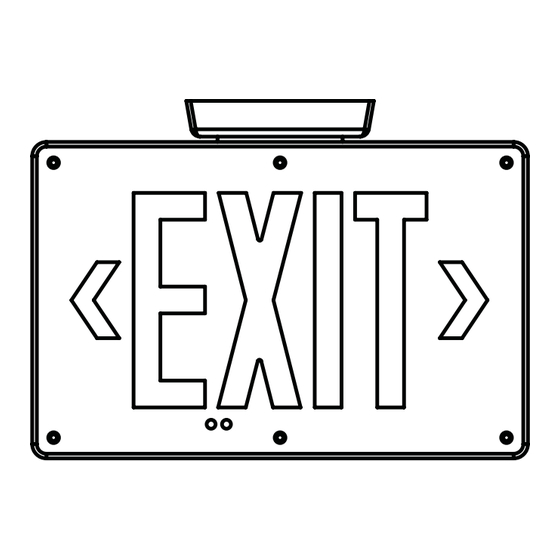

13.8"
(35.26 cm)
8.85"
(22.48 cm)
4.5"
(11.43 cm)
4.5"
(11.43 cm)
2.4"
(6.1 cm)
-R W
ESISTANT
Features
Illumination: Illumination
of the exit stencil face is
accomplished with long lasting,
high-output LEDs. Hot spots
and striations are eliminated
by the internal light chamber,
which is specially designed
around the high-performance
LED array. Average illumination
levels are in excess of 25fl
(79 cd/m 2 ).
Housing: Die-cast aluminum
housing with premium impact-
resistant injection molded
polycarbonate covers. Housing
is powder coated and back
cover is molded in color to
match. Front cover is clear.
Stencil is provided with field
selectable chevrons and is
contained inside the fully
gasketed housing. All exposed
hardware is both vandal-
resistant and anti-corrosion
coated. Universal knockouts on
backplate allow wall mounting
directly to standard junction
boxes. Die-cast aluminum
canopy is provided for top/side
mounting and is powder coated
to match housing.
Operating Temperature
Range: Wet/Damp Location
-40°F (-40°C) to 113°F (45°C)
LWL2 Series
/D L
ET AMP OCATION
Diagnostic Electronics
(standard): 120/277 VAC
dual voltage input with surge
protection is standard on all
AC models. For emergency
operation, the charging system
is microprocessor driven with
software embedded diagnostic
routine and temperature
compensation. 120/277 VAC
input, surge protection,
brownout, AC lockout and low
voltage disconnect features are
standard.
Self-Testing Diagnostics
(standard): The diagnostic/
charging platform with self-
testing mode automatically
runs a one-minute self-test
every 30 days and a 30-minute
test on the sixth and twelfth
month. A one-minute or
90-minute test may be initiated
via the push to test switch on
the unit or by activating the
appropriate test command on
the optional IR test device.
Job Information
Job Name:
Cat. No.:
Notes:
LED E
Electrical Specifications:
AC Only Red:
3.8 W (120 VAC), PF 0.96
3.8 W (277 VAC), PF 0.91
AC Only Green:
4.0 W (120 VAC), PF 0.95
4.0 W (277 VAC), PF 0.90
Self-Powered Red:
4.7 W (120 VAC), PF 0.95
4.8 W (277 VAC), PF 0.97
Self-Powered Green:
4.7 W (120 VAC), PF 0.95
4.7 W (277 VAC), PF 0.99
Code Compliance
UL 924 and UL wet/damp
location listed. NFPA 101,
NEC, BOCA, OSHA and IBC
illumination standards. Meets
ADA specifications for wall
mounted lighting fixtures. IEC
61951-1 Life Testing (batteries).
Certified to the California
Energy Commission in
accordance with California law.
NEMA Premium certified.
Warranty
Five-year full electronics and
five-year full plus five-year
prorated battery warranty.
Type:
XIT
Page 1 of 2
