Frigidaire FRS26WQH Factory Parts Catalog

Side by side
Hide thumbs Also See for FRS26WQH:
Table of Contents

Advertisement

Quick Links

Download this manual
FRS26WQHD0
FRS26WQH
FRS26WQHD1
FRS26WQH
FRS26WQHW0
FRS26WQH
FRS26WQHW1
FRS26WQH
North American
101 Masters Blvd.
Anderson, SC 29624
R134a
almond
R134a
almond
R134a
white
R134a
white
Publication No.
5995327458
990907
-EN/SERVICE/KB
357
115
115
115
115
©1999 White Consolidated Industries, Inc.
All rights reserved

Advertisement

Table of Contents
loading

Related Manuals for Frigidaire FRS26WQH

Summary of Contents for Frigidaire FRS26WQH

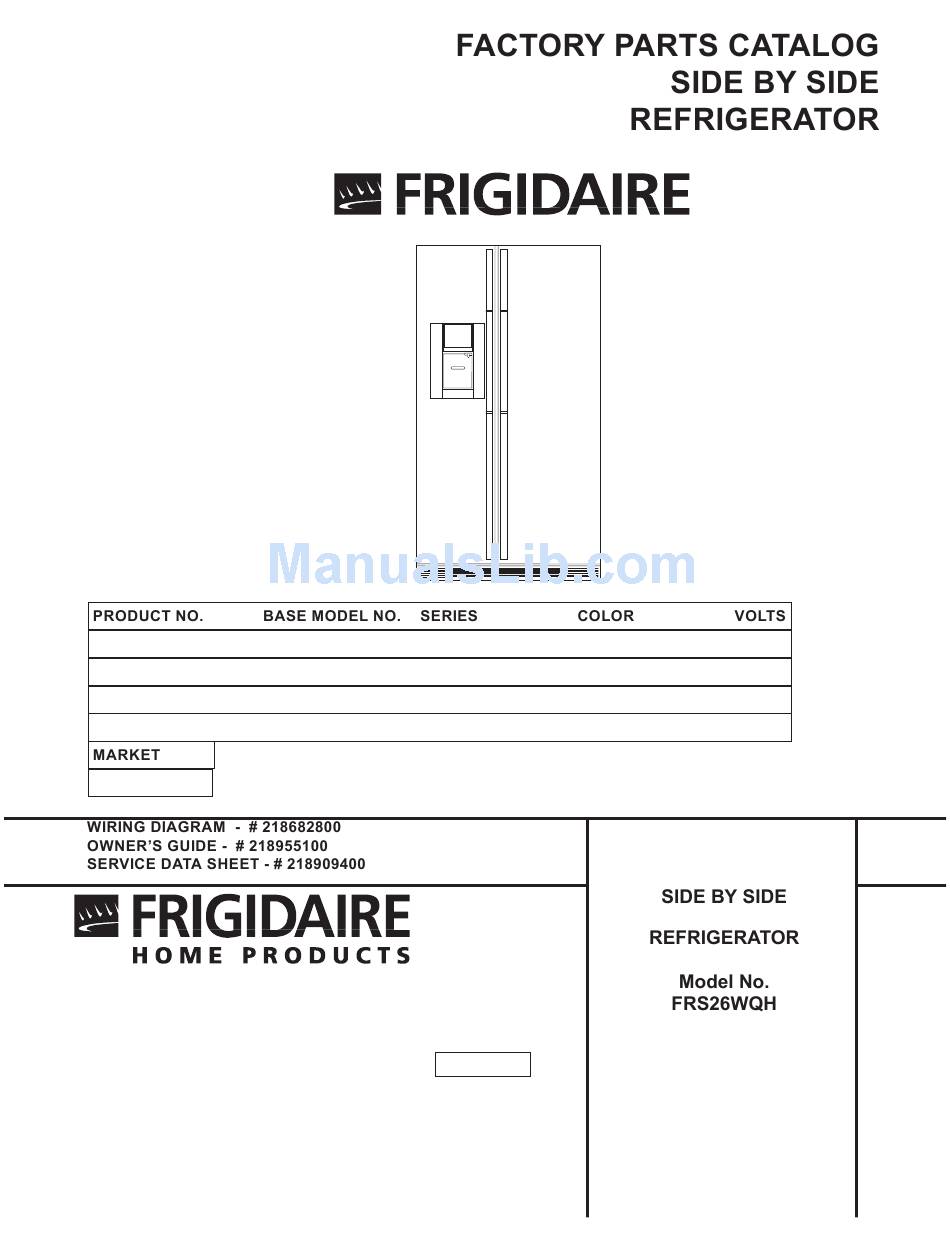

  • Page 1 FRS26WQHD0 FRS26WQH R134a almond FRS26WQHD1 FRS26WQH R134a almond FRS26WQHW0 FRS26WQH R134a white FRS26WQHW1 FRS26WQH R134a white North American 101 Masters Blvd. Anderson, SC 29624 Publication No. 5995327458 990907 -EN/SERVICE/KB ©1999 White Consolidated Industries, Inc. All rights reserved...

  • Page 2: Freezer Door

    Publication No. FRS26WQH 5995327458 FREEZER DOOR 09/99...
  • Page 3 FRS26WQH Publication No. 5995327458 FREEZER DOOR A = FRS26WQH (FRS26WQHD0) B = FRS26WQH (FRS26WQHD1) C = FRS26WQH (FRS26WQHW0) D = FRS26WQH (FRS26WQHW1) 215734313 A B C D Gasket-frzr door,white ,magnetic 5303288950 A B C D Support-door rack,RH/LH 5303323484 A B C D Support-door rack,white ,LH 5303323485 A B C D...

  • Page 4: Refrigerator Door

    Publication No. FRS26WQH 5995327458 REFRIGERATOR DOOR 09/99...
  • Page 5 FRS26WQH Publication No. 5995327458 REFRIGERATOR DOOR A = FRS26WQH (FRS26WQHD0) B = FRS26WQH (FRS26WQHD1) C = FRS26WQH (FRS26WQHW0) D = FRS26WQH (FRS26WQHW1) 215734314 A B C D Gasket-refr door,white ,magnetic 215403201 A B C D Panel-inner door,refr 5303304563 A B C D Door-dairy 5303289522 A B C D...
  • Page 6 Publication No. FRS26WQH 5995327458 CABINET 09/99...
  • Page 7 FRS26WQH Publication No. 5995327458 CABINET A = FRS26WQH (FRS26WQHD0) B = FRS26WQH (FRS26WQHD1) C = FRS26WQH (FRS26WQHW0) D = FRS26WQH (FRS26WQHW1) 215637602 A B C D Cover-air duct 215637401 A B C D Cover-evap coil,lower 10A* 5308009617 A B C D Washer,ext tooth lock ,#10 ,grounding 5303208309 A B C D...
  • Page 8 Publication No. FRS26WQH 5995327458 SHELVES 09/99...
  • Page 9 FRS26WQH Publication No. 5995327458 SHELVES A = FRS26WQH (FRS26WQHD0) B = FRS26WQH (FRS26WQHD1) C = FRS26WQH (FRS26WQHW0) D = FRS26WQH (FRS26WQHW1) 5303298147 A B C D Trim-basket 218298003 A B C D Shelf-freezer,sliding ,wire 5304405879 A B C D Shelf-freezer,fixed wire 11A* 218159700 A B C D...
  • Page 10 Publication No. FRS26WQH 5995327458 CONTROLS 09/99...
  • Page 11 FRS26WQH Publication No. 5995327458 CONTROLS A = FRS26WQH (FRS26WQHD0) B = FRS26WQH (FRS26WQHD1) C = FRS26WQH (FRS26WQHW0) D = FRS26WQH (FRS26WQHW1) 215028605 A B C D Knob-damper control 5308000010 A B C D Fan Blade,red 5308000124 A B C D Ring-fan orifice 5300157666 A B C D...
  • Page 12 Publication No. FRS26WQH 5995327458 SYSTEM 09/99...
  • Page 13 FRS26WQH Publication No. 5995327458 SYSTEM A = FRS26WQH (FRS26WQHD0) B = FRS26WQH (FRS26WQHD1) C = FRS26WQH (FRS26WQHW0) D = FRS26WQH (FRS26WQHW1) 218787900 A B C D Condenser 5303208866 A B C D Spacer-cond tube,black 5303289026 A B C D Spacer-tube 5303289029 A B C D Clip-cond mtg,(4)

  • Page 14: Ice Dispenser

    Publication No. FRS26WQH 5995327458 ICE DISPENSER 09/99...
  • Page 15 FRS26WQH Publication No. 5995327458 ICE DISPENSER A = FRS26WQH (FRS26WQHD0) B = FRS26WQH (FRS26WQHD1) C = FRS26WQH (FRS26WQHW0) D = FRS26WQH (FRS26WQHW1) 5318582501 A B C D Tube-water inlet,93" ,plastic, cut-to-size 218949201 A B C D Tube-water inlet,formed ,plastic, dispenser 218505302 A B - - Deflector-ice disp,almond...

  • Page 16: Ice Container

    Publication No. FRS26WQH 5995327458 ICE CONTAINER 09/99...
  • Page 17 FRS26WQH Publication No. 5995327458 ICE CONTAINER A = FRS26WQH (FRS26WQHD0) B = FRS26WQH (FRS26WQHD1) C = FRS26WQH (FRS26WQHW0) D = FRS26WQH (FRS26WQHW1) 5304404344 A B C D Auger-ice 5304404343 A B C D Cam-drive 218815300 A B C D Container-ice 5304404346 A B C D Drum-ice disp...

  • Page 18: Ice Maker

    Publication No. FRS26WQH 5995327458 ICE MAKER 09/99...
  • Page 19 FRS26WQH Publication No. 5995327458 ICE MAKER A = FRS26WQH (FRS26WQHD0) B = FRS26WQH (FRS26WQHD1) C = FRS26WQH (FRS26WQHW0) D = FRS26WQH (FRS26WQHW1) 5318582501 A B C D Tube-water inlet,93" ,plastic, cut-to-size 218949201 A B C D Tube-water inlet,formed ,plastic, dispenser 3206348 A B C D Spring,shut-off arm...

  • Page 20: Wiring Schematic

    Publication No. FRS26WQH 5995327458 WIRING SCHEMATIC 09/99...

  • Page 21: Wiring Diagram

    FRS26WQH Publication No. 5995327458 WIRING DIAGRAM # = Fast-moving Parts 09/99 * = Non-Illustrated Parts...
