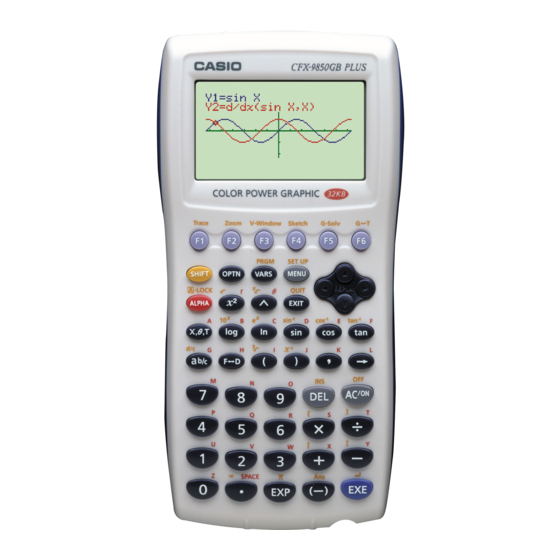

Casio CFX-9850G PLUS Basic Operation Gude
1. basic operation
Hide thumbs
Also See for CFX-9850G PLUS:
- User manual (85 pages) ,
- Calculations manual (72 pages) ,
- Programming manual (48 pages)
Related Manuals for Casio CFX-9850G PLUS
Summary of Contents for Casio CFX-9850G PLUS
-
Page 1: Basic Operation
Chapter Basic Operation Before Starting Calculations... Memory Option (OPTN) Menu Variable Data (VARS) Menu Program (PRGM) Menu... -
Page 2: Before Starting Calculations
1-1 Before Starting Calculations... Before performing a calculation for the first time, you should use the set up screen to specify the angle unit and display format. k k k k k Setting the Angle Unit (Angle) 1. Display the set up screen and use the f and c keys to highlight “Angle”. 2. - Page 3 1 - 1 Before Starting Calculations... u u u u u To specify the number of significant digits (Sci) Example To specify three significant digits 2 (Sci) 4 (3) Press the function key that corresponds to the number of significant digits you want to specify ( = 0 to 9).
- Page 4 1 - 1 Before Starting Calculations... k k k k k Inputting Calculations When you are ready to input a calculation, first press A to clear the display. Next, input your calculation formulas exactly as they are written, from left to right, and press w to obtain the result.
- Page 5 1 - 1 Before Starting Calculations... ! Relational operator =, G , >, <, ≥, ≤ @ And (logical operator), and (bitwise operator) # Or (logical operator), or (bitwise operator), xor, xnor • When functions with the same priority are used in series, execution is per- formed from right to left.
- Page 6 1 - 1 Before Starting Calculations... k k k k k Stacks The unit employs memory blocks, called stacks , for storage of low priority values and commands. There is a 10-level numeric value stack , a 26-level command stack , and a 10-level program subroutine stack . An error occurs if you perform a calculation so complex that it exceeds the capacity of available numeric value stack or command stack space, or if execution of a program subroutine exceeds the capacity of the subroutine stack.
- Page 7 1 - 1 Before Starting Calculations... k k k k k Overflow and Errors Exceeding a specified input or calculation range, or attempting an illegal input causes an error message to appear on the display. Further operation of the calculator is impossible while an error message is displayed. The following events cause an error message to appear on the display.
- Page 8 1 - 1 Before Starting Calculations... k k k k k Graphic Display and Text Display The unit uses both a graphic display and a text display. The graphic display is used for graphics, while the text display is used for calculations and instructions. The contents of each type of display are stored in independent memory areas.
- Page 9 1 - 1 Before Starting Calculations... u u u u u To insert a step Example To change 2.36 to sin2.36 c.dgx ddddd • When you press ![ the insert location is indicated by the symbol ‘‘t’’. The next function or value you input is inserted at the location of ‘‘t’’. To abort the insert operation without inputting anything, move the cursor, press ![ again, or press d, e or w.
- Page 10 1-2 Memory k k k k k Variables This calculator comes with 28 variables as standard. You can use variables to store values to be used inside of calculations. Variables are identified by single- and θ . letter names, which are made up of the 26 letters of the alphabet, plus The maximum size of values that you can assign to variables is 15 digits for the mantissa and 2 digits for the exponent.
- Page 11 1 - 2 Memory k k k k k Function Memory [OPTN]-[FMEM] Function memory is convenient for temporary storage of often-used expressions. For longer term storage, we recommend that you use the GRAPH Mode for expressions and the PRGM Mode for programs. P.27 •...
- Page 12 1 - 2 Memory u u u u u To delete a function Example To delete the contents of function memory number 1 K6(g)6(g)3(FMEM)A 1(STO) 1(f • Executing the store operation while the display is blank deletes the function in the function memory you specify.
- Page 13 1 - 2 Memory 2. Press w again to display the memory status screen. Number of bytes still free 3. Use f and c to move the highlighting and view the amount of memory (in bytes) used for storage of each type of data. The following table shows all of the data types that appear on the memory status screen.
- Page 14 1 - 2 Memory k k k k k Clearing Memory Contents Use the following procedure to clear data stored in memory. 1. In the memory status screen, use f and c to move the highlighting to the data type you want to clear. If the data type you select in step 1 allows deletion of specific data 2.
-
Page 15: Option (Optn) Menu
1-3 Option (OPTN) Menu The option menu gives you access to scientific functions and features that are not marked on the calculator’s keyboard. The contents of the option menu differ according to the mode you are in when you press the K key. See the Command List at the back of this user’s guide for details on the option (OPTN) menu. -
Page 16: Variable Data (Vars) Menu
1-4 Variable Data (VARS) Menu To recall variable data, press J to display the variable data menu. {V-WIN}/{FACT}/{STAT}/{GRPH}/{DYNA} {TABL}/{RECR}/{EQUA}/{TVM} See the Command List at the back of this user’s guide for details on the variable data (VARS) menu. • Note that the EQUA and TVM items appear for function keys (3 and 4) only when you access the variable data menu from the RUN or PRGM Mode. - Page 17 1 - 4 Variable Data (VARS) Menu σ σ • { } ... population standard deviation of { -data}/{ -data} σ σ • { } ... sample standard deviation of { -data}/{ -data} • {minX}/{minY} ... minimum value of { -data}/{ -data} •...
- Page 18 1 - 4 Variable Data (VARS) Menu k k k k k GRPH — Recalling Graph Functions Selecting {GRPH} from the VARS menu displays the graph function recall menu. P.156 • {Y}/{r} ... {rectangular coordinate or inequality function}/{polar coordinate function} •...
- Page 19 1 - 4 Variable Data (VARS) Menu Example To recall the contents of the numeric table for the function – 2, while the table range is Start=0 and End=6, and pitch=1 4(Reslt)w k k k k k RECR — Recalling Recursion Formula, Table Range, and Table Content Data Selecting {RECR} from the VARS menu displays the recursion data recall menu.
- Page 20 1 - 4 Variable Data (VARS) Menu • The table contents recalled by the above operation are stored automatically in Matrix Answer Memory (MatAns). • An error occurs if you perform the above operation when there is no function or recursion formula numeric table in memory.
- Page 21 1 - 4 Variable Data (VARS) Menu • The coefficients and solutions recalled by the above operation are stored automatically in Matrix Answer Memory (MatAns). • The following conditions cause an error to be generated. — When there are no coefficients input for the equation —...
-
Page 22: Program (Prgm) Menu
1-5 Program (PRGM) Menu To display the program (PRGM) menu, first enter the RUN or PRGM Mode from the Main Menu and then press ! W. The following are the selections available in the program (PRGM) menu. • {COM} … {program command menu} •...
