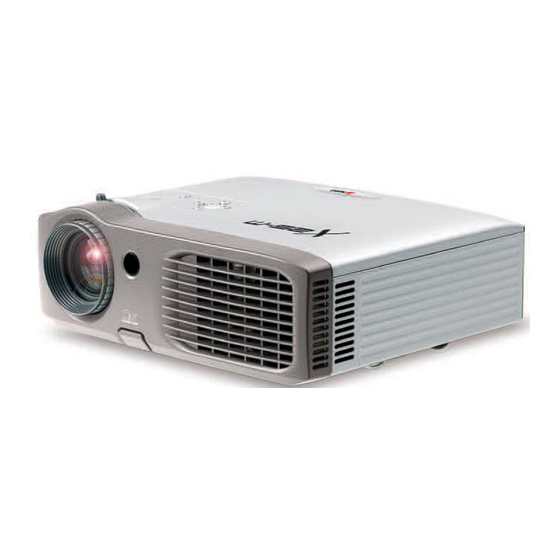

- Page 1 X25M DLP ™ Projector User Manual User Manual 3845_X25M/April05/UK...
-
Page 3: Table Of Contents
T A B L E O F C O N T E N T S Usage Notice • Precautions ................. Introduction •... -
Page 4: Usage Notice
U S A G E N O T I C E WARNING When presenting do not look into the projector's lens when the lamp is on. WARNING Children should be supervised at all times when projector is in use. WARNING To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. -
Page 5: Introduction
I N T R O D U C T I O N PRODUCT FEATURES This product is an XGA single chip 0.7” DLP projector. Outstanding features include: True XGA, 1024 x 768 addressable pixels Single chip DLP technology PAL, SECAM 625/576i\p NTSC 525/480i\p HD 720p/1080i High-tech DVI connection for digital signal with HDCP function and supports 480p, 576p, 720p and 1080i Full function remote control... -
Page 6: Package Overview
I N T R O D U C T I O N PACKAGE OVERVIEW This projector comes with all the items shown below. Check to make sure your unit is complete. Contact your dealer immediately if anything is missing. Remote Control Projector with lens cap Batteries x 2 SCART RGB Adaptor... -
Page 7: Product Overview
I N T R O D U C T I O N PRODUCT OVERVIEW AIN UNIT Zoom Ring Focus Ring Zoom Lens Elevator Button Elevator Foot Control panel Remote Control Receiver Power Connector Connection Ports... -
Page 8: Control Panel
I N T R O D U C T I O N CONTROL PANEL Keystone Correction Source Power/Standby Power Indicator LED Enter Four Directional Select Keys Auto Image Temp Indicator LED Keystone Correction Menu (On/Off) Lamp Indicator LED CONNECTION PORTS PC Analog Signal/HDTV/Component Video Input Connector Remote Control Receiver... -
Page 9: Remote Control
I N T R O D U C T I O N REMOTE CONTROL Power Transmit Indicator Light Hide Re-Sync Freeze Keystone Correction Page Up / Page Down Volume ( + / - ) Menu Reset Four Directional Select Keys Enter DVI-D Source VGA Source... -
Page 10: Installation
I N S T A L L A T I O N CONNECTING THE PROJECTOR To ensure the projector works well with your computer, please set the display mode of your graphic card less than or equal to 1024 X 768 resolution. Make sure the timing of the display mode is compatible with the projector. -
Page 11: Powering On/Off The Projector
I N S T A L L A T I O N POWERING ON THE PROJECTOR Turn on the projector Remove the lens cap. first and then the signal sources. Ensure that the power cord and signal cable are securely connected. The Power LED will flash green. Turn on the lamp by pressing “Power/Standby”... -
Page 12: Power Off The Projector
I N S T A L L A T I O N POWERING OFF THE PROJECTOR Press the “Power/Standby” button to turn off the projector lamp, you will see a message “Power off the lamp? Picture Mute” displayed on the projector’s screen. Press the “Power/Standby”... -
Page 13: Adjusting The Projected Image
I N S T A L L A T I O N ADJUSTING THE PROJECTED IMAGE DJUSTING THE ROJECTOR MAGE EIGHT The projector is equipped with an elevator foot for adjusting the image height. To raise the projector Press the elevator button Raise the image to the desired height angle then release the button to lock the elevator foot into position. -
Page 14: Adjusting The Projector Zoom/Focus
I N S T A L L A T I O N ADJUSTING THE PROJECTOR ZOOM / FOCUS You may turn the zoom ring to zoom in or out. To focus the image, rotate the focus ring until the image is clear. The projector will focus at distances from 1.2 to 10.0 meters. -
Page 15: User Controls
U S E R C O N T R O L S CONTROL PANEL & REMOTE CONTROL There are two ways for you to control the functions: Remote Control and Control Panel. Control Panel Remote Control SING THE ONTROL ANEL Power / Standby Refer to the “Power On/Off the Projector”... -
Page 16: Using The Remote Control
U S E R C O N T R O L S SING THE EMOTE ONTROL Power / Standby Refer to the “Power On/Off the Projector” section on pages 11-12. Re-Sync Automatically synchronises the projector to the input source. Volume + / - Increases/decreases speaker volume. -
Page 17: On-Screen Display Menus
U S E R C O N T R O L S ON SCREEN DISPLAY MENUS HOW TO OPERATE The Projector has multilingual On Screen Display (OSD) menus that allow you to make image adjustments and change a variety of settings. -
Page 18: Language
U S E R C O N T R O L S Computer / Video Mode Image-I Image-II Audio Lamp setting Language Management LANGUAGE Choose the multilingual OSD menu. Use the key to select your prefered language. Press “Enter” to finalise the selection. -
Page 19: Image-I
U S E R C O N T R O L S Computer / Video Mode Language Management Lamp Setting Image-I Image-II Audio Display Mode Movie sRGB Game User Brightness Contrast Keystone Color Press Enter to Set White Peaking Color Temp. IMAGE-I Display Mode There are many factory presets optimized for various types of images. -
Page 20: Image-Ii (Computer Mode)
U S E R C O N T R O L S Computer Mode Language Management Lamp Setting Image-I Image-II Audio Frequency Tracking H. Position V. Position Degamma Aspect Ratio 16:9 Image Position Press Enter to Set IMAGE-II (COMPUTER MODE) Frequency “Frequency”changes the display data frequency to match the frequency of your computer’s graphic card. -
Page 21: Image-Ii (Video Mode)
U S E R C O N T R O L S Video Mode Language Management Lamp Setting “Saturation”, “Tint” Image-I Image-II Audio and “Sharpness” Degamma function is not Saturation supported under DVI-D mode. Tint Sharpness Aspect Ratio 16:9 Image Position Press Enter to Set IMAGE-II (VIDEO MODE) Degamma... -
Page 22: Audio
U S E R C O N T R O L S Computer / Video Mode Language Management Lamp Setting Image-I Image-II Audio Volume Mute AUDIO Volume Press the to decrease the volume. Press the to increase the volume. Mute Choose the left icon to turn mute on. -
Page 23: Management
U S E R C O N T R O L S Computer / Video Mode Image-I Image-II Audio Language Management Lamp Setting Menu Location Projection Signal Type Video Source Lock High Altitude Reset MANAGEMENT Menu Location Choose the Menu location on the display screen. Projection Front-Desktop The factory default setting. -
Page 24: Lamp Setting
U S E R C O N T R O L S Computer / Video Mode Image-I Image-II Audio Language Management Lamp Setting Lamp Hour Lamp Reset Lamp Reminding ECO Mode Auto Power Off LAMP SETTING Lamp Hour Displays the lamp’s elapsed operating time (in hours). Lamp Reset Turns the lamp hour counter to 0 hours. -
Page 25: Appendices
A P P E N D I C E S TROUBLESHOOTING If you experience trouble with the projector, refer to the following information. If the problem persists, please contact your local reseller or service centre. PROBLEM No image appears on the screen Ensure all the cables and power connections are correctly and securely connected as described in the “Installation”... - Page 26 A P P E N D I C E S PROBLEM: The screen of the Notebook or PowerBook computeris not displaying your presentation. If you are using a Notebook PC: Some Notebook PCs may deactivate their screens when a second display device is in use.
- Page 27 A P P E N D I C E S PROBLEM LED lighting message Message Power LED Green Temp LED Lamp LED Standby State Flashing (Input power cord) Lamp lighting Power on Power off (Cooling) Error (Lamp fail) Error (Thermal fail) Error (Fan lock fail) Flashing Error (Over Temp.)
-
Page 28: Replacing The Lamp
A P P E N D I C E S REPLACING THE LAMP The projector will detect the lamp life itself. It will show you a WARNING warning message “Lamp is approaching the end of its useful life in full power operation. Replacement Suggested!” When you see Lamp compartment this message, change the lamp as soon as possible. -
Page 29: Specifications
A P P E N D I C E S SPECIFICATIONS Light Valve Single Chip DLP Technology by Texas Instruments Lamp 200W SHP User Replaceable Lamp Number of Pixels 1024 pixels(H) X 768 lines(V) Displayable Color 16.7M colors Projection Lens F/2.4~2.65. -
Page 30: Compatibility Modes
A P P E N D I C E S Remark! COMPATIBILITY MODES “*” compression computer image (ANALOG) (DIGITAL) RESOLUTION MODE V.FREQUENCY (HZ) H.FREQUENCY (KHZ) V.FREQUENCY (HZ) H.FREQUENCY (KHZ) VESA VGA 640 x 350 31.5 31.5 VESA VGA 640 x 350 37.9 37.9 VESA VGA... -
Page 31: Ceiling Mount Installation
A P P E N D I C E S CEILING MOUNT INSTALLATION To prevent damaging your projector, please use the ceiling Please note that mount package for installation. damage resulting from If you wish to use a third party ceiling mount kit, please ensure the screws used incorrect installation to attached a mount to the projector meet the following specifications: will invalidate the...
