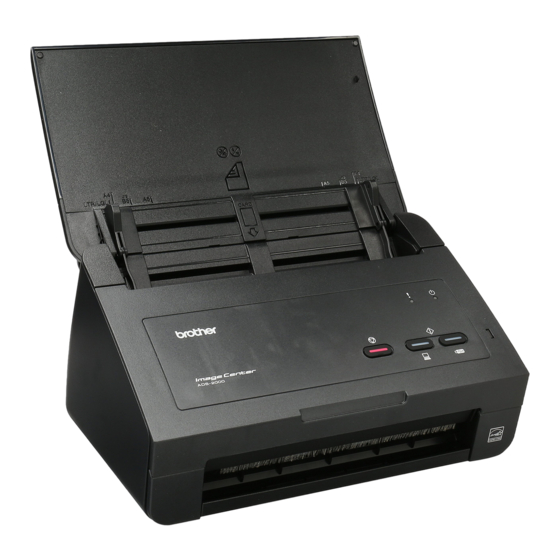

Brother ImageCenter„ ADS2000 Quick Setup Manual

Quick setup guide - english
Hide thumbs Also See for ImageCenter„ ADS2000:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , User Manual
Quick Setup Guide
Start Here
Thank you for choosing Brother, your support is important to us and we value your business. Your Brother product
is engineered and manufactured to the highest standards to deliver reliable performance, day-in and day-out.
Please read the Product Safety Guide first before you set up your machine. Then, please read this Quick Setup
Guide for the correct setup and installation.
WARNING
1
Unpack the machine and check the components
The components included in the box may differ depending on your country.
Product Safety Guide
WARNING
• This product was packaged in a plastic bag. To avoid suffocation, keep such plastic bag away from
babies and children. Do not use the bag in cribs, beds, carriages or play pens. The bag is not a toy.
• Only use the power cord supplied with this product.
Note
• We recommend that you save the original packaging in case you must ship your machine.
• Please use the supplied USB cable if you wish to connect the machine to a computer.
USB cable
It is recommended to use a USB 2.0 cable (Type A/B) that is no more than 6 feet (2 meters) long.
a
Remove the protective tape and film covering the machine.
b
Make sure you have all the components.
WARNING indicates a potentially hazardous situation which, if not avoided, could result in death
or serious injuries.
Plastic Card Carrier Sheet
Product Registration Sheet (USA only)
Warranty Card (USA only)
AC Power Cord
Carrier Sheet/
ADS-2000
USB Interface Cable
Quick Setup Guide
DVD-ROM
USA/CAN Version 0
1

Advertisement

Table of Contents
loading

Related Manuals for Brother ImageCenter„ ADS2000

Summary of Contents for Brother ImageCenter„ ADS2000

  • Page 1 Quick Setup Guide Start Here ADS-2000 Thank you for choosing Brother, your support is important to us and we value your business. Your Brother product is engineered and manufactured to the highest standards to deliver reliable performance, day-in and day-out. Please read the Product Safety Guide first before you set up your machine.

  • Page 2: Connect The Power Cord

    Pull the Output Tray out of the machine and Connect the power cord then unfold the Document Stopper. Important DO NOT connect the USB cable yet. Connect the power cord. WARNING The machine must be fitted with an earthed plug. ®...

  • Page 3: For Usb Interface Users

    ® Windows For USB interface users ® ® ® (Windows XP Home/XP Professional/Windows Vista /Windows The DVD-ROM Top Menu will appear. Click Before you install Install MFL-Pro Suite and click Yes if you accept the license agreements. Follow the on-screen instructions. Make sure that your computer is ON and you are logged on with Administrator rights.

  • Page 4: Connect The Usb Cable

    ® Windows Connect the USB cable Finish and restart Connect the USB cable to the USB port Click Finish to restart your computer. marked with a symbol on your machine. After restarting the computer, you must log on with Administrator rights. Connect the cable to your computer.
  • Page 5 Macintosh For USB interface users (Mac OS X 10.5.8 - 10.7.x) Before you install Install MFL-Pro Suite Make sure your machine is connected to the power Put the supplied installer DVD-ROM into your and your Macintosh is ON. You must be logged on DVD-ROM drive.
  • Page 6 Macintosh Install Presto! PageManager and Presto! BizCard Click Presto! PageManager and follow the on-screen instructions. Click Presto! BizCard and follow the on-screen instructions. Click Next. Click Close. The installation is now Finish complete.
  • Page 7 Install Optional Applications ® Windows Install optional applications Nuance PDF Converter Professional 7 Nuance PDF Converter Professional 7 offers a variety of features for handling PDF files. It can unlock and open PDF files for viewing, editing, annotation and re-assembly. Enter the Nuance serial number that is shown on the “sleeve”...

  • Page 8: How To Scan To A Computer

    How to scan to a computer Scanning a document You can scan and save documents as PDF files using the Scan to File feature. To scan documents and configure various settings, please ensure you have installed the driver and connected the machine to your computer by following the instructions in this guide.

  • Page 9: Led Indications

    LED Indications The LED indications shown in the table below are used in the illustrations in this chapter. The LED is off. The LED is on. The LED is blinking. Note Refer to the User’s Guide for more details and the other LED Indications. Document Jam Clear the document jam and then do the following: ...
  • Page 10 LED Indications Storage Full The connected USB flash memory drive is full. Press any key and then do one of the following:  Delete unused files or folders from the USB flash memory drive and then try again.  Use a USB flash memory drive that has available space. Protected Device The connected USB flash memory drive is write-protected.
  • Page 11 LED Indications Remote Setup Remote Setup is in process. To cancel Remote Setup, click the Cancel button in the Remote Setup window on your computer. All Blank Page Skipped All scanned pages were skipped as blank pages. Press any key and then do one of the following: Place your document, face down, top edge first in the document feeder.
  • Page 12 Trademarks The Brother logo is a registered trademark of Brother Industries, Ltd. Brother is a registered trademark of Brother Industries, Ltd. Windows Vista is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. Windows and Windows Server are registered trademarks of Microsoft Corporation in the United States and/or other countries.
