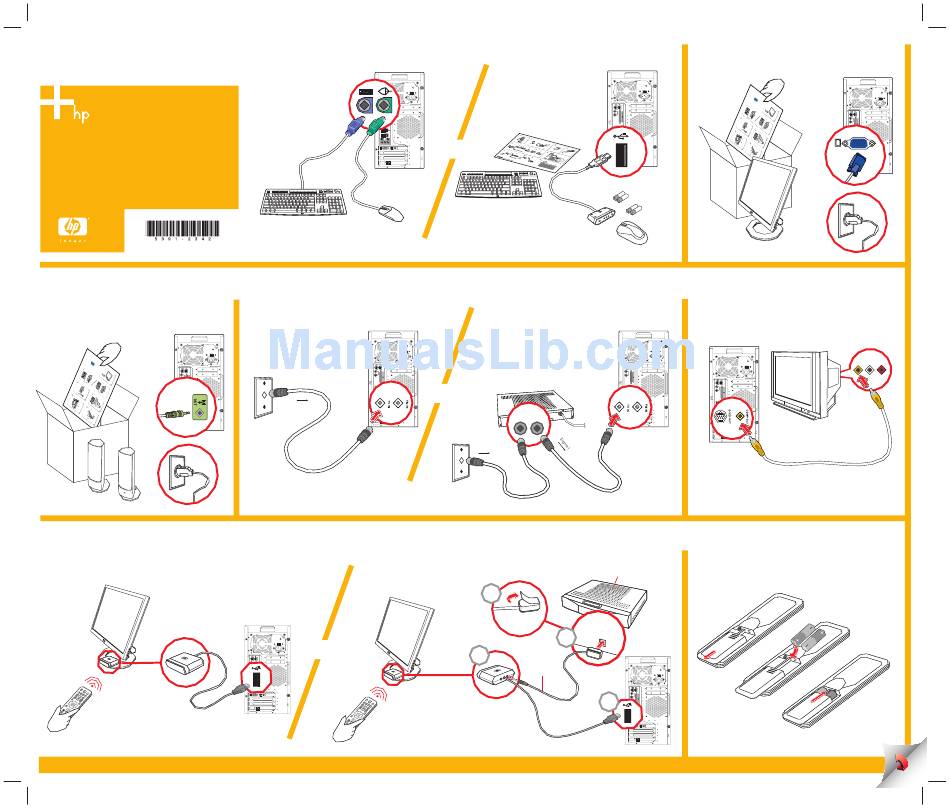

HP Media Center m7000 Quick Setup

HP Media Center PC
Quick Setup
Copyright © 2004, 2005 Hewlett-Packard Development Company, L.P.
Printed in
www.hp.com
3
Speaker System
Refer to the instructions that came with your
speakers. Speakers may be sold separately.
6
Remote Sensor
Connect remote control receiver to computer.
1
Keyboard and Mouse
4
TV In
Connect TV signal to computer
Cable or antenna
Signal
TV cable
If you use a cable or satellite set-top box,
pass the signal through the remote sensor control cable.
OR
Wireless option
Refer to the setup instructions located in
your mouse/receiver box.
OR
If you use a cable or satellite set-top box,
pass the signal through the box.
Cable or satellite
OR
set-top box
IN OUT
Signal
TV cable
Cable or satellite set-top box
2
Remove tape Adhere
to IR window
3
1
Remote sensor
control cable
4
2
Monitor
Refer to setup instructions that came with your monitor.
Monitors may be sold separately.
5
TV Out
(TV connections are optional)
TV signal from computer to TV
TV
Second TV cable
not included
See the user documentation for TV display setup.
7
Remote Control
VIDEO IN
Install AA batteries in
remote control.
