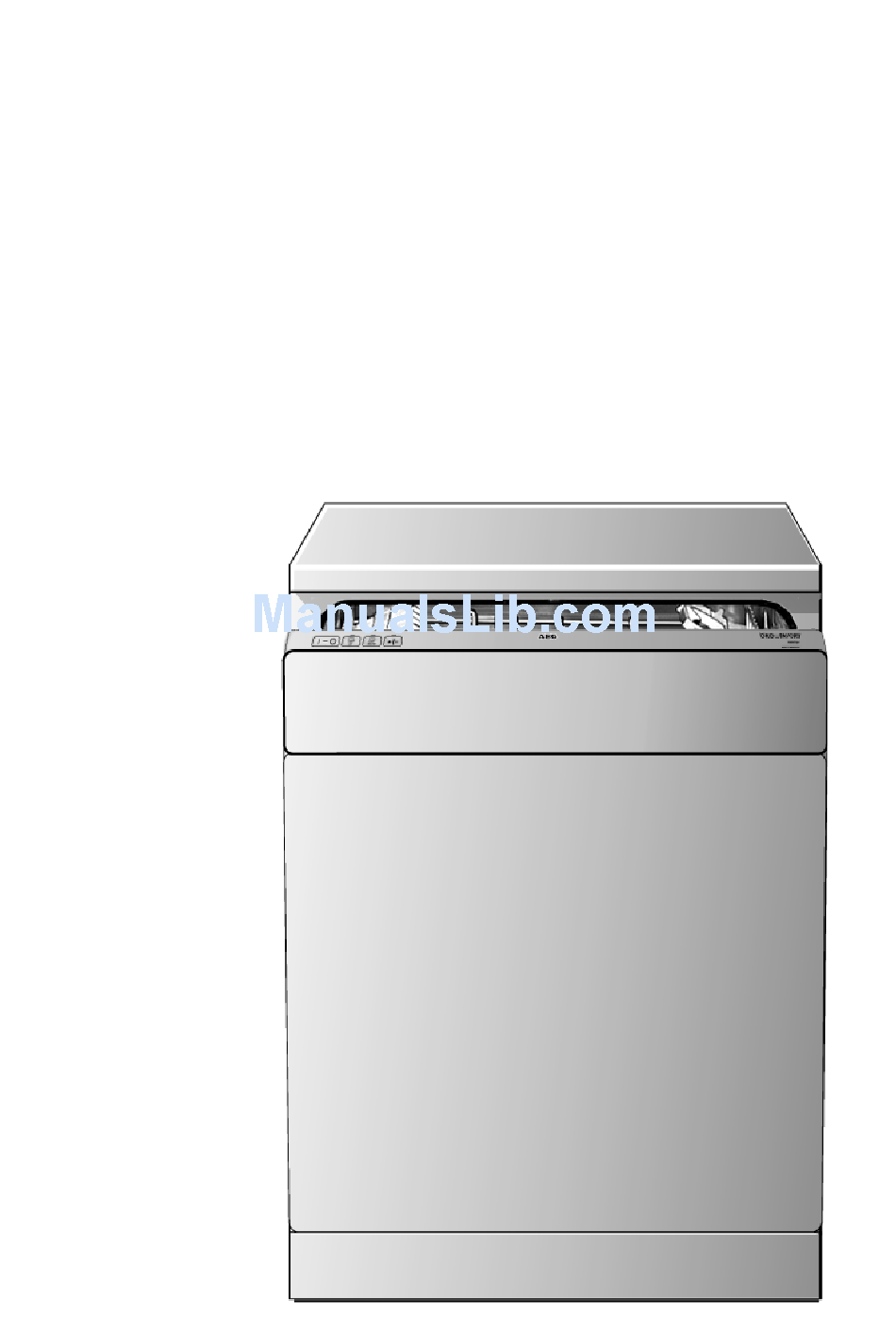

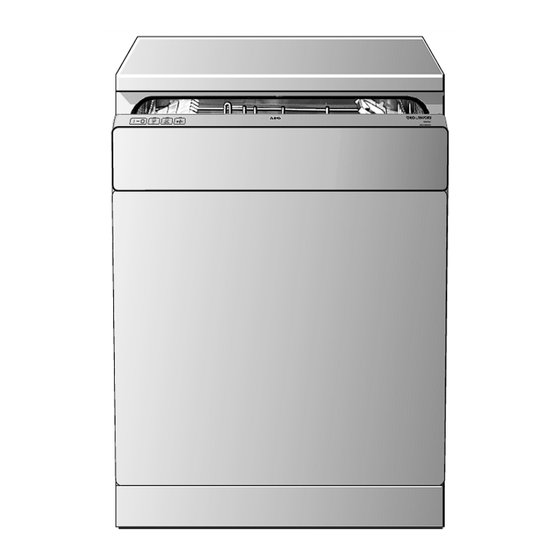

- Page 1 ÖKO_FAVORIT 50750 VI The Dishwasher That Can Be Fully Integrated User Instructions...
- Page 2 Dear customer, Please read these user instructions carefully. Please observe the safety instructions on the first few pages of these user instructions! Please keep these user instructions for later reference. Pass them on to any subsequent owner of the appliance. The warning triangle and/or specific words (Warning!, Caution!, Important!) are used to highlight instructions that are important for your safety or for the function of the appliance.
-
Page 3: Table Of Contents
Switching Off the Dishwasher ........ - Page 4 Connecting the Dishwasher ........
-
Page 5: Operating Instructions
• Keep all packaging away from children. • Keep all detergents in a safe place out of children’s reach. • The water in your dishwasher is not suitable for drinking. If there are still remnants of detergent in the appliance, there is a risk of burns! •... -
Page 6: Correct Use
• Only use detergents specifically designed for use in domestic dish- washers. • Do not put any solvents in the dishwasher. There is a risk of an explo- sion! • The anti-flood system provides dependable protection against dam- age due to leaks. -
Page 7: Disposal
Disposal Disposing of the Packaging Material Dispose of the dishwasher packaging material correctly. All the packag- ing materials used are harmless to the environment and can be recy- cled. • Plastic parts are marked with standard international abbreviations: –... -
Page 8: Appliance Features, Display And Control Fields
Operating Instructions Appliance Features, Display and Control Fields Top Spray Nozzle Rubber Seal for Connecting the Water Feed to the Upper Spray Spray Arms Container for Special Salt Container for Rinse Aid Detergent Dispenser Display and Control Fields Rating Filters plate... -
Page 9: Display And Control Fields
The Control Field comprises the On/Off switch buttons with LED indicators. Softener and Function Button: in addition to the wash program marked, it is also possible to adjust the dishwasher's water softener using the combination of these buttons. Prior to using for the first time Prior to using for the first time, remove all the clips with which the dish racks are secured for transport. -
Page 10: Adjust The Water Softener
Operating Instructions Adjust the Water Softener To avoid the scale deposits on the dishes and in the dishwasher, the dishes must be washed with soft, i.e. low lime content, water. The dish- washer therefore has a built-in water softener, in which tap water from a hardness of 4 °d (German degree) is softened with the aid of special... -
Page 11: Filling With Salt For The Water Softener
Filling with Salt for the Water Softener Use only special salt for dishwashers. Never fill the salt container with any another type of salt (e.g. culinary salt) or dishwasher detergent, as this would irreparably damage the water softener. Prior to filling with salt, please check each time that you really do have a packet of dishwasher salt in your hand. -
Page 12: Filling With Rinse Aid
If there is sufficient rinse aid in the container, the indicator window is uniformly dark. The rinse aid container is on the inside of the dishwasher door. 1. Open the door 2. Turn the lid of the container ¼... -
Page 13: Adjusting Rinse Aid Dosing
In Daily Use • Check the salt and rinse aid levels. • Load cutlery and dishes into the dishwasher • Fill with dishwasher detergent • Select a wash programme suitable for the cutlery and dishes • Start the wash programme... -
Page 14: Loading Cutlery And Dishes
– To avoid damage to glasses, they must not touch – Do not lay small objects (e.g. lids) in the cutlery rack are of limited suitability: • Only wash stoneware in the dishwasher if it is specifically marked as being dishwasher- safe by the manufacturer. -
Page 15: Loading Cutlery
3. For larger items of cutlery, e.g. a whisk, half of the top for the cut- lery basket can be left off. On some models of dishwasher it is possible to open the cutlery basket. To ensure that the cutlery rack... -
Page 16: Loading Pans, Frying Pans And Large Plates
Load large and heavily soiled dishes in the lower rack. To ease the loading of large items at some dishwasher-models the two rows of prongs for the right-hand plate insert can be folded down: 1. Slightly lift the right plate insert. -
Page 17: Loading Cups, Glasses And Coffee Services
Loading Cups, Glasses and Coffee Services Load small, delicate items and long pointed cutlery in the upper rack. • Arrange items of crockery on the folding cups racks so that they are offset from each other and water can reach all items. •... -
Page 18: Adjusting The Height Of The Upper Rack
Operating Instructions Adjusting the Height of the Upper Rack With Raised Upper Rack With Lowered Upper Rack The height of the rack can also be adjusted when the rack is laden. Lowering the Upper Rack: 1. Pull out the upper rack to the stop. 2. -
Page 19: Filling With Detergent
Filling with Detergent Use only dishwasher detergent. Fill with Detergent: – Prior to the start of a wash programme (not for the Pre Wash pro- gramme). The detergent is released into the wash water during the programme. Please observe the manufacturer’s dosing and storage recommenda- tions given on the detergent packaging. -
Page 20: Bio Wash Programmes And Concentrated Detergents
Operating Instructions Bio Wash Programmes and Concentrated Detergents Based on their chemical composition, dishwasher detergents can be split into two basic types: – Conventional, alkaline detergents with caustic components – Weak alkaline concentrated detergents with natural enzymes. The use of BIO wash programmes in conjunction with concentrated detergents reduces pollution and is good for your dishes;... -
Page 21: Selecting The Wash Programme (Programme Table)
Dessert Dishes and Coffee All Dish Types Service with delicate glasses • lightly Used dishes soiled that are being collected in the dishwasher for washing later. QUICK PRE WASH 50 °C Pre Wash Main Wash Intermediate Rinse Final Rinse 30 min. -
Page 22: Start The Wash Programme
Operating Instructions Start the wash programme 1. Open the door of the dishwasher. 2. Check that when the dishes and cutlery are loaded into the dishwasher the spray arms are free to rotate. 3. Open the tap fully. 4. Press the ON/OFF button. The indicator in the ON/OFF button illumi- nates. -
Page 23: Interrupting The Wash Programme (Only In Emergencies)
Hot steam may escape from the appliance when opening the door. Open the door carefully. 1. Open the door of the dishwasher. Since the door is locked when the wash programme is running, more force is needed to open the door. -
Page 24: Switching Off The Dishwasher
Operating Instructions Switching Off the Dishwasher At the end of the wash programme, the door of the dishwasher is unlocked and a continuous tone sounds for 5 seconds. Hot steam may escape from the appliance when opening the door immediately after the end of the programme. Open the door carefully. -
Page 25: Cleaning The Filter
Dirty filters will degrade the washing result. 1. Open the door, remove the lower rack. 2. The dishwasher filter system com- prises a coarse/fine filter, microfilter and a flat filter. Unlock the filter sys- tem using the handle on the microfil- ter, and remove. -
Page 26: What To Do, If
Operating Instructions What to do, if ... Try to rectify minor faults on the dishwasher with the aid of the instructions given here. If you call an engineer to resolve a of fault listed here, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is in guarantee. -
Page 27: There Are Problems With The Operation Of The Dishwasher
– The drain hose is incorrectly laid. The dishes are wet and dull. – Rinse aid was not used. Possible Cause The door of the dishwasher is not closed properly. Mains plug is not plugged in. Insert mains plug. House fuse is defective. -
Page 28: Technical Data
1-10 bar (=10-100 N/cm = 0.1-1.0 MPa) Information on the electrical connection is given on the rating plate on the inner edge of the dishwasher door on the right. 850 x 600 x 600 (H x B x D in mm) 54 Kg 820 –... -
Page 29: Notes For Test Institutes
Notes for Test Institutes The salt container for the water softener and the rinse aid container must be completely full prior to the test. Test Standard: Comparative Programme: Full Load: Detergent Dosing: Half Load: Detergent Dosing: Rinse Aid Setting: Example Loading Arrangement: Upper rack : Bottom rack with cutlery basket EN 5O 242... -
Page 30: Installation And Connection Instructions
INSTALLATION AND CONNECTION INSTRUCTIONS Installing the Dishwasher • The dishwasher must be installed on a firm floor and adjusted to ensure that it is stable and level. • To compensate for unevenness in the floor and to match the height of the... -
Page 31: Fitting The Furniture Door Panel
Fitting the Furniture Door Panel (see installation template supplied) The door of the appliance can be fitted with a furniture door panel of the following dimensions: Width: 591 mm – 594 mm Thickness: 16 mm – 24 mm Height: max. 715 mm Weight: max. -
Page 32: Connecting The Dishwasher
Installation and Connection Instructions Connecting the Dishwasher Water Connection The dishwasher is fitted with safety devices that prevent the return of wash water into the drinking water system and comply with the appli- cable plumbing regulations. • The dishwasher should be connected to a cold water supply. -
Page 33: Water Drain
Water drain Drain hose The drain hose must not be kinked, crushed or entangled. • Connecting the drain hose: – Maximum permitted height: 1 metre. – Minimum required height 30 cm above the lower edge of the machine. Extension hoses •... -
Page 34: Leak Prevention System
Installation and Connection Instructions Leak Prevention System For protection from damage due to water leaks, the dishwasher is equipped with a leak prevention system, the AQUA CONTROL SYSTEM. In the event of a fault, the safety valve immediately interrupts the sup- ply of water to the appliance and the drain pump switches on. -
Page 35: Electrical Connection
Before switching on make sure the electricity supply voltage is the same as that indicated on the appliance rating plate. To isolate the dishwasher from the mains, remove the mains plug. Important: The plug must still be accessible after the appliance has been installed. -
Page 36: Connections
Installation and Connection Instructions Connections The water inlet and drain hoses, as well as the mains cable must be con- nected beside the dishwasher as there is insufficient space behind the appliance. The plumbing and electrical installation example given below can only be regarded as a recommendation. -
Page 37: Guarantee Conditions
GUARANTEE CONDITIONS Guarantee Conditions AEG offer the following guarantee to the first purchaser of this appliance. 1. The guarantee is valid for 12 months commencing when the appliance is handed over to the first retail purchaser, which must be verified by purchase invoice or similar docu- mentation. -
Page 39: Service & Spare Parts
SERVICE & SPARE PARTS If you wish to purchase spare parts or require an engineer, contact your local AEG Service Force Centre by telephoning: 08705 929 929 Your telephone call will be automatically routed to the Service Centre covering your post code area. When you contact the Service Centre they will need the following information: Your name &... - Page 40 AEG Hausgeräte GmbH Postfach 1036 D-90327 Nürnberg http://www.aeg.hausgeraete.de © Copyright by AEG 822 945 505 - 00 - 0600...
