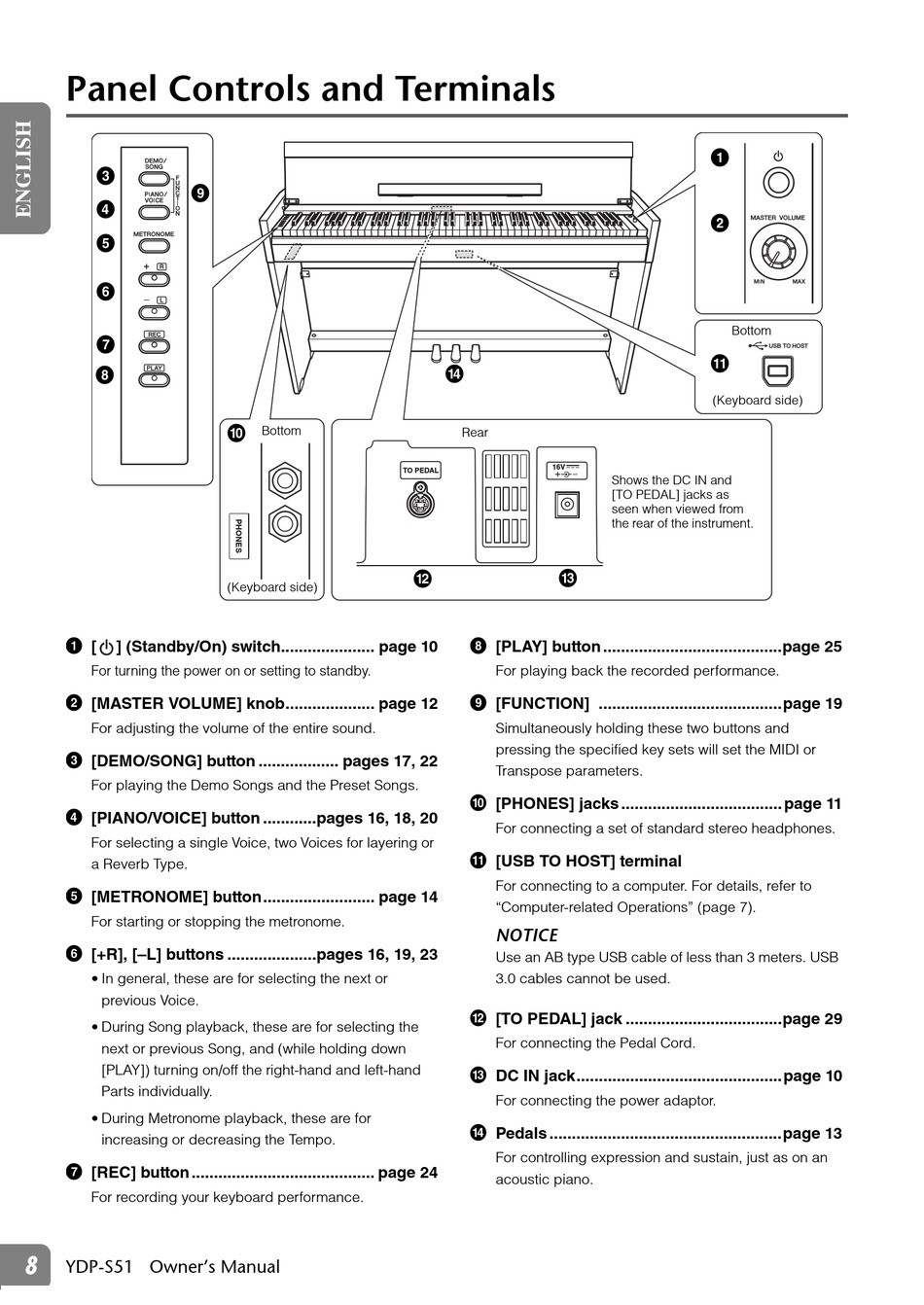

Panel Controls and Terminals

[ ] (Standby/On) switch..................... page 10
For turning the power on or setting to standby.
[MASTER VOLUME] knob.................... page 12
For adjusting the volume of the entire sound.
[DEMO/SONG] button .................. pages 17, 22
For playing the Demo Songs and the Preset Songs.
[PIANO/VOICE] button ............pages 16, 18, 20
For selecting a single Voice, two Voices for layering or
a Reverb Type.
[METRONOME] button......................... page 14
For starting or stopping the metronome.
[+R], [–L] buttons ....................pages 16, 19, 23
• In general, these are for selecting the next or
previous Voice.
• During Song playback, these are for selecting the
next or previous Song, and (while holding down
[PLAY]) turning on/off the right-hand and left-hand
Parts individually.
• During Metronome playback, these are for
increasing or decreasing the Tempo.
[REC] button ......................................... page 24
For recording your keyboard performance.
8
YDP-S51 Owner's Manual
Bottom
(Keyboard side)
Rear
16V
TO PEDAL
[PLAY] button ........................................page 25
For playing back the recorded performance.
[FUNCTION] .........................................page 19
Simultaneously holding these two buttons and
pressing the specified key sets will set the MIDI or
Transpose parameters.
[PHONES] jacks .................................... page 11
For connecting a set of standard stereo headphones.
[USB TO HOST] terminal
For connecting to a computer. For details, refer to
"Computer-related Operations" (page 7).
NOTICE
Use an AB type USB cable of less than 3 meters. USB
3.0 cables cannot be used.
[TO PEDAL] jack ...................................page 29
For connecting the Pedal Cord.
DC IN jack..............................................page 10
For connecting the power adaptor.
Pedals ....................................................page 13
For controlling expression and sustain, just as on an
acoustic piano.
Bottom
(Keyboard side)
Shows the DC IN and
[TO PEDAL] jacks as
seen when viewed from
the rear of the instrument.
