Summary of Contents for KitchenAid KUDS50FVWH - Superba - 5 Cycle Dishw
Page 1

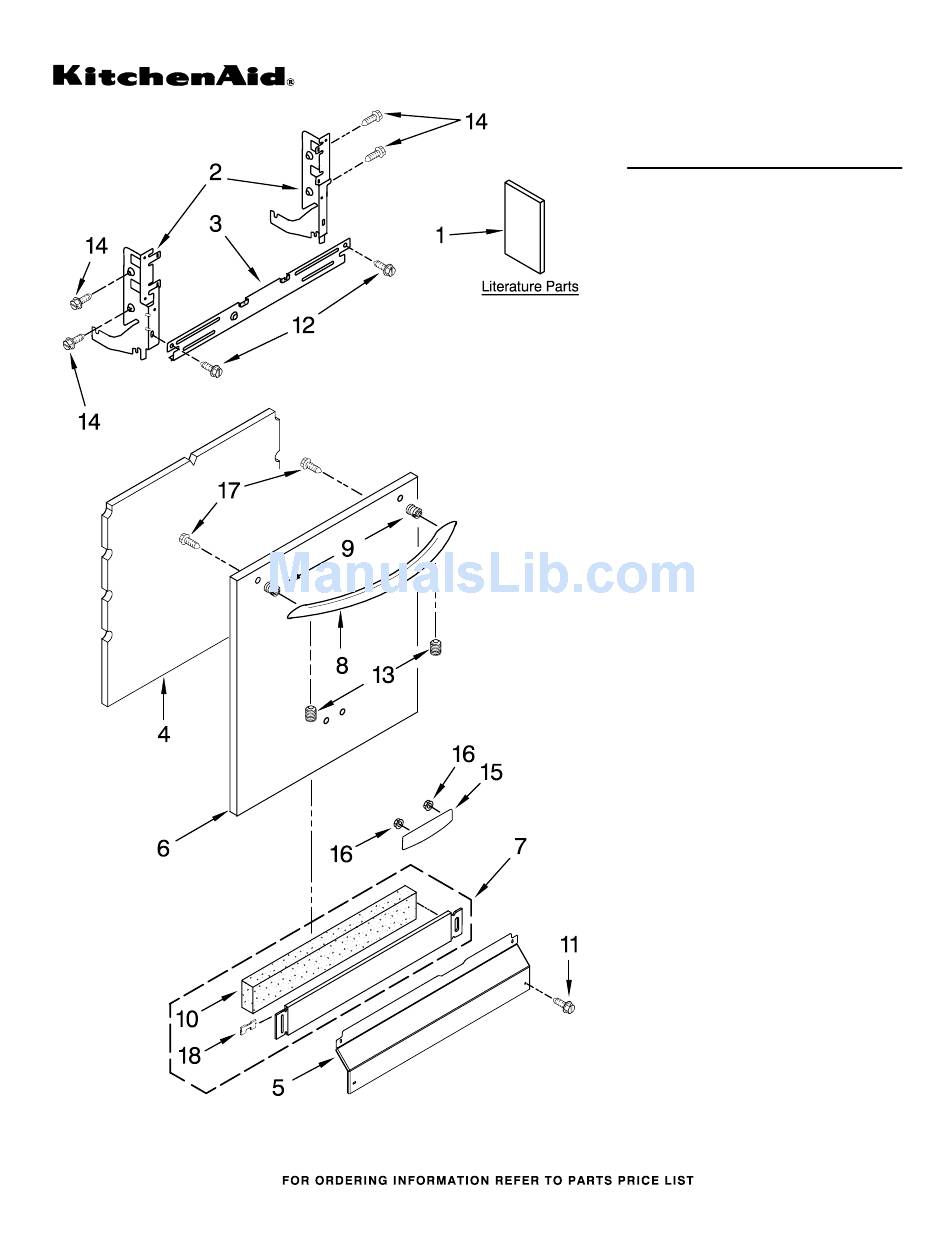

DOOR AND PANEL PARTS UNDERCOUNTER DISHWASHER For Models: KUDS50FVBL2, KUDS50FVWH2, KUDS50FVSS2 (Black) (White) (Stainless) Illus. Part DESCRIPTION Literature Parts W10056407 Instructions, Installation W10247455 Energy Guide W10205938 Guide, Use & Care Spanish W10205937 Guide, Use & Care English/French W10142800 Tech Sheet Arm, Hinge 8534854 Left 8534853 Right...
CONTROL PANEL PARTS For Models: KUDS50FVBL2, KUDS50FVWH2, KUDS50FVSS2 (Black) (White) (Stainless) Illus. Part DESCRIPTION Console Assembly W10249999 Black W10250000 White W10250001 Midnight Grey 8546546 Clip, BI−Metal 661663 BI−Metal 4 W10134019 Switch, Door 3369051 Screw 6 W10077360 Latch Assembly 7 W10208674 Control, Electronic W10292697...
Page 3
DOOR AND LATCH PARTS For Models: KUDS50FVBL2, KUDS50FVWH2, KUDS50FVSS2 (Black) (White) (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 3369051 Screw, Door 8269259 Gasket, Vent 11 W10224470 Wiring Harness 8281217 Screw 7 W10077877 Deflector, Vent 12 W10177098 Screw 3 W10056249 Inner Door (Also Order 8535660 Seal,...
Page 4
FILL, DRAIN AND OVERFILL PARTS For Models: KUDS50FVBL2, KUDS50FVWH2, KUDS50FVSS2 (Black) (White) (Stainless) Illus. Part DESCRIPTION 8268892 Lever, Overflow Switch 8531412 Hose, Inlet 8531325 Water Inlet (Also Order Item 4) 8531323 Gasket 5 W10213826 Nut, Inlet (Also Order Item 4 & 5) 371505 Clamp, Hose 7 W10219505 Fill Valve Assembly...
Page 5
TUB AND FRAME PARTS For Models: KUDS50FVBL2, KUDS50FVWH2, KUDS50FVSS2 (Black) (White) (Stainless) W10292697...
Page 6
TUB AND FRAME PARTS For Models: KUDS50FVBL2, KUDS50FVWH2, KUDS50FVSS2 (Black) (White) (Stainless) Illus. Part DESCRIPTION 1 W10213823 Tub Assembly (Includes Heater Assembly) 8573061 Strain Relief 3 W10112096 Door Seal 4 W10082838 Plug Tub 5 W10266857 Insulator, Sound 8269110 Seal, Cabinet 3400924 Retainer, Push 8 W10084086 Door Balance Assembly...
Page 7
PUMP AND MOTOR PARTS For Models: KUDS50FVBL2, KUDS50FVWH2, KUDS50FVSS2 (Black) (White) (Stainless) W10292697...
Page 8
PUMP AND MOTOR PARTS For Models: KUDS50FVBL2, KUDS50FVWH2, KUDS50FVSS2 (Black) (White) (Stainless) Illus. Part DESCRIPTION 8534952 Accumulator Assy 8283527 Shield 3400069 Screw 8572618 Sump with Seal 8268375 Check Valve, Sump 6 W10083957 Chopper Assembly 9741232 Screw 8531857 Protector, Inlet 9 W10239404 Motor Assembly 3400217 Screw 11 W10084567 Screen, Separation 12 W10237169 Sump &...
Page 9
UPPER WASH AND RINSE PARTS For Models: KUDS50FVBL2, KUDS50FVWH2, KUDS50FVSS2 (Black) (White) (Stainless) Illus. Part DESCRIPTION 1 W10077859 Feed Tube Assembly (Also Includes Item 3) 8533889 Screw 8557720 Sprayarm, 3rd Level 4 W10118464 Cover, Screw 5 W10082867 Mount 6 W10082949 Manifold 7 W10082832 Hanger 8268433 Seal, Sprayarm 9 W10082831 Probe, Manifold...
HEATER PARTS For Models: KUDS50FVBL2, KUDS50FVWH2, KUDS50FVSS2 (Black) (White) (Stainless) Illus. Part DESCRIPTION 8537057 Heater Element Assembly (Also Includes Item 2) 717273 Washer, Heater Element 8268548 Nut, Heater Element 3400931 Retainer, Spring Grip NOTE: If heater element is removed, it must be replaced. W10292697...
Page 11
UPPER RACK AND TRACK PARTS For Models: KUDS50FVBL2, KUDS50FVWH2, KUDS50FVSS2 (Black) (White) (Stainless) W10292697...
Page 12
UPPER RACK AND TRACK PARTS For Models: KUDS50FVBL2, KUDS50FVWH2, KUDS50FVSS2 (Black) (White) (Stainless) Illus. Part DESCRIPTION 1 W10056270 Dishrack, Upper 2 W10082839 Housing, Adjuster Actuator, Adjuster W10077838 Right Hand W10077839 Left Hand 8268654 Adjuster Assembly 3385088 Wheel 8268703 Axel, Adjuster 8281156 Screw 8562030 Tine Row 9 W10082853 Clip, Pivot...
Page 13
LOWER RACK PARTS For Models: KUDS50FVBL2, KUDS50FVWH2, KUDS50FVSS2 (Black) (White) (Stainless) Illus. Part DESCRIPTION 1 W10056271 Lower Rack Lid, Basket Silverware 8519695 Left Side 8519663 Right Side 3 W10261335 Wheel & Transport Assembly 8531233 Basket, Silverware 5 W10078215 Retainer, Combo 6 W10056272 Tine Row 7 W10175279 Retainer, Tine Row 8519702 Basket, Utensil...
Page 14
LOWER WASHARM AND STRAINER PARTS For Models: KUDS50FVBL2, KUDS50FVWH2, KUDS50FVSS2 (Black) (White) (Stainless) Illus. Part DESCRIPTION 1 W10077965 Wash Arm Assembly 2 W10077899 Cap, Internal Rear Feed (Also Order Item 3) 8268340 Seal, Sprayarm 4 W10077898 Hub, Lower Sprayarm (Also Order Item 3) W10292697...
Page 15
THIRD LEVEL RACK AND TRACK PARTS For Models: KUDS50FVBL2, KUDS50FVWH2, KUDS50FVSS2 (Black) (White) (Stainless) Illus. Part DESCRIPTION Track Assembly W10205950 Right Hand W10224501 Left Hand 2 W10077854 Stop, Track 8564899 Mount, Track 4 W10275189 Rack Assembly (Third Level) 8564901 Basket, Third Level W10292697...
Page 16
OPTIONAL PARTS (NOT INCLUDED) For Models: KUDS50FVBL2, KUDS50FVWH2, KUDS50FVSS2 (Black) (White) (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION ACCESSORIES POWER CORD KIT PAINT, TOUCH−UP (1/2oz.) Side Panel Kits 4317824 Power Cord Kit 8171656 White 72017 White (Includes Power 8171657 Black 72032 Black Cord &...
