Linksys WUSB54GS Quick Installation Manual

®
A Division of Cisco Systems, Inc.
Package Contents

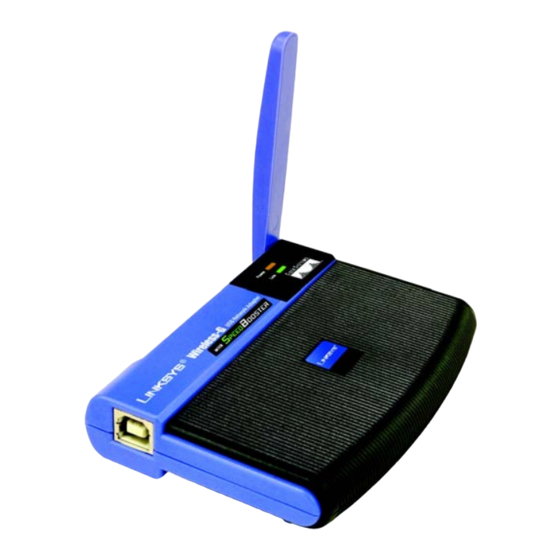

• Wireless-G USB Network Adapter with
SpeedBooster
• One Setup CD-ROM
• One User Guide on CD-ROM
• USB Cable
• Quick Installation Guide
2.4
GHz
Wireless-G
802.11g
USB Network Adapter
with SpeedBooster
Wireless
Model No.
WUSB54GS
Model No.
1
Begin Installation
IMPORTANT: Do not connect the Adapter to Your PC
until you are instructed to do so in Step 2 or the
Adapter will not install propertly.
The USB Network Adapter is installed
and set up using the Setup Wizard
that comes on the CD enclosed.
A
To begin, insert the Setup
Wizard CD-ROM into your CD-
ROM drive. The Setup Wizard
should run automatically, and
the Welcome screen should
appear.
B
To install the Adapter, click
Click Here to Start on the
Welcome screen.
C
After reading the License
Agreement, click Next to
continue the installation and
Windows will begin copying the
files onto your PC.
D
The Setup Wizard will now
prompt you to connect the
Adapter to your PC's USB port.
Proceed to Step 2.
Quick Installation
2
Now that the Setup Wizard has
prompted you to connect the
Adapter, follow the instructions
below.
A
Connect one end of the
included USB cable to the
Adapter's USB port
B
Connect the other end of the
cable to one of the USB ports
on your computer.
C
The Power LED should light up
when the Adapter is plugged
A
in.
D
Raise the antenna. Make sure
the antenna points straight up
into the air, at a 90º angle from
the Adapter. This will ensure
optimum wireless operating
range and performance.
Once the Adapter is connected,
click Next on the Connecting the
Adapter screen to proceed.
C
Connect the Adapter
Connecting
the Adapter
How to Connect
Proceed to Step 3.
The Adapter's
USB Port
