Kenwood DPC-X527 Instruction Manual

Part names
Unit Display
(Front)
Bass boost indicator
Å ı Ç
(Side)
Track number display
Remote control
Î ‰ Ï Ì Ó È Ô
The keys with the same names as those on the main unit have the same
functions as the main unit keys.
 Ò
Å ¬ 6 (Play/pause) key
VOL. + - keys
ı Display Ô 4, ¢ (Skip/Search) keys
Ç OPEN switch (Use to open top cover)  PHONES (Phones/Remote control) jack
Î
D.A.S.C. switch Ò LINE OUT jack
Notes
‰ HOLD switch
÷ Always ensure that the headphone plug is fully inserted before turning
Ï B.BOOST (Bass boost) key
the power ON.
Ì
REPEAT/P.MODE ÷ If the headphone plug is inserted or removed while playback is in progress,
(Repeat play/Program mode) key
the liquid crystal display may be inconsistent with the operation status of the
Ó 7 (Stop/Off) key unit. To correct this, turn the power OFF and then ON again.
÷ When the remote control plug is connected, the remote control operation
keys may not operate. To correct this, pull the remote control's plug out of
the unit, wait about 5 seconds, and then re-insert it.
Sound skip guard function In case of difficulty
(D.A.S.C.)
What seems to be a serious trouble may sometimes be due to a simple mistake. Before
calling for service, check the items shown in the following table again. (If you request servic-
ing due to the reasons shown in the table, the service may be charged in some cases.)
D.A.S.C. (Digital Anti Shock Circuit)
Symptom
When the D.A.S.C. function is operating, about a 10 [Max. 12-seconds
Pressing a key
(Approx.)] or 40 seconds [Max. 48-seconds (Approx.)] portion of signals is
cannot initiate an
always stored in memory. Consequently, when the unit receives an im-
operation or turn the
pact, playback will continue without interruption even if the signal from
unit on.
the light pickup is interrupted.
"Wide CAPTURE" uses a method strong in regard to vibrations in the ro-
tation direction in addition to the conventional D.A.S.C. function, so that
the sound skip guard function is made even stronger.
Mechanism of D.A.S.C.
No sound is heard
from the head-
phones.
Storage of
digital data
Sound skips, or is
Digital memory Reproduced sound interrupted.
÷ Depending on the extent of the impact, the data in the memory may be used
up, so the playback skip protection may momentarily be ineffective.
Note Note
÷ When the D.A.S.C. function is activated, the disc may stop or start to rotate.
Setting the D.A.S.C.
Slide the D.A.S.C. switch to select the desired setting.
Noise interferes.
D.A.S.C. H position : 40 sec. [Max. 48-seconds (Approx.)] memory
Data are held for about 40 sec. [Max. 48-seconds (Approx.)]
D.A.S.C. L position : 10 sec. [Max. 12-seconds (Approx.)] memory
D
Data are held for about 10 sec. [Max. 12-seconds (Approx.)]
There is no data compression, so that listening with high sound
quality is possible.
Note :
1. This system uses a microcomputer so it may malfunction due to external noise or interference.
÷ The reproduced sound is interrupted during switching. In such a case, remove the batteries, insert the batteries again.
Notes Notes Notes
2. Erroneous operation may occur when the headphone plug is plugged or unplugged; but this is
not a malfunction.
Specifications
Format System ................................................................ Compact disc digital audio system
Laser ......................................................................................... Semiconductor laser
Frequency response ............................................................ 20 Hz to 20 kHz, ± 3 dB
Audio
Repeat mode
PHONES output level (32Ω, 1 kHz ) .................................................. 3 mW + 3 mW
indicator
Program mode indicator
Line output/impedance
Bass Boost ON : ........................................................................... 0.83 Vrms/1 kΩ
Bass Boost OFF : .......................................................................... 0.31 Vrms/1 kΩ
Power supply
Commercially-available alkaline batteries (R03/AAA) x 2 ............................... DC 3 V
Battery life (From fully-charged condition)
Commercially-available
Playng time display Battery duration indicator alkaline batteries
(R03/AAA)
÷ At 0.1 mW + 0.1 mW power (32Ω load)
÷ Typical values in recharging/continuous operation at an ambient temperature of 20
÷ The values are variable depending on the battery manufacturer, battery type, operating
environment and temperature.
Dimensions (W x H x D ) .................. 150 mm x 22.7 mm x 130 mm (5- 7/8" x 7/8" x 5-1/8")
Weight (net) ........................................................................................................ 176 g (6.2 oz)
6 (Play/pause) key
Note:
KENWOOD follows a policy of continuous advancements in development. For this reason specifications may
VOL. + - keys
HOLD switch
PHONES jack be changed without notice.
Accessories
Headphones (1), Remote control (1)
7 (Stop/Off) key 4, ¢ (Skip/Search) keys
Maintenance
Simple care
Care of lens
When the lens in the pick-up gets dirty, malfunctions including
Cause Remedy
the impossibility of playback may occur. The lens should be
÷ The HOLD switch is set to ON. ÷ Set the switch to OFF.
cleaned using a commercially available camera lens blower, etc.
÷ The batteries are exhausted. ÷ Replace the two alkaline batter- Do not touch the lens to prevent damaging the mechanism.
ies. Also do not use a lens cleaner or disc cleaner product.
÷ The disc is placed upside down. ÷ Place the disc with the labeled
Care of main unit
side up.
÷ Condensation has occurred in- ÷ Leave the unit for about 1 hour When the unit gets dirty, clean with a soft, dry cloth. If the unit
is stained seriously, a moistened cloth can be used. Do not use
side the unit. before re-use.
benzine or thinner for these will damage the unit.
÷ The headphones are connected ÷ Insert the plug securely into the
incompletely. PHONES jack. Cleaning the plug
÷ The headphones are connected ÷ Insert the plug securely into the Wipe the headphone plug with a soft cloth to keep it clean.
to LINE OUT jack PHONES jack. A dirty plug may cause noise or malfunction.
÷ The volume is set to the ÷ Adjust the volume on the unit or
Caution on disc used
minimum position on the unit remote control unit..
Usable discs
or remote control unit.
This unit is capable of playing back the Audio CD discs, CD-R/CD-RW (CD-DA) discs and
÷ A strong vibration that exceeds ÷ Place the unit in a place not sub- discs carrying the marking. Other discs cannot be played.
8 cm single CDs can be played as they are; do not use a commercially-available single CD
the capacity of the D.A.S.C. has ject to vibration.
occurred. adapter.
÷ The disc is dirty. ÷ Clean it. Handling
÷ The lens is dirty. ÷ The lens should be cleaned us- Hold compact discs so that you do not touch the playing surface.
Do not attach paper or tape to either the playing side or the label side of compact discs.
ing a commercially available cam-
era lens blower Never play a cracked or warped disc.
÷ The headphone plug is dirty. ÷ Clean it. During playback, the disc rotates at high speed in the player. Therefore, to avoid danger,
÷ The batteries are low. ÷ Replace the batteries.
never use a cracked or deformed disc or a disc repaired with tape or adhesive agent.
Cleaning
÷ The headphone plug is dirty. ÷ Clean it.
If fingerprints or foreign matter become attached
÷ The batteries are low. ÷ Replace the batteries. to the disc, lightly wipe the disc with a soft cotton
÷ The headphones are connected ÷ Insert the plug securely into the
cloth (or similar) from the center of the disc out-
incompletely. PHONES jack. wards in a radial manner.
÷ A source of strong magnetism ÷ Install the unit away from a TV
or radio wave, such as a TV set set, cellular phone, etc. Storage
When a disc is not to be played for a long period of time, remove it from the CD player and
or cellular phone, is present
near the unit. store it in its case.
Precaution against condensation
Immediately after a room is heated or in a room with high humidity (or vapor), the unit may
malfunction due to the condensation of dew or mist on the pick-up lens. In such a case,
leave the unit for about an hour before trying to use it again.
DPC-X527

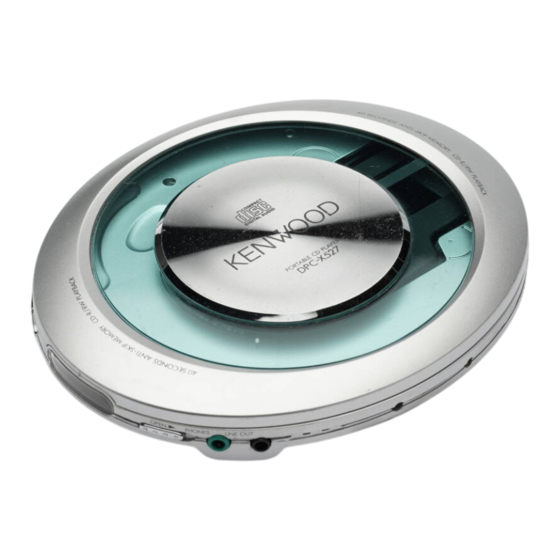

PORTABLE CD PLAYER
INSTRUCTION MANUAL
D.A.S.C. L D.A.S.C. H
Approx. 8 Hours Approx. 14 Hours
o C.
Unpacking
Unpack the unit carefully and make sure that all the accessories are
present.
If any accessories are missing, or if the unit is damaged or fails to oper-
ate, notify your dealer immediately. If the unit was shipped to you di-
rectly, notify your shipper immediately. Kenwood recommends that you
retain the original carton and packing materials in case you need to move
or ship the unit in the future.
Keep this manual handy for future reference.
For your records
Record the serial number, found on the back of the unit, in the
spaces designated on the warranty card, and in the space pro-
vided below. Refer to the model and serial numbers when-
ever you call upon your dealer for information or service on
this product.
B60-5307-08 00 (M) AP 0204
Model Serial Number
The marking of products using lasers (For countries other than U.S.A.,
U.S.-Military and Canada)
The marking this product has been classified as Class 1. It means
CLASS 1
that there is no danger of hazardous radiation outside the product.
LASER PRODUCT
Location: Back panel
Safety precautions
Caution : Read this page carefully to ensure safe operation.
WARNING : TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
IMPORTANT SAFEGUARDS
Please read all of the safety and operating instructions before operating this appliance. Adhere to all warnings on the appliance and in the instruction manual.
Follow all the safety and operating instructions. These safety and operating instructions should be retained for future reference.
1. Power sources — The unit should be connected to a power supply only of the type de- 13. Cleaning — Do not use volatile solvents such as alcohol, paint thinner, gasoline, or ben-
scribed in the operating instructions or as marked on the appliance. zine, etc. to clean the cabinet. Use a clean dry cloth.
2. Power-cord protection — Power-supply cords should be routed so that they are not likely 14. Nonuse periods — The power cord of the unit should be unplugged from the outlet when
to be walked on or pinched by items placed upon or against them. Pay particular attention to left unused for a long period of time.
cords at plugs, convenience receptacles, and the point where they exit from the unit.
15. Damage requiring service — The unit should be serviced by qualified service personnel
3. Enclosure removal — Never remove the enclosure. If the internal parts are touched acci- when:
dentally, a serious electric shock might occur. A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the unit.
4. Drop — Do not drop the unit or apply strong shock to it. (Damage due to dropping the unit is C. The unit has been exposed to rain.
not covered by the warranty.) D. The unit does not appear to operate normally or exhibits a marked change in performance.
E. The unit has been dropped, or the enclosure damaged.
5. Ventilation — Avoid hindering the ventilation of the unit by covering it with a cloth, etc.
16. Servicing — The user should not attempt to service the unit beyond that described in the
6. Abnormal smell — If an abnormal smell or smoke is detected, immediately turn the power operating instructions. All other servicing should be referred to qualified service personnel.
OFF and pull out the power cord. Contact your dealer or nearest service center.
17. CAUTION — TO PREVENT ELECTRIC SHOCK DO NOT USE THE AC PLUG WITH AN
7. Heat — Avoid placing the unit under direct sunlight or near a source of heat such as heating EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE
equipment. Particularly, never leave it in an automobile or on the dashboard. FULLY INSERTED TO PREVENT BLADE EXPOSURE.
8. Temperature — The unit may not function properly if used at extremely low, or freezing
temperatures. The ideal ambient temperature is above +5°C (41°F).
9. Water and moisture — The appliance shall not be exposed to dripping and splashing — for
example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a
swimming pool, etc.
10. Dust and moisture — Avoid places where is dusty or where the humidity is high.
11. Vibrations — Avoid placing the unit on an unstable place such as a shelf or in a place
subject to vibrations.
12. Magnetic fields — Keep the unit away from sources of magnetic fields such as TV sets,
speaker systems, radios, motorized toys or magnetized objects.
DPC-X527 (EN-M)
