Kenmore 16657 - 3 Burner Grill Use And Care Manual page 18

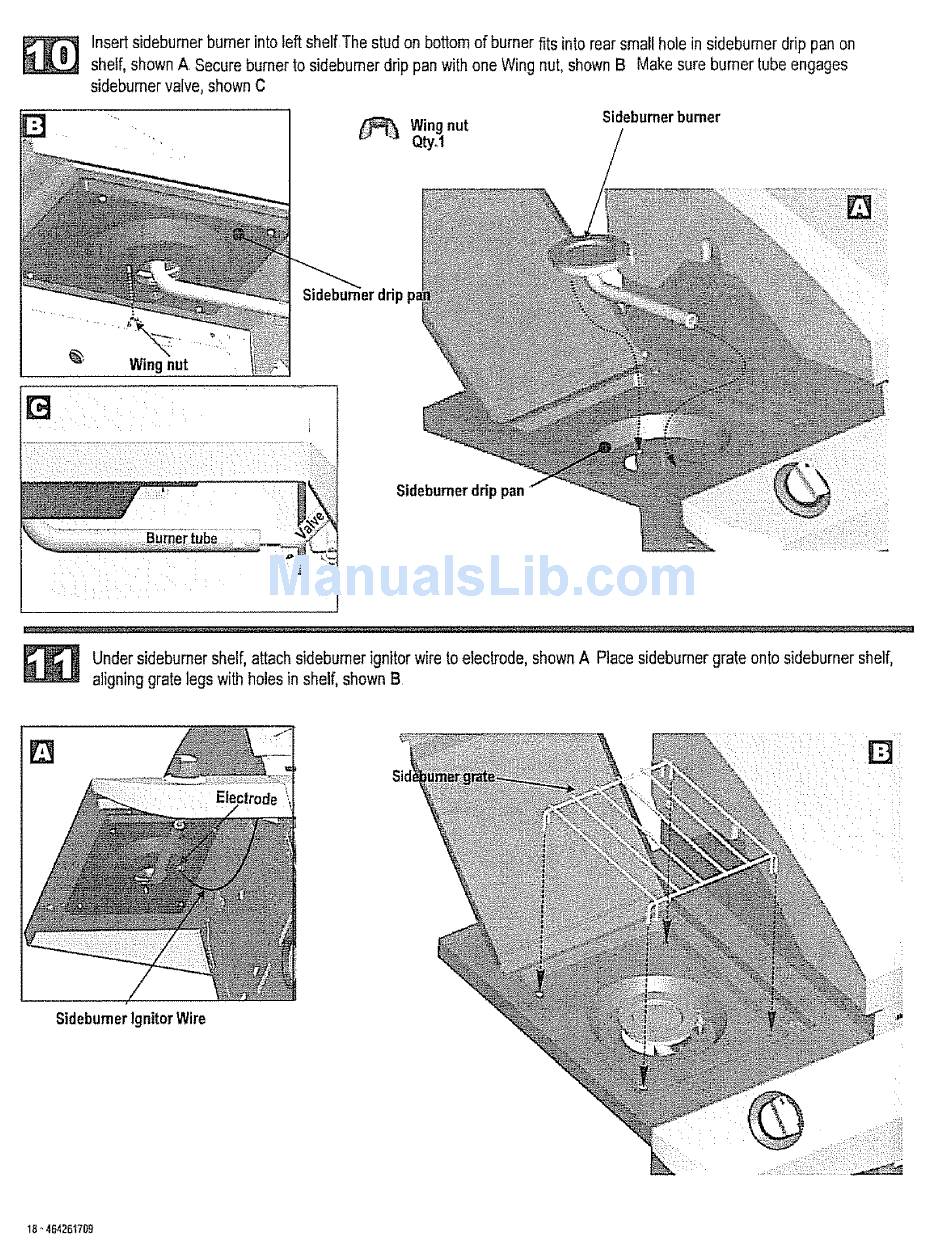

Insertsideburnerburnerinto left shelfThe stud on bottomof burnerfits into rearsmall holein sideburnerdrip pan on
shelf,shownA, Secureburnerto sidebumer drip panwith one Wingnut, shownB Makesureburnertubeengages
sidebumer valve,shownC
Wing nut
Sidebumerburner
G
_' Wing nut
PP_
Sidebumer drip pan
Undersidebumershelf,attachsidebumerignitorwireto electrode,shown A Placesidebumergrateontosideburnershelf,
aligninggratelegswith holesin shelf,shownB,
Sidebumer IgnitorWire
Sic
18° 4E.426_709
