Wake On Lan - Draytek 2800 Series User Manual

3 . 6 . 5 W a k e O
3 . 6 . 5 W a k e O
A PC client on LAN can wake up specified PC through the router. Yet the specified PC must
have installed a network card supporting WOL function. By the way, WOL function must be
set as "Enable" on the BIOS setting of the specified PC.
Wake by
IP Address
MAC Address
Wake Up!
74
n L A N
n L A N
Two types provide for you to wake up the binded IP. If you
choose Wake by MAC Address, you have to type the correct
MAC address of the host in MAC Address boxes. If you
choose Wake by IP Address, you have to choose the correct IP
address. The IP address should be binded with MAC address
configured in Bind IP to MAC page.
The IP addresses that have been configured in
Firewall>>Bind IP to MAC will be shown in this drop down
list. Choose the IP address from the drop down list that you
want to wake up.
Type any one of the MAC address of the binded PCs.

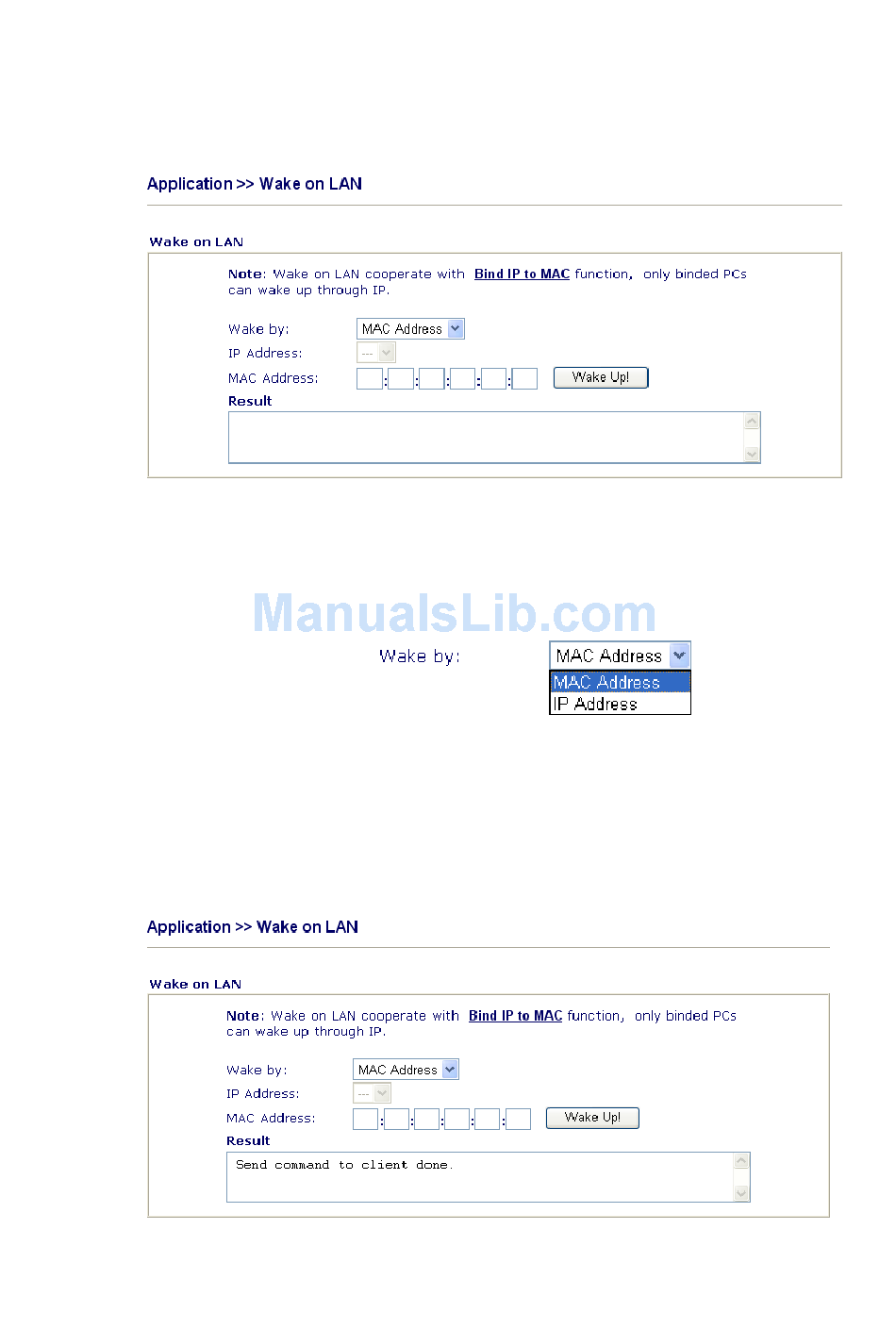

Click this button to wake up the selected IP. See the following
figure. The result will be shown on the box.
Vigor2800 Series User's Guide
