Summary of Contents for NETGEAR NTV350 - HD Media Player
- Page 1 NeoTV 350 HD Media Player (NTV350) User M anua l 350 East Plumeria Drive San Jose, CA 95134 December 2010 202-10672-01 v1.0...
-
Page 2: Technical Support
NETGEAR, Inc. Technical Support Thank you for choosing NETGEAR. To register your product, get the latest product updates, or get support online, visit us at http://support.netgear.com. ... -
Page 3: Table Of Contents
Contents Chapter 1 Getting Started NeoTV 350 HD Media Player (NTV350)......5 NeoTV 350 Cabling ......... . . 6 Remote Control . - Page 4 NeoTV 350 HD Media Player (NTV350) Accessing Network Shares or a Media Server..... . 24 Chapter 7 Enabling Win7 File Sharing File Sharing with Win7 Password Protection .
-
Page 5: Chapter 1 Getting Started

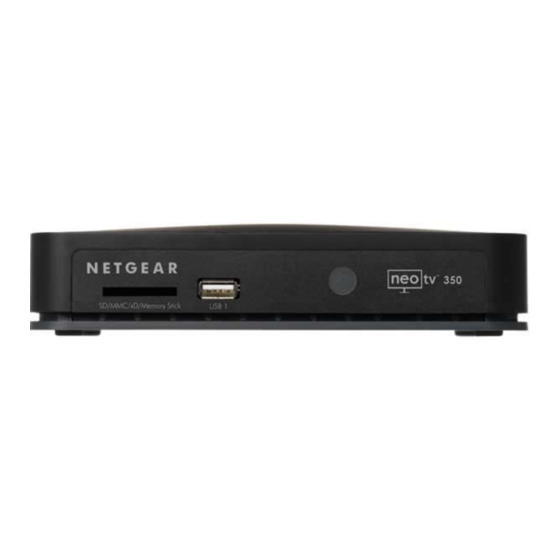

Getting Started NeoTV 350 HD Media Player (NTV350) USB 1 Card reader/ memory stick USB 2 USB 3 On/Off button Power Ethernet HDMI AV (composite) Component SPDIF Figure 1. Front and rear panels Chapter 1. Getting Started... -
Page 6: Neotv 350 Cabling
NeoTV 350 HD Media Player (NTV350) NeoTV 350 Cabling The NeoTV 350 is compatible with HDMI, component, or AV (composite) cables. You can play media from your USB devices, and you can also connect the NeoTV 350 to your home network. -
Page 7: Remote Control
NeoTV 350 HD Media Player (NTV350) Remote Control Power Menu Select/Play/Info Right/Fast Forward, Left/Rewind, Rotate photo Rotate photo clockwise counter clockwise Down Play/Pause Options Back Previous/Page Up Next/ Page Down Stop Volume Up Volume Down Eject Zoom Figure 3. Remote control buttons Navigating Menus Press Menu on the remote control to go to the main menu. -
Page 8: Digital Media File Formats
NeoTV 350 HD Media Player (NTV350) Digital Media File Formats The NeoTV 350 supports the media file formats shown in the following table. Media File Format Audio MP3, WAV, PCM, LPCM, WMA, WMA Pro, AAC, FLAC, MKA, OGG, APE, Dolby® Digital (AC3), DTS Photos JPEG files up to 20 megapixels, BMP, GIF, PNG, TIFF Video Codec format... -
Page 9: Chapter 2 Video
Video Video File Formats The NeoTV 350 supports the following video file formats. Video Codec format WMV 7/8/9, VC-1, H.263, H.264, MPEG 1/2/4, M-JPEG Video Container VI, Xvid, MOV, MP4, MPEG2-PS, MPEG2-TS, DVD VOB, format DVD ISO, FLV, MKV, ASF, RM, RMVB srt, sub, sub+idx, ssa, ass, smi, txt, and BD subtitle PGS Subtitle format Browsing or Searching for Videos... -
Page 10: Watching Videos
NeoTV 350 HD Media Player (NTV350) • List. Display files as a list. • Preview. Preview video files. • All Videos. Display all video files. • Show DVDs. View DVD contents, such as DVD iso or files. • Flash Animation. Display only flash animation files. •... -
Page 11: Adjusting The Video You Are Watching
NeoTV 350 HD Media Player (NTV350) Adjusting the Video You Are Watching • To exit a video, press Stop or Back. • The aspect ratio is set to 16:9. If you want to change it, press Home and select Setup > Video >... -
Page 12: Chapter 3 Music
Music Music File Formats The NeoTV 350 supports the following audio file formats: • • • Dolby® Digital (AC3) • • FLAC • LPCM • • • • • • • WMA Pro Chapter 3. Music | 12... -
Page 13: Browsing Or Searching For Music
NeoTV 350 HD Media Player (NTV350) Browsing or Searching for Music You can use the Music Options menu to help locate songs. Press Menu and select Music from the main menu. Select the location of your music files (local, network, or media server). Press Options on the remote control. -
Page 14: Listening To Music
NeoTV 350 HD Media Player (NTV350) Listening to Music Press Menu and select Music from the main menu: The screen displays these choices: • Local storage. Your music files are on a USB device connected to a USB port on the NeoTV 350. -
Page 15: Creating A Playlist
NeoTV 350 HD Media Player (NTV350) The pop-up Options menu includes the following: • Repeat Off. Do not repeat tracks. • Repeat One. Repeat a single track. • Repeat All. Repeat all selected music tracks. • Shuffle. Shuffle the selected music tracks. Creating a Playlist The NeoTV 350 supports M3U playlists. -
Page 16: Chapter 4 Photos
Photos Browsing or Searching for Photos You can use the Photo Options menu to locate photos that you want to view. Press Menu and select Photo from the main menu. Select the location of your music files (local, network, or media server). Press Options on the remote control, and a pop-up menu displays: The Options menu includes the following: •... -
Page 17: Viewing Photos
NeoTV 350 HD Media Player (NTV350) Viewing Photos Press Menu and select Photo on the main menu. The screen displays these options: • Local storage. Your photos are on a USB device connected to a USB port on the NeoTV 350. •... -
Page 18: Adjusting The Slide Show Settings
NeoTV 350 HD Media Player (NTV350) Adjusting the Slide Show Settings When you are viewing a photo, press Options. The following selections display: • Slide Timing. Change the length of time that each slide is displayed. • Slide Transition. Select the transition that you want to use between slides. Info. -
Page 19: Chapter 5 Internet Media
Internet Media Accessing Internet Media Press Menu and select Internet Media. The following screen displays: You can view photos, or weather and stocks. Viewing Internet Photos Press Menu and select Internet Media > Internet Photo, and the following screen displays: Select either Flickr or Picasa to view your Internet photos. -
Page 20: Viewing Weather And Stocks
NeoTV 350 HD Media Player (NTV350) Viewing Weather and Stocks Press Menu and select Internet Media > Weather/Stock, and the following screen displays: Select Weather or Stock. Weather You can view weather for specific locations, and you can set up favorites. To set up favorites, press Options on the remote control. - Page 21 NeoTV 350 HD Media Player (NTV350) Stock Press Menu and select Internet Media > Weather/Stock > Stock to display the following screen: Add a stock Remove a stock Select Add Stock at the upper left corner of the screen to add the stocks that you want to view.
-
Page 22: Chapter 6 File Manager
File Manager Using File Manager to Copy Files You can use File Manager to copy media files from one location to another. Press Menu and select File Manager to display the following screen: You can look for files at the location that you specify: •... -
Page 23: Browsing Or Searching For Files
NeoTV 350 HD Media Player (NTV350) Browsing or Searching for Files You can use File Manager options to narrow your search and find files more quickly. Press Menu, select File Manager, and press Options on the remote control. The Options menu displays the following selections: •... -
Page 24: Accessing Network Shares Or A Media Server
NeoTV 350 HD Media Player (NTV350) Accessing Network Shares or a Media Server Note: You might be prompted to enter your user ID and password. To access files on the same wired network as the NeoTV 350, press Menu and select File Manager >... -
Page 25: Chapter 7 Enabling Win7 File Sharing
Enabling Win7 File Sharing File Sharing with Win7 Password Protection In Windows 7, navigate to Control Panel > User Accounts and Family Safety > User Account > Manager Accounts. In this example, dell is a user account, and it is password protected. Right-click the folder that you want to share and select Share with >... - Page 26 NeoTV 350 HD Media Player (NTV350) The next screen displays: Click Share to share this folder. The following screen displays: Select Yes to turn on network discovery and file sharing. Go back to File Manager, and it shows a screen similar to the following: Now you can use the NeoTV 350 to browse the folder that is shared.
-
Page 27: File Sharing Without Win7 Password Protection
NeoTV 350 HD Media Player (NTV350) File Sharing without Win7 Password Protection Right-click the folder that you want to share and select Share with > Specific people. Select Everyone and add it to the share list. Click Share, and a new window displays. Select Yes to turn on network discovery and file sharing. - Page 28 NeoTV 350 HD Media Player (NTV350) Now this folder is shared on your network. The File Manager shows which folder is shared. To turn off password-protected sharing, select Control Panel > Network and Internet > Network and Sharing Center and click Change advanced sharing settings. 28 | Chapter 7.
- Page 29 NeoTV 350 HD Media Player (NTV350) Select Turn off password protection sharing. Now you can use NeoTV 350 to access network shares without a password. Chapter 7. Enabling Win7 File Sharing | 29...
-
Page 30: Chapter 8 Setup
Setup System Settings Press Menu and select Setup > System to go to the System menu. The following settings are displayed. You might have to scroll down to see all the settings. • Menu Language. You can change the language for the menus. English is the default setting. -
Page 31: System Information
NeoTV 350 HD Media Player (NTV350) • Factory Default. You can use this selection to return the NeoTV 350 to its factory default settings. • USB Firmware Update. Update the NeoTV 350 firmware from a file located on a device connected to a USB port on the NeoTV 350. -
Page 32: Tv System Settings
NeoTV 350 HD Media Player (NTV350) TV System Settings This feature allows you to change the video resolution/signal format that the NeoTV 350 outputs to the TV. Press Menu and select Setup > Video > TV System. Scroll up and down to view all the settings. The following selections are available: •... -
Page 33: Audio Settings
NeoTV 350 HD Media Player (NTV350) Audio Settings Press Menu and select Setup > Audio to go to audio settings. The following settings are displayed • Night Mode. This can be set to Off, On, or Comfort. On. Turning on night mode automatically lowers the intensity of bass sounds. Comfort. -
Page 34: Chapter 9 Troubleshooting
Factory Default. What network speeds do you need to play Internet content? NETGEAR recommends at least 1.2 Mbps. You might also need a router if you cannot connect the player directly to your cable or DSL modem. Chapter 9. Troubleshooting... -
Page 35: Troubleshooting
NeoTV 350 HD Media Player (NTV350) Troubleshooting • The remote control does not respond. Check to see if the battery is inserted correctly. • There is no audio or video output. Make sure that the A/V (RCA) and component cables are inserted completely and firmly at both ends. -
Page 36: Appendix A Supplemental Information
Supplemental Information Factory Settings To return the unit to factory default settings, press Menu and select Setup > System > Factory Default. Feature Default Setting Language English Video mode Auto HDMI Device name NeoTV 350 Network connection Wired LAN Technical Specifications Feature Description Media sources... - Page 37 NeoTV 350 HD Media Player (NTV350) Feature (Continued) Description (Continued) Physical specifications • Weight: 0.308 kg. • Dimensions (H x W x D): 41 x 172 x 115 mm Environmental specifications • Operating temperature: 32 degrees F~104 degrees F • Operating humidity: 90% maximum relative humidity, noncondensing Interface •...
-
Page 38: Appendix B Compliance Notification
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FCC Declaration Of Conformity We, NETGEAR, Inc., 350 East Plumeria Drive, San Jose, CA 95134, declare under our sole responsibility that the NeoTV 350 HD Media Player (NTV350) complies with Part 15 of FCC Rules. - Page 39 • Consult the dealer or an experienced radio/TV technician for help. Modifications made to the product, unless expressly approved by NETGEAR, Inc., could void the user's right to operate the equipment. Canadian Department of Communications Radio Interference Regulations...
