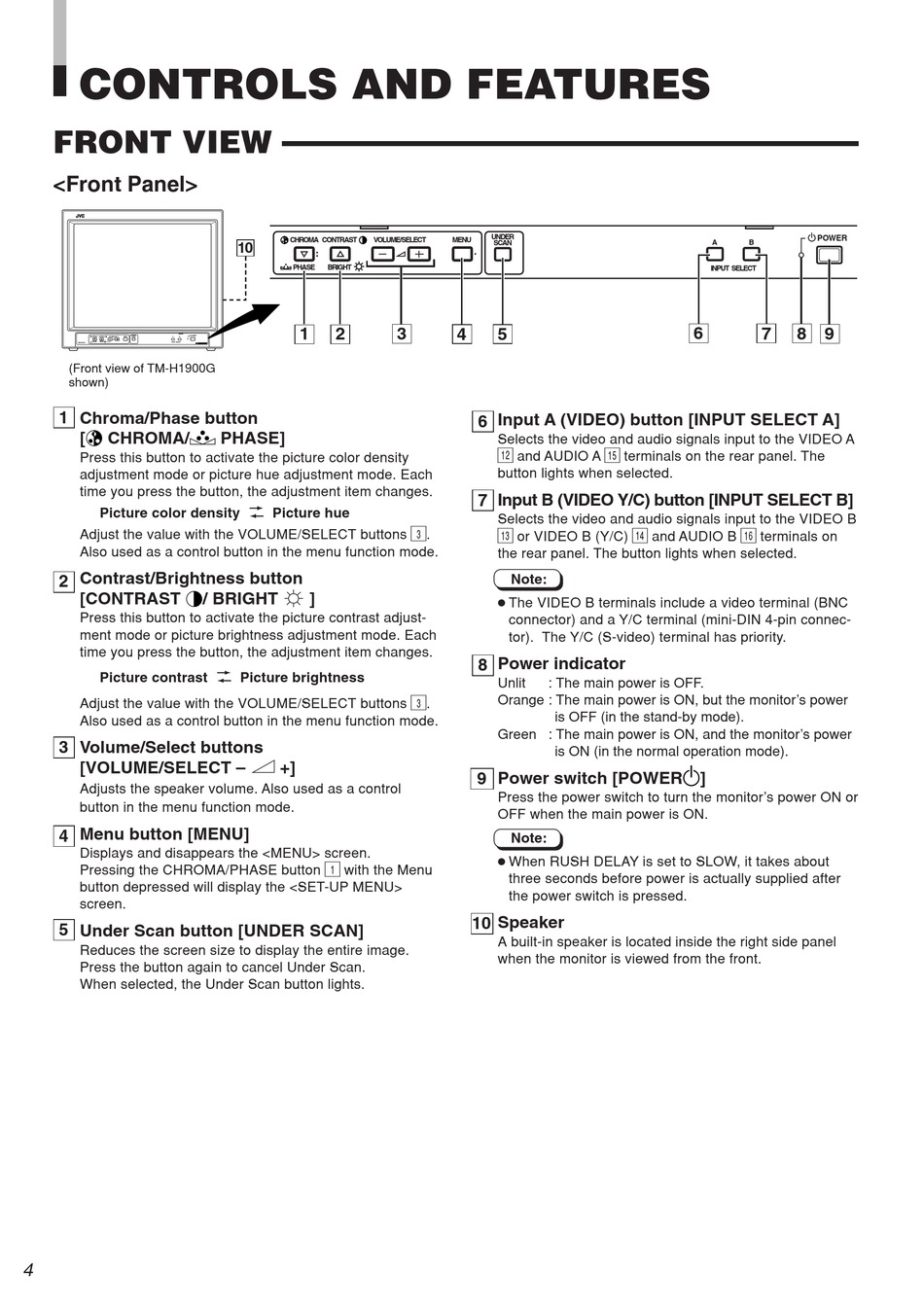

CONTROLS AND FEATURES

FRONT VIEW

<Front Panel>
CHROMA CONTRAST VOLUME/SELECT MENU UNDER POWER
SCAN A B
PHASE BRIGHT INPUT SELECT
TM-H1900G
(Front view of TM-H1900G
shown)
1 Chroma/Phase button
[ CHROMA/
Press this button to activate the picture color density
adjustment mode or picture hue adjustment mode. Each
time you press the button, the adjustment item changes.
Picture color density
Adjust the value with the VOLUME/SELECT buttons
Also used as a control button in the menu function mode.
Contrast/Brightness button
2
[CONTRAST
Press this button to activate the picture contrast adjust-
ment mode or picture brightness adjustment mode. Each
time you press the button, the adjustment item changes.
Picture contrast
Adjust the value with the VOLUME/SELECT buttons
Also used as a control button in the menu function mode.
3 Volume/Select buttons
[VOLUME/SELECT –
Adjusts the speaker volume. Also used as a control
button in the menu function mode.
Menu button [MENU]
4
Displays and disappears the <MENU> screen.
Pressing the CHROMA/PHASE button
button depressed will display the <SET-UP MENU>
screen.
5
Under Scan button [UNDER SCAN]
Reduces the screen size to display the entire image.
Press the button again to cancel Under Scan.
When selected, the Under Scan button lights.
4
CHROMA CONTRAST VOLUME/SELECT
10
PHASE BRIGHT
50C
1 2
PHASE]
f Picture hue
/ BRIGHT ]
f Picture brightness
+]
1
with the Menu
UNDER
MENU
SCAN
3
4 5
Input A (VIDEO) button [INPUT SELECT A]
6
Selects the video and audio signals input to the VIDEO A
@
and AUDIO A
button lights when selected.
Input B (VIDEO Y/C) button [INPUT SELECT B]
7
Selects the video and audio signals input to the VIDEO B
3
#
.
or VIDEO B (Y/C)
the rear panel. The button lights when selected.
Note:
● The VIDEO B terminals include a video terminal (BNC
connector) and a Y/C terminal (mini-DIN 4-pin connec-
tor). The Y/C (S-video) terminal has priority.
Power indicator
8
Unlit : The main power is OFF.
Orange : The main power is ON, but the monitor's power
3
.
is OFF (in the stand-by mode).
Green : The main power is ON, and the monitor's power
is ON (in the normal operation mode).
Power switch [POWER ]
9
Press the power switch to turn the monitor's power ON or
OFF when the main power is ON.
Note:
● When RUSH DELAY is set to SLOW, it takes about
three seconds before power is actually supplied after
the power switch is pressed.
Speaker
10
A built-in speaker is located inside the right side panel
when the monitor is viewed from the front.
A B
INPUT SELECT
6 7
%
terminals on the rear panel. The
$ ^
and AUDIO B terminals on
POWER
8 9
