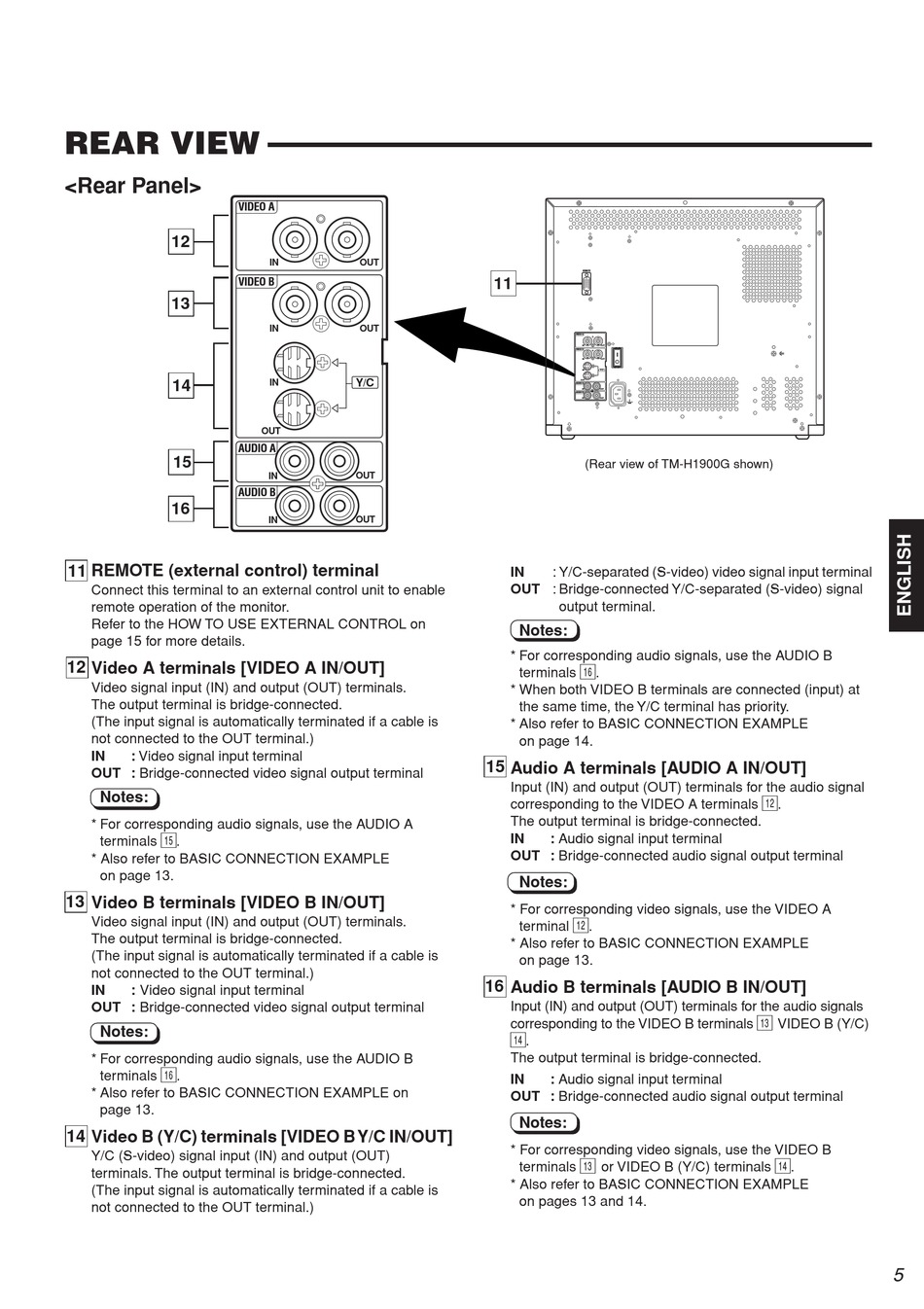

REAR VIEW

<Rear Panel>
VIDEO A
12
VIDEO B
13
14
AUDIO A
15
AUDIO B
16
REMOTE (external control) terminal
11
Connect this terminal to an external control unit to enable
remote operation of the monitor.
Refer to the HOW TO USE EXTERNAL CONTROL on
page 15 for more details.
12
Video A terminals [VIDEO A IN/OUT]
Video signal input (IN) and output (OUT) terminals.
The output terminal is bridge-connected.
(The input signal is automatically terminated if a cable is
not connected to the OUT terminal.)
IN : Video signal input terminal
OUT : Bridge-connected video signal output terminal
Notes:
* For corresponding audio signals, use the AUDIO A
%
terminals .
* Also refer to BASIC CONNECTION EXAMPLE
on page 13.
13
Video B terminals [VIDEO B IN/OUT]
Video signal input (IN) and output (OUT) terminals.
The output terminal is bridge-connected.
(The input signal is automatically terminated if a cable is
not connected to the OUT terminal.)
IN : Video signal input terminal
OUT : Bridge-connected video signal output terminal
Notes:
* For corresponding audio signals, use the AUDIO B
^
terminals .
* Also refer to BASIC CONNECTION EXAMPLE on
page 13.
14
Video B (Y/C) terminals [VIDEO B Y/C IN/OUT]
Y/C (S-video) signal input (IN) and output (OUT)
terminals. The output terminal is bridge-connected.
(The input signal is automatically terminated if a cable is
not connected to the OUT terminal.)
IN OUT
IN OUT
Y/C
IN
OUT
OUT
IN
OUT
IN
REMOTE
11
VIDEO A
IN OUT
VIDEO B
IN OUT
IN Y/C
OUT
AUDIO A
IN OUT
AUDIO B
IN OUT
(Rear view of TM-H1900G shown)
IN : Y/C-separated (S-video) video signal input terminal
OUT : Bridge-connected Y/C-separated (S-video) signal
output terminal.
Notes:
* For corresponding audio signals, use the AUDIO B
^
terminals .
* When both VIDEO B terminals are connected (input) at
the same time, the Y/C terminal has priority.
* Also refer to BASIC CONNECTION EXAMPLE
on page 14.
15
Audio A terminals [AUDIO A IN/OUT]
Input (IN) and output (OUT) terminals for the audio signal
corresponding to the VIDEO A terminals
The output terminal is bridge-connected.
IN : Audio signal input terminal
OUT : Bridge-connected audio signal output terminal
Notes:
* For corresponding video signals, use the VIDEO A
@
terminal .
* Also refer to BASIC CONNECTION EXAMPLE
on page 13.
16
Audio B terminals [AUDIO B IN/OUT]
Input (IN) and output (OUT) terminals for the audio signals
corresponding to the VIDEO B terminals
$
.
The output terminal is bridge-connected.
IN : Audio signal input terminal
OUT : Bridge-connected audio signal output terminal
Notes:
* For corresponding video signals, use the VIDEO B
#
terminals or VIDEO B (Y/C) terminals
* Also refer to BASIC CONNECTION EXAMPLE
on pages 13 and 14.
@
.
#
VIDEO B (Y/C)
$
.
