GE JGB400SEPSS - 30" Gas Range Dimensions And Installation Information

JGB400SEP
GE 30" Free-Standing Self-Clean Gas Range
®

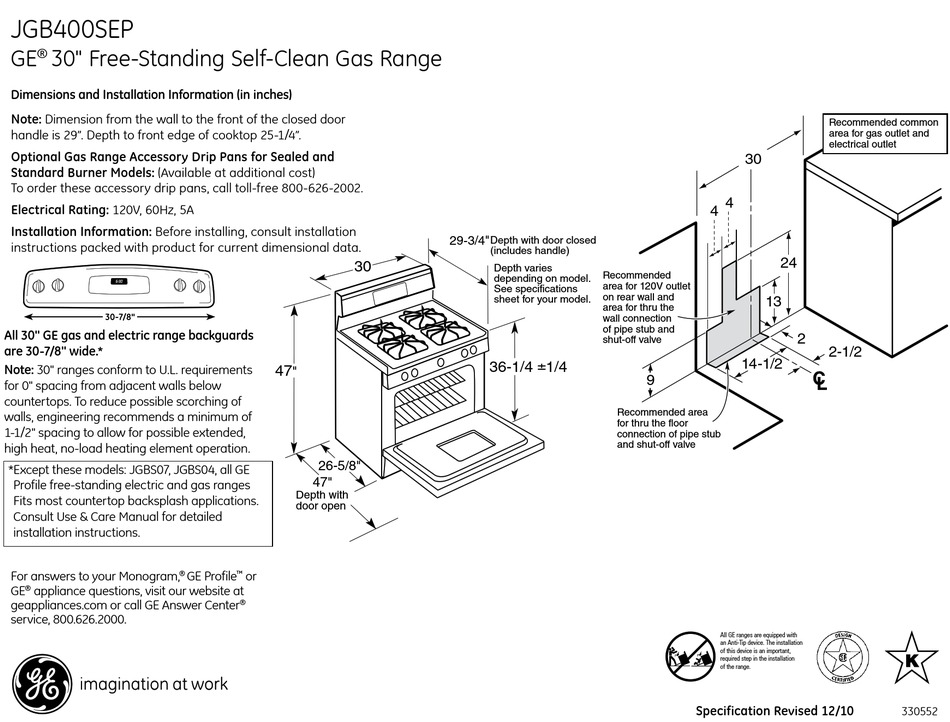

Dimensions and Installation Information (in inches)
Note: Dimension from the wall to the front of the closed door
handle is 29". Depth to front edge of cooktop 25-1/4".
Optional Gas Range Accessory Drip Pans for Sealed and
Standard Burner Models: (Available at additional cost)
To order these accessory drip pans, call toll-free 800-626-2002.
Electrical Rating: 120V, 60Hz, 5A
Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data.
30-7/8"
All 30" GE gas and electric range backguards
are 30-7/8" wide.*
Note: 30" ranges conform to U.L. requirements
for 0" spacing from adjacent walls below
countertops. To reduce possible scorching of
walls, engineering recommends a minimum of
1-1/2" spacing to allow for possible extended,
high heat, no-load heating element operation.
* Except these models: JGBS07, JGBS04, all GE
Profile free-standing electric and gas ranges
Fits most countertop backsplash applications.
Consult Use & Care Manual for detailed
installation instructions.
For answers to your Monogram,
®
GE ® appliance questions, visit our website at
geappliances.com or call GE Answer Center
service, 800.626.2000.
47
"
26-5/8"
47"
Depth with
door open
30
47
"
26-5/8"
47"
Depth with
door open
GE Profile or
™
®
sheet for your model.
36-1/4 ± 1/4
29-3/4"
Depth with door closed
(includes handle)
Depth varies
Recommended
depending on model.
area for 120V outlet
See specifications
on rear wall and
sheet for your model.
area for thru the
wall connection
of pipe stub and
shut-off valve
36-1/4 ± 1/4
Recommended area
for thru the floor
connection of pipe stub
and shut-off valve
Recommended
area for 120V outlet
on rear wall and
area for thru the
wall connection
of pipe stub and
shut-off valve
9
Recommended area
for thru the floor
connection of pipe stub
and shut-off valve
30
4
4
24
13
2
14-1/2
9
Recommended common
area for gas outlet and
electrical outlet
30
4
4
24
13
2
2-1/2
14-1/2
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Specification Revised 12/10
Recommended common
area for gas outlet and
electrical outlet
2-1/2
330552
