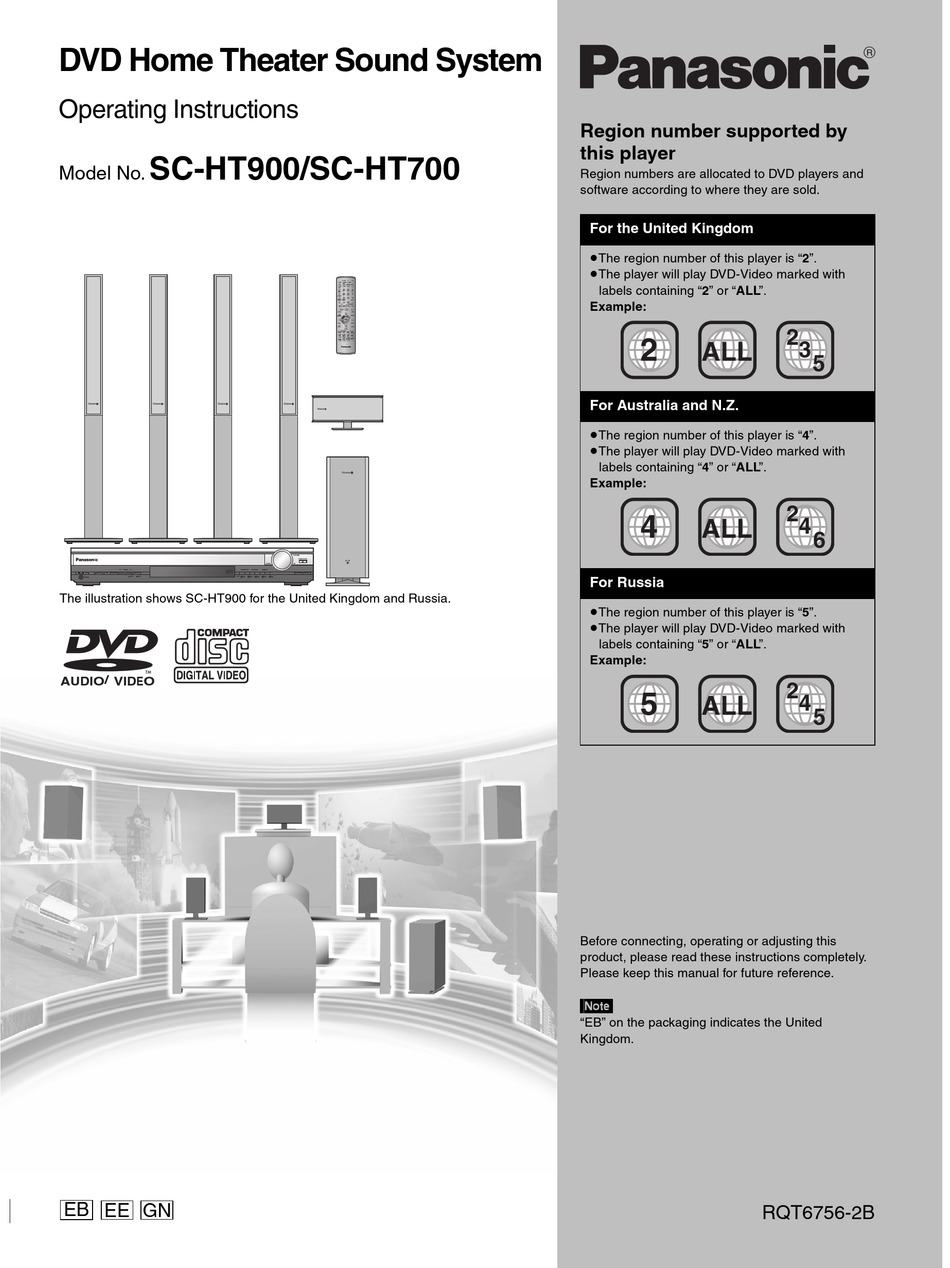

DVD Home Theater Sound System
Operating Instructions
SC-HT900/SC-HT700
Model No.
TUNING
Í/I
DIGITAL IN
C.S.M
PROGRESSIVE
SELECTOR
V.R.S
M.R.S
DISC
PHONES
The illustration shows SC-HT900 for the United Kingdom and Russia.
AUDIO / VIDEO
EB EE GN
AV SYSTEM
TV
VCR
DIGITAL
TV/AV
AUX
TUNER/BAND DVD/CD
DISC
1
2
3
PAGE
DISC 1
DISC 2
DISC 3
GROUP
4
5
6
DISC 4
DISC 5
SEQUENTIAL
7
8
9
REPEAT
FL DISPLAY
PLAY MODE
CANCEL
S10/-/--
0
SKIP
SLOW/SEARCH
CH
TOP MENU
MENU
DIRECT
PLAY LIST
NAVIGATOR
ENTER
DISPLAY
RETURN
TV VOL s
TV VOL r
VOLUME
SUBWOOFER
S.POSITION
C.FOCUS
MIX 2CH
LEVEL
SFC
S.SRND
PL
SLEEP
AV AFFECT
ZOOM
SETUP
C.S.M
P.MEMORY
AUDIO
MUTING
TEST
DR COMP
DELAY TIME
SHIFT
CH SELECT
QUICK REPLAY
SUBTITLE
VOLUME
OPEN/CLOSE
DOWN
UP
TUNE MODE
FM MODE
MEMORY
DISC EXCHANGE
DISC SKIP
1
2
3
4
5
Region number supported by
this player
Region numbers are allocated to DVD players and
software according to where they are sold.
For the United Kingdom
≥The region number of this player is "2".
≥The player will play DVD-Video marked with
labels containing "2" or "ALL".
Example:
2
ALL
For Australia and N.Z.
≥The region number of this player is "4".
≥The player will play DVD-Video marked with
labels containing "4" or "ALL".
Example:
4
ALL
For Russia
≥The region number of this player is "5".
≥The player will play DVD-Video marked with
labels containing "5" or "ALL".
Example:
5
ALL
Before connecting, operating or adjusting this
product, please read these instructions completely.
Please keep this manual for future reference.
[Note]
"EB" on the packaging indicates the United
Kingdom.
R
2
3
5
2
4
6
2
4
5
RQT6756-2B
Advertisement
Table of Contents
Related Manuals for Panasonic SC-HT700
Summary of Contents for Panasonic SC-HT700
-
Page 1: Operating Instructions
DVD Home Theater Sound System Operating Instructions Region number supported by this player SC-HT900/SC-HT700 Model No. Region numbers are allocated to DVD players and software according to where they are sold. For the United Kingdom ≥The region number of this player is “2”. - Page 2 Dear customer ≥These operating instructions are applicable to models SC-HT900 and SC-HT700 for a variety regions. Thank you for purchasing this product. ≥Unless otherwise indicated, illustrations in these For optimum performance and safety, please read these instructions operating instructions are of SC-HT900 for the United carefully.
-
Page 3: Table Of Contents
≥ All enquiries transactions and distribution facilities are provided directly by Panasonic UK Ltd. Convenient functions ......32 ≥... -
Page 4: Caution For Ac Mains Lead
Caution for AC Mains Lead (For United Kingdom) WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER E, BY THE EARTH SYMBOL Ó OR (“EB” area code model only) COLOURED GREEN OR GREEN/YELLOW. For your safety, please read the following text carefully. -
Page 5: Disc Information
IEC62107) another begins, may not play smoothly. [CD] ∫ DVD-R discs Including CD text Panasonic DVD-R recorded and finalized on a Panasonic DVD video recorder are played as DVD-Video on this unit. [WMA] [MP3] CD-R/RW — ∫ CD-R and CD-RW discs... -
Page 6: Simple Setup
Simple setup [HT900] STEP Assembly and connection of front and surround speakers 4 Speaker units Assembled Confirm screw is securely Copper fastened. Silver Approx. 4 Stands 120 mm Position wire in grooves as necessary avoiding Fit into Place into groove. 4 Bases groove. -
Page 7: Locating
Locating [HT700] STEP ≥The front and surround speakers are the same. Use those you have connected the short cords to as front speakers and those Locating you have connected the long cords to as surround speakers. FRONT FRONT SURROUND SURROUND SUBWOOFER SUBWOOFER FRONT... -
Page 8: Subwoofer
[HT900] STEP Connecting speakers with the subwoofer Attach the speaker-cable stickers to make connection easier. SUBWOOFER FRONT (L) FRONT (R) SURROUND (L) SURROUND (R) 4-m cable Click! Sheet of speaker-cable Copper stickers Silver CENTER ∫ Preventing the speakers from falling over Screw String (not included) 4 Black... -
Page 9: Step3 Television
“480P” (➡ page 26). ≥Press [PROGRESSIVE] on the main unit so “PROG.” appears on the display (➡ page 14). ≥All televisions manufactured by Panasonic and that have 480P input connectors are compatible. Consult the manufacturer if you have another brand of television. -
Page 10: Step4 Connecting The Subwoofer, Antennas, And Ac Mains Lead
STEP Connecting the subwoofer, antennas, and AC mains lead AM loop FM indoor antenna AC mains lead System cable antenna [For\the\United\Kingdom] [For\Australia\and\N.Z.] [For\the\United\Kingdom] [For\Australia\and\N.Z.] [For\Russia] \and\Russia] Connect the AC mains lead after all other connections are complete. FM indoor antenna Adhesive tape Subwoofer Fix the other end of the antenna... -
Page 11: Other Speaker Setup Options
Other speaker setup options Attaching to a wall [HT900] / [HT700] (Center speaker only) Screw a screw (not included) into the [Note] wall. The wall or pillar on which the speakers are to be attached should be capable of supporting 10 kg per screw. 30–35 mm Remove the stand. -
Page 12: Step6 Quick Setup
STEP QUICK SETUP Preparation Turn on the television and select the appropriate video input on the television to suit the connections for the unit. AV SYSTEM Press [Í] to turn on the unit. DIGITAL TV/AV TUNER/BAND DVD/CD Press [DVD/CD] to select “DVD/CD” DISC DISC 1 DISC 2... -
Page 13: Control Reference Guide
< D Source select buttons Face towards this unit to change the source. TV VOL s TV VOL r Press [TV] or [VCR] first to operate a Panasonic television or VOLUME video cassette recorder (➡ pages 36, 37). SUBWOOFER S.POSITION C.FOCUS... -
Page 14: Discs-Basic Play
Discs—Basic play If the disc contains both audio data (WMA and MP3) and JPEG, check “Mixed Disc—Audio & Stills” setting in the SETUP menu (➡ page 33). Select “Stills (JPEG)” or “Audio (MP3/WMA)”. ∫ ; ≥Remove TYPE 2 and 4 discs Play starts from the disc in from their cartridges before use. -
Page 15: Sequential Play/Changing The Disc In The Play Position
Sequential play Position Memory function [VCD] [CD] [WMA] [MP3] [RAM] [DVD-A] [DVD-V] [VCD] [CD] [WMA] [MP3] [JPEG] The unit usually plays the disc in the play position and then stops. During play Turn sequential play on to play all loaded discs, except for DVDs and Press [P.MEMORY] (or [POSITION JPEG discs. -
Page 16: Starting Play From A Selected Item
Discs—Basic play Skipping items [RAM] [DVD-A] [DVD-V] [VCD] [CD] [WMA] [MP3] AV SYSTEM During play or while paused DIGITAL Press [:] or [9]. TV/AV TUNER/BAND DVD/CD ≥Press [:/6] or [5/9] on the main unit. DISC [JPEG] DISC 1 DISC 2 DISC 3 PAGE Press [2] or [1] for picture skip, or [3] or... -
Page 17: Discs-Convenient Functions
Discs—Convenient functions Repeat play [RAM] [DVD-A] [DVD-V] [JPEG] AV SYSTEM [VCD] [CD] [WMA] [MP3] (There is no on-screen display.) DIGITAL TV/AV TUNER/BAND DVD/CD During play Press [SHIFT]i[REPEAT]. DISC Each time you press the button: DISC 1 DISC 2 DISC 3 PAGE GROUP [RAM]... -
Page 18: Soundtracks/Subtitles
Discs—Convenient functions Signal type/data LPCM/PPCM/ÎDigital/DTS/MPEG: Signal type k (kHz): Sampling frequency b (bit): Number of bits ch (channel): Number of channels AV SYSTEM Example: DIGITAL TV/AV TUNER/BAND DVD/CD 3/2 .1ch DISC DISC .1: Low frequency effect DISC 1 DISC 1 DISC 2 DISC 3 PAGE... -
Page 19: All Group Play/Program Play/Random Play
≥[DVD-A] [DVD-V] [WMA] [MP3] [DVD-A] [DVD-V] [VCD] [CD] [WMA] [MP3] To select an item using the cursor buttons Press [ENTER] and [3, 4] to select an item, then press Common procedures for all group, program [ENTER] again to register the number. and random play All the items in the selected disc, title or group are selected when you select “ALL”. -
Page 20: Marking Places To Play Again/Variable Zoom Function
Discs—Convenient functions [RAM] To mark the eleventh point and beyond 1 Press [2, 1] to select the marker pin icon. AV SYSTEM DIGITAL TV/AV TUNER/BAND DVD/CD 1–10 12345678910 DISC 2 Press [3, 4] to select “11–20”. You can select the next group when the current group is full. DISC 1 DISC 2 DISC 3... -
Page 21: Playing The Programs Or Play Lists On Dvd-Ram
Playing the programs or play lists on DVD-RAM Using the play list menu You can play a group of scenes, a play list, created on other AV SYSTEM equipment such as a DVD video recorder. DIGITAL TV/AV TUNER/BAND DVD/CD Press [PLAY LIST]. DISC DISC 1 DISC 2... -
Page 22: Wma/Mp3, Cd Text And Jpeg Navigation Menus
WMA/MP3, CD text and JPEG navigation menus [WMA] [MP3] [CD] (CD text only) Track title search Example: finding a track including the word “LOVE” AV SYSTEM While the menu is displayed DIGITAL TV/AV TUNER/BAND DVD/CD Press [3, 4] to select “Find” and DISC press [ENTER]. -
Page 23: Playing Highmat Discs
[WMA] [MP3] [JPEG] Playing HighMAT discs To use the tree screen to find a group A menu appears when you select the disc. While the menu is displayed Press [3, 4, 2, 1] to select then press [WMA] [MP3] [ENTER]. Press [1] while a track is highlighted When you press [ENTER]: to display a tree screen. -
Page 24: Using Gui (Graphical User Interface) Screens
Using GUI (Graphical User Interface) screens Press [3, 4] to select the setting. ≥Items with “3” or “4” above and below can be changed by [3, 4]. ≥Press [ENTER] if the setting does not change after pressing AV SYSTEM [3, 4]. DIGITAL ≥Some items require different operations. -
Page 25: Disc Information/Unit Information
Unless otherwise indicated, select items with [2, 1] and change with [3, 4]. Disc information Digital 1 ENG 1 : 46 : 50 1 ENG 3/2.1 ch Page Slideshow Slideshow Vocal 128kbps ON 0 sec 12 18 Return 44.1kHz < >... - Page 26 Using GUI (Graphical User Interface) screens [Display\menu] [Picture\menu] x1.00 480P Normal Auto1 Only when “PROG.” is on 4:3 Aspect Picture mode [RAM] [DVD-A] [DVD-V] [VCD] [JPEG] [RAM] [DVD-A] [DVD-V] [VCD] [JPEG] ≥N: Normal mode Select how to show images made for 4:3 aspect screens on ≥S: Soft mode (Soft picture with fewer video artifacts) a 16:9 aspect television.
-
Page 27: The Radio
The radio Press and hold [ENTER]. SELECTOR VOLUME, DOWN, UP ≥Main unit: Press and hold [MEMORY]. Release the button when “FM AUTO” is displayed. VOLUME The tuner presets all the stations it can receive into the OPEN/CLOSE DOWN channels in ascending order. TUNING TUNE MODE FM MODE... -
Page 28: Sound Field
Sound field Dolby Pro Logic or Dolby Pro Logic II [HT900] AV SYSTEM The Dolby Pro Logic II processor works not only on sources DIGITAL recorded with Dolby Surround, but also on any stereo source. TV/AV TUNER/BAND DVD/CD DVD/CD There is a difference in sound quality between Dolby Pro Logic and DISC Dolby Pro Logic II. -
Page 29: Super Surround/Sound Field Control/Center Focus
∫ To adjust speaker level during play Multi Rear Surround (M.R.S)/ 1 Press [CH SELECT] to select the speaker. Virtual Rear Surround (V.R.S) Lch>Cch>Rch>RSch>LSch>SWch ^--------------------------------------------------------------} [HT900] SWch: Subwoofer ∫ Multi Rear Surround ≥You can only adjust SWch if the disc includes a subwoofer This mode makes it seem like sound is coming channel. -
Page 30: Custom Sound Memory-Store The Sound Settings
Sound field Changing the delay time [HT900] AV SYSTEM Enhance sound perception using this feature. Adjust the DIGITAL TV/AV TUNER/BAND DVD/CD delay time for Dolby Digital DISC when “DIGITAL IN” is selected as the source when connected DISC 1 DISC 2 DISC 3 PAGE GROUP... -
Page 31: Sound Quality
Sound quality Double re-master—Enjoying more natural sound AV SYSTEM [RAM] [DVD-A] [DVD-V] [CD] DIGITAL Discs recorded with 2-channel LPCM at 44.1 kHz or 48 kHz TV/AV TUNER/BAND DVD/CD This feature gives you a more natural sound by adding the higher DISC frequency signals not recorded on the disc. -
Page 32: Convenient Functions
Convenient functions The sleep timer This timer turns the unit off after a set time. AV SYSTEM Press [SHIFT]i[SLEEP] to select the time DIGITAL TV/AV TUNER/BAND DVD/CD (minutes). DISC DISC 1 DISC 2 DISC 3 PAGE SLEEP GROUP DISC 4 DISC 5 Each time you press the button: SEQUENTIAL... -
Page 33: Changing Settings
Changing settings This chart shows the settings for this unit. Change the settings to suit your preferences and to suit the unit to the environment in which it is being used. These settings are retained in memory until they are changed, even if the unit is turned off. See page 34 for details on menu operation. ≥Underlined items are the factory preset. -
Page 34: Common Procedures
Changing settings Entering a password (Ratings) [DVD-V] AV SYSTEM The password screen is shown when you select levels 0 to 7. DIGITAL TV/AV TUNER/BAND DVD/CD DVD/CD 1 Input a 4-digit password with the numbered buttons and press [ENTER]. ≥If you enter a wrong number, press [CANCEL] to erase it before DISC you press [ENTER]. -
Page 35: Optional Antenna Connections
Language code list Abkhazian: 6566 Chinese: 9072 Hausa: 7265 Lithuanian: 7684 Romanian: 8279 Telugu: 8469 Afar: 6565 Corsican: 6779 Hebrew: 7387 Macedonian: 7775 Russian: 8285 Thai: 8472 Afrikaans: 6570 Croatian: 7282 Hindi: 7273 Malagasy: 7771 Samoan: 8377 Tibetan: 6679 Albanian: 8381 Czech: 6783... -
Page 36: Operating Other Equipment
: Signal flow Operating the television and the video cassette recorder AV SYSTEM Í You can use the remote control to operate a Panasonic television or AV SYSTEM a video cassette recorder. (Some models cannot be operated by this TV/AV DIGITAL... - Page 37 Press [SHIFT]i[DIGITAL] to select televisions and video cassette recorders. Change the code (➡ below) “DIGITAL IN” as the source. to operate such equipment and some Panasonic products. ≥Main unit: Press [DIGITAL IN]. While aiming the remote control at the equipment,...
-
Page 38: Specifications
Specifications AMPLIFIER SECTION DISC SECTION [HT900] Discs played [8 cm or 12 cm] RMS Output Power: Dolby Digital Mode, 10 % Total Harmonic (1) DVD-RAM (DVD-VR formatted disc) Distortion (2) DVD-Audio 55 W per channel (6 ≠) 1 kHz Front CH (3) DVD-Video 55 W per channel (6 ≠) 1 kHz Surround CH... - Page 39 SPEAKER SECTION GENERAL [HT900] [Front/Surround\speakers\SB-FS900] Power supply [For\the\United\Kingdom\and\Australia\and\N.Z.] AC 230–240 V, 50 Hz Type 2 Way, 2 Speaker, Bass-ref. [For\Russia[ Speaker unit AC 230 V, 50 Hz 6.5 cm cone type, 6 ≠ Full range Power consumption [HT900] Super tweeter PIEZO type Main unit 25 W...
-
Page 40: Troubleshooting Guide
Troubleshooting guide Before requesting service, make the below checks. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, consult your dealer for instructions. Power Page ≥Insert the AC mains lead and system cable securely. - Page 41 Sound ≥Check the connections. No sound. 6, 8 ≥Turn the volume up. Distorted sound. — ≥Turn muting off. ≥Switch off the unit, determine and correct the cause, then switch the unit on. — Causes include: –Shorting (bare wires touching) of positive and negative speaker wires. –Using speakers with an impedance lower than that rated for this unit.
-
Page 42: Safety Precautions
Troubleshooting guide Unit displays ≥Press [SHIFT]i[FL DISPLAY] to brighten the display. The display is dark. ≥You inserted a disc the unit cannot play; insert one it can. “NO PLAY” ≥You inserted a blank DVD-RAM. — ≥You haven’t inserted a disc; insert one. “NO DISC”... -
Page 43: Glossary
Glossary Decoder WMA, MP3, CD text and JPEG information ≥Discs must conform to ISO9660 level 1 or 2 (except for extended A decoder restores the coded audio signals on DVDs to normal. This is called decoding. formats). ≥This unit is compatible with multi-session but if there are a lot of Dolby Digital sessions it takes more time for play to start. - Page 44 Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. Matsushita Electric Industrial Co., Ltd. Web Site: http://www.panasonic.co.jp/global/ RQT6756-2B F0303NK2033...
