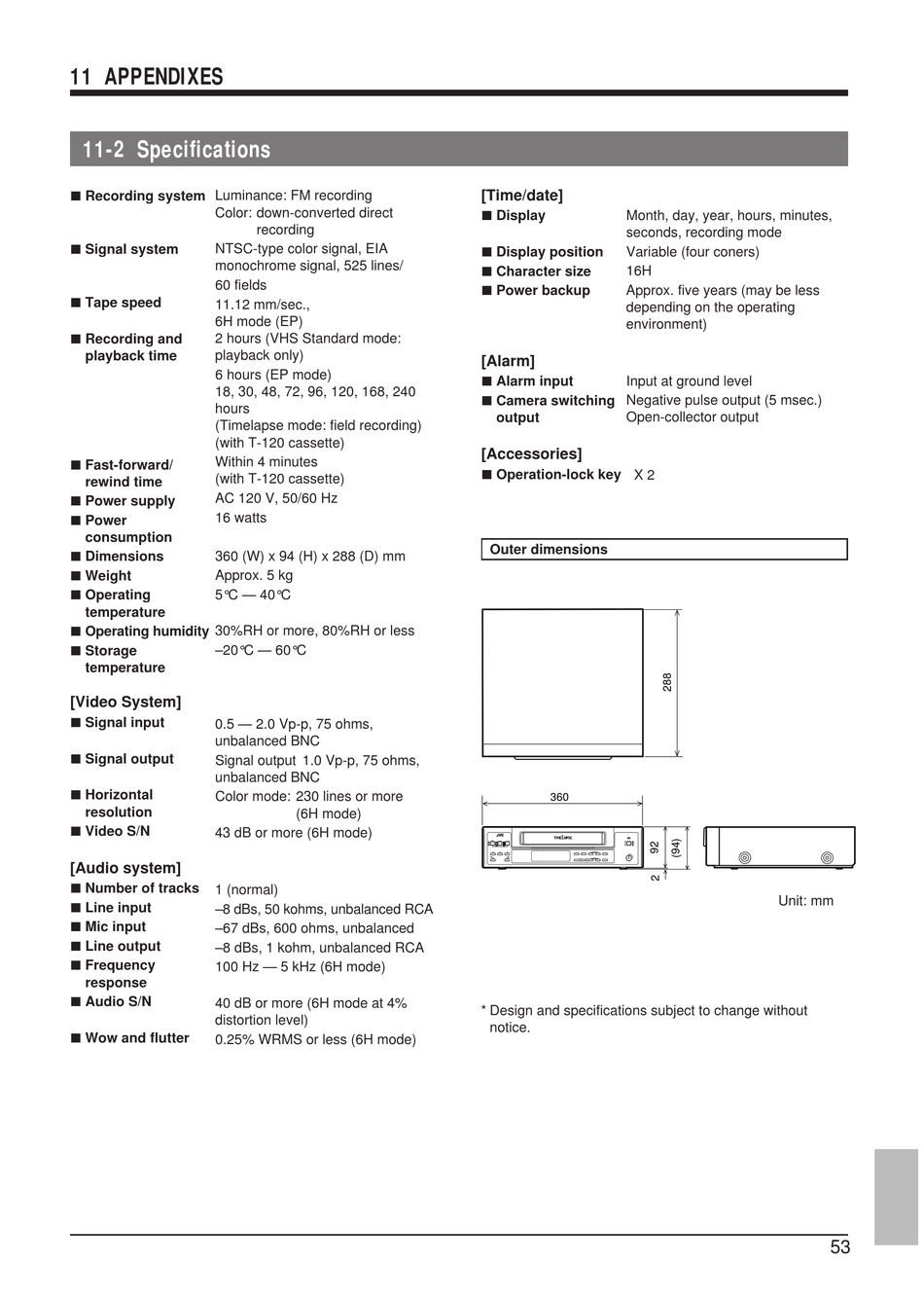

11 APPENDIXES
11-2 Specifications
Luminance: FM recording
5 Recording system
Color: down-converted direct
5 Signal system
NTSC-type color signal, EIA
monochrome signal, 525 lines/
60 fields
5 Tape speed
11.12 mm/sec.,
6H mode (EP)
2 hours (VHS Standard mode:
5 Recording and
playback time
playback only)
6 hours (EP mode)
18, 30, 48, 72, 96, 120, 168, 240
hours
(Timelapse mode: field recording)
(with T-120 cassette)
Within 4 minutes
5 Fast-forward/
(with T-120 cassette)
rewind time
AC 120 V, 50/60 Hz
5 Power supply
16 watts
5 Power
consumption
360 (W) x 94 (H) x 288 (D) mm
5 Dimensions
Approx. 5 kg
5 Weight
5 Operating
5°C — 40°C
temperature
30%RH or more, 80%RH or less
5 Operating humidity
–20°C — 60°C
5 Storage
temperature
[Video System]
5 Signal input
0.5 — 2.0 Vp-p, 75 ohms,
unbalanced BNC
5 Signal output
Signal output 1.0 Vp-p, 75 ohms,
unbalanced BNC
5 Horizontal
Color mode: 230 lines or more
resolution
5 Video S/N
43 dB or more (6H mode)
[Audio system]
5 Number of tracks
1 (normal)
5 Line input
–8 dBs, 50 kohms, unbalanced RCA
5 Mic input
–67 dBs, 600 ohms, unbalanced
5 Line output
–8 dBs, 1 kohm, unbalanced RCA
5 Frequency
100 Hz — 5 kHz (6H mode)
response
5 Audio S/N
40 dB or more (6H mode at 4%
distortion level)
5 Wow and flutter
0.25% WRMS or less (6H mode)
recording
(6H mode)
[Time/date]
5 Display
Month, day, year, hours, minutes,
seconds, recording mode
5 Display position
Variable (four coners)
16H
5 Character size
Approx. five years (may be less
5 Power backup
depending on the operating
environment)
[Alarm]
5 Alarm input
Input at ground level
5 Camera switching
Negative pulse output (5 msec.)
output
Open-collector output
[Accessories]
5 Operation-lock key
X 2
Outer dimensions
360
* Design and specifications subject to change without
notice.
