SYSTEM BOARD

The system board includes the following features:
T
Intel Pentium II microprocessor running at 233- or 266-MHz (model dependent)
T
Intel 82440FX PCI chipset used for PCI/ISA, memory, and peripheral control
T
PC87308 Super I/O controller (integrates standard PC I/O functions: two serial
ports, one EPP/ECP-capable parallel port, floppy disk interface, real time clock,
CMOS RAM, keyboard controller, and support for an IrDA-compatible infrared
interface)
T
PCI and ISA peripheral connectors on the system board
T
Support for up to 256 MB of 60 nanosecond (ns) single in-line memory modules
(SIMMs)
T
Intel BIOS in a 2-MB flash memory device supports system setup and PCI auto-
configuration
T
Sound Blaster Pro™-compatible Yamaha audio chip
T
Expansion slots for up to five add-in boards
Three dedicated PCI slots
Two dedicated ISA-bus slots
One combination slot for either a PCI or an ISA add-in board

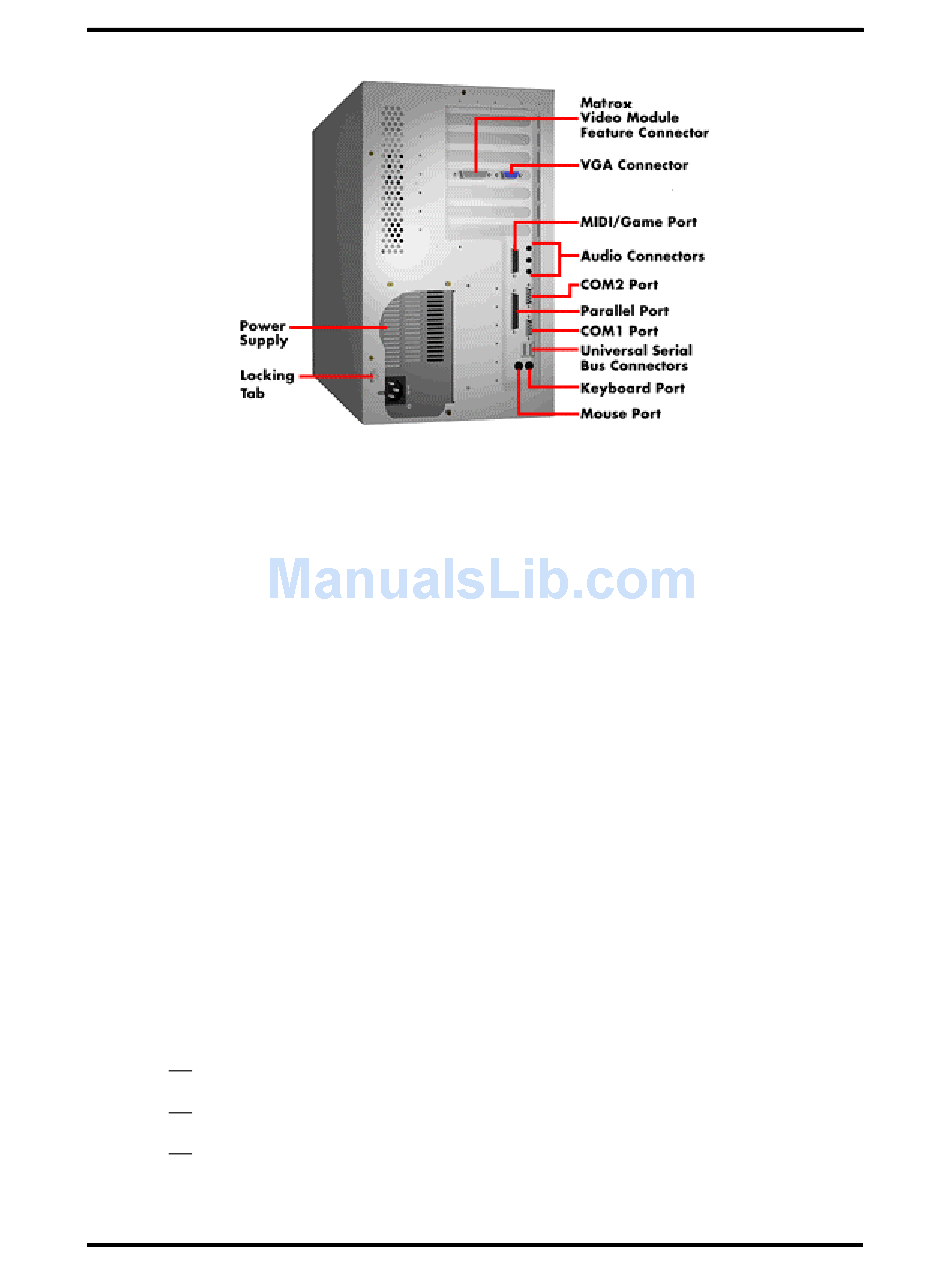

Figure 1-2 Rear Panel Features
