Full-Auto Electric Washing Machine
INSTRUCTION MANUAL
Applying the Air-Bubble Washing System.
Applying One-Touch Operation System.
Realizing calm washing through the innovational low-noise
design.
Before operating this washer, please read this instruction
manual completely. Thank you.
CONTENTS
PARTS AND FEATURES.........................................................................................................................................2
WASHER SAFETY...................................................................................................................................................3
INSTALLATION INSTRUCTIONS...........................................................................................................................4
ELECTRICAL REQUIREMENTS............................................................................................................................5
INLET HOSE CONNECTION..................................................................................................................................6
OPERATING YOUR WASHER...............................................................................................................................7
THE FUNCTIONS OF THE CONTROL PANEL....................................................................................................8
WASHING PROCEDURE AND PROGRAM SELECTION.......................................................................................9
GENERAL PROCEDURE FOR OPERATION.....................................................................................................11
CARING FOR YOUR WASHER............................................................................................................................12
HOW TO CLEAN THE FILTER.............................................................................................................................13
REMOVING STAINS..............................................................................................................................................14
TROUBLE SHOOTING..........................................................................................................................................15
SPECIFICATION....................................................................................................................................................16
A NOTE TO YOU
Thank you for buying a NEC appliance.
NEC washers are easy to use, save time, and help you manage your home better.
This manual contains valuable information about how to operate and maintain your washer properly and safely.
Please read it carefully.
Model: NW-452
Page
Advertisement
Table of Contents
Related Manuals for NEC NW-452
Summary of Contents for NEC NW-452
-
Page 1: Table Of Contents
A NOTE TO YOU Thank you for buying a NEC appliance. NEC washers are easy to use, save time, and help you manage your home better. This manual contains valuable information about how to operate and maintain your washer properly and safely. -

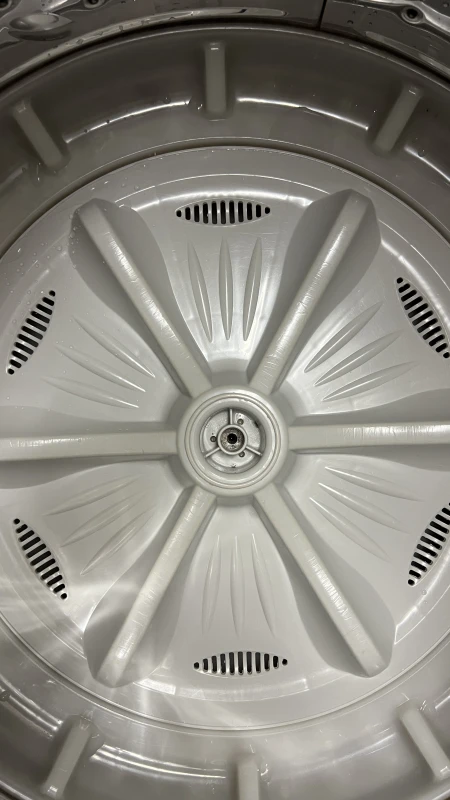

Page 2: Parts And Features
PARTS AND FEATURES The parts and features of your washer are illustrated on this page. Become familiar with all parts and features before using your washer. NOTE • The drawings in this book may vary from your washer model. They are designed to show the different features of all models covered by this book. Your model may not include all features. -
Page 3: Washer Safety
WASHER SAFETY Save these instructions Your safety is important to us. To reduce the risk of fire, electrical shock, or injury when using your washer adhere to the following basic precautions. Read all instructions before using your washer • Flammable fluids (dry-cleaning solvents, Please ... -
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS Location of washer Check the location where the washer will be installed. Make sure you have everything necessary for correct installation. Proper installation is your responsibility. •Do not place or store your washer below 0 C (32 F) to avoid any damage from freezing. •Install the washer on a horizontal solid floor. -
Page 5: Electrical Requirements
Pump Model Laundry tub drain system Standpipe drain system • Needs a 3cm minimum diameter and a • Top of tub must be at least 86cm standpipe with a minimum carry away (34inches) high and no higher than 130cm capacity of 30litres per minute. from bottom of washer (A) •... -
Page 6: Inlet Hose Connection
INLET HOSE CONNECTION Be careful not to confuse the hot water inlet and cold water inlet. In using only one water tap or in case of one water inlet valve attached, connect the inlet hose to the cold water inlet valve. For Ordinary Tap 1 Pull down the collar of 2 Loosen the four screws... -
Page 7: Operating Your Washer
OPERATING YOUR WASHER To obtain the best washing results, you must operate your washer properly. This section gives you this important information. Preparing clothes for washing • Close zippers, snaps, and hooks to avoid • Turn down cuffs and turn synthetic knits snagging other items. -
Page 8: The Functions Of The Control Panel
THE FUNCTIONS OF THE CONTROL PANEL DELICATE HOURS DELAY PROGRAM CONTROL CYCLE • Press this switch to turn the power on or off. • Used to choose water temperature being supplied. • As the button is pressed, water temperature will toggle between. COLD COLD+HOT •... -
Page 9: Full Automatic Program
WASHING PROCEDURE AND PROGRAM SELECTION FULL AUTOMATIC PROGRAM 1. FUZZY PROGRAM (SENSOR); • This selection is for general washing except extraordinary clothes. • An artificial brain sensor selects the purposes various kinds of washing conditions such as washing times, rinse times, spin times and water level. •... -
Page 10: Delayed Washing
Delayed Washing Delayed washing can be made from 2 hours to 48 hours. • For example, to delay wash start time by 8 hours; Procedure to press the button. • Select the program. DELAY DELAY Select water level and water temperature. HOURS HOURS "--"... -
Page 11: General Procedure For Operation
GENERAL PROCEDURE FOR OPERATION 1. Add measured detergent to the washer. (Follow manufacturer’s directions for safe use) 2. OPTIONAL STEP If desired, add measured liquid chlorine bleach to the bleach inlet. Use only liquid chlorine in the bleach inlet. * Follow the manufacturer’s direction for safe use. NOTE •... -
Page 12: Caring For Your Washer
CARING FOR YOUR WASHER Proper care of your washer can extend its life. This section explains how to care for your washer properly and safely. Cleaning your washer Exterior Interior Clean interior with 250ml of chlorine bleach Wipe up detergent, bleach, and other spills mixed with 500ml of detergent. -
Page 13: How To Clean The Filter
HOW TO CLEAN THE FILTER Cleaning the Lint Filter 1 Pull the filter frame upward. 2 Turn the lint filter inside 3 Return the filter as it was, out, wash the lint off and insert the filter frame with water. into the slot. -
Page 14: Removing Stains
REMOVING STAINS Stained, heavily-soiled, or greasy items may need to be prewashed or soaked for best results. Soaking helps remove protein-type stains like blood, milk, or grass. Prewashing helps loosen soil before washing. Stain removal rules • Use warm water for soaking or prewashing stained laundry. Hot water can set stains. •... -
Page 15: Trouble Shooting
TROUBLE SHOOTING Most problems are easily solved if you understand the cause. Check the following list for problems before calling for service. Before calling for service, check the followings; PROBLEM CHECK POINT • The washer will not • Is there a power failure? •... -
Page 16: Specification
SPECIFICATION MODEL NO. NW-452 240V/50Hz POWER SOURCE 320W POWER CONSUMPTION 525 X 858 X 535 (WHD) DIMENSIONS (mm) UNIT WEIGHT 28.5KG 4.5KG MAXIMUM MASS OF TEXTILE STANDARD WATER CONSUMPTION WITH FUZZY PROGRAM High(55 ), Medium(45 ), Low(31 ) STANDARD WATER LEVEL OPERATING WATER PRESSURE 0.3Kgf/cm ~ 8Kgf/cm... - Page 17 ` – ‚ ‡ † · º „ fi • ˛ 5 ¡ 526 · º ¿ · ” ø 1 6ˆ ·ª · · MODEL DWF-800MMP(¿ BUYER NEC, NW-452 1´ 00.9.22 6´ 2000.10.19 2´ 00.9.25 7´ ˇ `⁄ 3´...
