Chapter
1
Getting Acquainted
Read this first!
•
Be sure to read this part of the User's Guide before doing anything else! It
includes important information that you need to know in order to use the
PV-S250/PV-S450 (hereinafter referred to as the "PV Unit") correctly.
•
You can find more detailed information about other PV Unit operations in
"Chapter 14 – General Operations" on page 149 and "Chapter 16 – Technical
Reference" on page 172.
Important!
Please keep this User's Guide and all information handy for future reference.
Note
The screen shots shown in this User's Guide may differ slightly from the displays
actually produced by your PV Unit.
Make backup copies of important data!
Your PV Unit employs flash memory, which makes it possible to store large
volumes of data and to recall data quickly and easily. Data is retained when power
is turned off and even when batteries go dead, but it can be corrupted or lost
entirely due to operational mistakes or malfunction. Data contents can also be
corrupted or lost due to strong electrostatic charge, strong impact, or extremes in
temperature and humidity. All of this means that you should always keep back-up
copies of important data by transferring it to a personal computer or by writing it
down somewhere.
1
13

Advertisement

Table of Contents
loading

Related Manuals for Casio PV-S250

Summary of Contents for Casio PV-S250

  • Page 1 Chapter Getting Acquainted Read this first! • Be sure to read this part of the User’s Guide before doing anything else! It includes important information that you need to know in order to use the PV-S250/PV-S450 (hereinafter referred to as the “PV Unit”) correctly. •...

  • Page 2: Important Precautions

    • The contents of this manual are subject to change without notice. • CASIO COMPUTER CO., LTD. assumes no responsibility for any loss or claims by third parties that may arise from the use of this product.

  • Page 3: Data Errors

    You can then re-input the data after clearing PV Unit memory. Continued problems after performing the RESET operation can indicate a serious hardware problem. Consult with your nearest CASIO dealer if problems persist. To reset after viewing data 1. After the Data error message appears, tap Yes.

  • Page 4: General Guide

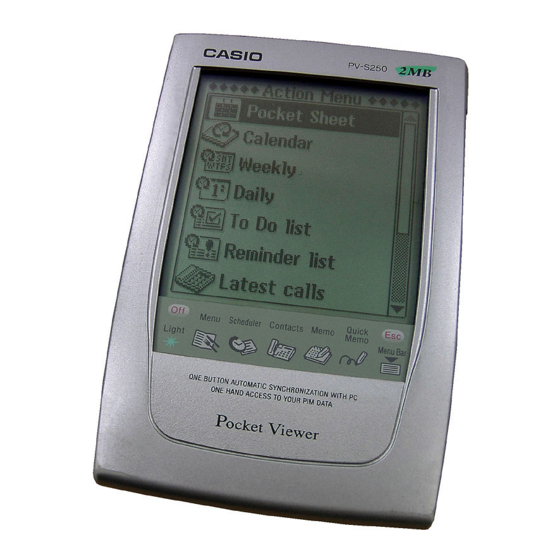

    General Guide Action control Stylus Touch screen Cradle contacts RESET button Battery switch P button Battery compartment cover...

  • Page 5: Power Supply

    Chapter 1 Getting Acquainted Power Supply Your PV Unit can be powered by two AAA-size alkaline batteries. Important! • Normally the flash memory of the PV Unit retains its data even when power is turned off and when batteries go dead. Mis-operation or other problems, however, can cause data to become corrupted or lost.
  • Page 6 • Never mix old batteries and new ones. • Do not expose batteries to direct heat, let them become shorted, or try to take them apart. • Never leave dead batteries in the battery compartment. • Remove the batteries if you do not plan to use the PV Unit for a long time.

  • Page 7: To Replace The Batteries

    Chapter 1 Getting Acquainted To replace the batteries Important! • Always make sure the battery switch is in the NORMAL OPERATION position at all times, except when replacing batteries. 1. Turn off PV Unit power. 2. Remove both of the old batteries and replace them with new ones, referring to the procedure on pages 1 through 3.

  • Page 8: Using The Backlight

    Auto Power Off The Auto Power Off function automatically turns off power whenever you do not perform any operation for a specified period. You can specify 1 minute, 3 minutes, or 6 minutes before Auto Power Off is triggered (page 166). Use the procedure described under “To turn power on and off”...

  • Page 9: Using The Icon Menu

    Chapter 1 Getting Acquainted • Drag Touch the tip of the stylus to the screen, and drag it across the screen to select a range of text, draw a line, etc. Action Control The Action control makes it possible to perform certain PV Unit operations with one hand.
  • Page 10 Icon Description Turns off PV Unit power. Light Turns on the backlight. Menu Displays the Mode Menu. Scheduler Enters the Scheduler Mode. Contacts Enters the Contacts Mode. Memo Enters the Memo Mode. Quick-Memo Enters the Quick-Memo Mode. Exits the current operation. Menu Bar Displays the menu bar.

  • Page 11: To Enter A Mode Using The On-Screen Icon Menu

    Chapter 1 Getting Acquainted To enter a mode using the on-screen icon menu 1. On the icon menu, use the stylus to tap the Menu icon to display the on- screen icon menu. 2. Tap the “ and ‘ buttons on the right side of the display to change menu pages and display the icon of the mode you want.

  • Page 12: Customizing The Appearance Of The Mode Menu

    Customizing the Appearance of the Mode Menu You can rearrange Mode Menu so the icons are in any order you want. The following procedures describe how to swap the positions of two icons and how to move an icon to a specific location. Note that you cannot change the positions of icons on the Action Menu.
