  • Page 1: Notebook Pc User Manual

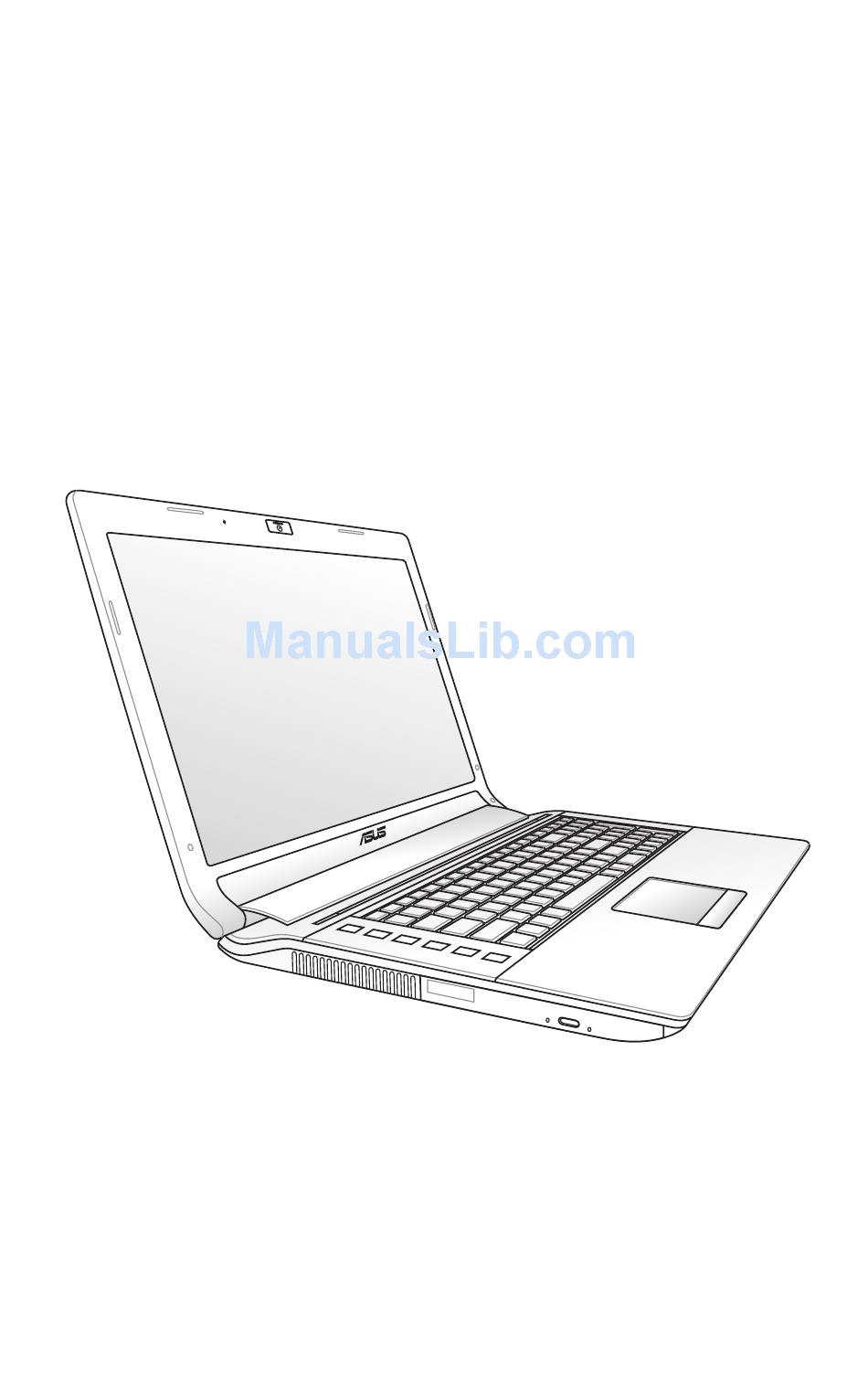

    E5923 Notebook PC User Manual June 2010...

  • Page 2: Table Of Contents

    Thermal Power Control .................36 Special Keyboard Functions .................37 Colored Hot Keys ....................37 Microsoft Windows Keys ................39 Extended Keyboard (on selected models) ..........39 Multimedia Control Keys (on selected models) ........40 Multimedia Control Pad ................41 Switches and Status Indicators ..............42 Switches ......................42 Status Indicators .....................43...
  • Page 3 Internal Modem Compliancy ..............A-18 Declarations and Safety Statements ............ A-22 Federal Communications Commission Statement ......A-22 FCC Radio Frequency (RF) Exposure Caution Statement .... A-23 Declaration of Conformity(R&TTE directive 1999/5/EC) ....A-23 CE Marking ....................A-24 IC Radiation Exposure Statement for Canada ......... A-24...
  • Page 4 Laser Safety Information ................. A-30 Service warning label ................A-30 CDRH Regulations ..................A-30 Macrovision Corporation Product Notice ......... A-31 CTR 21 Approval(for Notebook PC with built-in Modem) ..A-32 European Union Eco-label ..............A-34 Global Environmental Regulation Compliance and Declaration ....................A-35 Takeback Services ..................

  • Page 5: Chapter 1: Introducing The Notebook Pc

    Chapter 1: Introducing the Notebook PC...

  • Page 6: About This User's Manual

    You are reading the Notebook PC User’s Manual. This User’s Manual provides information regarding the various components in the Notebook PC and how to use them. The following are major sections of this User’s Manual: 1. Introducing the Notebook PC Introduces you to the Notebook PC and this User’s Manual.

  • Page 7: Safety Precautions

    Wipe the Notebook PC using a clean cellulose sponge or chamois cloth dampened with a solution of nonabrasive detergent and a few drops of warm water and remove any extra moisture with a dry cloth. DO NOT place on...
  • Page 8 Notebook PC. DO NOT throw the Notebook PC in municipal waste. This product has been designed to enable proper reuse of parts and recycling. The symbol of the crossed out wheeled bin indicates that the product (electrical, electronic equipment and mercury-containing button cell battery) should not be placed in municipal waste.

  • Page 9: Preparing Your Notebook Pc

    Preparing your Notebook PC These are only quick instructions for using your Notebook PC. Installing the Battery Pack Connecting the Power Adapter HDMI E-SATA 2 0 V V - 2 1 1 0 Notebook PC User Manual...
  • Page 10 Opening the LCD display panel Carefully lift up the display panel with your thumb. Slowly tilt the display panel forward or backward to a comfortable viewing angle. Turning on the Power Push and release the power button located beneath the LCD display panel.

  • Page 11: Chapter 2: Knowing The Parts

    Chapter 2: Knowing the parts...

  • Page 12: Top Side

    MU T E insert delete Microphone (Built-in) The built-in mono microphone can be used for video conferencing, voice narrations, or simple audio recordings. Camera Indicator The camera indicator shows when the built-in camera is in use. Notebook PC User Manual...
  • Page 13 Camera Cover Switch (on selected models) The camera cover switch allows you to open and close the protective camera cover. Slide the switch to the left to close the camera cover. Slide the switch to the right to open the camera cover. Camera The built-in camera allows picture taking or video recording.
  • Page 14 Power Switch The power switch turns ON and OFF the Notebook PC or putting the Notebook PC into sleep or hibernation modes. Actual behavior of the power switch can be customized in Windows Control Panel “Power Options.” Status Indicators (top) Status indicators represent various hardware/software conditions.

  • Page 15: Bottom Side

    The bottom side may vary in appearance depending on model. The battery pack size varies depending on model. The bottom of the Notebook PC can get very hot. Be careful when handling the Notebook PC while it is in operation or recently been in operation.
  • Page 16 Battery Lock - Manual The manual battery lock is used to keep the battery pack secured. Move the manual lock to the unlocked position to insert or remove the battery pack. Move the manual lock to the locked position after inserting the battery pack.
  • Page 17 Hard Disk Drive Compartment The hard disk drive is secured in a compartment. Visit an authorized service center or retailer for information on hard disk drive upgrades for your Notebook PC. Only purchase hard disk drives from authorized retailers of this Notebook PC to ensure maximum compatibility and reliability.

  • Page 18: Right Side

    SPDIF Output Jack This jack provides connection to SPDIF (Sony/Philips Digital Interface) compliant devices for digital audio output. Use this feature to turn the Notebook PC into a hi-fi home entertainment system. Headphone Output Jack The stereo headphone jack (1/8 inch) is used to connect the Notebook PC’s audio out signal to amplified speakers...
  • Page 19 (DTV). Supports standard, enhanced, or high-definition video, plus multi-channel digital audio on a single cable. It transmits all ATSC HDTV standards and supports 8-channel digital audio, with bandwidth to spare to accommodate future enhancements or requirements.
  • Page 20 External SATA or eSATA allows external connection of Serial- ATA devices originally designed for use inside the computer. It is up to six times faster than existing USB 2.0, & 1394 for external storage solutions and is also hot pluggable using shielded cables and connectors up to two meters.

  • Page 21: Left Side

    Left Side Air Vents The air vents allow cool air to enter and warm air to exit the Notebook PC. Ensure that paper, books, clothing, cables, or other objects do not block any of the air vents or else overheating may occur.

  • Page 22: Rear Side

    LAN Port The RJ-45 LAN port with eight pins is larger than the RJ-11 modem port and supports a standard Ethernet cable for connection to a local network. The built-in connector allows convenient use without additional adapters.

  • Page 23: Chapter 3: Getting Started

    Chapter 3: Getting Started...

  • Page 24: Power System

    The Notebook PC power is comprised of two parts, the power adapter and the battery power system. The power adapter converts AC power from a wall outlet to the DC power required by the Notebook PC. Your Notebook PC comes with a universal AC-DC adapter.
  • Page 25 IMPORTANT! Damage may occur if you use a different adapter to power the Notebook PC or use the Notebook PC’s adapter to power other electrical devices. If there is smoke, burning scent, or extreme heat coming from the AC-DC adapter, seek servicing.

  • Page 26: Using Battery Power

    Notebook PC does not have its battery pack installed, use the following procedures to install the battery pack. IMPORTANT! Never attempt to remove the battery pack while the Notebook PC is turned ON, as this may result in the loss of working data. To install the battery pack:...

  • Page 27: Battery Care

    The battery pack’s useful life will depend on your environment temperature, humidity, and how your Notebook PC is used. It is ideal that the battery be used in a temperature range between 10˚C and 35˚C (50˚F and 95˚F).

  • Page 28: Powering On The Notebook Pc

    The Notebook PC’s power-ON message appears on the screen when you turn it ON. If necessary, you may adjust the brightness by using the hot keys. If you need to run the BIOS Setup to set or modify the system configuration, press [F2] upon bootup to enter the BIOS Setup.
  • Page 29 > choose Properties > click the Tools tab > click Check Now > click Start. You can also select “Scan ... sectors” for more effective scan and repair but the process will run slower. IMPORTANT! If warnings are still given during bootup after running a software disk checking utility, you should take your Notebook PC in for servicing.

  • Page 30: Checking Battery Power

    WARNING! Suspend-to-RAM (STR) does not last long when the battery power is depleted. STR is not the same as power OFF. STR requires a small amount of power and will fail and lose data if no power is available due to complete battery depletion or no power supply (e.g.

  • Page 31: Charging The Battery Pack

    Charging the Battery Pack Before you use your Notebook PC on the road, you will have to charge the battery pack. The battery pack begins to charge as soon as the Notebook PC is connected to external power using the power adapter.

  • Page 32: Power Options

    Windows Control Panel “Power Options.” For other options, such as “Switch User, Restart, Sleep, or Shut Down,” click the arrowhead next to the lock icon. Restarting or Rebooting After making changes to your operating system, you may be prompted to restart the system.

  • Page 33: Emergency Shutdown

    Notebook PC: Hold the power button over 4 seconds. IMPORTANT! DO NOT use emergency shutdown while data is being written; doing so can result in loss or destruction of your data. Notebook PC User Manual...

  • Page 34: Power Management Modes

    (such as a document scrolled down half way or email typed half way) will reappear as if you never left. “Shut Down” will close all applications and ask if you want to save your work if any are not saved.
  • Page 35 Windows button and the arrowhead next to the lock icon to see this option. You can also use the keyboard shortcut [Fn F1] to activate this mode. Recover by pressing any keyboard key except [Fn]. (NOTE: The power indicator will blink in this mode.) Hibernate is the same as Suspend-to-Disk (STD) and stores your current data and status on the hard disk drive.

  • Page 36: Thermal Power Control

    There are three power control methods for controlling the Notebook PC’s thermal state. These power control cannot be configured by the user and should be known in case the Notebook PC should enter these states. The following temperatures represent the chassis temperature (not CPU).

  • Page 37: Special Keyboard Functions

    The Hot Key locations on the function keys may vary depending on model but the functions should remain the same. Follow the icons instead of the function keys.
  • Page 38 LOCKED (disabled) and UNLOCKED (enabled). Locking the touchpad will prevent you from accidentally moving the pointer while typing and is best used with an external pointing device such as a mouse. NOTE: Selected models have an indicator between the touchpad buttons will light when the touchpad is UNLOCKED (enabled) and not light when the touchpad is LOCKED (disabled).

  • Page 39: Microsoft Windows Keys

    Fn+Enter (extended keyboard): Toggles Windows “Calculator” application. Microsoft Windows Keys There are two special Windows keys on the keyboard as described below. The key with the Windows Logo activates the Start menu located at the bottom left of the Windows desktop.

  • Page 40: Multimedia Control Keys (On Selected Models)

    Notebook PC. Some control key functions may defer depending on Notebook PC model. Use the [Fn] key in combination with the arrow keys for CD control functions. CD Play/Pause During CD stop, begins CD play.

  • Page 41: Multimedia Control Pad

    Multimedia Control Pad There are six control keys on the multimedia control pad on the left of the keyboard. The following defines the meaning of each control key on the multimedia control pad. Go to previous song / chapter (when playing)

  • Page 42: Switches And Status Indicators

    Switches and Status Indicators Switches Express Gate Key / Power4Gear Key Press this key to launch Express Gate. Press again in the Express Gate environment to turn off the Notebook PC. Refer to the Express Gate User’s Manual for details.

  • Page 43: Status Indicators

    Indicates that capital lock [Caps Lock] is activated when lighted. Capital lock allows some of the keyboard letters to type using capitalized letters (e.g. A, B, C). When the capital lock light is OFF, the typed letters will be in the lower case form (e.g. a,b,c).

  • Page 44: Drive Activity Indicator

    Power Indicator The power indicator lights when the Notebook PC is turned ON and blinks slowly when the Notebook PC is in the Suspend-to- RAM (Sleep) mode. This indicator is OFF when the Notebook PC is turned OFF or in the Suspend-to-Disk (Hibernation) mode.

  • Page 45: Chapter 4: Using The Notebook Pc

    Chapter 4: Using the Notebook PC...

  • Page 46: Pointing Device

    The Notebook PC’s integrated touchpad pointing device is fully compatible with all two/three-button and scrolling knob PS/2 mice. The touchpad is pressure sensitive and contains no moving parts; therefore, mechanical failures can be avoided. A device driver is still required for working with some application software. Pointer...

  • Page 47: Using The Touchpad

    Using the Touchpad The touchpad allows you to use your fingers to move the pointer around or select onscreen items instead of using a standard mouse. To use the touchpad, lightly press or tap your finger on the touchpad. Moving The Pointer...

  • Page 48: Touchpad Usage Illustrations

    Double-clicking/Double-tapping - These actions allows you to launch your selected program. Move your finger over the program that you want to launch, press the left button or tap the pad twice in rapid succession, and the system launches your selected program. If the interval between the clicks or taps is too long, the operation will not be executed.
  • Page 49 Dragging - Dragging refers to moving an item to another location. Move your finger over an item, while simultaneously pressing the left button, move the item to your desired location, then release the left button. You can also double-tap and hold the item while dragging it with your finger.
  • Page 50 Two-finger tapping - Use two fingers to tap the touchpad. This action simulates the click on the scroll wheel of a mouse. Three-finger tapping - Use three fingers to tap the touchpad. This action mimics the right-click function of a mouse.

  • Page 51: Caring For The Touchpad

    Caring for the Touchpad The touchpad is pressure sensitive. If not properly cared for, it can be easily damaged. Take note of the following precautions. • Ensure the touchpad does not come into contact with dirt, liquids or grease. • Do not touch the touchpad if your fingers are dirty or wet. • Do not rest heavy objects on the touchpad or the touchpad buttons. • Do not scratch the touchpad with your finger nails or any hard objects. The touchpad responds to movement not to force. There is no need to tap the surface too hard.
  • Page 52 Click ELAN on the top and click Disable when external USB mouse plug in check box. Click OK to finish the configuration. Notebook PC User Manual...

  • Page 53: Storage Devices

    Storage Devices Storage devices allow the Notebook PC to read or write documents, pictures, and other files to various data storage devices. Flash Memory Card Reader Normally a memory card reader must be purchased separately in order to use memory cards from devices such as digital cameras, MP3 players, mobile phones, and PDAs.

  • Page 54: Optical Drive

    Gently pull on the drive’s front panel and slide the tray completely out. Be careful not to touch the CD drive lens and other mechanisms. Make sure there are no obstructions that may get jammed under the drive’s tray.
  • Page 55 (TOC) on the disc. When the drive stops, the disc is ready to be used. It is normal to hear as well as feel the CD spinning with great intensity in the CD drive while data is read.

  • Page 56: Removing An Optical Disc

    Removing an optical disc Eject the tray and gently pry the edge of the disc upwards at an angle to remove the disc from the hub. Emergency eject The emergency eject is located in a hole on the optical drive and is used to eject the optical drive tray in case the electronic eject does not work.

  • Page 57: Using The Optical Drive

    Keep in mind the important safety instructions from your CD suppliers. Unlike desktop optical drives, the Notebook PC uses a hub to hold the CD in place regardless of the angle. When inserting a CD, it is important that the CD be pressed onto the center hub or else the optical drive tray will scratch the CD.

  • Page 58: Hard Disk Drive

    Notebook PC. IMPORTANT! Poor handling of the Notebook PC may damage the hard disk drive. Handle the Notebook PC gently and keep it away from static electricity and strong vibrations or impact. The hard disk drive is the most delicate component and will likely be the first or only component that is damaged if the Notebook PC is dropped.
  • Page 59 Removing the hard disk drives Notebook PC User Manual...
  • Page 60 Installing the hard disk drives Notebook PC User Manual...

  • Page 61: Memory (Ram)

    Memory (RAM) Additional memory will increase application performance by decreasing hard disk access. Visit an authorized service center or retailer for information on memory upgrades for your Notebook PC. Only purchase expansion modules from authorized retailers of this Notebook PC to ensure maximum compatibility and reliability.

  • Page 62: Connections

    5 or better (not category 3) with twisted-pair wiring. If you plan on running the interface at 100/1000Mbps, it must be connected to a 100 BASE-TX / 1000 BASE-T hub (not a BASE-T4 hub). For 10Base-T, use category 3, 4, or 5 twisted-pair wiring. 10/100 Mbps Full-Duplex is supported on this Notebook PC but requires connection to a network switching hub with “duplex”...
  • Page 63 Twisted-Pair Cable The cable used to connect the Ethernet card to a host (generally a Hub or Switch) is called a straight-through Twisted Pair Ethernet (TPE). The end connectors are called RJ-45 connectors, which are not compatible with RJ-11 telephone connectors. If connecting two computers together without a hub in between, a crossover LAN cable is required (Fast-Ethernet model).

  • Page 64: Wireless Lan Connection (On Selected Models)

    The optional built-in wireless LAN is a compact easy-to-use wireless Ethernet adapter. Implementing the IEEE 802.11 standard for wireless LAN (WLAN), the optional built-in wireless LAN is capable of fast data transmission rates using Direct Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM) technologies on 2.4GHz/5GHz frequencies.

  • Page 65: Infrastructure Mode

    Infrastructure mode The Infrastructure mode allows the Notebook PC and other wireless devices to join a wireless network created by an Access Point (AP) (sold separately) that provides a central link for wireless clients to communicate with each other or with a wired network.

  • Page 66: Antenna Connections (On Selected Models)

    Cable service connection can receive analog TV depending on paid services. The provided adapter is necessary to change the coaxial plug to fit the slim Notebook PC. Attach an NTSC to PAL adapter if necessary. Use an NTSC to PAL adapter if necessary.
  • Page 67 DTV antenna connection Connect the provided digital TV antenna to the Notebook PC using the cable adapter. The digital TV antenna can only receive digital TV signals broadcasted in selected regions. Digital television reception is available on selected models only and will vary by location depending on distance from transmission towers and obstructions.

  • Page 68: Windows Wireless Network Connection

    Windows Wireless Network Connection Connecting to a network Switch ON the Wireless function if necessary for your model (see switches in Section 3). Press [FN+F2] repeatedly until wireless LAN icon and Bluetooth icon are shown. Or double click the Wireless...
  • Page 69 When connecting, you may have to enter a password. After a connection has been established, the connection is shown on the list. You can see the wireless network icon in the Notification area. The crossed wireless network icon appears when you press <Fn>...

  • Page 70: Bluetooth Wireless Connection(On Selected Models)

    You can wireless connect to your mobile phone. Depending on your mobile phone’s capabilities, you can transfer phone book data, photos, sound files, etc. or use it as a modem to connect to the Internet. You may also use it for SMS messaging.
  • Page 71 Network and Internet > Network and Sharing Center and then click Change adapter settings in the left blue pane. Right-click Bluetooth Network Connection and select View Bluetooth Network Devices. Click Add a device to look for new devices. Notebook PC User Manual...
  • Page 72 Select a Bluetooth-enabled device from the list and click Next. Enter the Bluetooth security code into your device and start pairing. The paired relationship is successfully built. Click Close to finish the setting. Notebook PC User Manual...

  • Page 73: Appendix

    Appendix...

  • Page 74: Optional Accessories

    USB peripherals through a single cable. USB Flash Memory Disk A USB flash memory disk is an optional item that can provide storage up to several hundred megabytes, higher transfer speeds, and greater durability. When used in current operating systems, no drivers are necessary.

  • Page 75: Operating System And Software

    The support disc does not include the operating system itself. The support disc is necessary even if your Notebook PC came pre-configured in order to provide additional software not included as part of the factory pre-install.

  • Page 76: System Bios Settings

    System BIOS Settings The BIOS screens in this section are for reference only. The actual screens may differ by models and territories. Boot Device On the Boot screen, select Boot Option #1. Aptio Setup Utility - Copyright (C) 2009 American Megatrends, Inc.

  • Page 77: Security Setting

    Security Setting Aptio Setup Utility - Copyright (C) 2009 American Megatrends, Inc. Main Main Advanced Advanced Boot Boot Security Save & Exit Password Description Set the system boot order. If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup.

  • Page 78: Save Changes

    Save Changes If you want to keep your configuration settings, you must save changes before exiting the BIOS setup utility. If you want to restore default settings, choose Restore Defaults. You must then save changes to keep the manufacture default settings.

  • Page 79: Common Problems And Solutions

    Common Problems and Solutions Hardware Problem - Optical Disc The optical disc drive is not able to read or write discs. Update the BIOS to the latest version and try again. If updating the BIOS does not help, try better quality discs and try again.
  • Page 80 Check “Device Manager” to see if there are any problems. Try reinstalling the webcam driver to solve the problem. If the problem is not solved, update the BIOS to the latest version and try again. If the problem still exist, contact your local service center and ask an engineer for assistance.
  • Page 81 Why is the cooling fan always ON and the temperature high? Make sure that the FAN works when the CPU temperature is high and check whether there is air flow from the main air vent. If you have many applications running (see taskbar), close them to decrease system load.
  • Page 82 Internet firewall to protect yourself from viruses. Software Problem - ASUS bundled software When I power ON the Notebook PC, there will be an “Open policy file error” message. A. Reinstall the latest version “Power4 Gear” utility to solve your problem.
  • Page 83 If problem still cannot be solved, use the recovery process to reinstall your entire system. IMPORTANT! You must backup all your data to another location before recovering. CAUTION! DO NOT connect to the Internet before you have installed an anti-virus software and Internet firewall to protect yourself from viruses.

  • Page 84: Updating The Bios

    Updating the BIOS. Please verify the Notebook PC’s exact model and download the latest BIOS file for your model from the ASUS website and save it in your flash disk drive. Connect your flash disk drive to the Notebook PC and power on the Notebook PC.

  • Page 85: Recovering Your Notebook Pc

    The Recovery Partition quickly restores your Notebook PC’s software to its original working state. Before using the Recovery Partition, copy your data files (such as Outlook PST files) to USB storage devices or to a network drive and make note of any customized configuration settings (such as network settings).

  • Page 86: Using Recovery Dvd (On Selected Models

    Recover Windows to entire HD with two partitions. This option deletes all partitions from your hard drive and creates two new partitions “C” (25%) and “D” (75%). Follow the onscreen instructions to complete the recovery process. Visit the ASUS website at www.asus.com for updated drivers and utilities.

  • Page 87: Using The Recovery Dvd

    Follow the onscreen instructions to complete the recovery process. WARNING: DO NOT remove the Recovery disc, unless instructed to do so, during the recovery process or else your partitions will be unusable. Ensure to connect the power adapter to your Notebook PC when performing system recovery.

  • Page 88: Dvd-Rom Drive Information

    “Region Definitions” below. Copyright laws require that all DVD movies be limited to a particular region (usually coded to the region at which it is sold). While DVD movie content may be released for multiple regions, CSS design rules require that any system capable of playing CSS encrypted content must only be capable of playing one region.

  • Page 89: Region Definitions

    Region 1 Canada, US, US Territories Region 2 Czech, Egypt, Finland, France, Germany, Gulf States, Hungary, Iceland, Iran, Iraq, Ireland, Italy, Japan, Netherlands, Norway, Poland, Portugal, Saudi Arabia, Scotland, South Africa, Spain, Sweden, Switzerland, Syria, Turkey, UK, Greece, Former Yugoslav Republics, Slovakia...

  • Page 90: Internal Modem Compliancy

    Overview On 4th August 1998 the European Council Decision regarding the CTR 21 has been published in the Official Journal of the EC. The CTR 21 applies to all non voice terminal equipment with DTMF-dialling which is intended to be connected to the analogue PSTN (Public Switched Telephone Network).

  • Page 91: Network Compatibility Declaration

    It will also advise the user to contact the vendor if it is desired to use the equipment on another network.”...
  • Page 92 This table shows the countries currently under the CTR21 standard. Country Applied More Testing Austria Belgium Czech Republic Not Applicable Denmark Finland France Germany Greece Hungary Not Applicable Iceland Ireland Italy Still Pending Still Pending Israel Lichtenstein Luxemburg The Netherlands...
  • Page 93 For updates to this table, you may visit http://www.cetecom. de/technologies/ctr_21.html 1 National requirements will apply only if the equipment may use pulse dialling (manufacturers may state in the user guide that the equipment is only intended to support DTMF signalling, which would make any additional testing superfluous).

  • Page 94: Declarations And Safety Statements

    This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 95: Fcc Radio Frequency (Rf) Exposure Caution Statement

    “The manufacture declares that this device is limited to Channels 1 through 11 in the 2.4GHz frequency by specified firmware controlled in the USA.” This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

  • Page 96: Ce Marking

    2006/95/EC “Low voltage directive” . CE marking for devices with wireless LAN/ Bluetooth This equipment complies with the requirements of Directive 1999/5/ EC of the European Parliament and Commission from 9 March, 1999 governing Radio and Telecommunications Equipment and mutual recognition of conformity.

  • Page 97: Wireless Operation Channel For Different Domains

    10mW for the entire 2.4 GHz band (2400 MHz–2483.5 MHz) • 100mW for frequencies between 2446.5 MHz and 2483.5 MHz Channels 10 through 13 inclusive operate in the band 2446.6 MHz to 2483.5 MHz. There are few possibilities for outdoor use: On private property or on...
  • Page 98 89 Yonne 90 Territoire de Belfort 94 Val de Marne This requirement is likely to change over time, allowing you to use your wireless LAN card in more areas within France. Please check with ART for the latest information (www.art-telecom.fr) Your WLAN Card transmits less than 100mW, but more than 10mW.

  • Page 99: Ul Safety Notices

    • DO NOT use the Notebook PC near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool. • DO NOT use the Notebook PC during an electrical storm. There may be a remote risk of electric shock from lightning.

  • Page 100: Power Safety Requirement

    (earthed) in accordance with ANSI/NFPA 70, the National Electrical Code (NEC), in particular Section 820.93, Grounding of Outer Conductive Shield of a Coaxial Cable – installation should include bonding the screen of the coaxial cable to the earth at the building entrance. REACH...

  • Page 101: Nordic Lithium Cautions (For Lithium-Ion Batteries

    Dispose of used batteries according to the manufacturer’s instructions. (English) ATTENZIONE! Rischio di esplosione della batteria se sostituita in modo errato. Sostituire la batteria con un una di tipo uguale o equivalente consigliata dalla fabbrica. Non disperdere le batterie nell’ambiente. (Italian) VORSICHT! Explosionsgefahr bei unsachgemäßen Austausch der...

  • Page 102: Optical Drive Safety Information

    Internal or external optical drives sold with this Notebook PC contains a CLASS 1 LASER PRODUCT. Laser classifications can be found in the glossary at the end of this user’s manual. WARNING! Making adjustments or performing procedures other than those specified in the user’s manual may result in hazardous laser exposure.

  • Page 103: Macrovision Corporation Product Notice

    Macrovision Corporation Product Notice This product incorporates copyright protection technology that is protected by method claims of certain U.S.A. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation .

  • Page 104: Ctr 21 Approval(For Notebook Pc With Built-In Modem

    CTR 21 Approval (for Notebook PC with built-in Modem) Danish Dutch English Finnish French German Greek Italian Portuguese A-32 Notebook PC User Manual...
  • Page 105 Spanish Swedish Notebook PC User Manual A-33...

  • Page 106: European Union Eco-Label

    European Union Eco-label This Notebook PC has been awarded the EU Flower label, which means that this product has the following characteristics: Decreased energy consumption during use and stand-by modes. Limited use of toxic heavy metals. Limited use of substances harmful to the environment and health.

  • Page 107: Global Environmental Regulation Compliance And Declaration

    Declaration ASUS follows the green design concept to design and manufacture our products, and makes sure that each stage of the product life cycle of ASUS product is in line with global environmental regulations. In addition, ASUS disclose the relevant information based on regulation requirements.
  • Page 108 This product is protected by one or more of the following U.S. Patents 7,416,423; 7,415,588; 7,413,402; 7,411,791; 7,403,378; 7,400,721; 7,399,011; 7,392,968; 7,388,754; 7,388,752; 7,388,743; 7,382,605; 7,382,314; 7,375,952; 7,374,433; 7,373,493; 7,369,402; 7,369,064; 7,362,568; 7,362,521; 7,362,276; 7,361,034; 7,359,209; 7,359,189; 7,355,372; 7,353,408; 7,352,586; 7,343,645; 7,342,777; 7,342,193;...

  • Page 109: Copyright Information

    No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC.

  • Page 110: Limitation Of Liability

    ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement. This limit also applies to ASUS’ suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your reseller are collectively responsible.
  • Page 111 Notebook PC User Manual A-39...
  • Page 112 Manufacturer ASUSTek COMPUTER INC. Address, City No. 150, LI-TE RD., PEITOU, TAIPEI 112, TAIWAN R.O.C Country TAIWAN Authorized Representative ASUS COMPUTER GmbH in Europe Address, City HARKORT STR. 21-23, 40880 RATINGEN Country GERMANY A-40 Notebook PC User Manual...
