  • Page 1 INSTRUCTION MANUAL DISHWASHER...

  • Page 2: Table Of Contents

    5.1 General warnings and recommendations ________________________________________ 17 Thank you for choosing this product. We advise you to carefully read all the instructions contained in this manual, in order to understand how to operate your dishwasher safely and correctly. The manual is divided into paragraphs, which provide a step by step description of the dishwasher functions, with clear instructions accompanied by detailed illustrations.

  • Page 3: Safety And Operating Instructions

    DESCRIBED ABOVE. THE NAME PLATE FEATURING THE TECHNICAL DATA, SERIAL NUMBER AND MARKINGS IS VISIBLY POSITIONED ON THE INNER EDGE OF THE DOOR. THE NAME PLATE ON THE INNER EDGE OF THE DOOR MUST NEVER BE REMOVED. DO NOT LEAVE THE DISCARDED PACKAGING MATERIALS UNSUPERVISED WITHIN THE HOME. SEPARATE THE VARIOUS MATERIALS WHICH MAKE UP THE PACKAGING AND TAKE THEM TO THE NEAREST SORTED WASTE COLLECTION CENTRE.

  • Page 4: Safety Instructions

    IN MODELS EQUIPPED WITH THE AQUSTOP DEVICE, THERE IS A SOLENOID VALVE INSIDE THE WATER INTAKE HOSE. DO NOT CUT THE HOSE AND DO NOT ALLOW THE SOLENOID VALVE TO DROP INTO WATER. IN THE EVENT OF DAMAGE TO THE WATER INTAKE HOSE, DISCONNECT THE APPLIANCE FROM THE ELECTRICAL POWER SUPPLY AND FROM THE WATER SUPPLY.

  • Page 5: Installation And Hook-Up

    Water supply connection Preventing the risk of clogging or damage: if the water pipe is new or has not been used for a long time, before connecting to the water supply check that the water is clear and free of impurities, to prevent damage to the appliance.

  • Page 6: Electrical Connection

    3 m) the drain hose can be placed at a maximum height of 85 cm from the ground. Electrical connection Plug the power cord into a suitable electrical outlet, according to the instructions given in chapter "1. Safety and operating instructions".

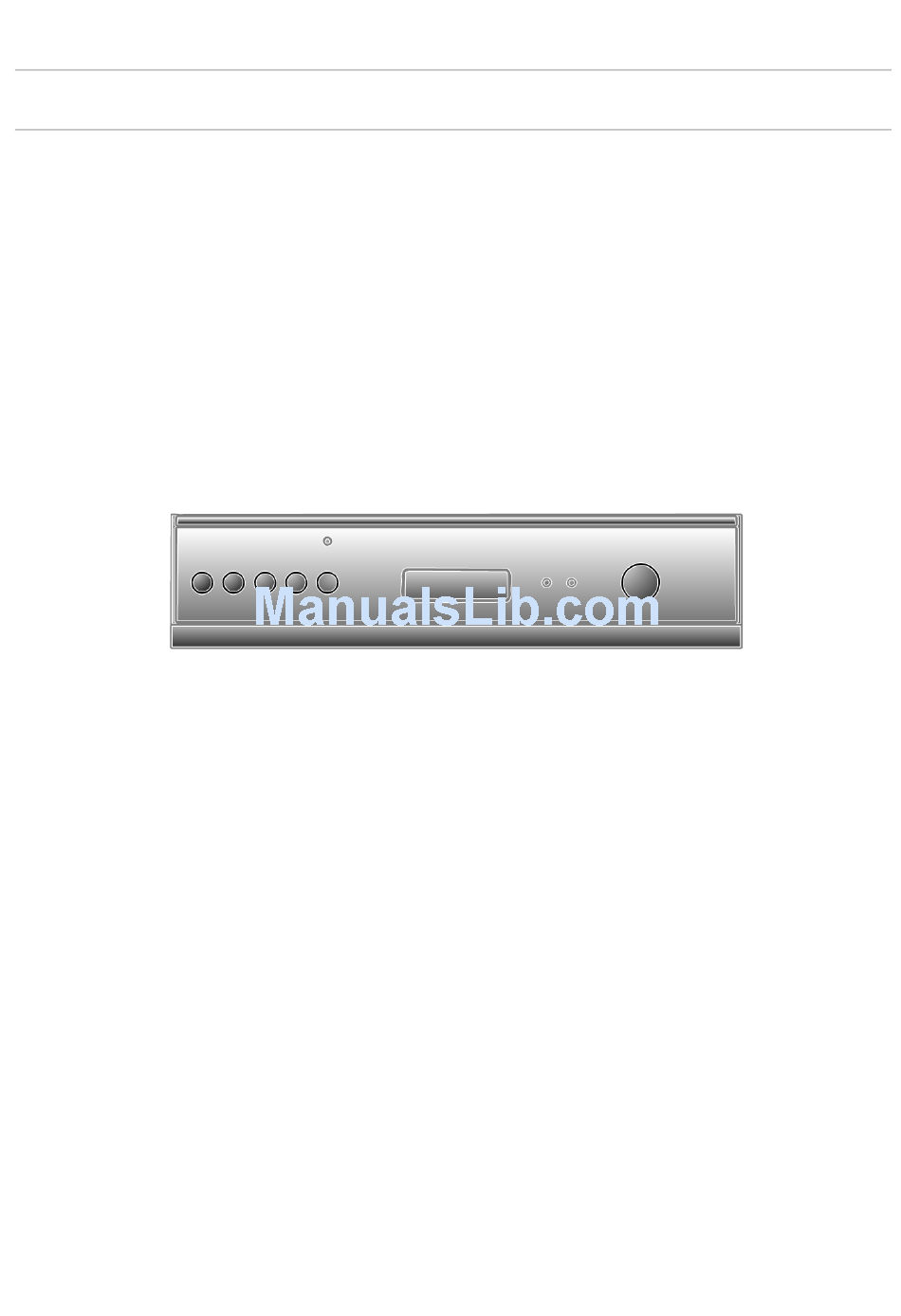

  • Page 7: Description Of The Controls

    If necessary, depending on the program chosen, press one of the keys (3,4,5 or 6) allowing selection of the ½ LOAD or 55°C wash or the SUPER or RAPID programs. Now simply pressing the ON/OFF key (2) will start the program. The PILOT LIGHT (7) lights up.
  • Page 8 (**) Reference program as per EN 50242 standard. – ) Not present. (1) Average power consumption with the softener set on level 2. (2) The cycle duration and power consumption may vary according to the water and room temperatures, and the type and amount of dishes.

  • Page 9: Washing Programs

    User instructions The washing cycle will not take place if the dishwasher door is left open or not properly closed. TABLE FOR CERTIFICATION BODIES Reference standard EN 50242 Selector on 3 + ECO 55°C button Reference program Load 12 place-settings...

  • Page 10: Cancelling Current Program

    This operation may negatively affective the progress of the washing cycle. END OF CYCLE At the end of the washing program the selector will be on one of the STOP markers, depending on the program carried out. Switch off the dishwasher by pressing the ON/OFF key (2) (see section "3.

  • Page 11: Operating Instructions

    The amount of rinse aid must be increased if the washed dishes appear dull or feature circular • stains. • If, on the other hand, the dishes are sticky or have white streaks, it is necessary to reduce the rinse aid setting.
  • Page 12 User instructions ADDING THE DETERGENT To open the detergent dispenser cap, lightly press the button P. Add the detergent and close the cap carefully. During the washing cycle, the dispenser will be opened automatically. When the SUPER program is selected, as well as the usual dose of detergent an extra amount •...

  • Page 13: General Warnings And Recommendations

    If in doubt as to the fastness of the colours, it is advisable to wash just a few items at a time for approximately one month.

  • Page 14: Using The Baskets

    The dishwasher has a capacity of 12 place-settings, including serving dishes. LOWER BASKET The lower basket receives the full force of the lower spray arm, and should therefore be used for the “toughest” items with a heavier degree of soiling. All types and combinations of loads are permitted, provided that the dishes, pots and pans are arranged with all the soiled surfaces exposed to the water jets coming from the bottom.
  • Page 15 Load the dishes with the top side facing forwards; cups and concave containers should always be loaded with the opening facing down. The left side of the basket can be loaded with cups and glasses on two levels. In the centre section, plates and saucers can be loaded vertically into the supports provided.

  • Page 16: Cleaning And Maintenance

    Clean the door gaskets with a damp sponge. Periodically (once or twice a year) it is advisable to clean the tank and gaskets, using a soft cloth and water to remove any deposits.
  • Page 17 D from the underside to remove it from the micro-filter: • separate the two parts which make up the plastic filter by pressing the body of the filter in the • zone shown by the arrows;...
  • Page 18 User instructions TROUBLESHOOTING MINOR PROBLEMS In some cases it is possible to remedy minor problems by referring to the following instructions: If the program fails to start, check that: the dishwasher is connected to the electrical power supply; • •...
  • Page 19 Height Free standing from 850 mm to 870 mm Semi-integrated from 820 mm to 870 mm Capacity Standard place settings Water supply pressure min. 50 – max. 900 KPa (min. 0.5 – max. 9 bar) Electrical characteristics See rating plate...
  • Page 20 Solosualcunimodelli Certainmodelsonly Seulementsurcertainsmodèles nurbeieinigeModellen Sóloenalgunosmodelos alleenindienvantoepassing...
  • Page 21 LATOSUPERIORE SUPERFICIEINTERNA SURFACEINTERNE BORDSUPERIEURE UPPEREDGE INNERSURFACE OBERKANTE INNENFLACHE...
  • Page 22 Solosualcunimodelli-Certainmodelsonly Seulementsurcertainsmodèles-nurbeieinigeModellen Sóloenalgunosmodelos-alleenindienvantoepassing Regolazionevitetensionemolle(12)-Coperturafotocontappoindotazione(13) DoorspringAdjustementdevice(12)-Coveringofholeusingcapprovided(13) Réglagedesressortsdelaporte(12)-Couverturedutrouaveclebouchonfourni(13) VorrichtungfürdieEinstellungderSpannungderTürfedem(12)- AbdeckendesLochsmitdemmitgeliefertenStopfen(13)
